Motatapu Details

PropertyValue
Rupture Count34,402
Ruptures Above Sect Min Mag34,400
Ruptures w/ Nonzero Rates559
Magnitude Range[6.93, 8.62]
Length Range[19, 963] km
Total Rate1.0591806E-4 /yr
Multi-Fault Rate4.6349425E-5 /yr (43.76%)
Directly-Connected Faults4
All Co-Rupturing Faults81

Table Of Contents

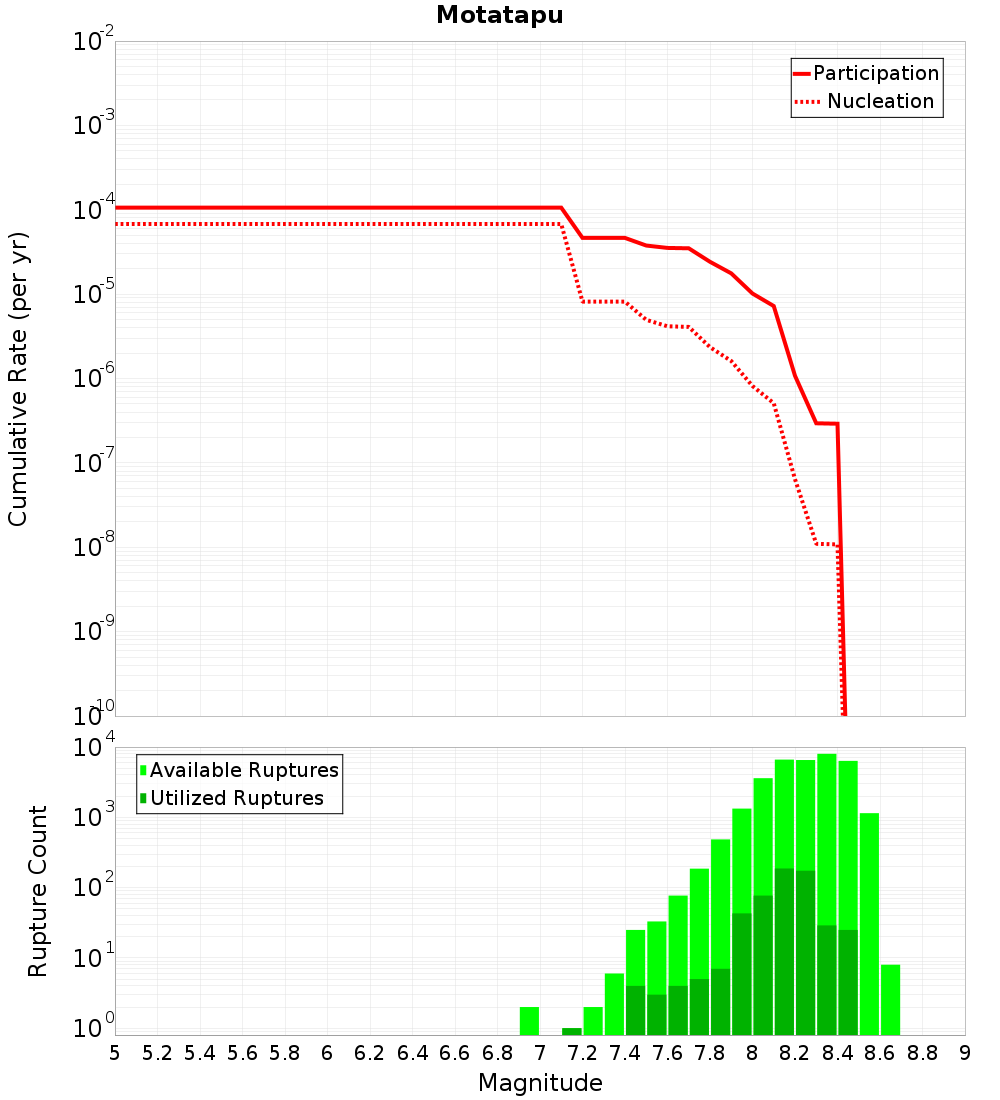

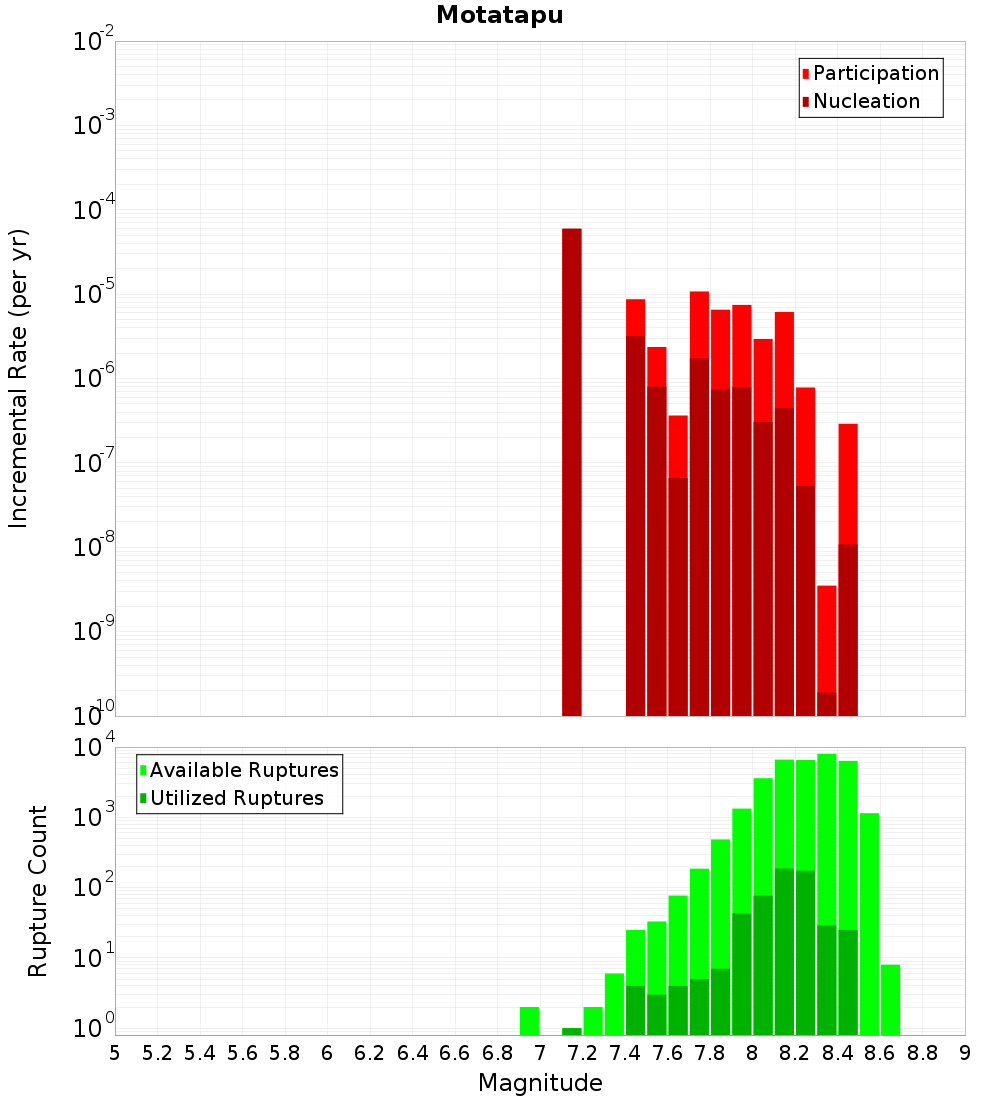

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
NW Cardrona North, 0.08 km away
Pisa, 0.13 km away
Cardrona - Hawea, 0.37 km away
Wanaka, 1.15 km away
Hunter Valley, 6.65 km away
Timaru Creek, 7.02 km away
Cluden, 8.83 km away
Paddys Ridge, 10.98 km away
Grandview, 11.63 km away
NW Cardrona South, 11.75 km away
Roaring Meg, 13.14 km away

NW Cardrona North, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTIuMGtRalZh
Connected?true
Directly Connected?true
Co-rupture Count8,491
Co-rupture Rate2.0685811E-5

Pisa, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTIuMGtRalZh
Connected?true
Directly Connected?true
Co-rupture Count27,331
Co-rupture Rate1.9608575E-5

Cardrona - Hawea, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTIuMGtRalZh
Connected?true
Directly Connected?true
Co-rupture Count2,938
Co-rupture Rate6.1621786E-6

Wanaka, 1.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTIuMGtRalZh
Connected?true
Directly Connected?true
Co-rupture Count31,948
Co-rupture Rate4.430746E-6

Hunter Valley, 6.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTIuMGtRalZh
Connected?true
Directly Connected?false
Co-rupture Count3,372
Co-rupture Rate5.0520985E-6

Timaru Creek, 7.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTIuMGtRalZh
Connected?true
Directly Connected?false
Co-rupture Count961
Co-rupture Rate2.32905E-6

Cluden, 8.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTIuMGtRalZh
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate2.1788615E-6

Paddys Ridge, 10.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTIuMGtRalZh
Connected?true
Directly Connected?false
Co-rupture Count143
Co-rupture Rate0.0

Grandview, 11.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTIuMGtRalZh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona South, 11.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTIuMGtRalZh
Connected?true
Directly Connected?false
Co-rupture Count5,116
Co-rupture Rate2.009452E-5

Roaring Meg, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTIuMGtRalZh
Connected?true
Directly Connected?false
Co-rupture Count4,158
Co-rupture Rate3.0557453E-6
