Waitangi Details

PropertyValue
Rupture Count157
Ruptures Above Sect Min Mag156
Ruptures w/ Nonzero Rates41
Magnitude Range[6.76, 7.80]
Length Range[18, 157] km
Total Rate5.558187E-5 /yr
Multi-Fault Rate5.558187E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults14

Table Of Contents

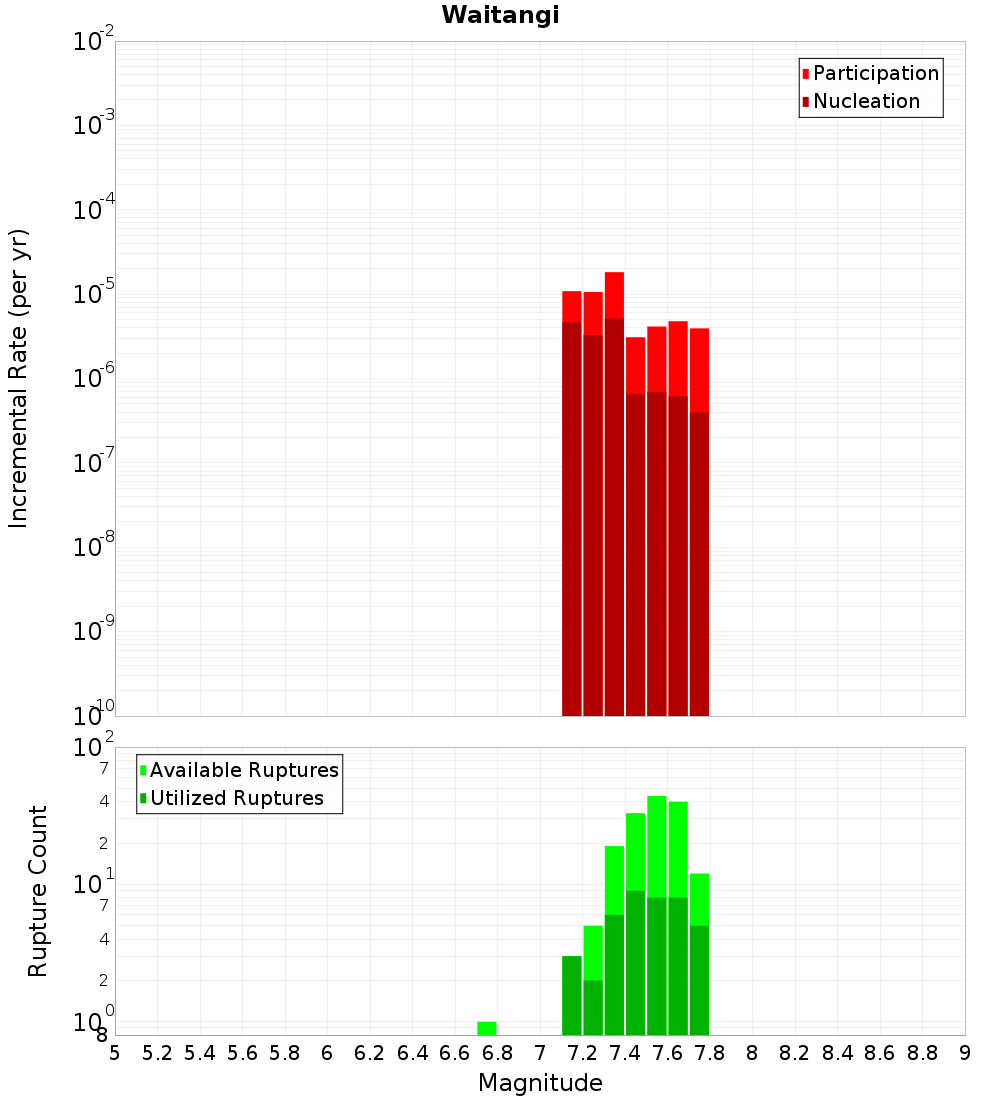

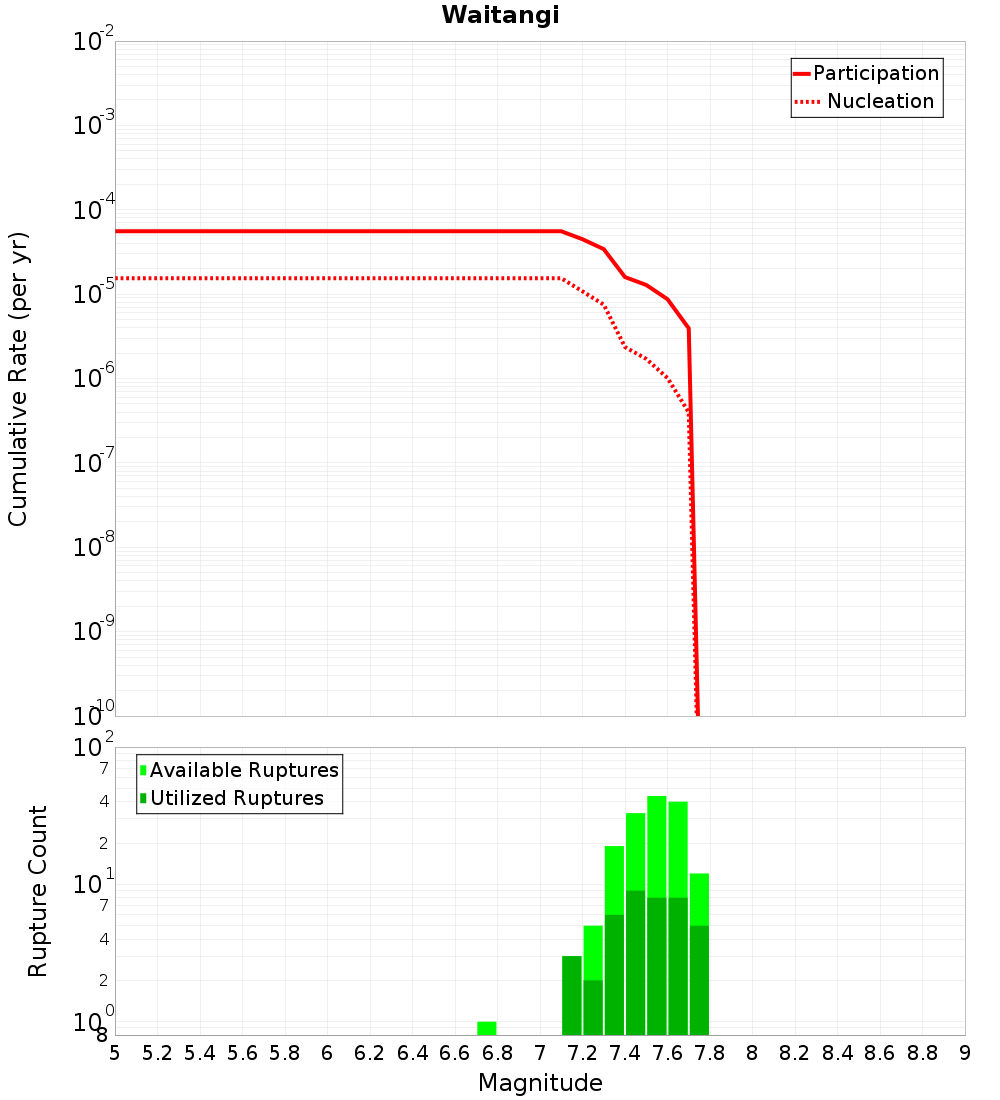

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

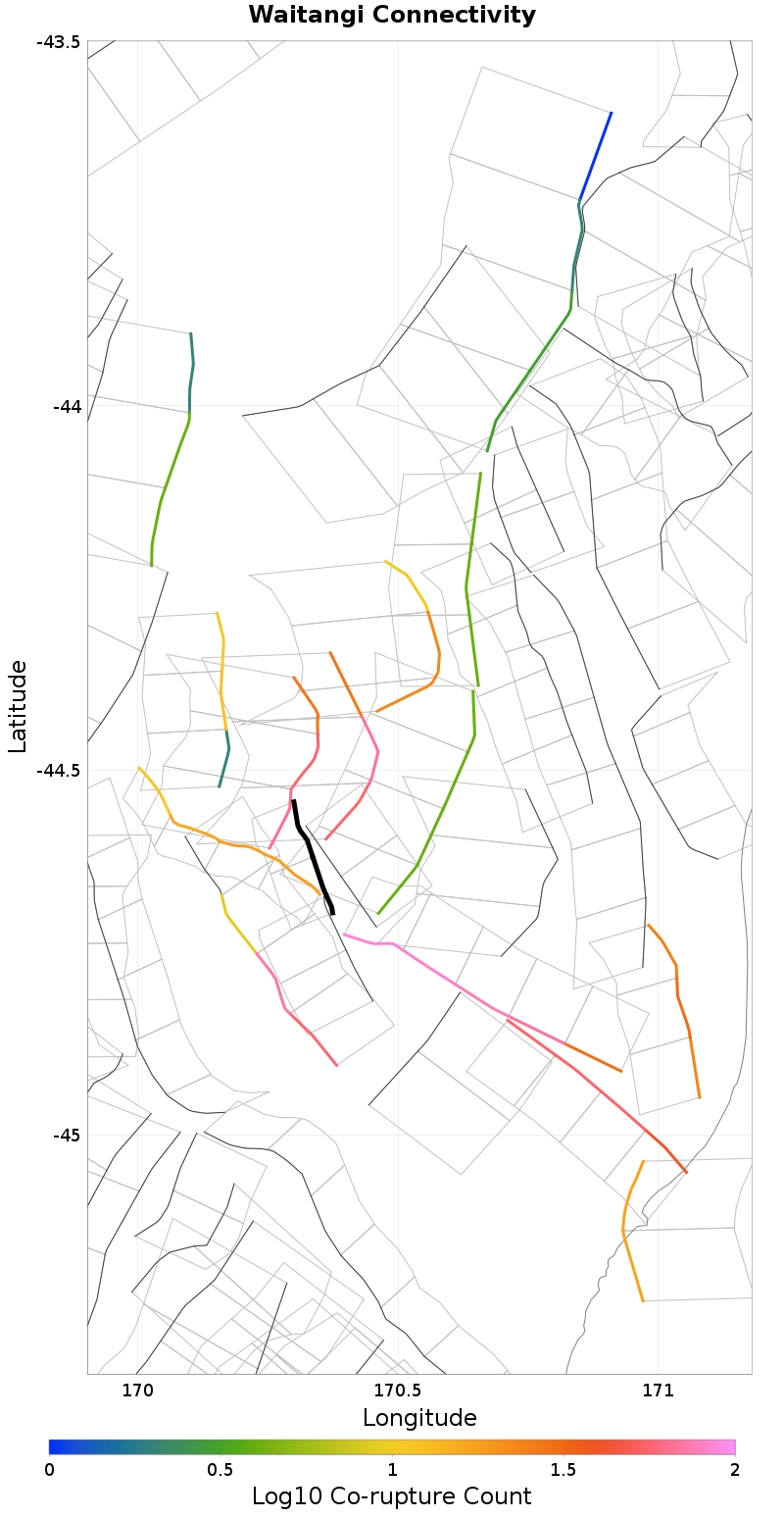

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mt Sutton, 0.22 km away
Fern Gully, 0.29 km away
Middle Range, 0.37 km away
Awahokomo, 0.42 km away
Gibson, 0.56 km away
Dryburgh, 1.08 km away
Kirkliston, 1.41 km away
Stonewall, 3.51 km away
Falstone, 11.14 km away
Campbell Hills, 12.79 km away
Grampian, 14.38 km away

Mt Sutton, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDIuMGp1bkNx
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate1.271949E-5

Fern Gully, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDIuMGp1bkNx
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate4.5604074E-6

Middle Range, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDIuMGp1bkNx
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate2.0511929E-5

Awahokomo, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDIuMGp1bkNx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibson, 0.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDIuMGp1bkNx
Connected?true
Directly Connected?true
Co-rupture Count64
Co-rupture Rate1.684248E-5

Dryburgh, 1.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDIuMGp1bkNx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 1.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDIuMGp1bkNx
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate5.107905E-6

Stonewall, 3.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDIuMGp1bkNx
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate9.6987515E-6

Falstone, 11.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDIuMGp1bkNx
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate2.7283259E-6

Campbell Hills, 12.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDIuMGp1bkNx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Grampian, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDIuMGp1bkNx
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate8.9328836E-7
