Ariel East Details

PropertyValue
Rupture Count187
Ruptures Above Sect Min Mag177
Ruptures w/ Nonzero Rates20
Magnitude Range[6.42, 7.79]
Length Range[11, 220] km
Total Rate5.95581E-4 /yr
Multi-Fault Rate5.95581E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults9

Table Of Contents

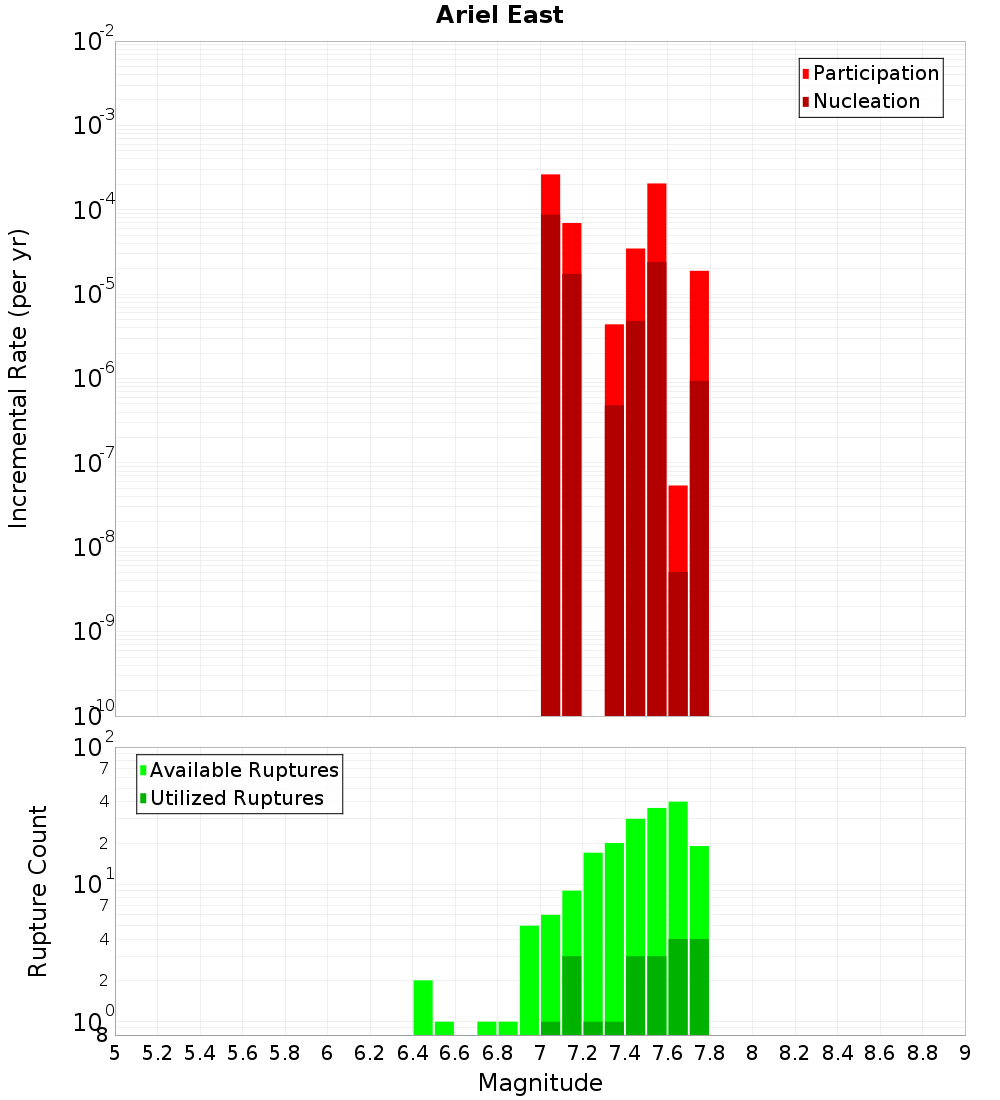

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

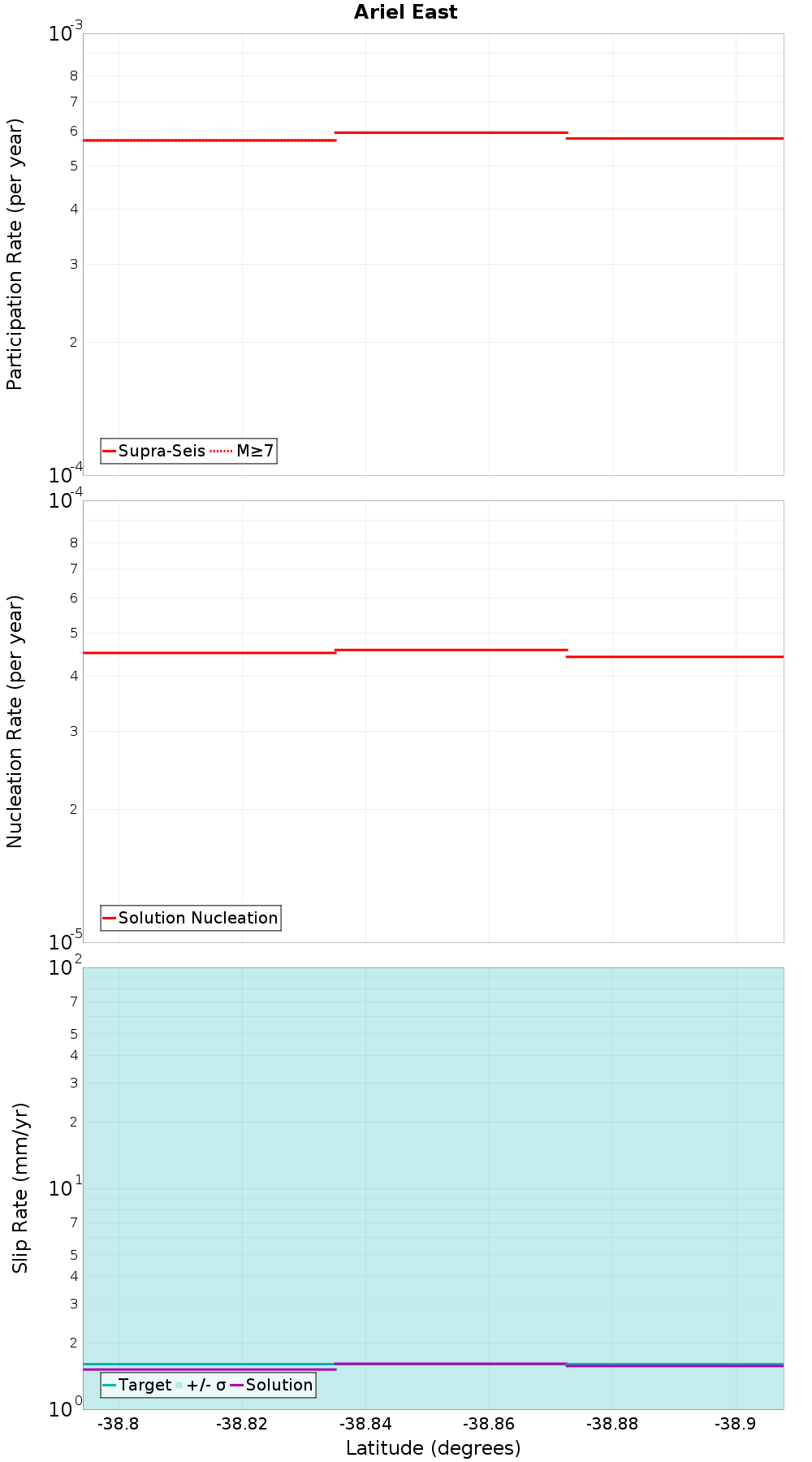

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

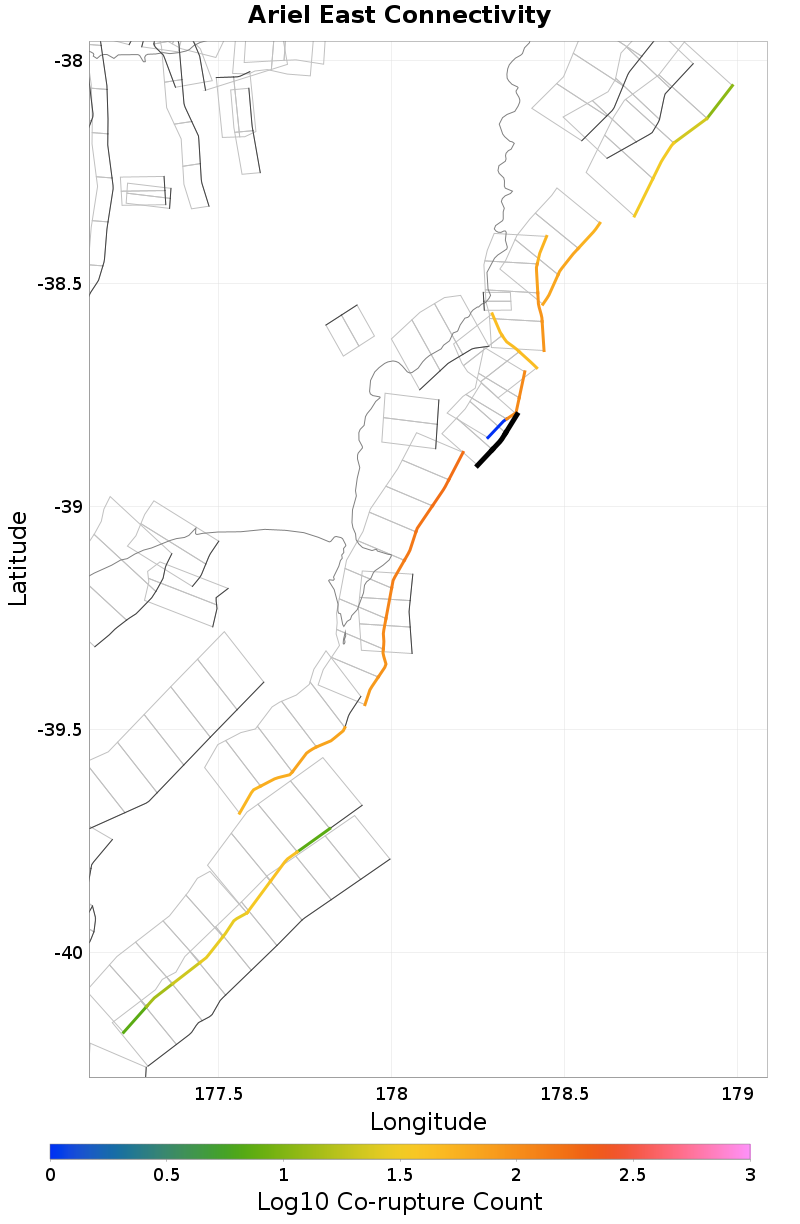

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Ikaarongamai, 0.48 km away
Ariel Bank, 0.48 km away
Lachlan 3, 3.12 km away
Poverty Bay, 7.83 km away
Gable End North, 9.29 km away
Gable End South, 13.13 km away

Te Ikaarongamai, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate5.722842E-4

Ariel Bank, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?true
Directly Connected?true
Co-rupture Count109
Co-rupture Rate2.8604636E-4

Lachlan 3, 3.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?true
Directly Connected?true
Co-rupture Count162
Co-rupture Rate2.4018704E-4

Poverty Bay, 7.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gable End North, 9.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?true
Directly Connected?false
Co-rupture Count89
Co-rupture Rate1.890033E-5

Gable End South, 13.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
