Flaxmore - Waimea - Tahunanui Details

PropertyValue
Rupture Count9,537
Ruptures Above Sect Min Mag9,528
Ruptures w/ Nonzero Rates1,355
Magnitude Range[6.95, 8.56]
Length Range[23, 971] km
Total Rate6.598333E-5 /yr
Multi-Fault Rate4.7741018E-5 /yr (72.35%)
Directly-Connected Faults7
All Co-Rupturing Faults71

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

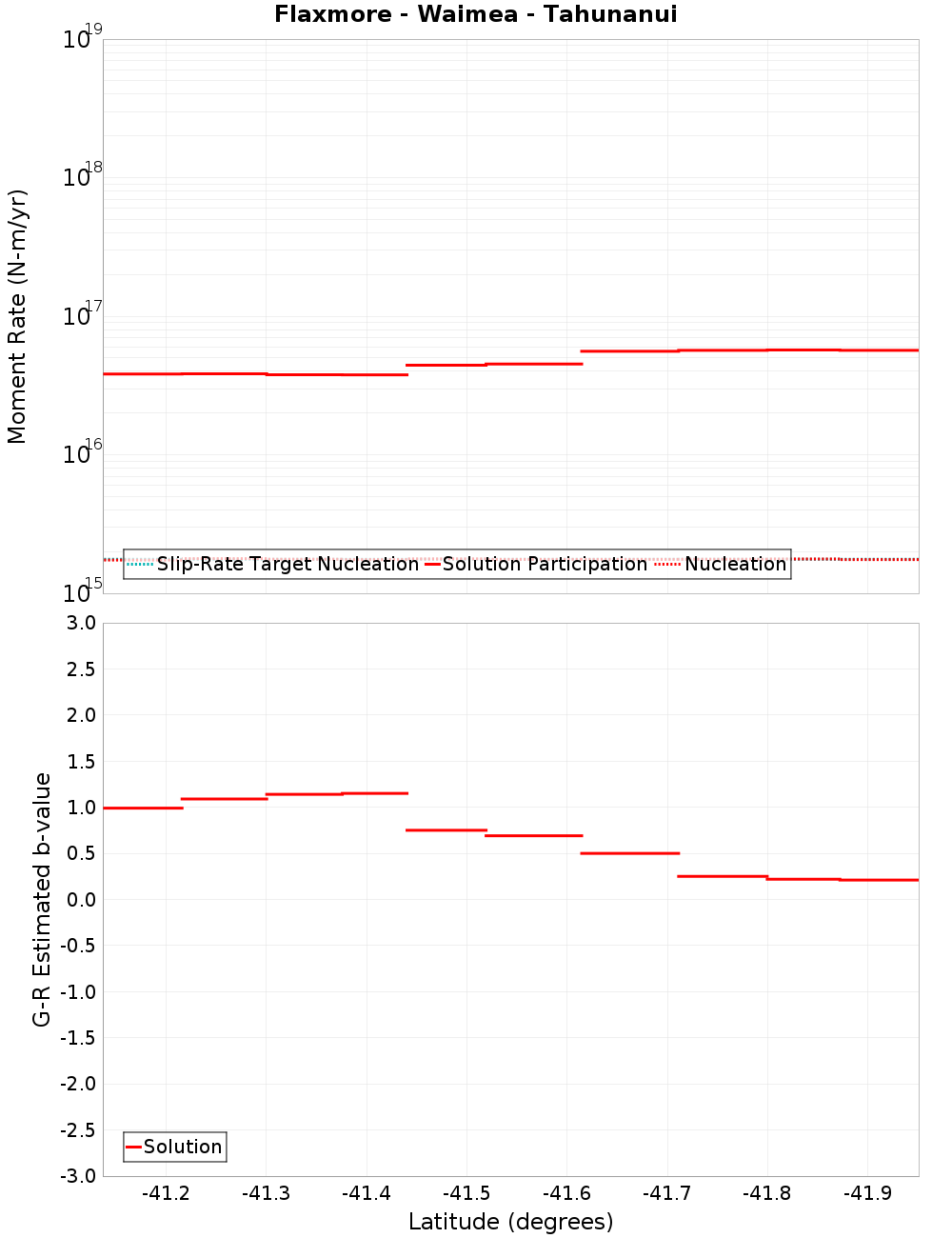

Moment-Rates and b-Values

(top)

Along-strike plot

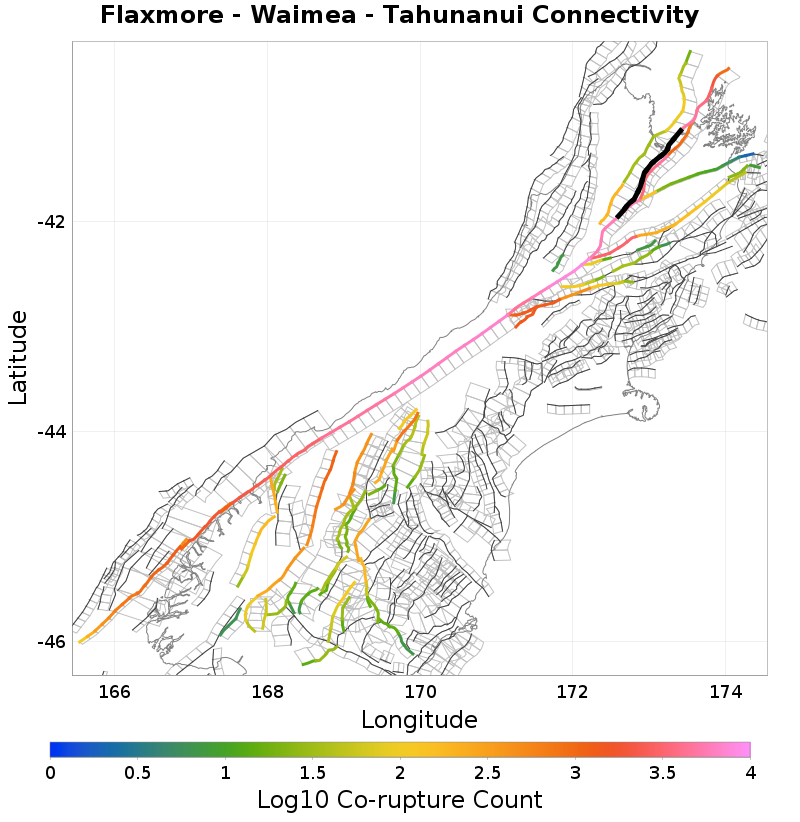

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimea Offshore, 0 km away
Wairau, 0.17 km away
Alpine: Springs Junction to Tophouse, 0.45 km away
Whangamoa, 2.28 km away
Tutaki, 2.49 km away
Surville, 8.79 km away
Ruby Bay - Moutere, 9.4 km away
Awatere: Southwest, 12.08 km away

Waimea Offshore, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?true
Directly Connected?true
Co-rupture Count4,756
Co-rupture Rate2.0701036E-5

Wairau, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?true
Directly Connected?true
Co-rupture Count136
Co-rupture Rate1.7314403E-10

Alpine: Springs Junction to Tophouse, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?true
Directly Connected?true
Co-rupture Count5,883
Co-rupture Rate1.50541555E-5

Whangamoa, 2.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?true
Directly Connected?true
Co-rupture Count4,716
Co-rupture Rate3.629675E-6

Tutaki, 2.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?true
Directly Connected?true
Co-rupture Count191
Co-rupture Rate7.4965044E-7

Surville, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?true
Directly Connected?false
Co-rupture Count130
Co-rupture Rate1.0677898E-7

Ruby Bay - Moutere, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?true
Directly Connected?true
Co-rupture Count36
Co-rupture Rate1.2061258E-10

Awatere: Southwest, 12.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?true
Directly Connected?true
Co-rupture Count3,354
Co-rupture Rate1.76813E-5
