Waiotahi: South Details

Property	Value
Rupture Count	5,890
Ruptures Above Sect Min Mag	5,888
Ruptures w/ Nonzero Rates	254
Magnitude Range	[7.04, 8.34]
Length Range	[26, 600] km
Total Rate	6.048057E-4 /yr
Multi-Fault Rate	3.967381E-4 /yr (65.60%)
Directly-Connected Faults	4
All Co-Rupturing Faults	64

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

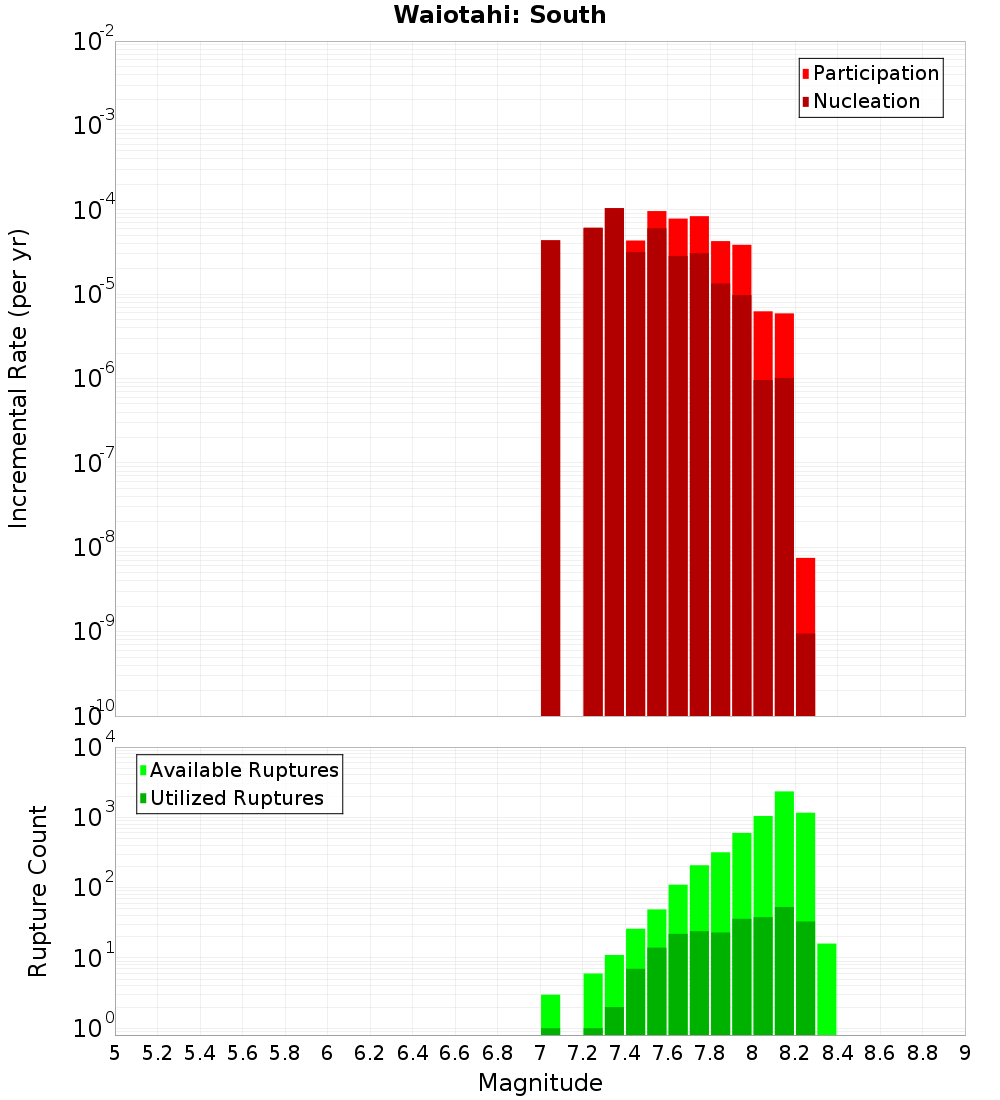

Magnitude-Frequency Distribution

Incremental	Cumulative

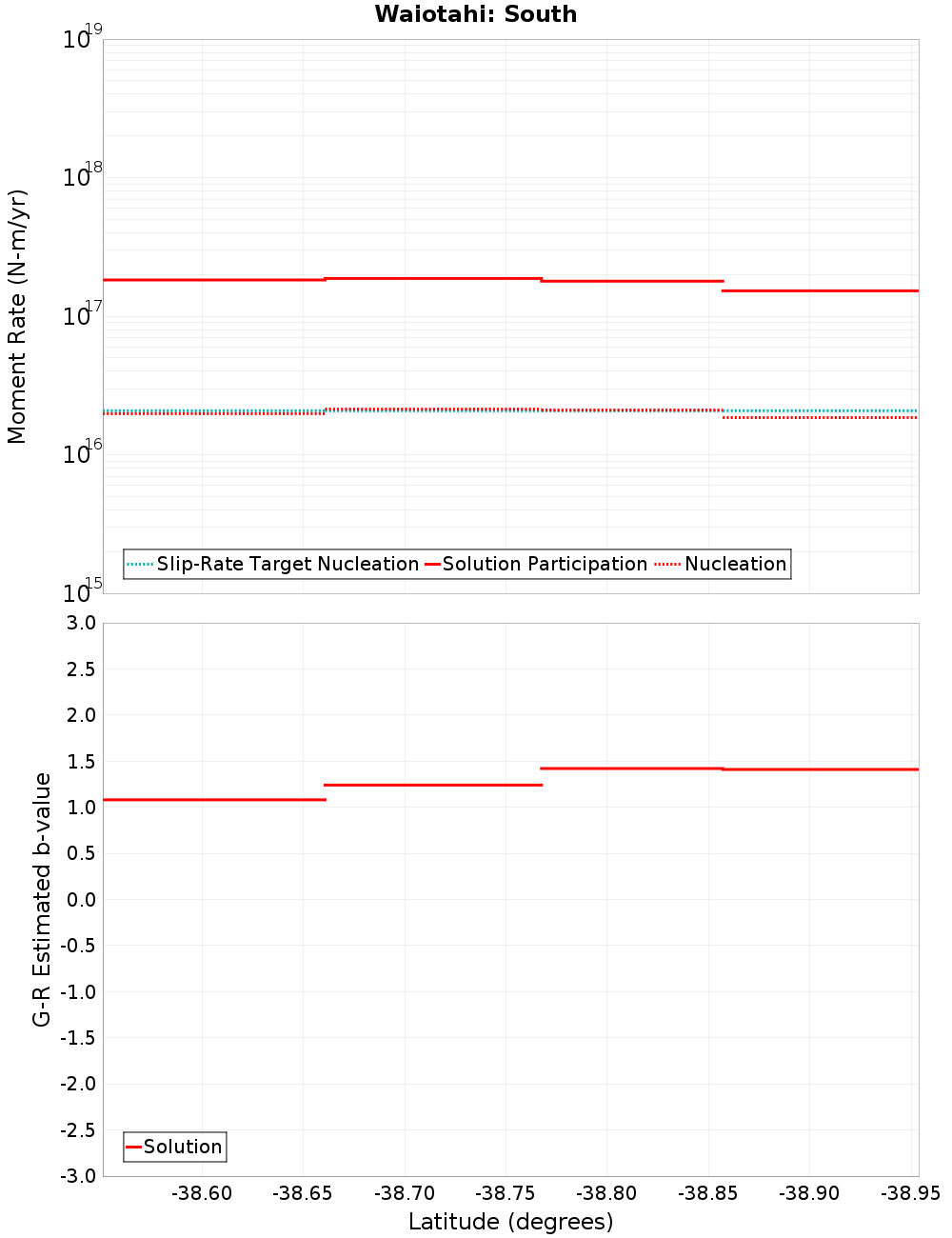

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waiotahi: North, 0 km away
Waimana: South, 2.15 km away
Waimana: North, 2.4 km away
Whakatane: South, 5.93 km away
Patoka - Rangiora, 7.72 km away
Whakatane: North, 10.84 km away
Mohaka: North, 11.48 km away
Waiohau: South, 12.21 km away

Waiotahi: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?	true
Directly Connected?	true
Co-rupture Count	2,893
Co-rupture Rate	1.7007066E-4

Waimana: South, 2.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?	true
Directly Connected?	true
Co-rupture Count	2,028
Co-rupture Rate	3.3933065E-5

Waimana: North, 2.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?	true
Directly Connected?	true
Co-rupture Count	2,191
Co-rupture Rate	2.1279791E-4

Whakatane: South, 5.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?	true
Directly Connected?	false
Co-rupture Count	40
Co-rupture Rate	3.1784202E-5

Patoka - Rangiora, 7.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?	true
Directly Connected?	false
Co-rupture Count	40
Co-rupture Rate	1.2277673E-5

Whakatane: North, 10.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	1.2646188E-5

Mohaka: North, 11.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?	true
Directly Connected?	true
Co-rupture Count	5,719
Co-rupture Rate	7.21438E-5

Waiohau: South, 12.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MDYuMHd2TGNU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
