Garvie Details

Property	Value
Rupture Count	9,385
Ruptures Above Sect Min Mag	9,384
Ruptures w/ Nonzero Rates	39
Magnitude Range	[7.37, 8.52]
Length Range	[37, 787] km
Total Rate	8.923403E-6 /yr
Multi-Fault Rate	8.923403E-6 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	66

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

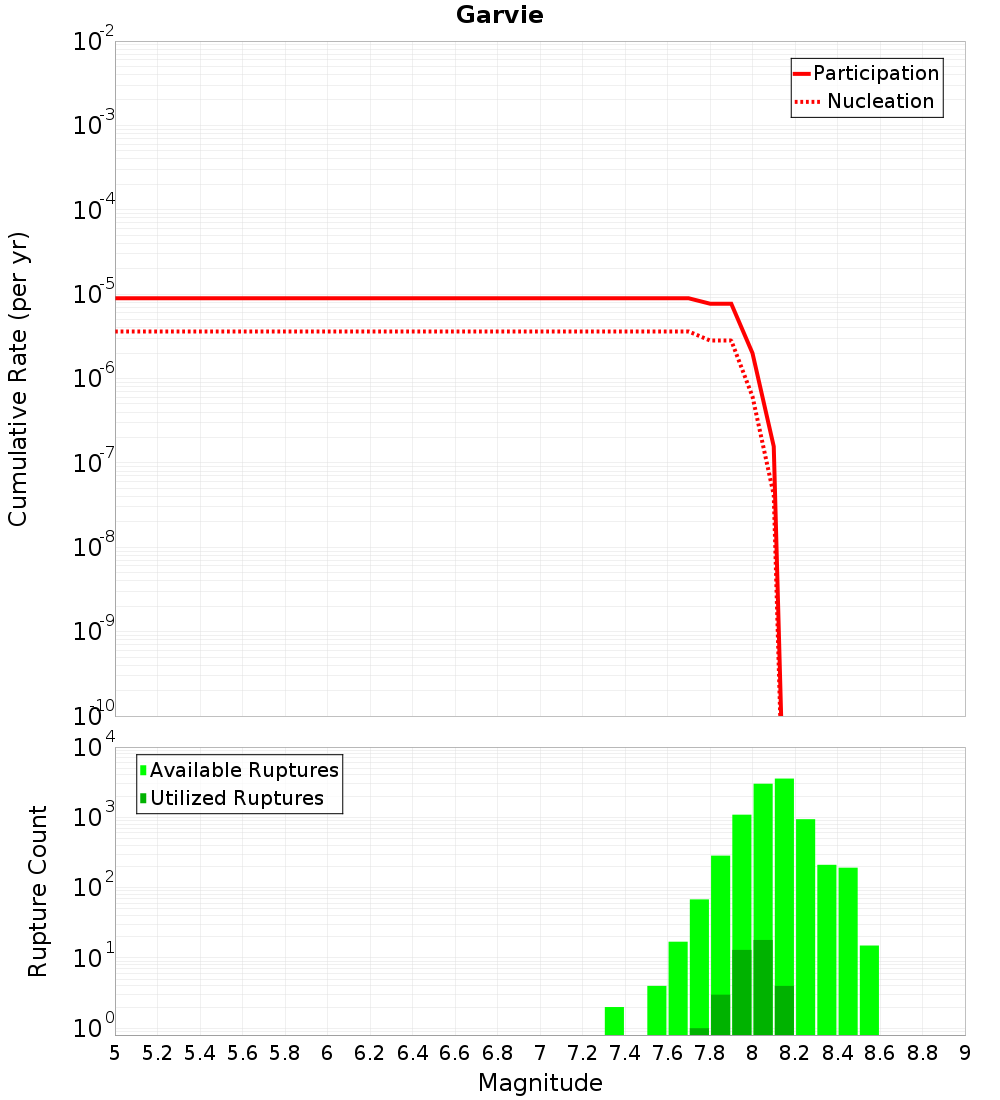

Magnitude-Frequency Distribution

Incremental	Cumulative

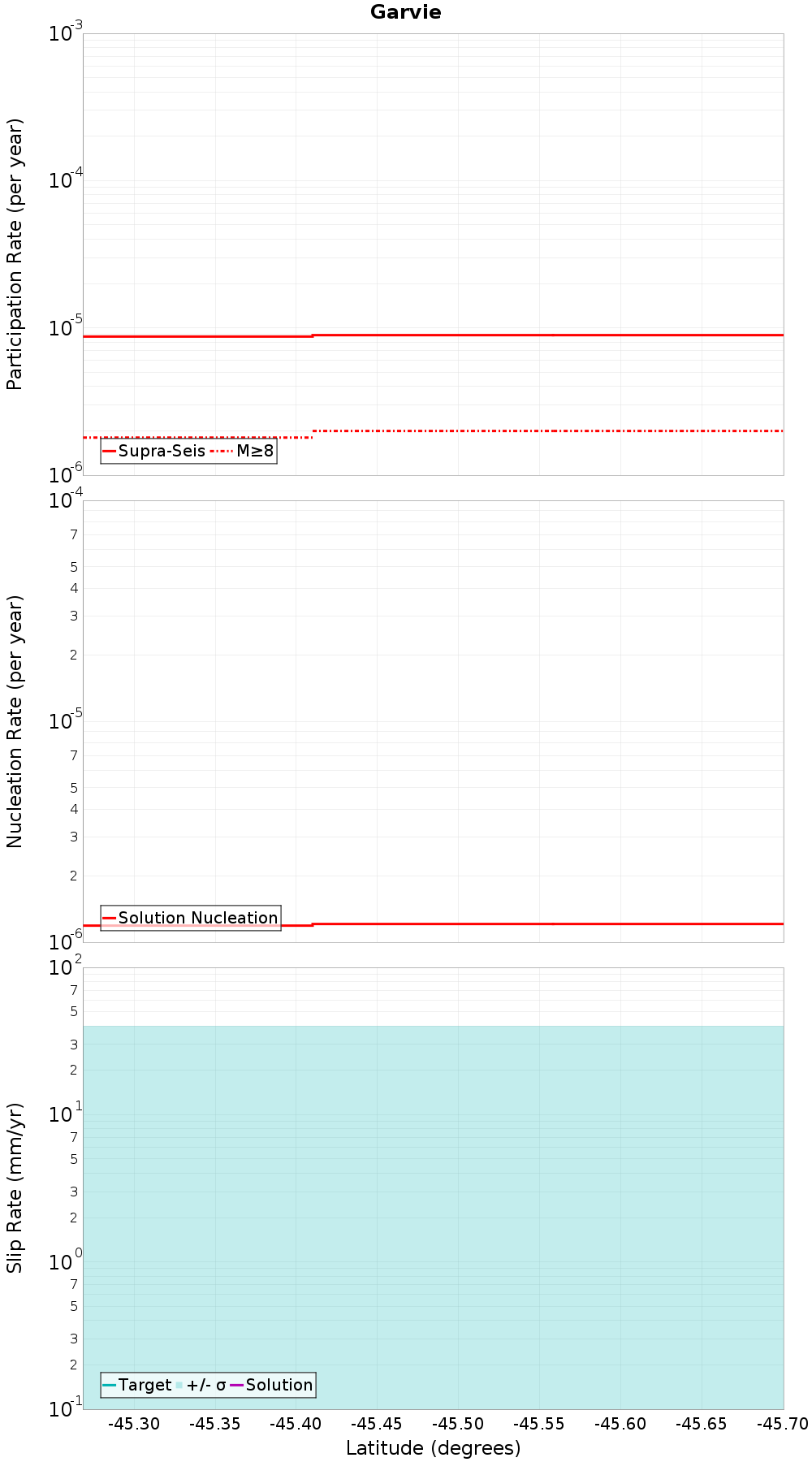

Along-Strike Values

Moment-Rates and b-Values

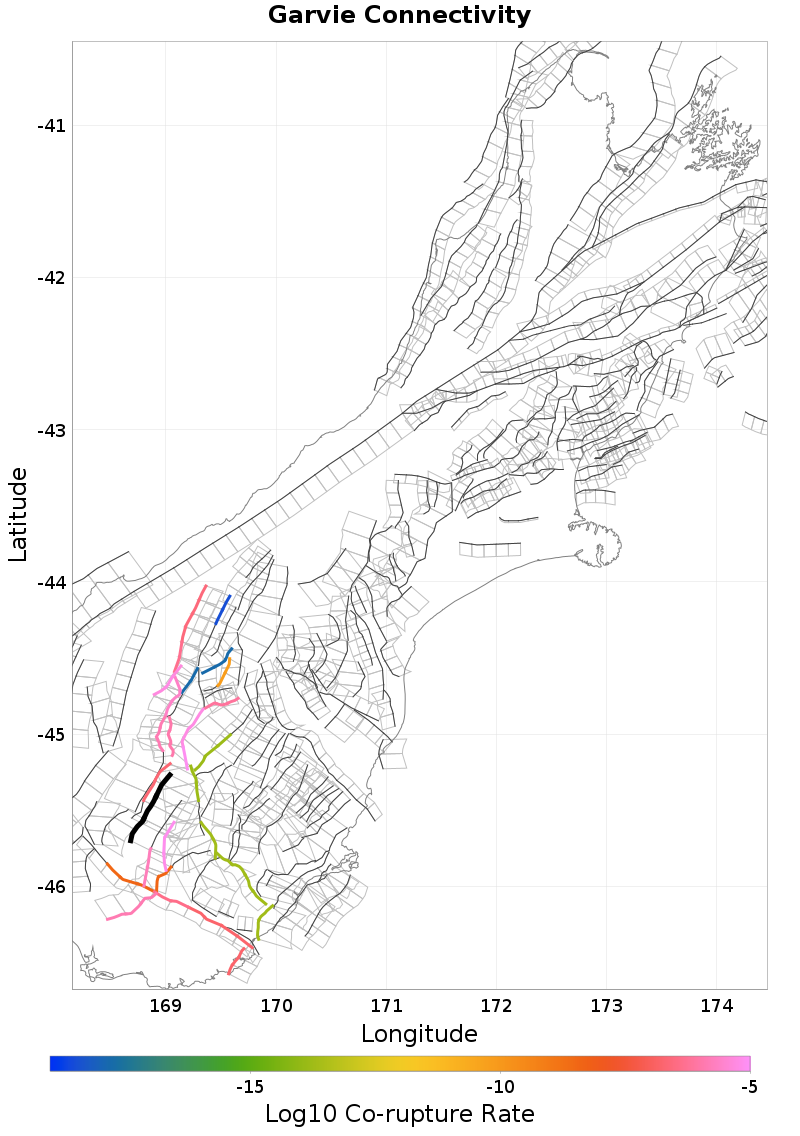

Connectivity

Nearby Sections

Fault Section
Teviot, 0.18 km away
Old Man, 0.22 km away
Waikaia, 1.7 km away
Roaring Lion, 2.74 km away
Waikaka, 4.17 km away
Wendon Valley, 5.65 km away
Nevis, 6.28 km away
Lake Onslow, 7.88 km away
Pisa, 8.36 km away
Galloway, 9.46 km away
Mid Dome, 11.14 km away
Dunstan, 12.95 km away
Roaring Meg, 14.21 km away

Teviot, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTAuMEF0TW9q
Connected?	true
Directly Connected?	true
Co-rupture Count	416
Co-rupture Rate	1.8759395E-14

Old Man, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTAuMEF0TW9q
Connected?	true
Directly Connected?	true
Co-rupture Count	3,408
Co-rupture Rate	1.5280727E-14

Waikaia, 1.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTAuMEF0TW9q
Connected?	true
Directly Connected?	true
Co-rupture Count	4,685
Co-rupture Rate	1.66514E-6

Roaring Lion, 2.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTAuMEF0TW9q
Connected?	true
Directly Connected?	true
Co-rupture Count	2,005
Co-rupture Rate	1.9803306E-7

Waikaka, 4.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTAuMEF0TW9q
Connected?	true
Directly Connected?	true
Co-rupture Count	2,780
Co-rupture Rate	3.9552135E-9

Wendon Valley, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTAuMEF0TW9q
Connected?	true
Directly Connected?	true
Co-rupture Count	51
Co-rupture Rate	7.2543075E-6

Nevis, 6.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTAuMEF0TW9q
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lake Onslow, 7.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTAuMEF0TW9q
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pisa, 8.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTAuMEF0TW9q
Connected?	true
Directly Connected?	true
Co-rupture Count	7,574
Co-rupture Rate	7.700856E-6

Galloway, 9.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTAuMEF0TW9q
Connected?	true
Directly Connected?	false
Co-rupture Count	289
Co-rupture Rate	0.0

Mid Dome, 11.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTAuMEF0TW9q
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dunstan, 12.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTAuMEF0TW9q
Connected?	true
Directly Connected?	false
Co-rupture Count	1,362
Co-rupture Rate	1.5280727E-14

Roaring Meg, 14.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTAuMEF0TW9q
Connected?	true
Directly Connected?	false
Co-rupture Count	1,176
Co-rupture Rate	1.0595998E-6
