Wharekauhau Details

PropertyValue
Rupture Count16,111
Ruptures Above Sect Min Mag16,107
Ruptures w/ Nonzero Rates1,016
Magnitude Range[6.91, 8.36]
Length Range[20, 640] km
Total Rate5.4772664E-4 /yr
Multi-Fault Rate5.4772664E-4 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults144

Table Of Contents

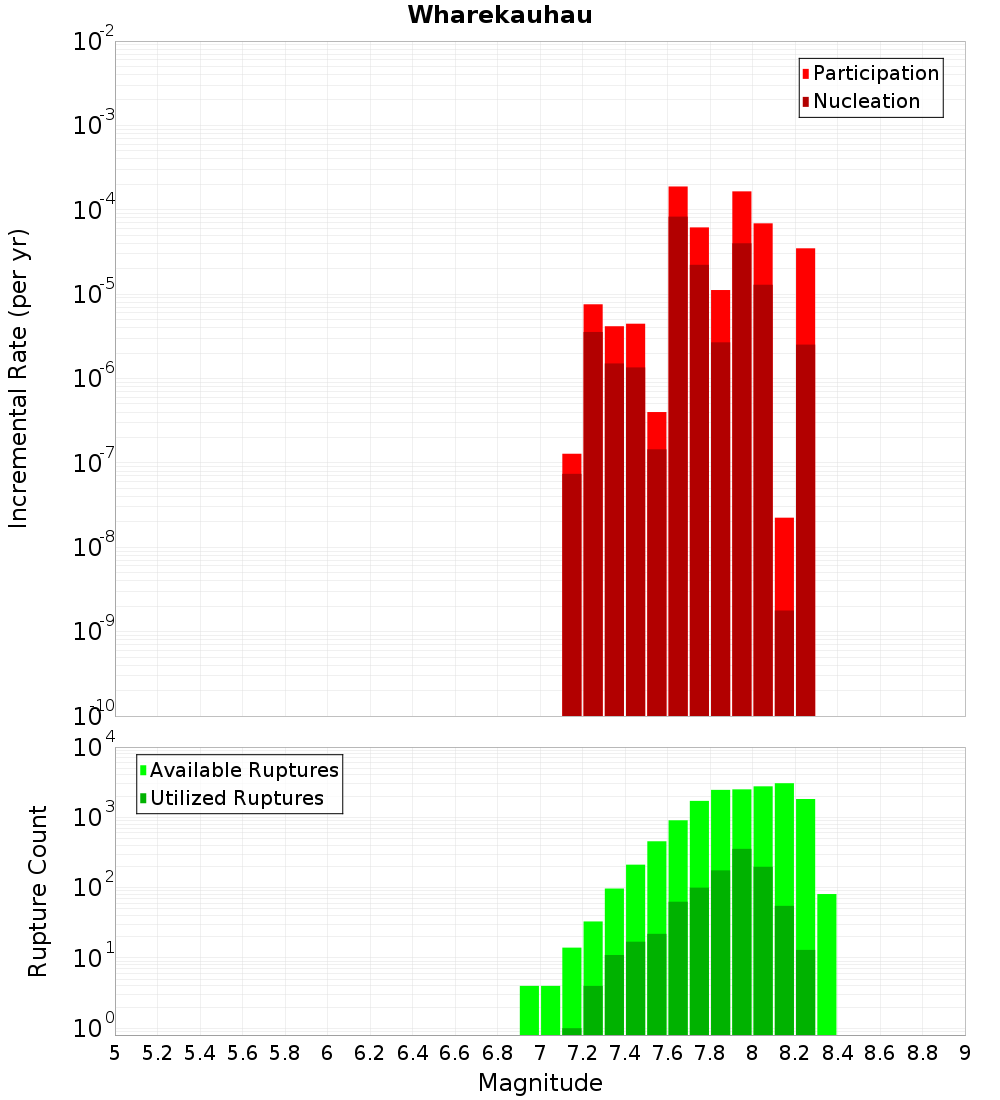

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

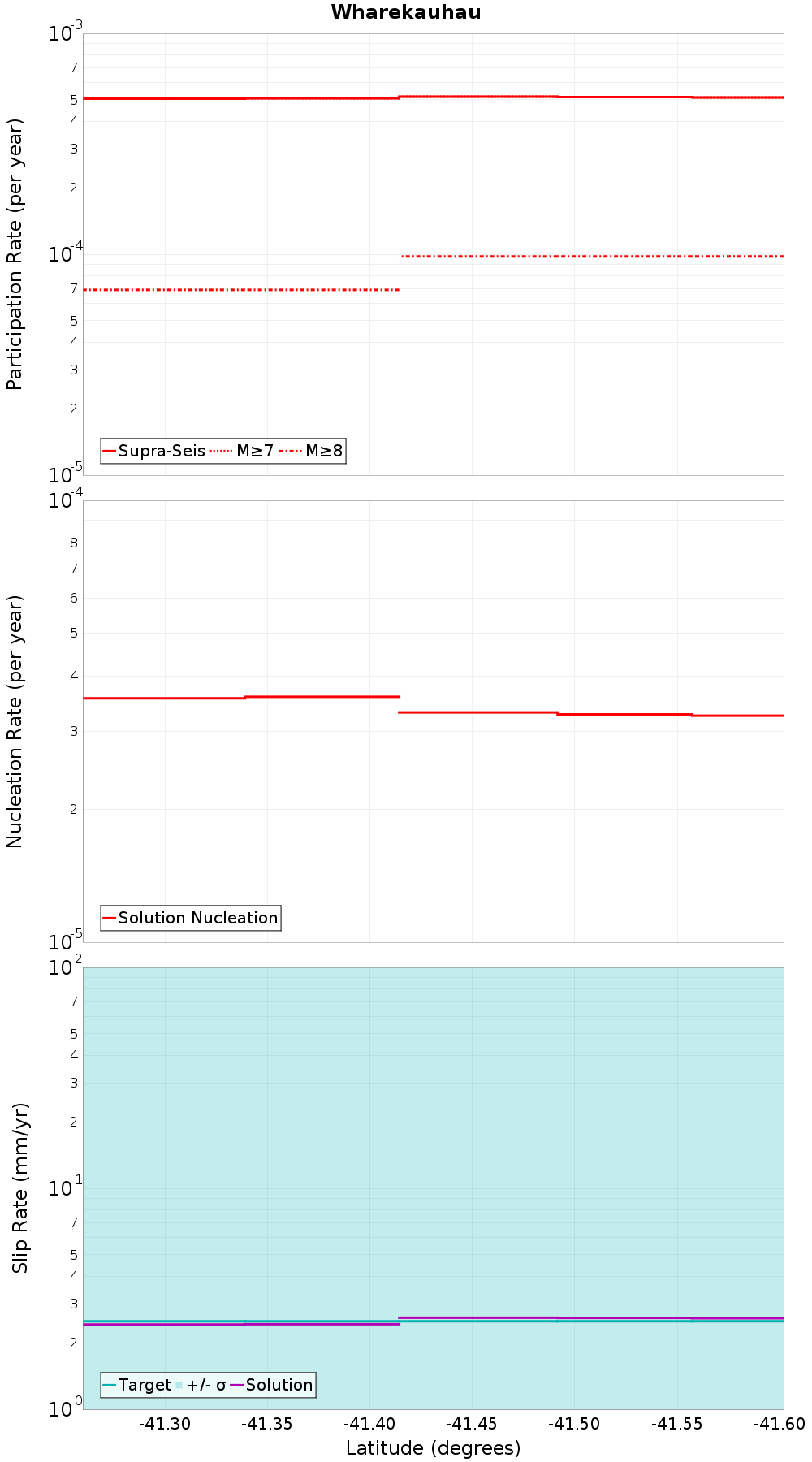

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

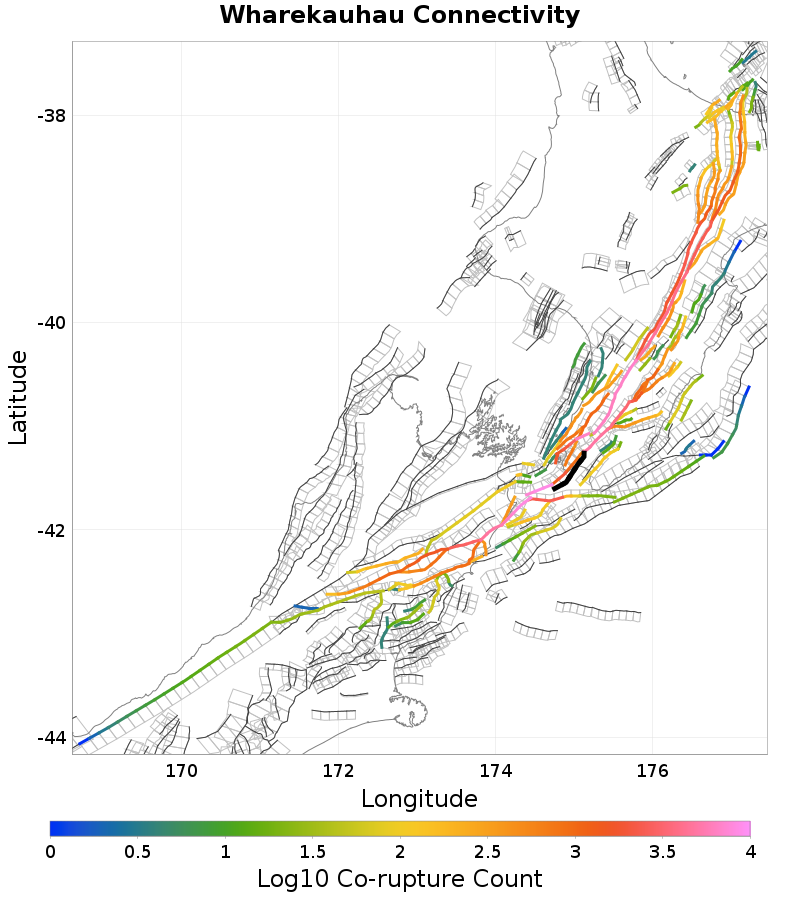

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington Hutt Valley: 4, 0.09 km awayWellington Hutt Valley: 2, 8.44 km away
Aotea - Evans Bay, 0.17 km awayOhariu, 10.05 km away
Wairarapa: 1, 0.2 km awayBooBoo, 10.67 km away
Wairarapa: Needles, 0.3 km awayWellington Hutt Valley: 1, 11.26 km away
Wairarapa: 2, 1.38 km awayWairau 3, 11.5 km away
Whitemans Valley, 3.03 km awayOtaraia, 12.78 km away
Wellington Hutt Valley: 5, 4.2 km awayDry River - Huangarua: 1, 12.89 km away
Moonshine, 4.93 km awayPukerua - Shepherds Gully: 3, 13.66 km away
Akatarawa, 6.44 km awayCampbell Bank, 13.94 km away
Wellington Hutt Valley: 3, 7.29 km away

Wellington Hutt Valley: 4, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?true
Co-rupture Count2,941
Co-rupture Rate6.080523E-5

Aotea - Evans Bay, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?true
Co-rupture Count1,668
Co-rupture Rate3.679582E-5

Wairarapa: 1, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?true
Co-rupture Count2,034
Co-rupture Rate2.8976132E-4

Wairarapa: Needles, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?true
Co-rupture Count8,440
Co-rupture Rate3.8758988E-4

Wairarapa: 2, 1.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?true
Co-rupture Count6,003
Co-rupture Rate4.4015143E-4

Whitemans Valley, 3.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?true
Co-rupture Count731
Co-rupture Rate4.4047842E-6

Wellington Hutt Valley: 5, 4.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?true
Co-rupture Count6,524
Co-rupture Rate5.9435795E-5

Moonshine, 4.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?true
Co-rupture Count989
Co-rupture Rate5.275933E-6

Akatarawa, 6.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?false
Co-rupture Count894
Co-rupture Rate7.8304987E-7

Wellington Hutt Valley: 3, 7.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Wellington Hutt Valley: 2, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?false
Co-rupture Count518
Co-rupture Rate9.920476E-6

BooBoo, 10.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?true
Co-rupture Count2,629
Co-rupture Rate8.9108005E-5

Wellington Hutt Valley: 1, 11.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate2.6819587E-6

Wairau 3, 11.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?false
Co-rupture Count88
Co-rupture Rate1.823983E-4

Otaraia, 12.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 1, 12.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?true
Co-rupture Count122
Co-rupture Rate1.7271221E-6

Pukerua - Shepherds Gully: 3, 13.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Campbell Bank, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTEuMERtUGpQ
Connected?true
Directly Connected?false
Co-rupture Count108
Co-rupture Rate5.0970386E-5
