Porters Pass Details

PropertyValue
Rupture Count4,167
Ruptures Above Sect Min Mag4,145
Ruptures w/ Nonzero Rates284
Magnitude Range[6.44, 8.25]
Length Range[12, 538] km
Total Rate0.0010325046 /yr
Multi-Fault Rate0.0010325046 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults65

Table Of Contents

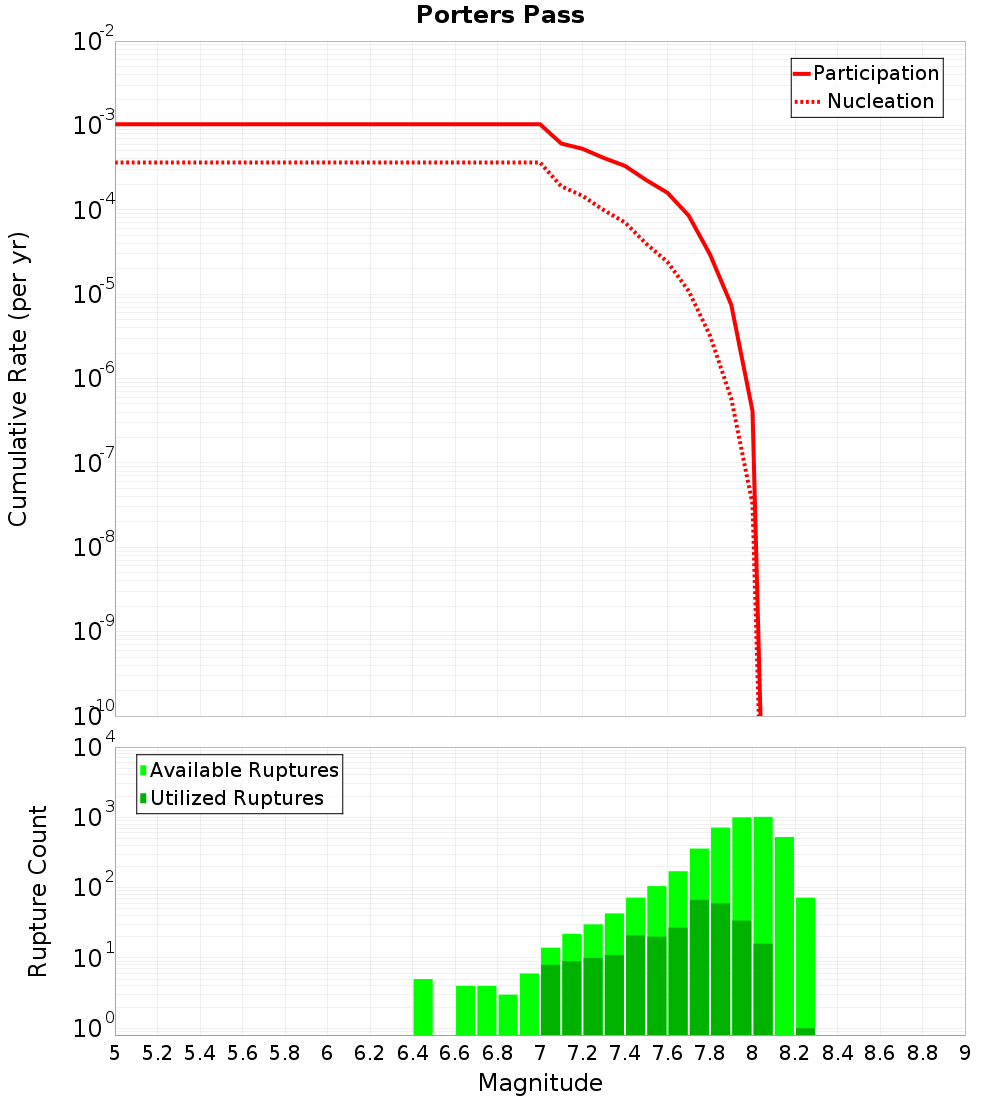

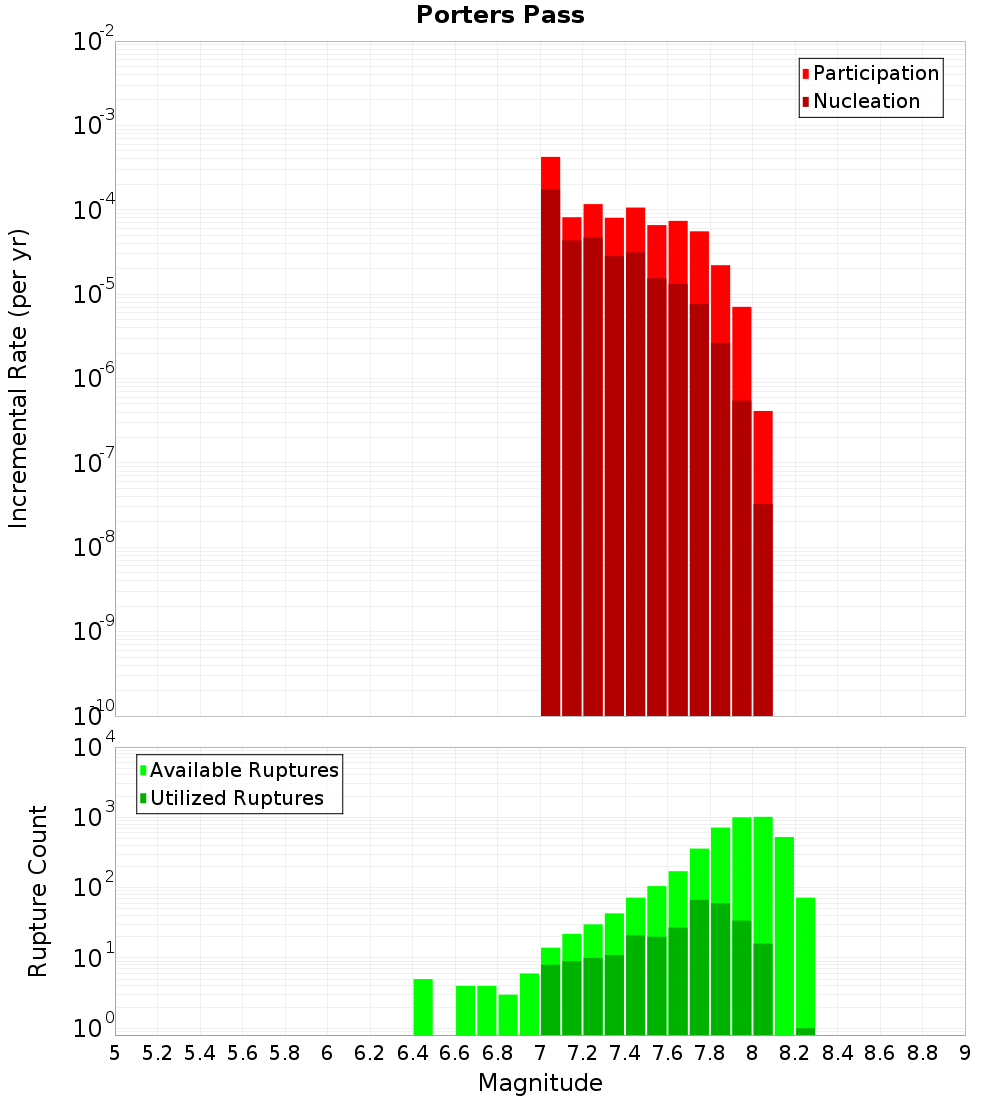

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

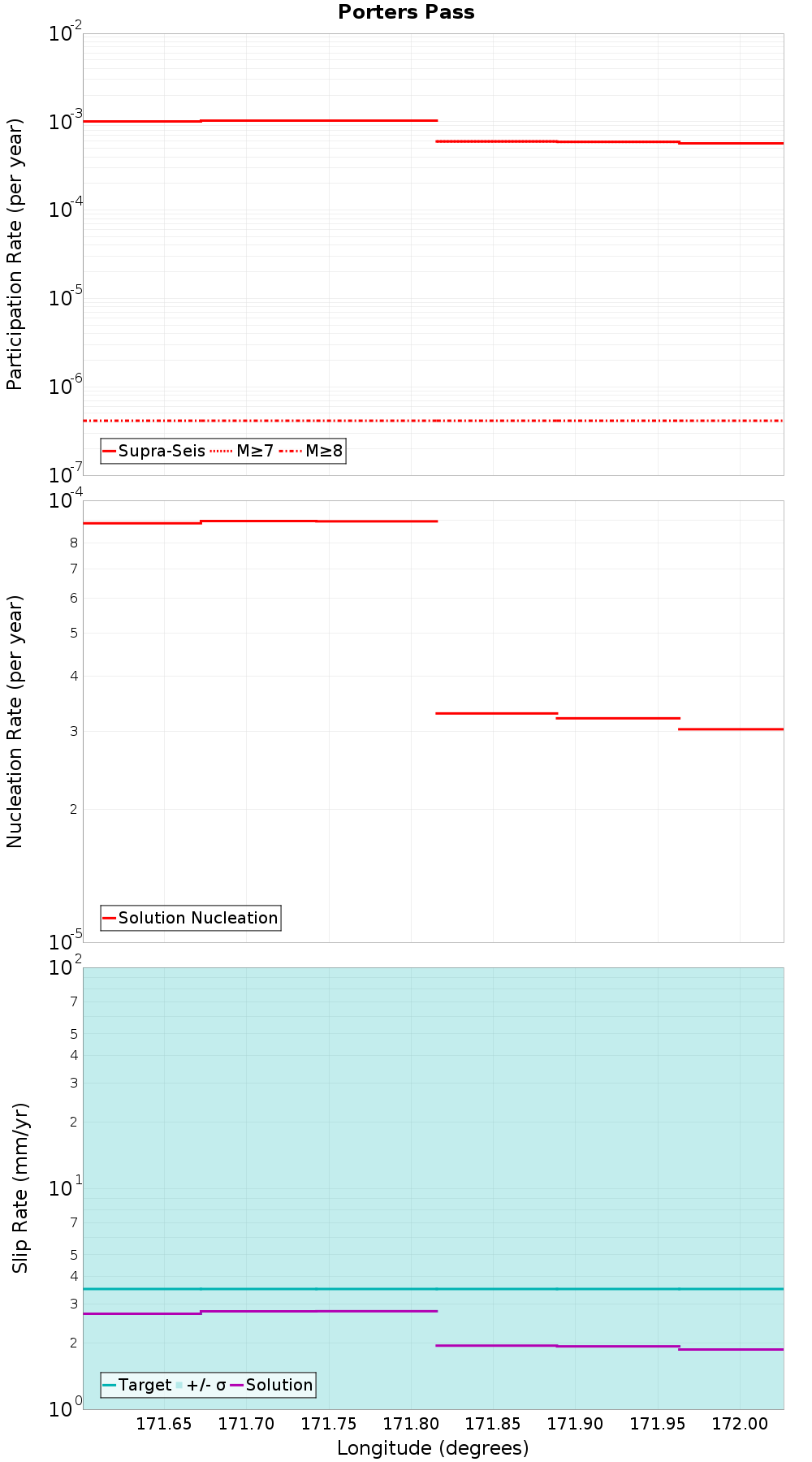

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

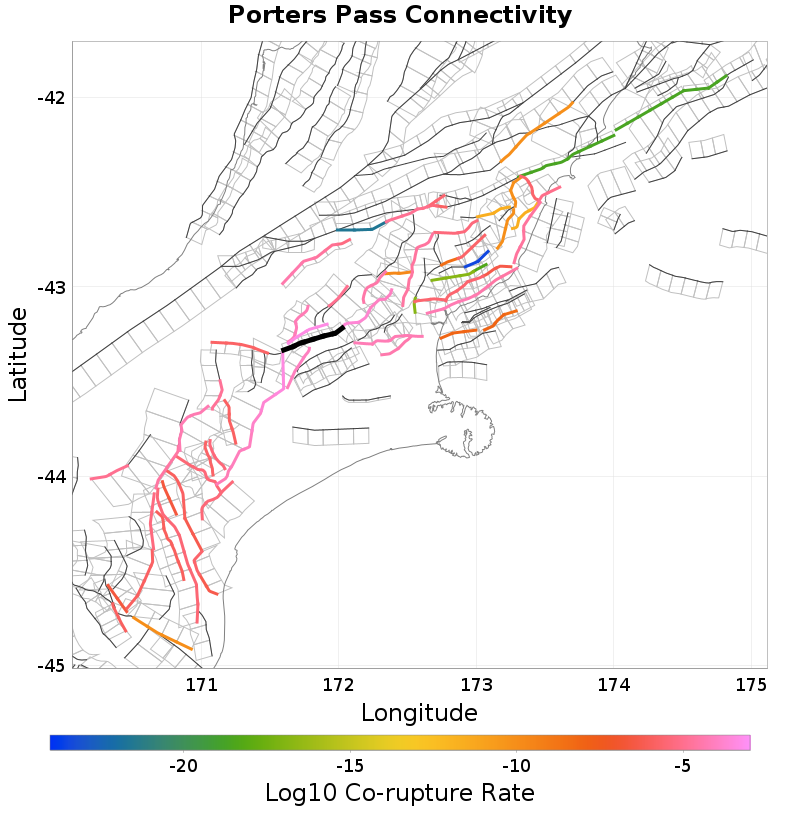

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Esk South, 0.29 km away
Torlesse, 0.31 km away
Lees Valley, 0.91 km away
Hutt Peel, 1.77 km away
Big Ben, 2.18 km away
Double Hill, 2.22 km away
Cheeseman, 3.57 km away
Knowles Top, 6.61 km away
Sailor, 7.26 km away
Kowai - View Hill, 8.66 km away
Starvation - Ashley, 10.36 km away
Redcliffe, 11.68 km away
High Peak - Sheffield, 12.52 km away

Esk South, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTIuMFVEZENh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Torlesse, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTIuMFVEZENh
Connected?true
Directly Connected?true
Co-rupture Count412
Co-rupture Rate4.1532356E-4

Lees Valley, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTIuMFVEZENh
Connected?true
Directly Connected?true
Co-rupture Count3,438
Co-rupture Rate2.3770571E-4

Hutt Peel, 1.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTIuMFVEZENh
Connected?true
Directly Connected?true
Co-rupture Count3,537
Co-rupture Rate3.587569E-4

Big Ben, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTIuMFVEZENh
Connected?true
Directly Connected?true
Co-rupture Count70
Co-rupture Rate8.56908E-5

Double Hill, 2.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTIuMFVEZENh
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate1.5132497E-6

Cheeseman, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTIuMFVEZENh
Connected?true
Directly Connected?false
Co-rupture Count181
Co-rupture Rate5.967421E-5

Knowles Top, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTIuMFVEZENh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sailor, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTIuMFVEZENh
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate9.706814E-6

Kowai - View Hill, 8.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTIuMFVEZENh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTIuMFVEZENh
Connected?true
Directly Connected?false
Co-rupture Count1,606
Co-rupture Rate5.555265E-5

Redcliffe, 11.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTIuMFVEZENh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

High Peak - Sheffield, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MTIuMFVEZENh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
