Inangahua Details
| Property | Value |
|---|---|
| Rupture Count | 2,838 |
| Ruptures Above Sect Min Mag | 2,837 |
| Ruptures w/ Nonzero Rates | 685 |
| Magnitude Range | [6.87, 8.14] |
| Length Range | [20, 396] km |
| Total Rate | 8.585595E-5 /yr |
| Multi-Fault Rate | 8.585595E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 18 |
Table Of Contents

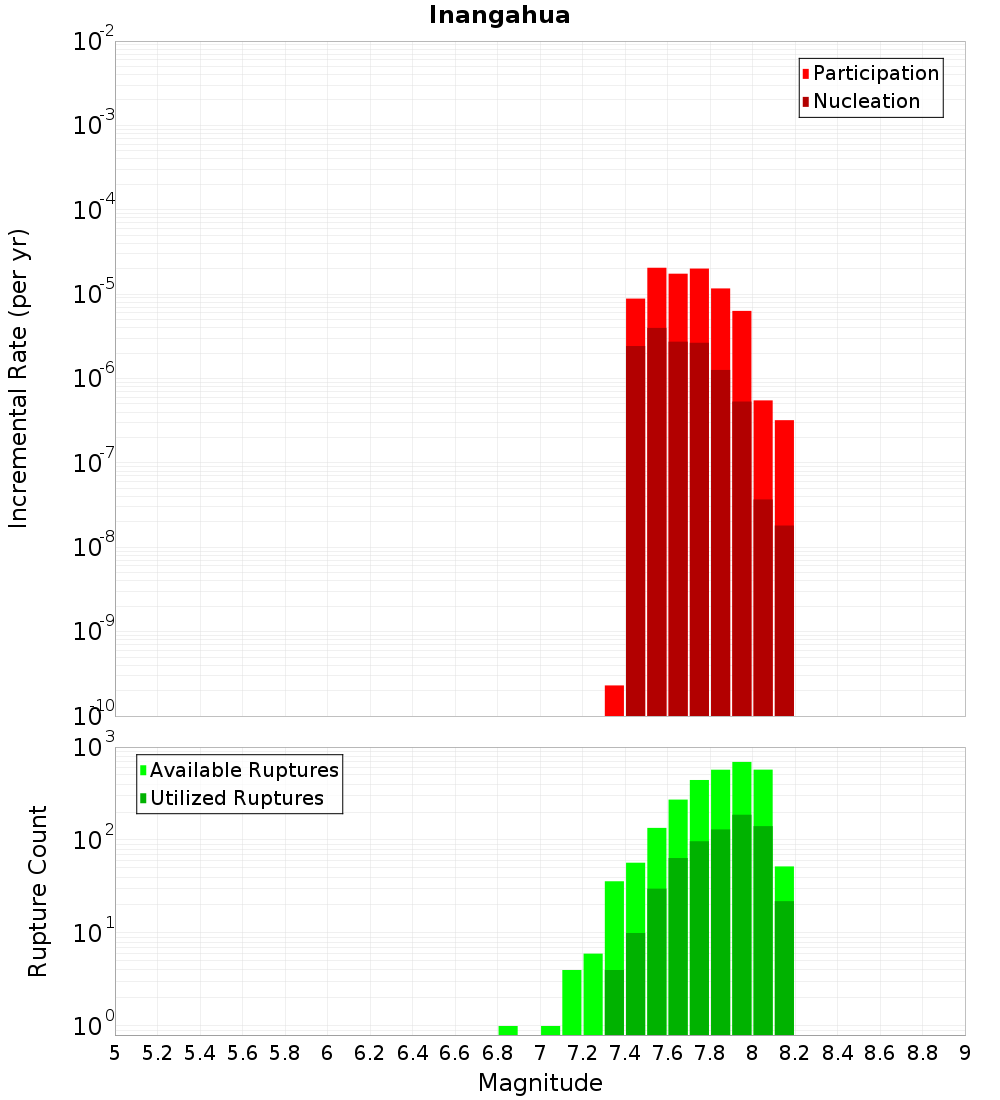

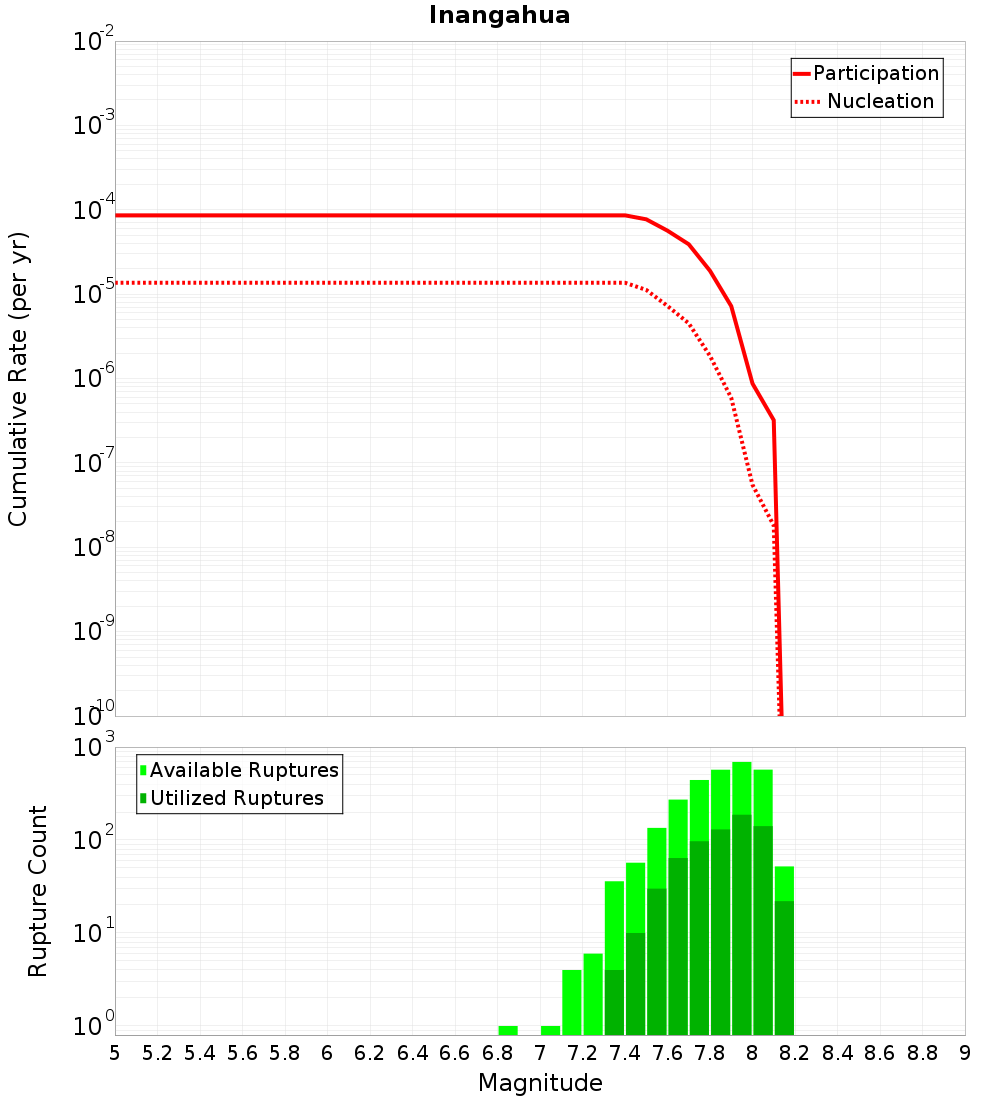

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

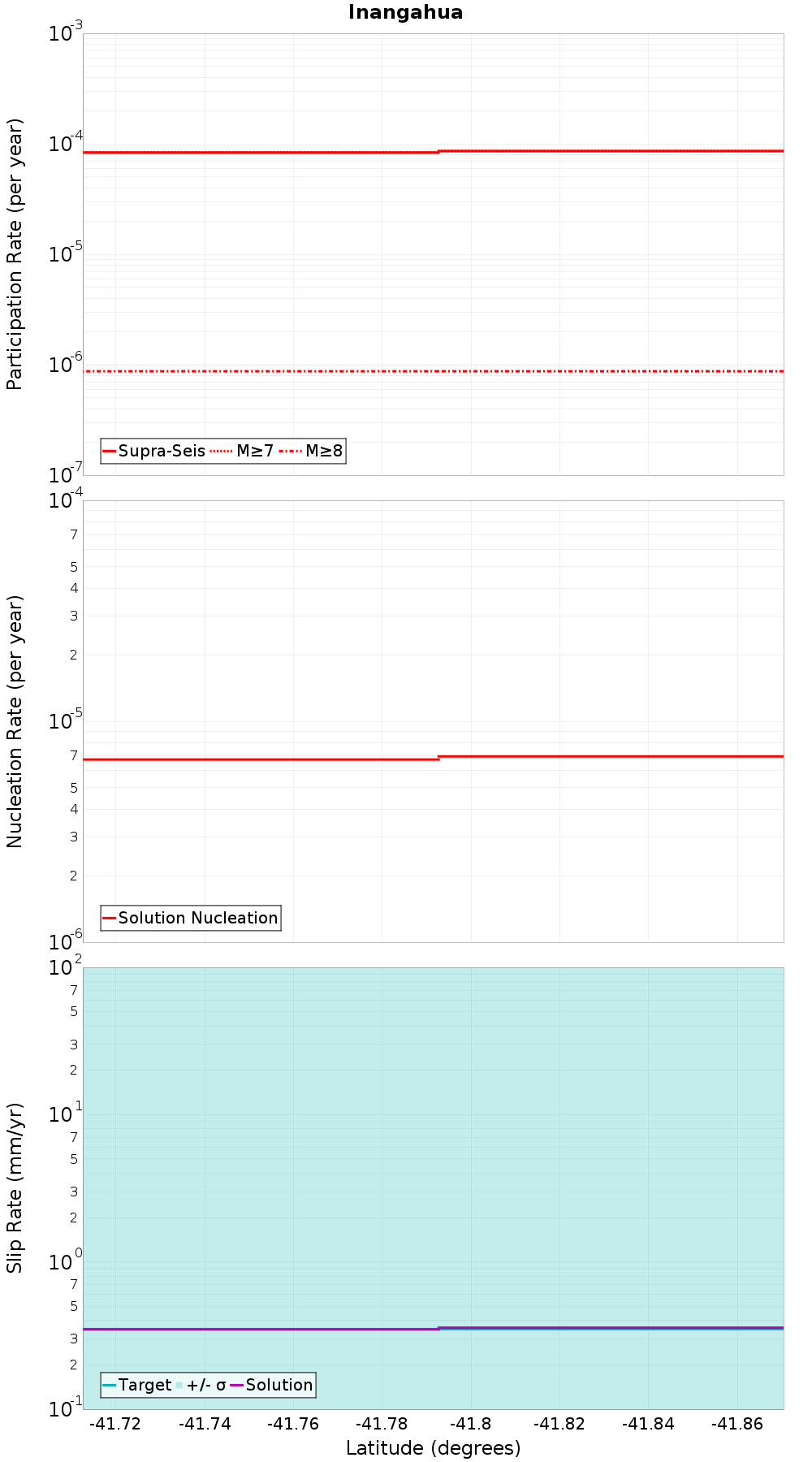

Along-Strike Values
Moment-Rates and b-Values

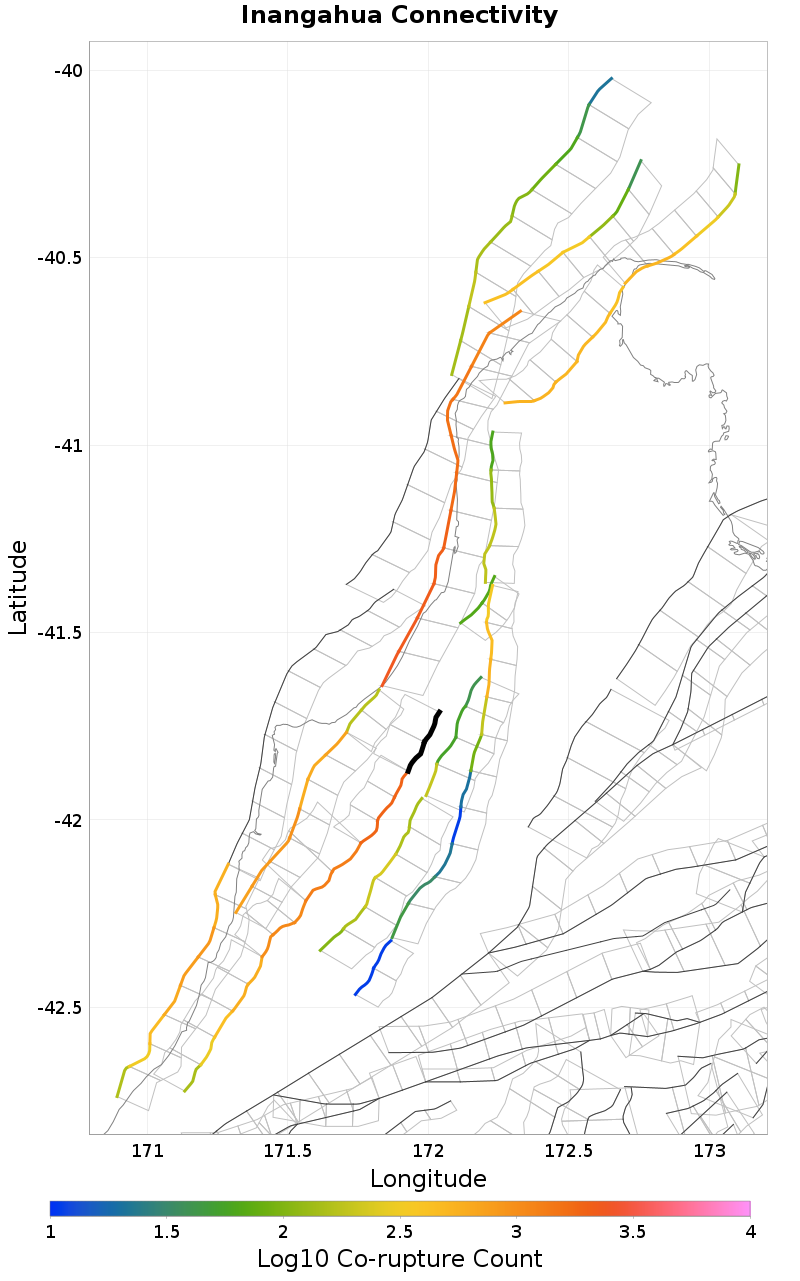

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maimai: North, 0 km away |
| Paparoa West: North, 0.83 km away |
| Paparoa West, 1.12 km away |
| Kongahau, 1.46 km away |
| Lyell, 5.51 km away |
| Lyell South, 9 km away |
| White Creek, 13.07 km away |
Maimai: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MjYuMG1ySDlC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,952 |
| Co-rupture Rate | 5.103278E-5 |
Paparoa West: North, 0.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MjYuMG1ySDlC | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 167 |
| Co-rupture Rate | 4.1483136E-6 |
Paparoa West, 1.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MjYuMG1ySDlC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,228 |
| Co-rupture Rate | 4.4979515E-5 |
Kongahau, 1.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MjYuMG1ySDlC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,350 |
| Co-rupture Rate | 2.719118E-5 |
Lyell, 5.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MjYuMG1ySDlC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 192 |
| Co-rupture Rate | 5.2348855E-6 |
Lyell South, 9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MjYuMG1ySDlC | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 249 |
| Co-rupture Rate | 3.998425E-6 |
White Creek, 13.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MjYuMG1ySDlC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 618 |
| Co-rupture Rate | 5.3926888E-5 |
