Fisherman 2 Details

PropertyValue
Rupture Count455
Ruptures Above Sect Min Mag453
Ruptures w/ Nonzero Rates93
Magnitude Range[6.94, 7.99]
Length Range[22, 230] km
Total Rate3.0672154E-4 /yr
Multi-Fault Rate2.2227105E-4 /yr (72.47%)
Directly-Connected Faults3
All Co-Rupturing Faults24

Table Of Contents

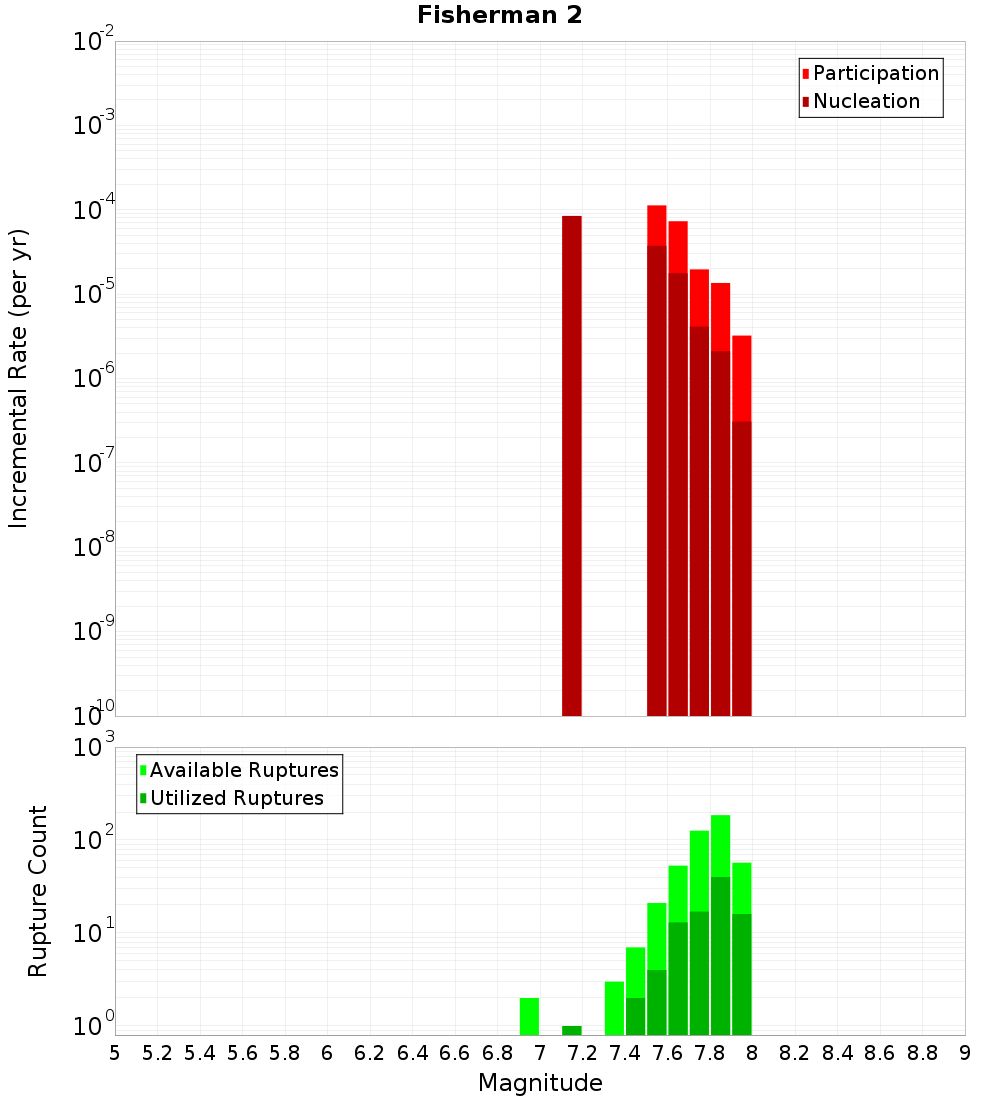

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

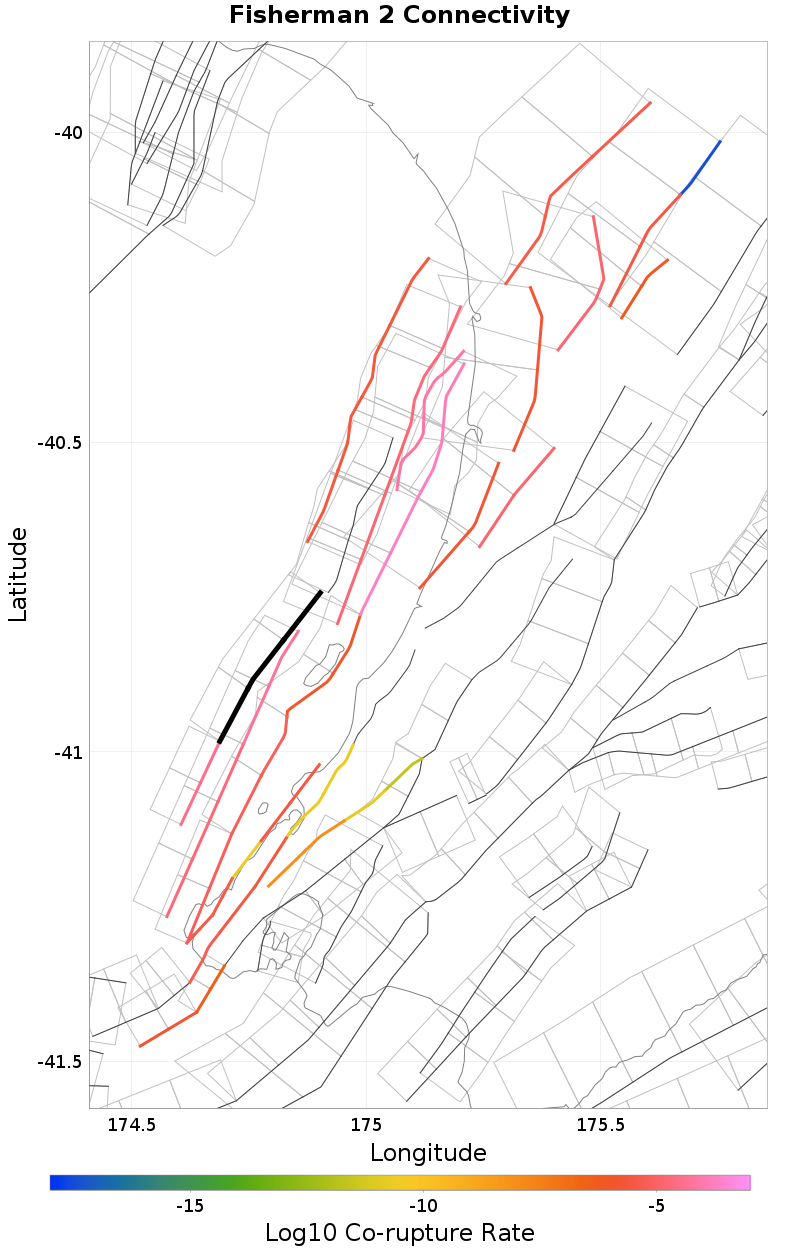

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Fisherman 1, 0 km away
Okupe 1, 1.12 km away
Fisherman 3, 1.22 km away
Onepoto, 2.12 km away
Otaheke North, 2.95 km away
Mascarin, 6.99 km away
Otaheke South, 7.87 km away
Poroutawhao, 12.07 km away

Fisherman 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzIuNUp5YkRn
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate3.0550273E-5

Okupe 1, 1.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzIuNUp5YkRn
Connected?true
Directly Connected?true
Co-rupture Count422
Co-rupture Rate5.4403183E-5

Fisherman 3, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzIuNUp5YkRn
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Onepoto, 2.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzIuNUp5YkRn
Connected?true
Directly Connected?true
Co-rupture Count228
Co-rupture Rate2.2687413E-5

Otaheke North, 2.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzIuNUp5YkRn
Connected?true
Directly Connected?true
Co-rupture Count247
Co-rupture Rate1.9609745E-4

Mascarin, 6.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzIuNUp5YkRn
Connected?true
Directly Connected?false
Co-rupture Count50
Co-rupture Rate2.5017855E-6

Otaheke South, 7.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzIuNUp5YkRn
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate6.4774927E-6

Poroutawhao, 12.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzIuNUp5YkRn
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate1.8476937E-6
