Waiohau: South Details

Property	Value
Rupture Count	15,747
Ruptures Above Sect Min Mag	15,742
Ruptures w/ Nonzero Rates	175
Magnitude Range	[6.90, 8.61]
Length Range	[20, 1,129] km
Total Rate	2.961489E-4 /yr
Multi-Fault Rate	1.7600328E-4 /yr (59.43%)
Directly-Connected Faults	3
All Co-Rupturing Faults	107

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

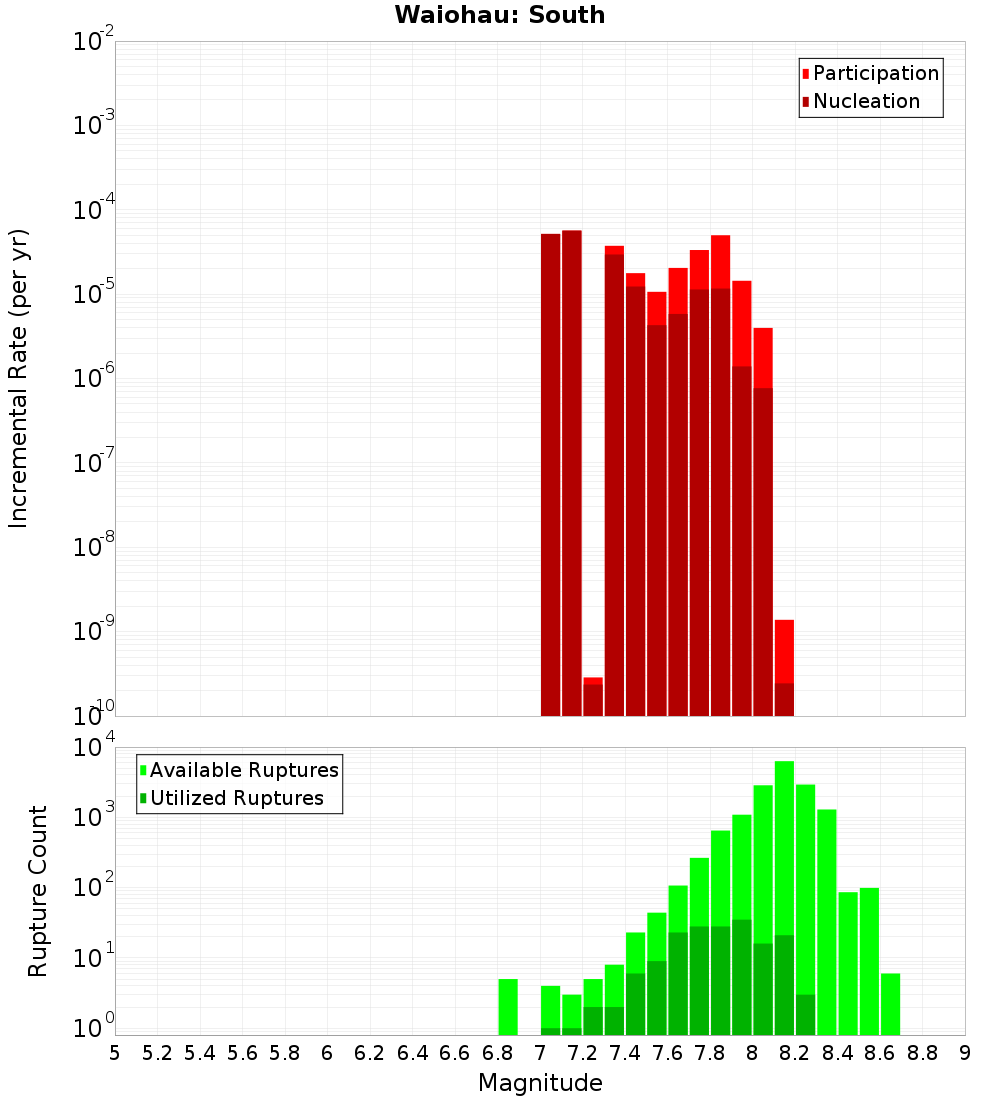

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

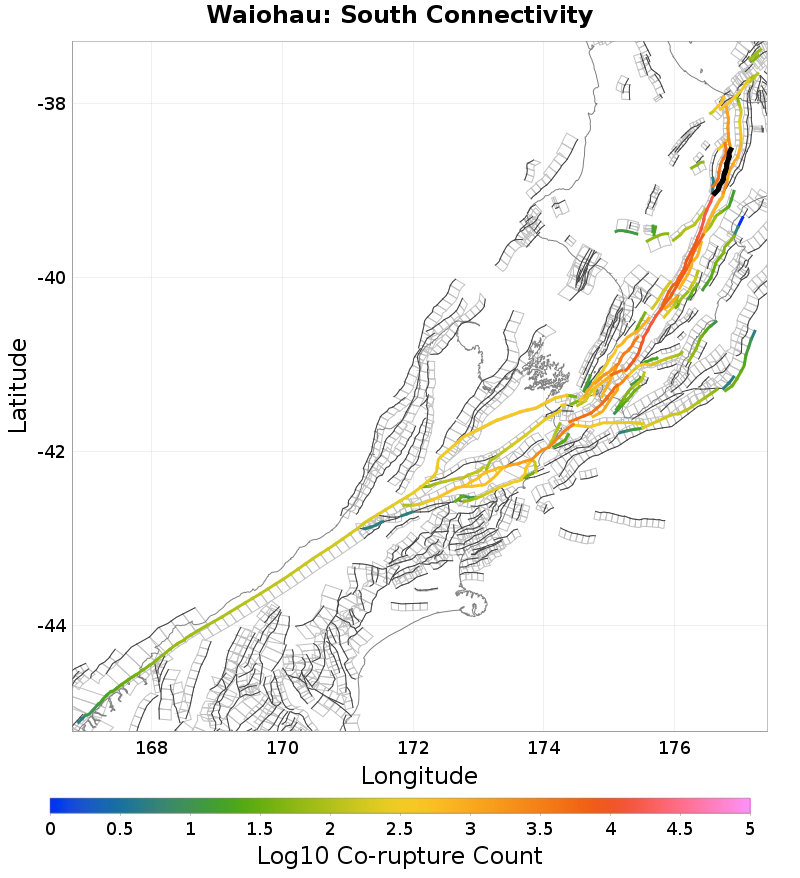

Connectivity

Nearby Sections

Fault Section
Ruahine: North, 0 km away
Waiohau: North, 0 km away
Wheao: South, 0.22 km away
Te Whaiti South, 0.76 km away
Whakatane: South, 4.67 km away
Waimana: South, 8.02 km away
Mohaka: North, 8.1 km away
Te Whaiti North, 10.36 km away
Wheao: North, 10.36 km away
Whakatane: North, 10.71 km away
Waiotahi: South, 12.21 km away

Ruahine: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzUuMFpibXVC
Connected?	true
Directly Connected?	true
Co-rupture Count	14,944
Co-rupture Rate	1.2658867E-4

Waiohau: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzUuMFpibXVC
Connected?	true
Directly Connected?	false
Co-rupture Count	2,007
Co-rupture Rate	1.866473E-6

Wheao: South, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzUuMFpibXVC
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	1.2774504E-7

Te Whaiti South, 0.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzUuMFpibXVC
Connected?	true
Directly Connected?	true
Co-rupture Count	6,625
Co-rupture Rate	9.4689465E-5

Whakatane: South, 4.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzUuMFpibXVC
Connected?	true
Directly Connected?	true
Co-rupture Count	1,858
Co-rupture Rate	6.10959E-6

Waimana: South, 8.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzUuMFpibXVC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mohaka: North, 8.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzUuMFpibXVC
Connected?	true
Directly Connected?	false
Co-rupture Count	828
Co-rupture Rate	5.9393665E-7

Te Whaiti North, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzUuMFpibXVC
Connected?	true
Directly Connected?	false
Co-rupture Count	603
Co-rupture Rate	2.6002977E-5

Wheao: North, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzUuMFpibXVC
Connected?	true
Directly Connected?	false
Co-rupture Count	430
Co-rupture Rate	8.6515587E-7

Whakatane: North, 10.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzUuMFpibXVC
Connected?	true
Directly Connected?	false
Co-rupture Count	529
Co-rupture Rate	5.5156534E-6

Waiotahi: South, 12.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzUuMFpibXVC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
