Rangitaiki 1 Details

Property	Value
Rupture Count	5,405
Ruptures Above Sect Min Mag	5,402
Ruptures w/ Nonzero Rates	245
Magnitude Range	[6.52, 8.35]
Length Range	[9, 631] km
Total Rate	5.7660765E-4 /yr
Multi-Fault Rate	5.7660765E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	67

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

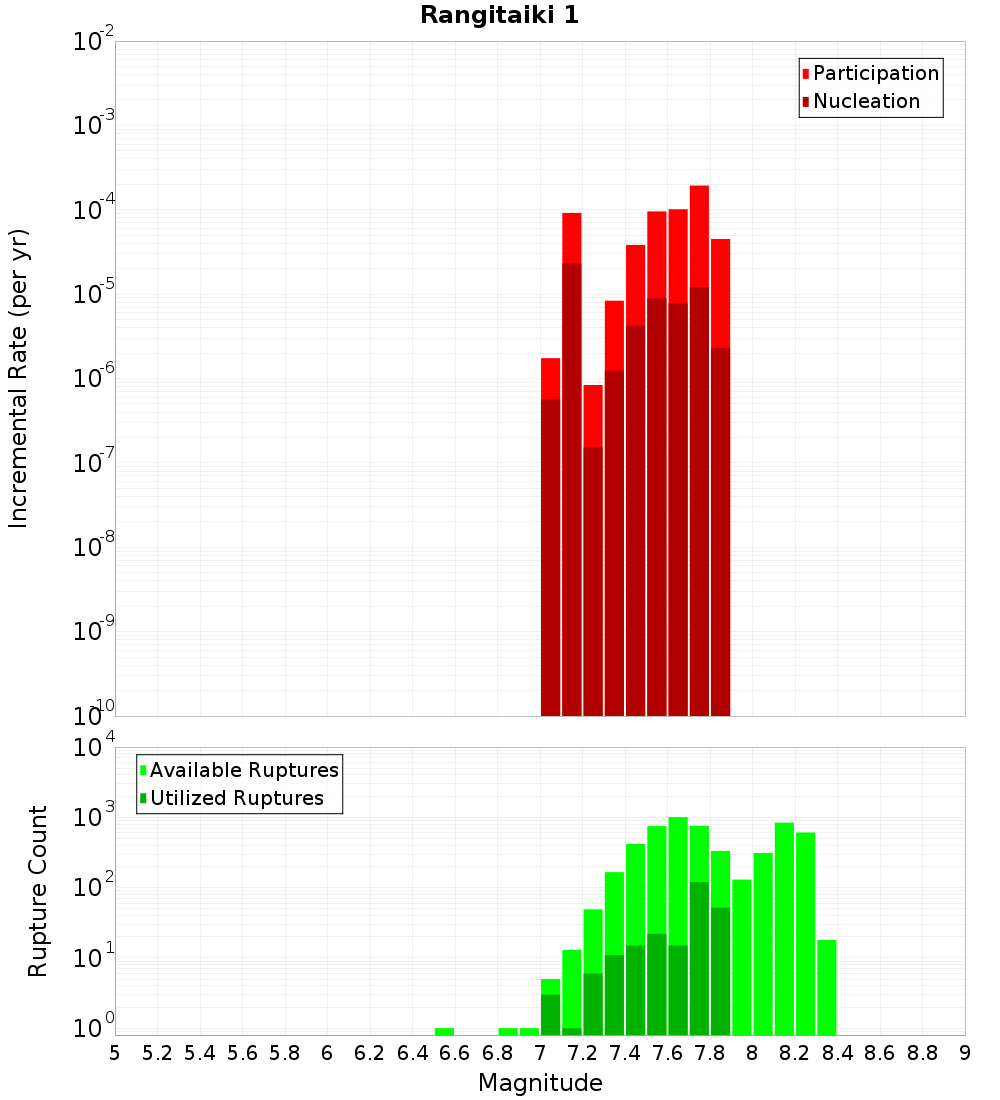

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

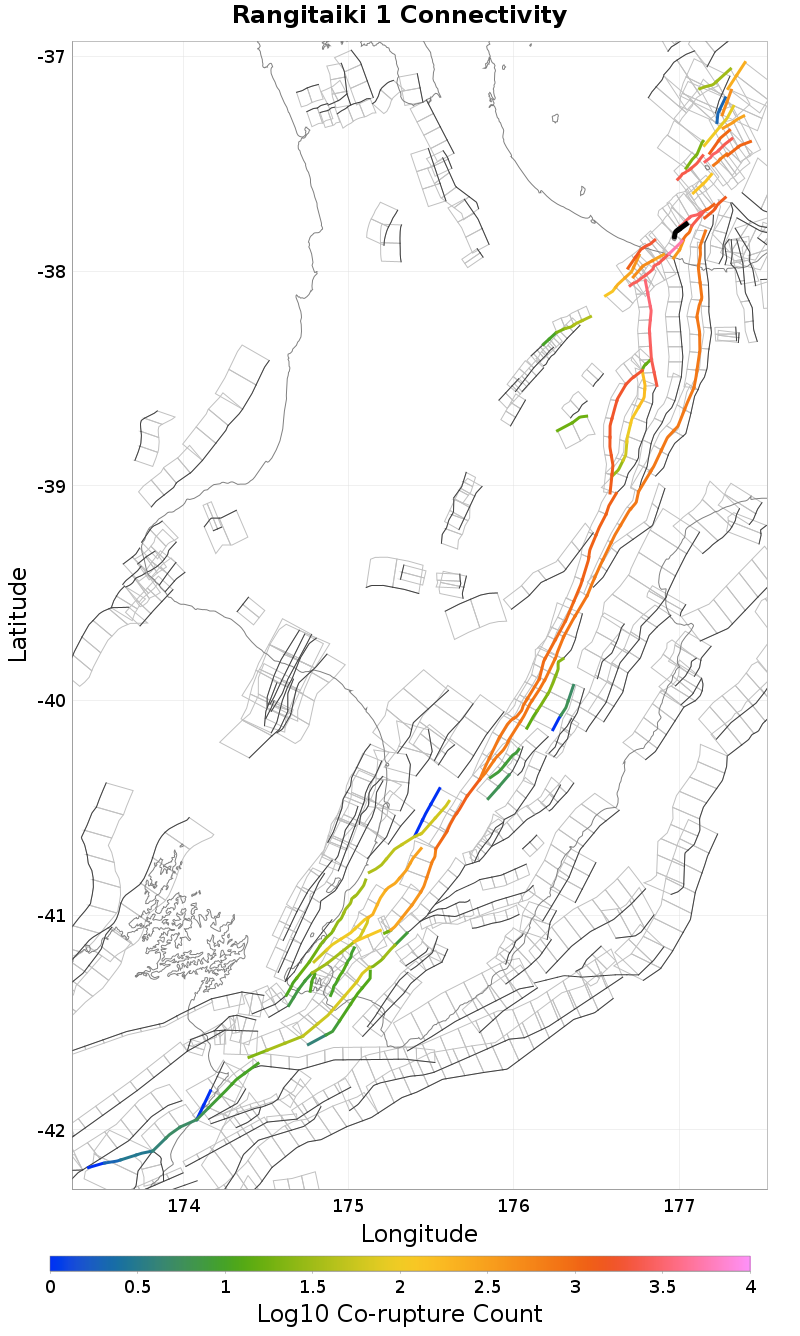

Connectivity

Nearby Sections

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2 km away
Keepa, 4.87 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.81 km away
Matata, 9.11 km away
White Island 2, 9.3 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.65 km away

Rangitaiki 2, 0.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	2,803
Co-rupture Rate	4.8697734E-4

White Island 1, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	7,342
Co-rupture Rate	3.5522756E-4

Keepa, 4.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	364
Co-rupture Rate	2.6934122E-5

Ohiwa 1, 8.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	1,184
Co-rupture Rate	1.1897455E-4

Edgecumbe Coastal, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	2,379
Co-rupture Rate	1.7079963E-4

Matata, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	1,841
Co-rupture Rate	9.479785E-5

White Island 2, 9.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	1,372
Co-rupture Rate	2.1871274E-4

Waimana: North, 10.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	754
Co-rupture Rate	7.6325536E-14

Whakaari 4, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	2,319
Co-rupture Rate	1.8275478E-4

Otakiri, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	484
Co-rupture Rate	1.2380918E-4

Whakatane: North, 11.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 13.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Calypso 2, 14.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFd6enRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	137
Co-rupture Rate	1.273855E-4
