Pukerua - Shepherds Gully: 1 Details

PropertyValue
Rupture Count926
Ruptures Above Sect Min Mag921
Ruptures w/ Nonzero Rates163
Magnitude Range[6.38, 8.53]
Length Range[7, 942] km
Total Rate2.7320115E-4 /yr
Multi-Fault Rate2.7320115E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults57

Table Of Contents

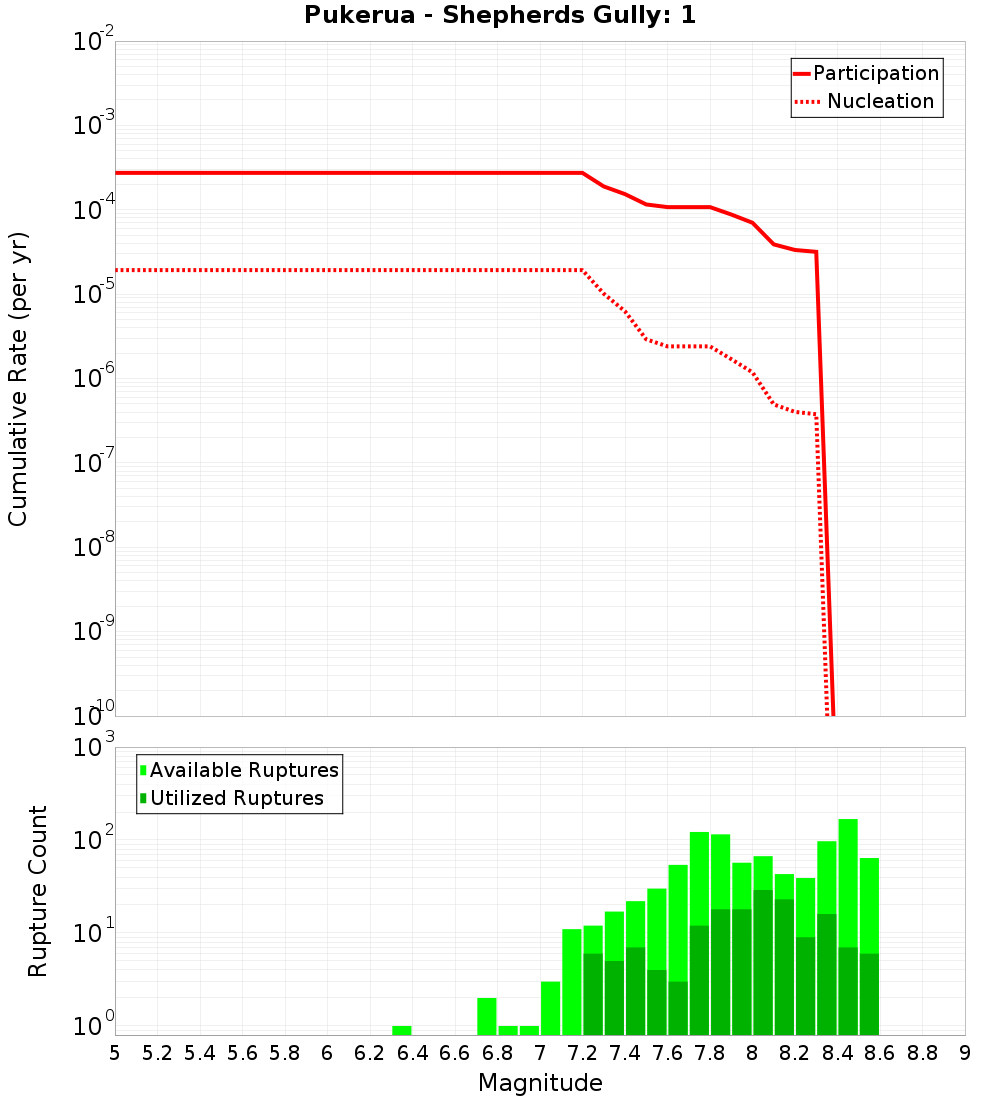

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

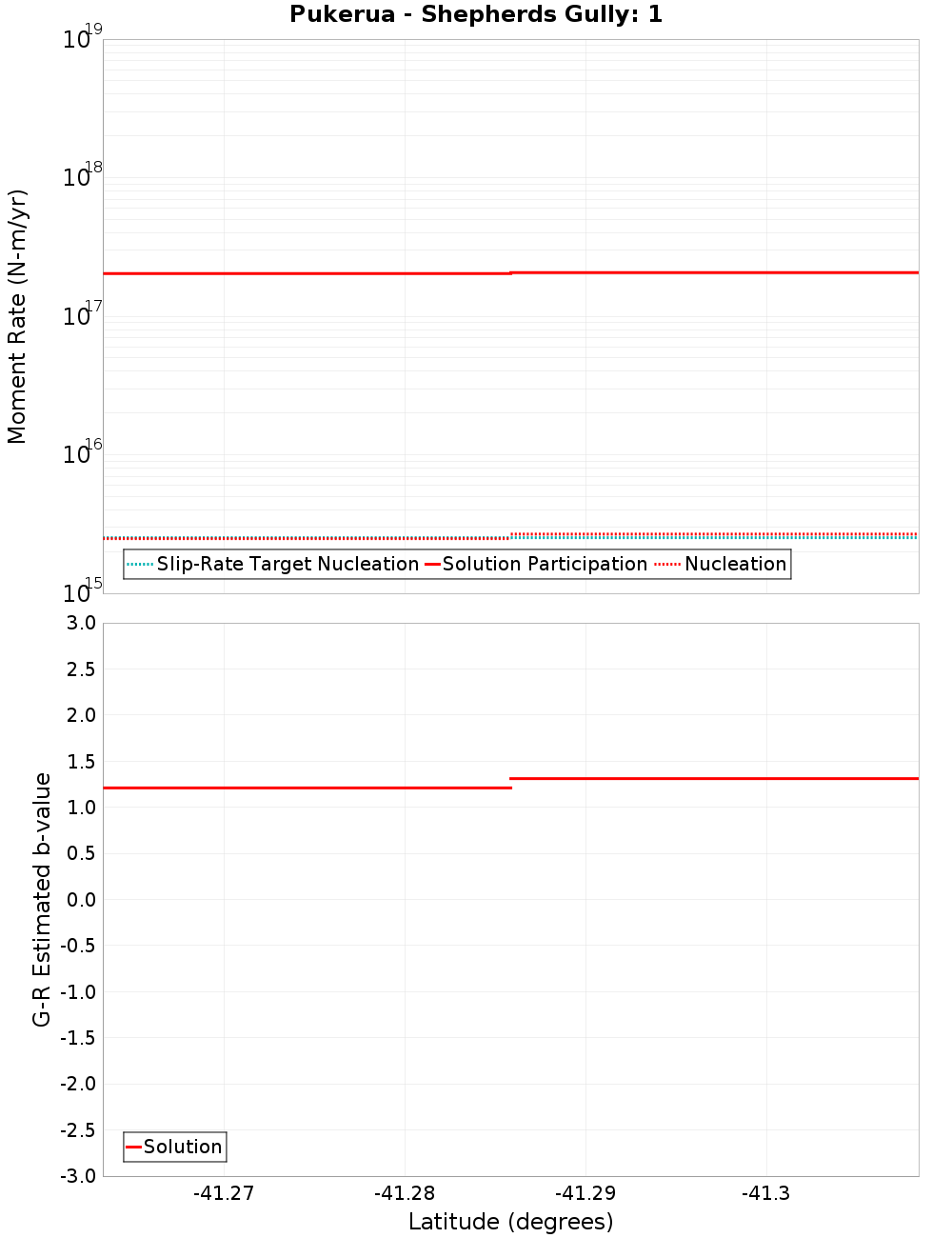

Moment-Rates and b-Values

(top)

Along-strike plot

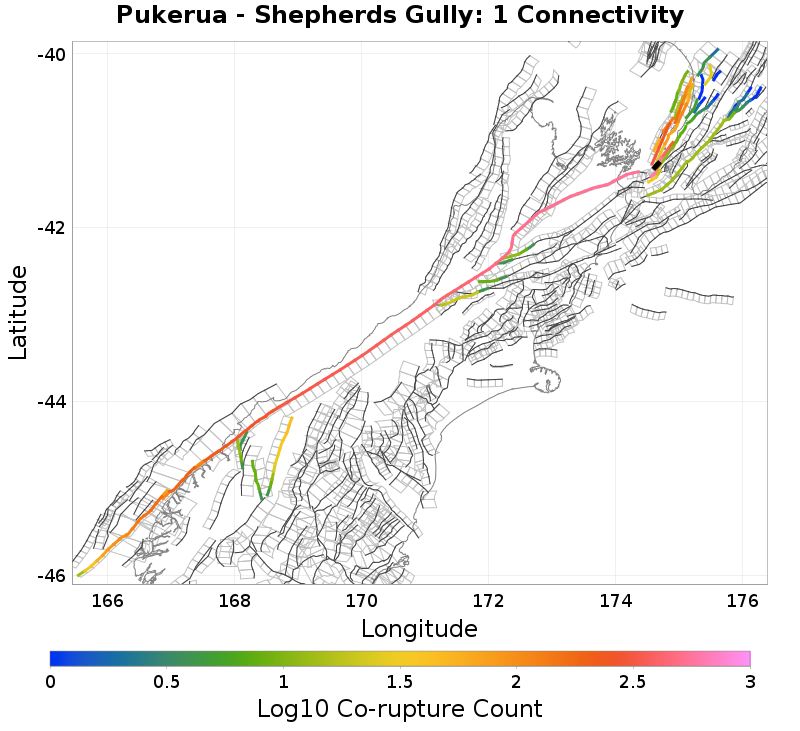

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Shepherds Gully - Mana, 0 km awayPukerua - Shepherds Gully: 3, 7.39 km away
Pukerua - Shepherds Gully: 2, 0 km awayWellington Hutt Valley: 4, 9.04 km away
Ohariu, 2.91 km awayOhariu South 1, 9.15 km away
Wellington Hutt Valley: 2, 3.93 km awayWhitemans Valley, 9.8 km away
Ohariu South 2, 4.02 km awayAotea - Evans Bay, 9.94 km away
Okupe 1, 5.82 km awayMoonshine, 11.23 km away
Wellington Hutt Valley: 1, 6.03 km awayWairau 3, 13.01 km away
Wellington Hutt Valley: 3, 7.12 km awayOtaheke South, 14.97 km away

Shepherds Gully - Mana, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate3.9513053E-19

Pukerua - Shepherds Gully: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?true
Directly Connected?true
Co-rupture Count594
Co-rupture Rate1.7130008E-4

Ohariu, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate1.8951983E-5

Wellington Hutt Valley: 2, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate1.5497535E-6

Ohariu South 2, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?true
Directly Connected?true
Co-rupture Count630
Co-rupture Rate1.3393599E-4

Okupe 1, 5.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?true
Directly Connected?true
Co-rupture Count370
Co-rupture Rate1.8320415E-4

Wellington Hutt Valley: 1, 6.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?true
Directly Connected?false
Co-rupture Count31
Co-rupture Rate1.740223E-5

Wellington Hutt Valley: 3, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 3, 7.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?true
Directly Connected?false
Co-rupture Count404
Co-rupture Rate1.4085739E-4

Wellington Hutt Valley: 4, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 1, 9.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whitemans Valley, 9.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 9.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 3, 13.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2MzcuMFhXNzJS
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate1.5400887E-7
