Gibson Details

PropertyValue
Rupture Count1,000
Ruptures Above Sect Min Mag998
Ruptures w/ Nonzero Rates95
Magnitude Range[6.94, 8.23]
Length Range[19, 352] km
Total Rate1.8840617E-5 /yr
Multi-Fault Rate1.8840617E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults47

Table Of Contents

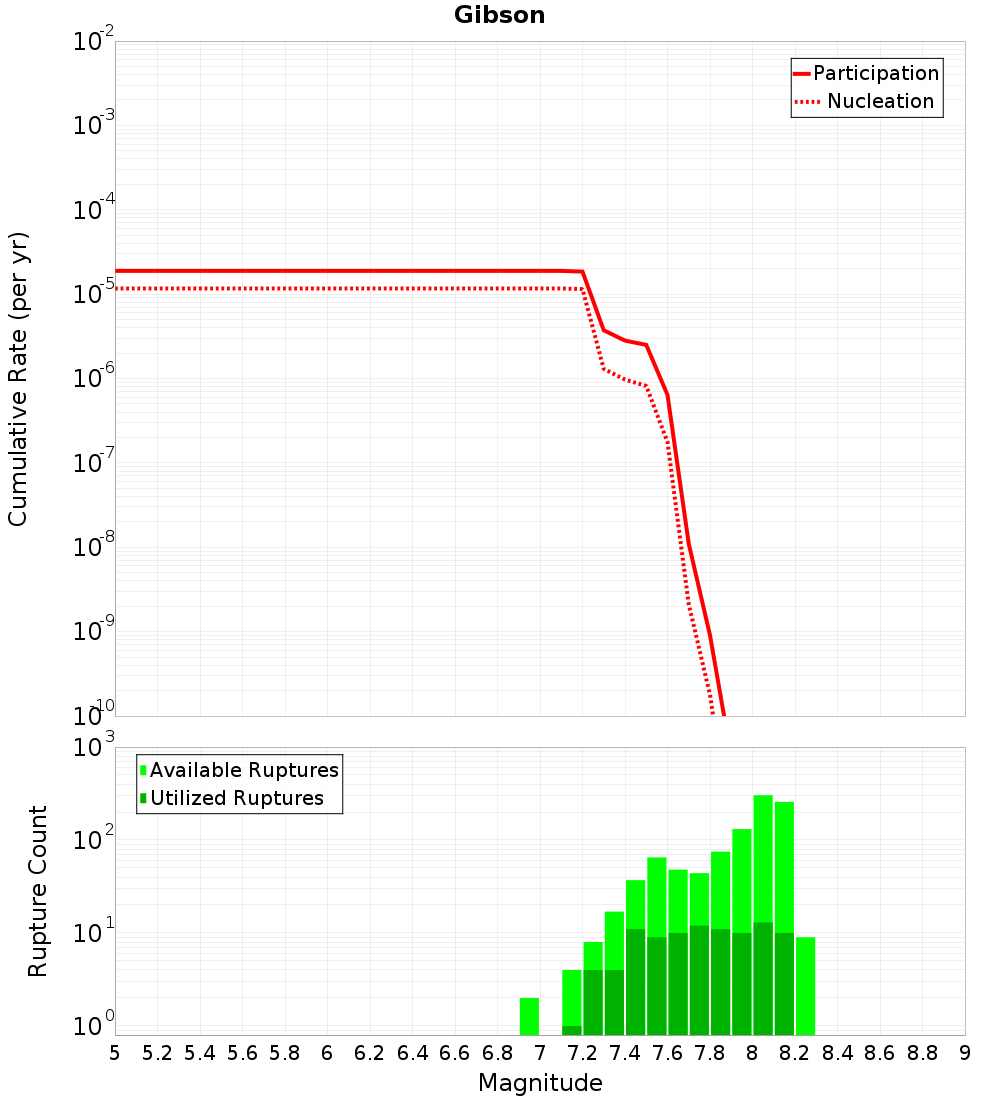

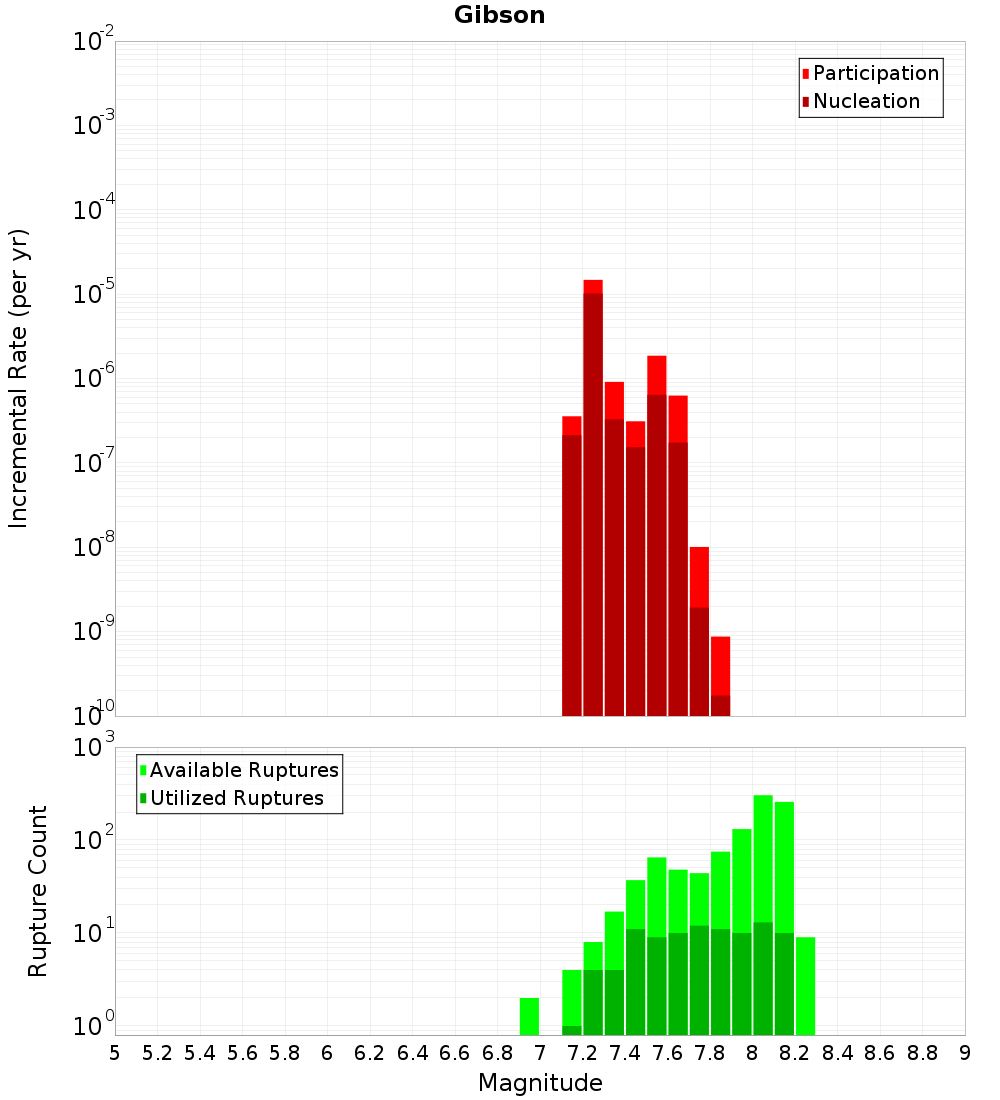

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

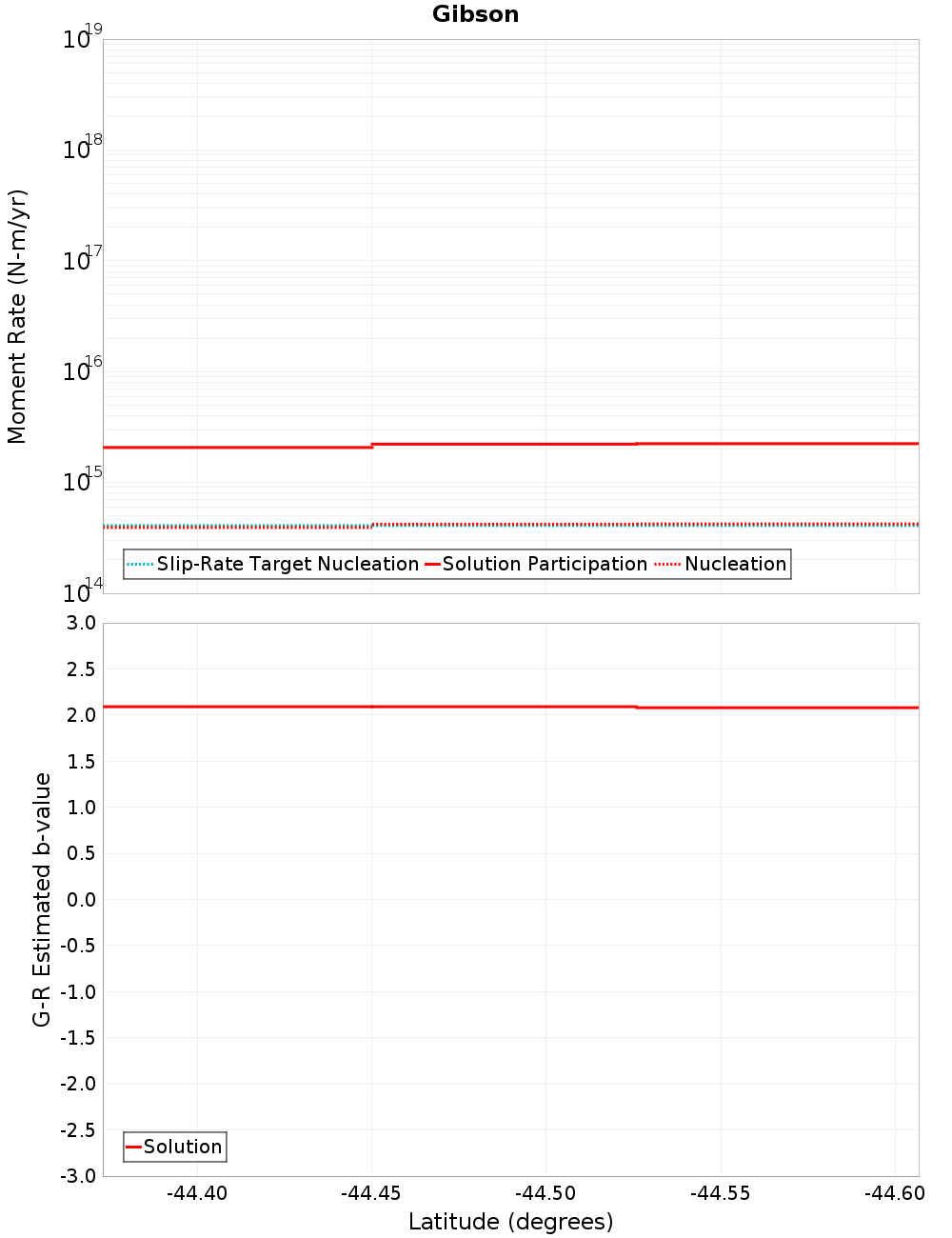

Moment-Rates and b-Values

(top)

Along-strike plot

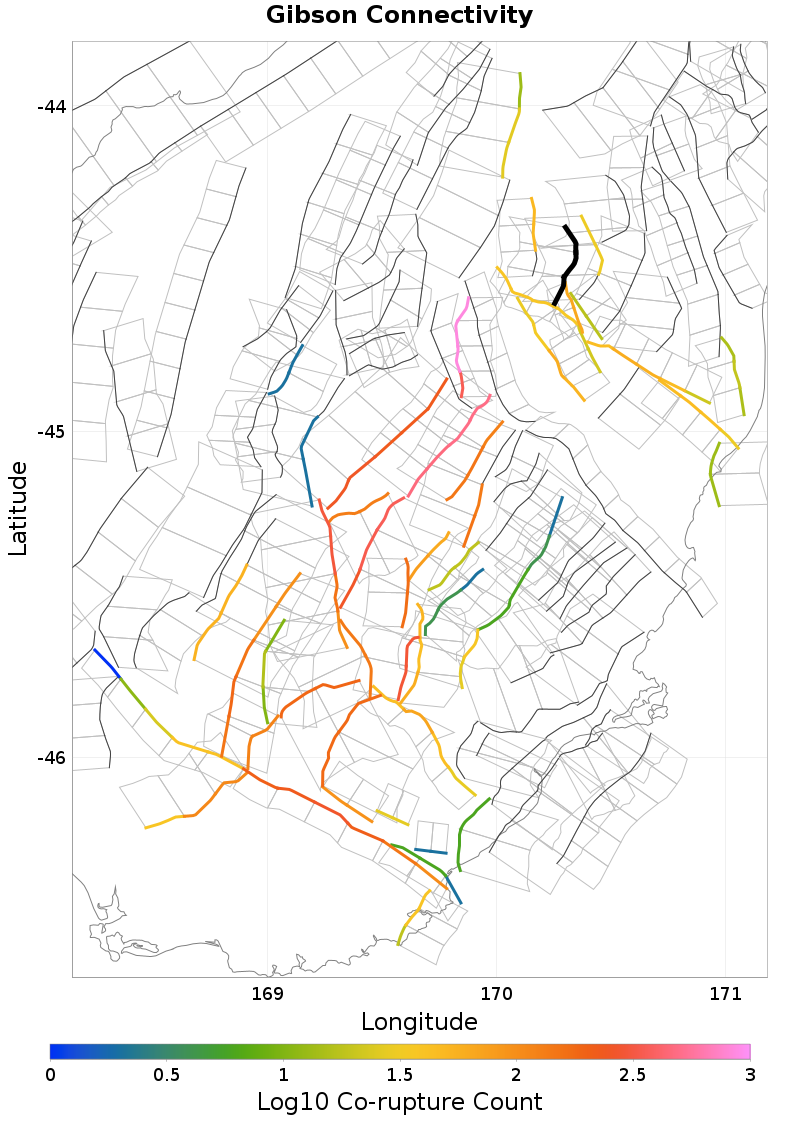

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Fern Gully, 0.31 km away
Middle Range, 0.32 km away
Waitangi, 0.56 km away
Omarama Saddle, 1.5 km away
Falstone, 1.61 km away
Hawkdun, 2.41 km away
Mt Sutton, 2.87 km away
Dryburgh, 3.37 km away
Grampian, 6.29 km away
Awahokomo, 10.93 km away
Blue Lake, 13.94 km away
Kirkliston, 14.93 km away

Fern Gully, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?true
Directly Connected?true
Co-rupture Count38
Co-rupture Rate6.225172E-8

Middle Range, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?true
Directly Connected?true
Co-rupture Count70
Co-rupture Rate1.6909598E-7

Waitangi, 0.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?true
Directly Connected?true
Co-rupture Count64
Co-rupture Rate1.7363593E-5

Omarama Saddle, 1.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?true
Directly Connected?true
Co-rupture Count851
Co-rupture Rate1.1053293E-7

Falstone, 1.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?true
Directly Connected?true
Co-rupture Count49
Co-rupture Rate2.6290786E-6

Hawkdun, 2.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Sutton, 2.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate9.1734944E-7

Dryburgh, 3.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate1.3630118E-6

Grampian, 6.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awahokomo, 10.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate1.8683148E-9

Blue Lake, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 14.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
