Uruti Basin Details

Property	Value
Rupture Count	14,675
Ruptures Above Sect Min Mag	14,631
Ruptures w/ Nonzero Rates	1,205
Magnitude Range	[6.37, 8.29]
Length Range	[12, 566] km
Total Rate	0.0011591937 /yr
Multi-Fault Rate	0.0011591937 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	87

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

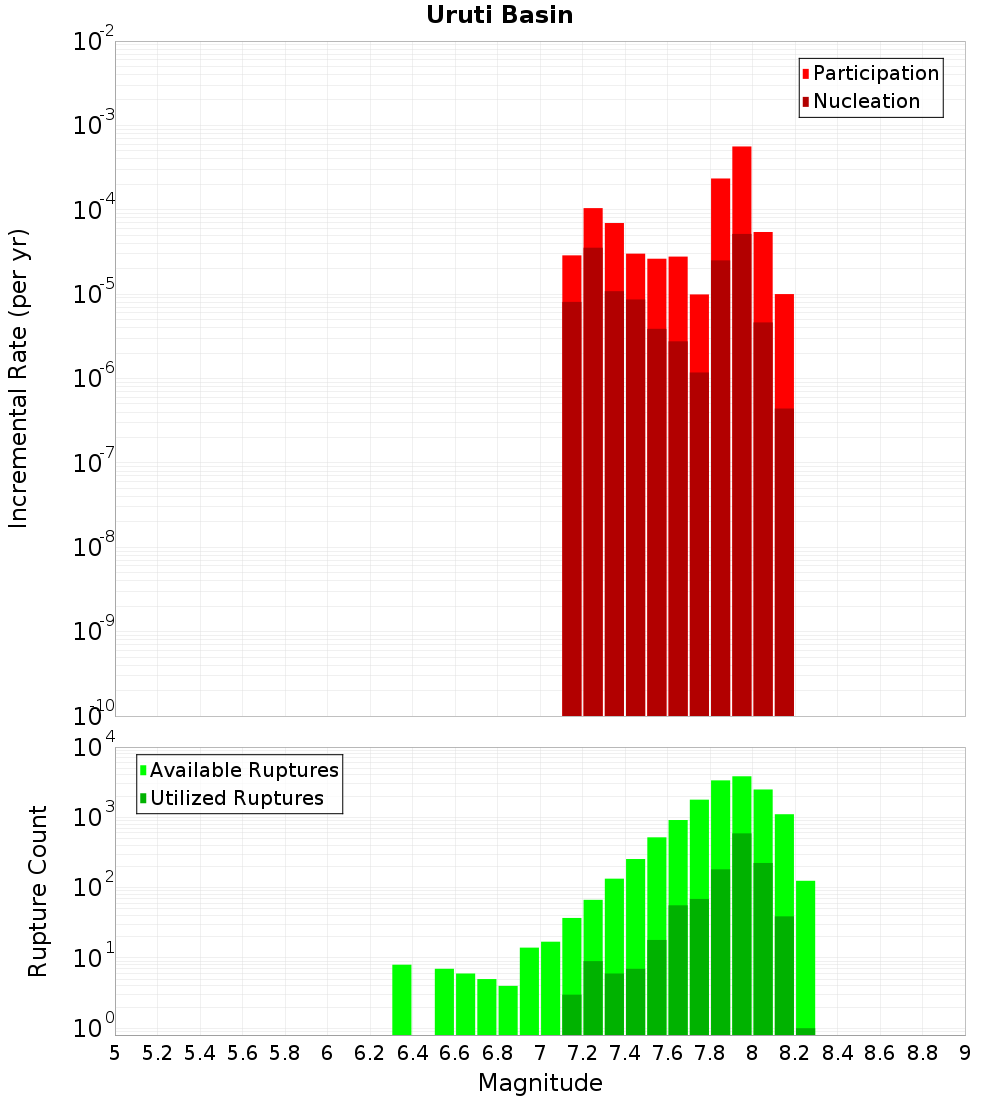

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

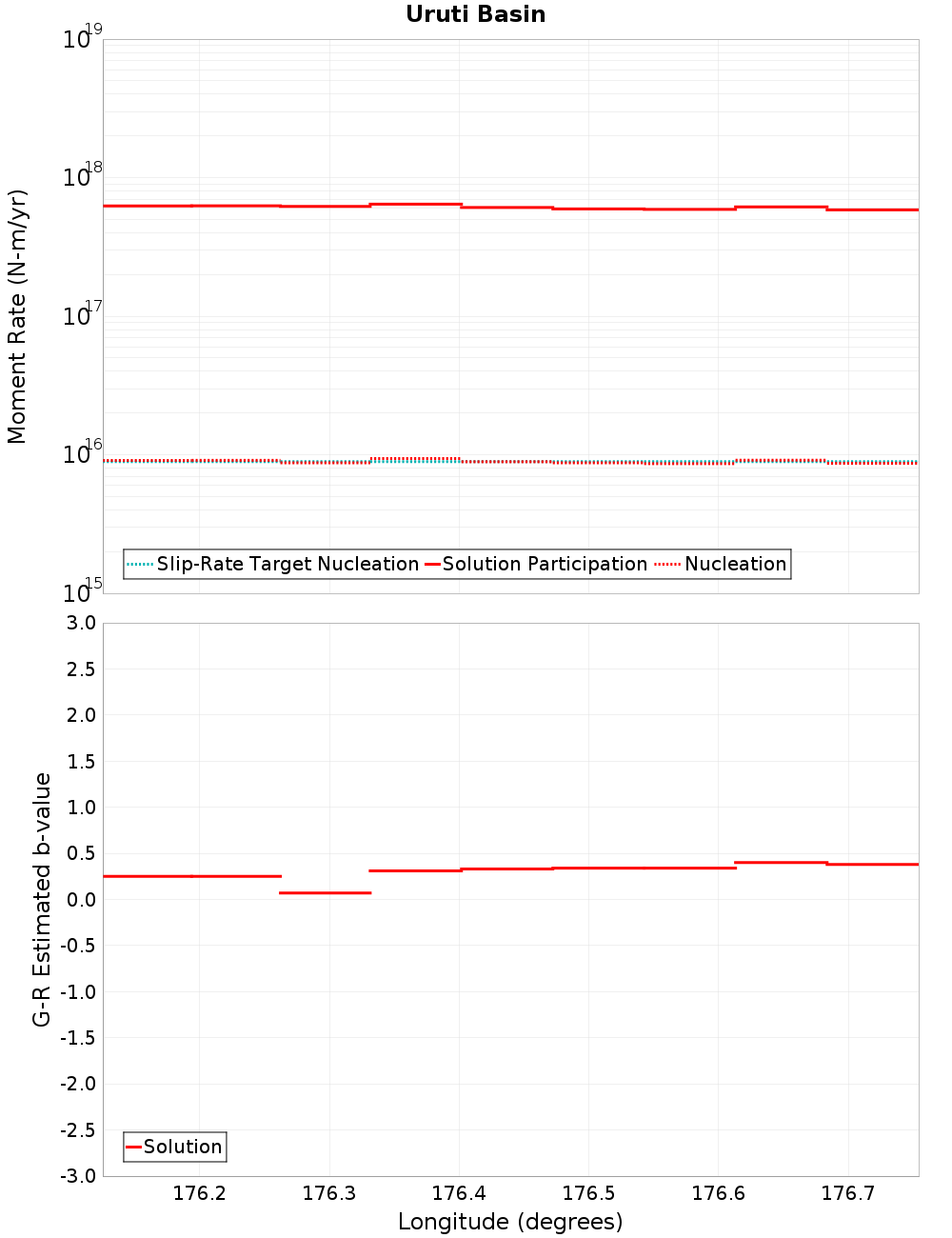

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Uruti Ridge 2, 0 km away
Uruti Basin 2, 0.15 km away
Opouawe - Uruti, 0.16 km away
Pahaua, 0.28 km away
Uruti East - PorWest 1, 0.29 km away
Honeycomb, 0.57 km away
Palliser - Kaiwhata, 1.36 km away
Whareama Bank, 3.49 km away
Riversdale, 8.5 km away

Uruti Ridge 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?	true
Directly Connected?	true
Co-rupture Count	3,659
Co-rupture Rate	3.5234244E-4

Uruti Basin 2, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?	true
Directly Connected?	true
Co-rupture Count	3,345
Co-rupture Rate	1.7766344E-5

Opouawe - Uruti, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?	true
Directly Connected?	true
Co-rupture Count	6,279
Co-rupture Rate	2.0458057E-4

Pahaua, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?	true
Directly Connected?	true
Co-rupture Count	3,436
Co-rupture Rate	3.2803795E-4

Uruti East - PorWest 1, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?	true
Directly Connected?	true
Co-rupture Count	7,469
Co-rupture Rate	2.2138486E-4

Honeycomb, 0.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?	true
Directly Connected?	true
Co-rupture Count	3,974
Co-rupture Rate	2.3031514E-4

Palliser - Kaiwhata, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?	true
Directly Connected?	true
Co-rupture Count	6,821
Co-rupture Rate	5.705808E-4

Whareama Bank, 3.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	2.0462887E-11

Riversdale, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NDcuMGFYa0dq
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	4.1425596E-5
