McKerchar Details

Property	Value
Rupture Count	1,427
Ruptures Above Sect Min Mag	1,426
Ruptures w/ Nonzero Rates	82
Magnitude Range	[7.17, 8.56]
Length Range	[29, 859] km
Total Rate	1.7571694E-5 /yr
Multi-Fault Rate	1.224979E-5 /yr (69.71%)
Directly-Connected Faults	2
All Co-Rupturing Faults	68

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

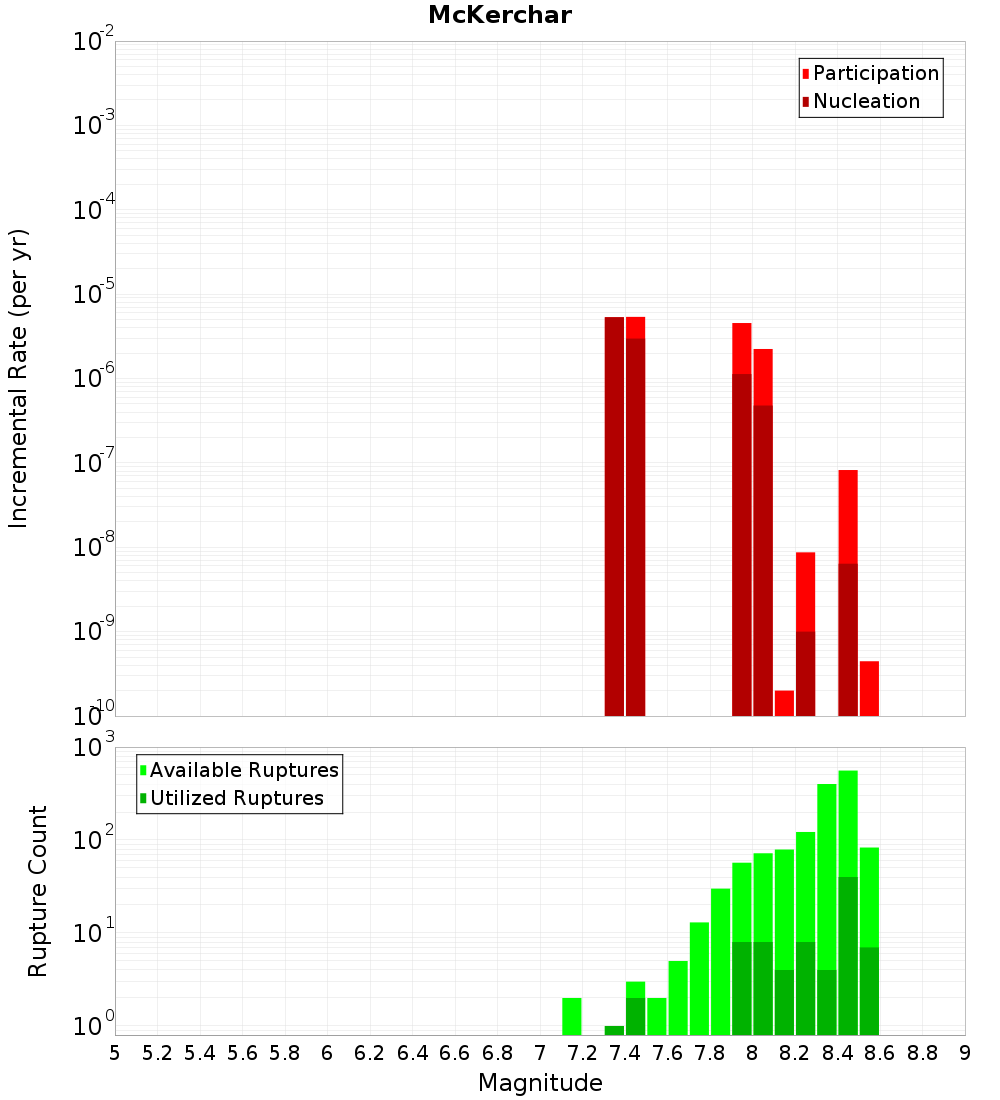

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

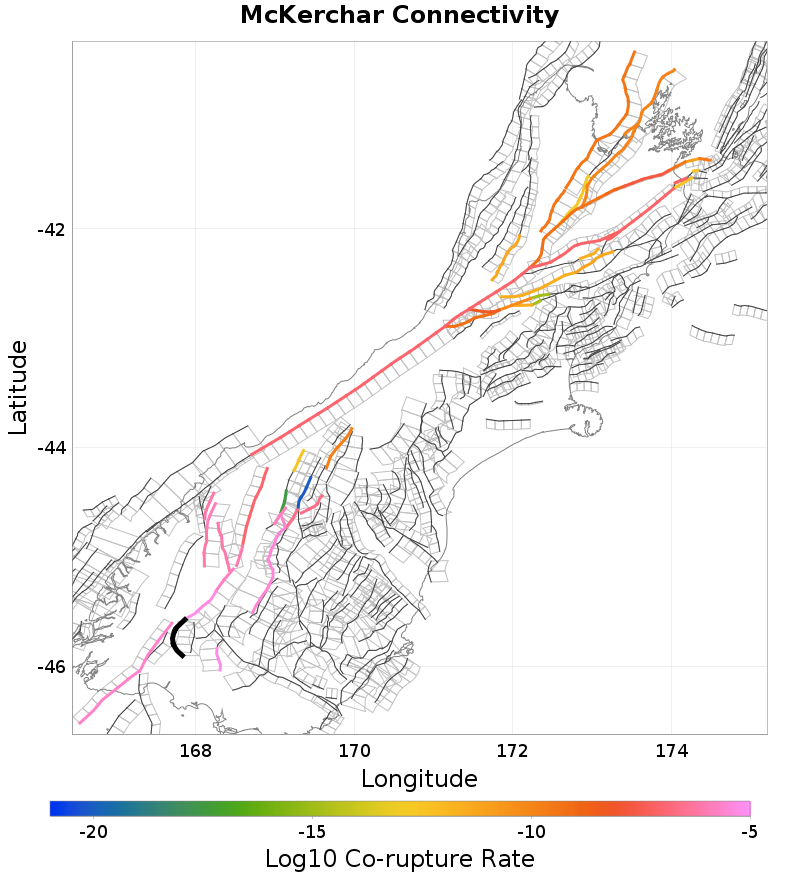

Connectivity

Nearby Sections

Fault Section
Tin Hut, 0.06 km away
Mossburn, 0.15 km away
Moonlight South, 0.52 km away
White Hill, 1.38 km away
Monowai, 6.1 km away
Hauroko: North, 6.27 km away

Tin Hut, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjAuMEVLYzh1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mossburn, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjAuMEVLYzh1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Moonlight South, 0.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjAuMEVLYzh1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,422
Co-rupture Rate	6.874219E-6

White Hill, 1.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjAuMEVLYzh1
Connected?	true
Directly Connected?	true
Co-rupture Count	19
Co-rupture Rate	5.3755716E-6

Monowai, 6.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjAuMEVLYzh1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hauroko: North, 6.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjAuMEVLYzh1
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	2.160045E-6
