Kelly Details

PropertyValue
Rupture Count61,108
Ruptures Above Sect Min Mag61,097
Ruptures w/ Nonzero Rates1,209
Magnitude Range[6.71, 8.59]
Length Range[17, 973] km
Total Rate0.0032275582 /yr
Multi-Fault Rate0.0032275582 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults174

Table Of Contents

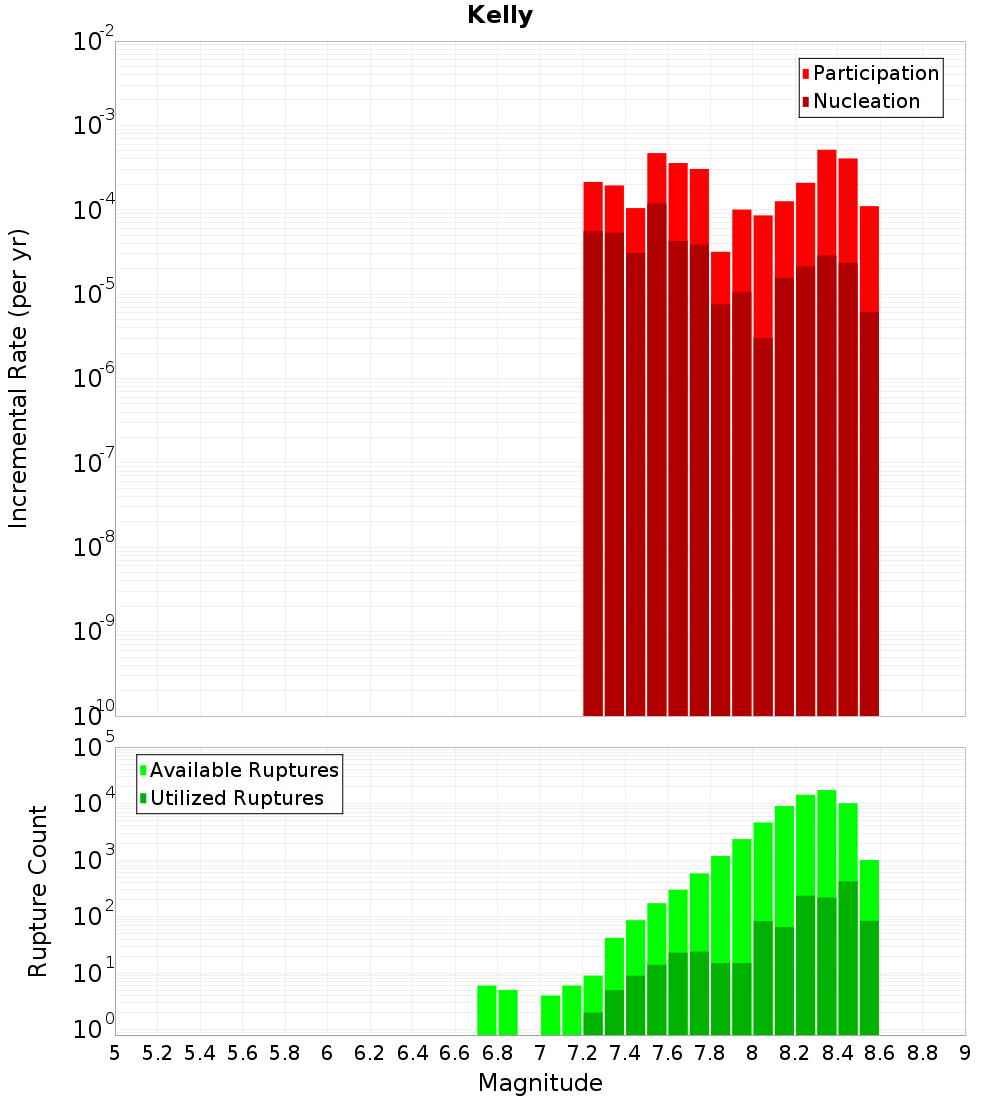

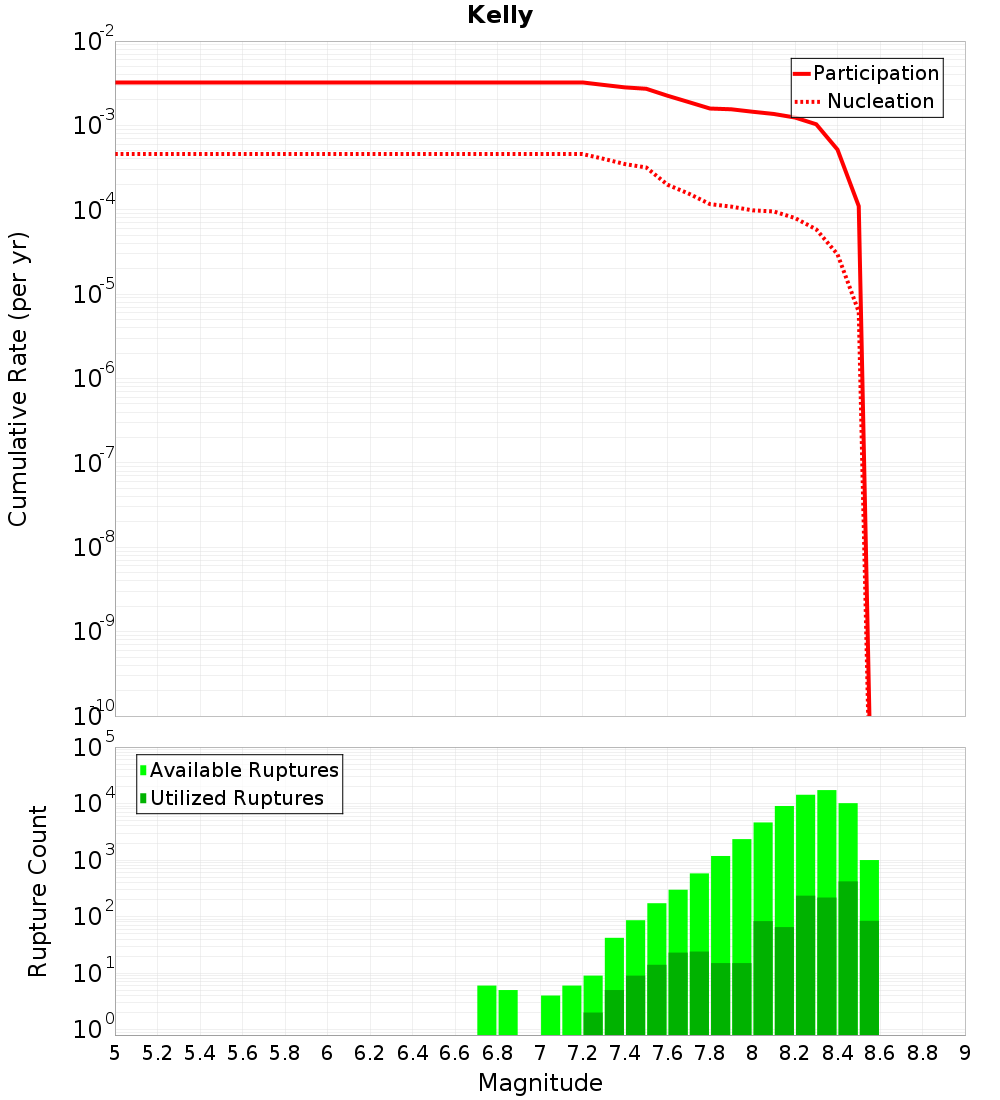

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

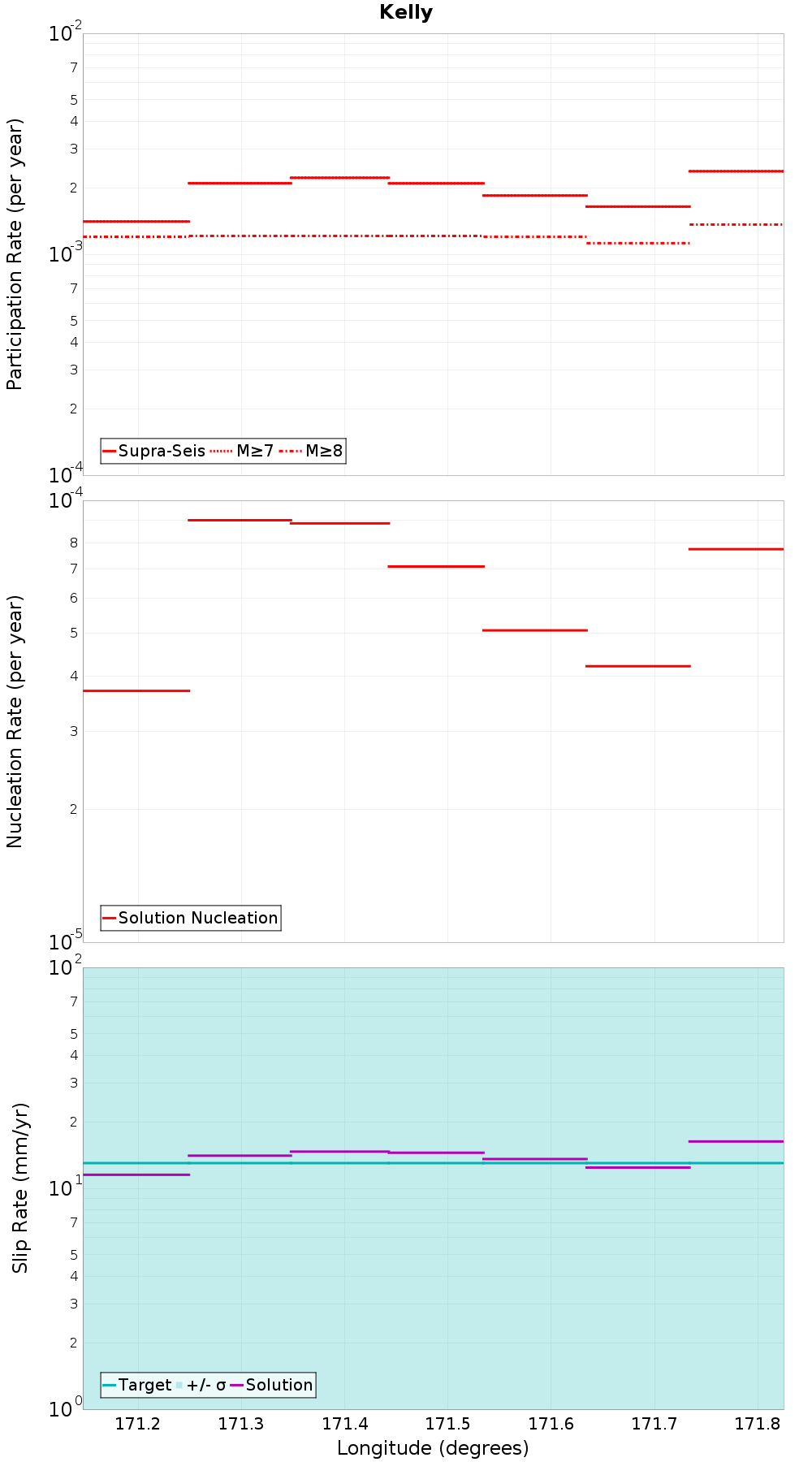

Along-Strike Values

(top)

Along-strike plot

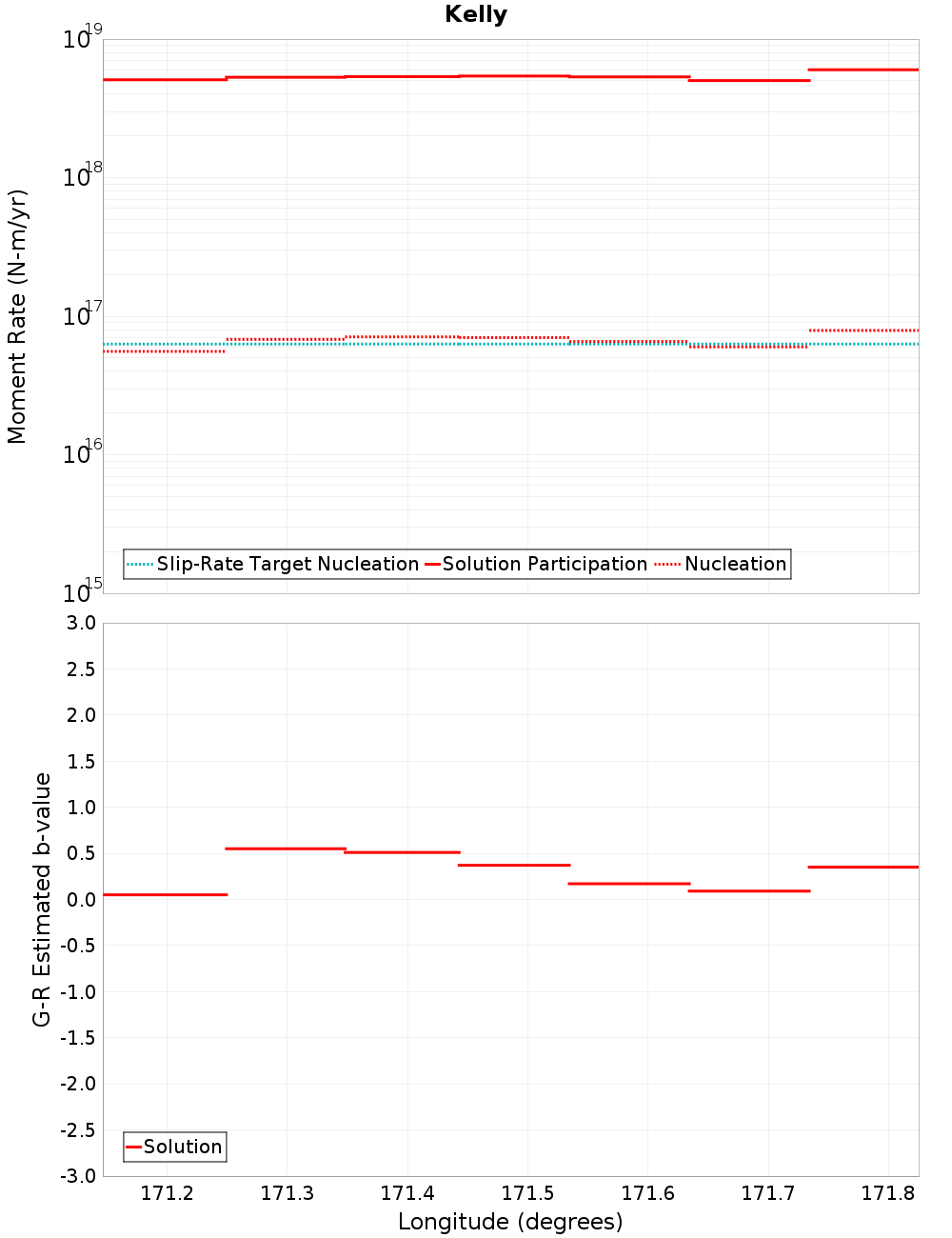

Moment-Rates and b-Values

(top)

Along-strike plot

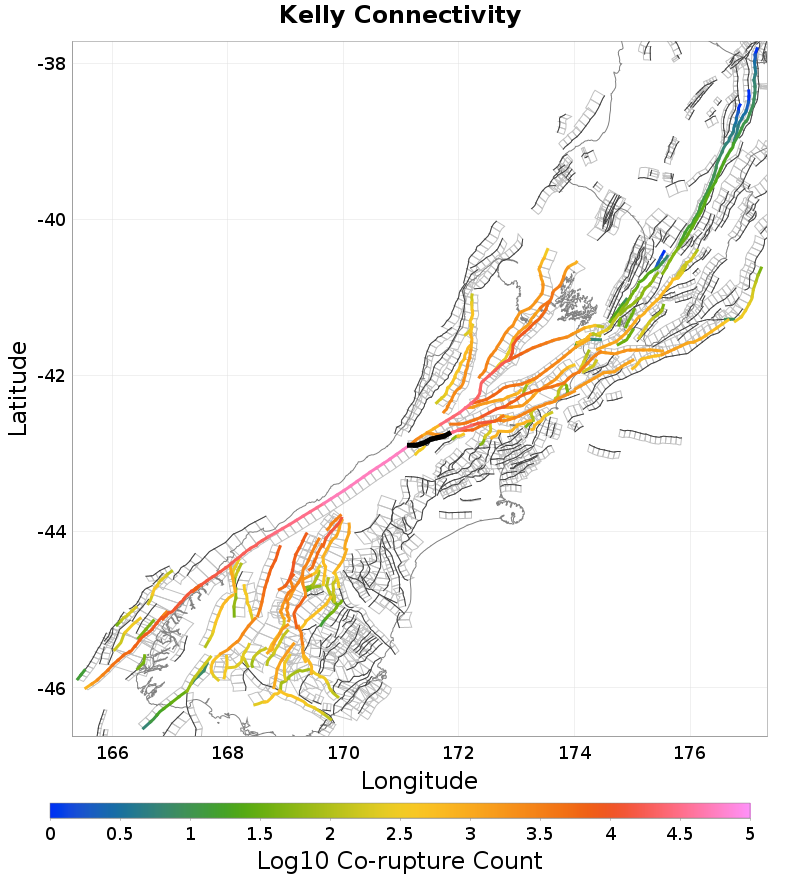

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Jacksons to Kaniere, 0 km away
Hope: Hurunui, 0 km away
Hope: Taramakau, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.1 km away
Poulter, 9.5 km away
Cape Foulwind 1, 11.56 km away
Clarence: Southwest, 13.14 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEZrVzlk
Connected?true
Directly Connected?true
Co-rupture Count56,730
Co-rupture Rate0.0016083702

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEZrVzlk
Connected?true
Directly Connected?true
Co-rupture Count29,970
Co-rupture Rate0.0022655101

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEZrVzlk
Connected?true
Directly Connected?true
Co-rupture Count2,576
Co-rupture Rate7.3579495E-4

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEZrVzlk
Connected?true
Directly Connected?true
Co-rupture Count37,700
Co-rupture Rate0.001685992

Browning Pass, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEZrVzlk
Connected?true
Directly Connected?false
Co-rupture Count321
Co-rupture Rate4.3779346E-7

Poulter, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEZrVzlk
Connected?true
Directly Connected?false
Co-rupture Count375
Co-rupture Rate4.1700005E-6

Cape Foulwind 1, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEZrVzlk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEZrVzlk
Connected?true
Directly Connected?false
Co-rupture Count10,808
Co-rupture Rate3.2063253E-4

Kakapo, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEZrVzlk
Connected?true
Directly Connected?false
Co-rupture Count7,156
Co-rupture Rate6.68628E-4

Hope: Hope River, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEZrVzlk
Connected?true
Directly Connected?false
Co-rupture Count23,160
Co-rupture Rate0.0016157224
