Uruti Basin 2 Details

Property	Value
Rupture Count	9,414
Ruptures Above Sect Min Mag	9,403
Ruptures w/ Nonzero Rates	74
Magnitude Range	[6.51, 8.42]
Length Range	[12, 753] km
Total Rate	1.00236764E-4 /yr
Multi-Fault Rate	1.00236764E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	66

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

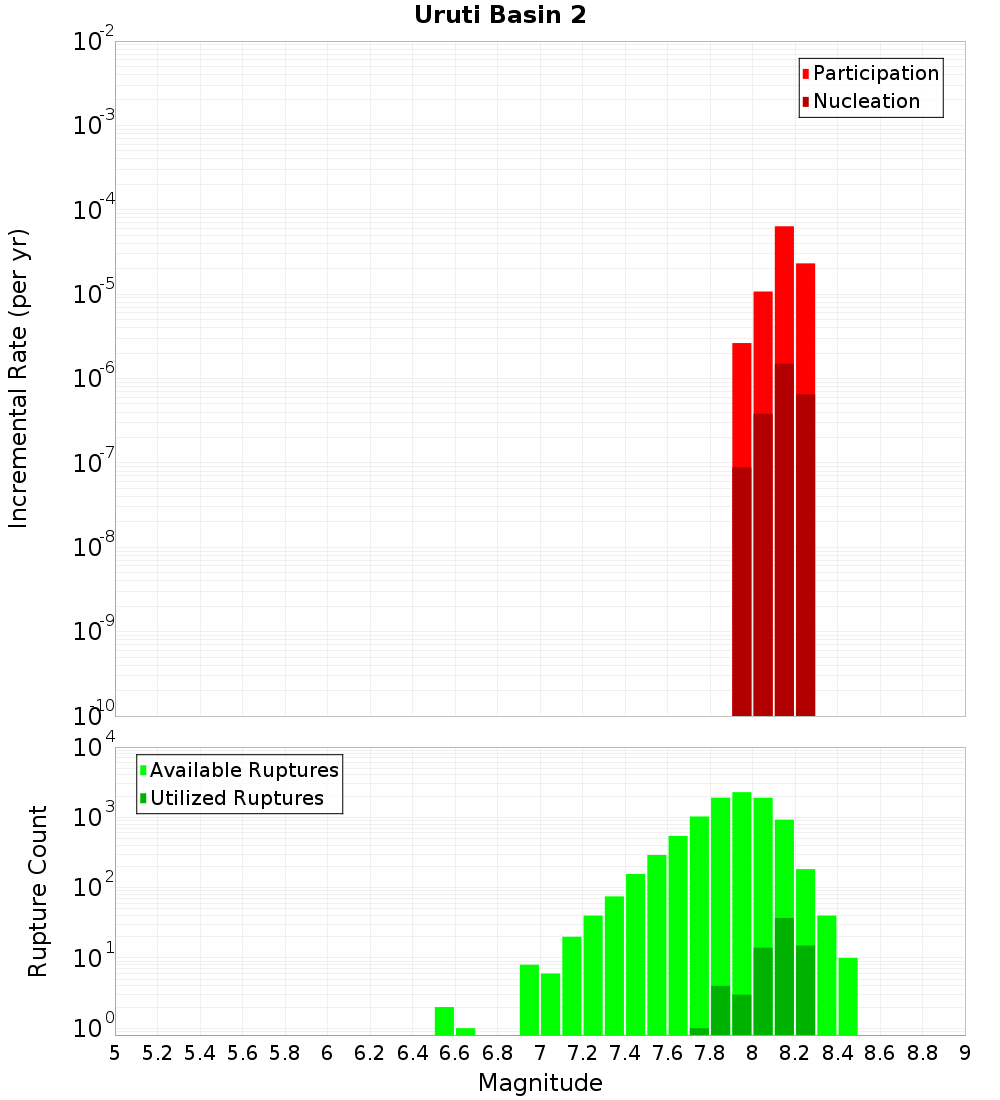

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

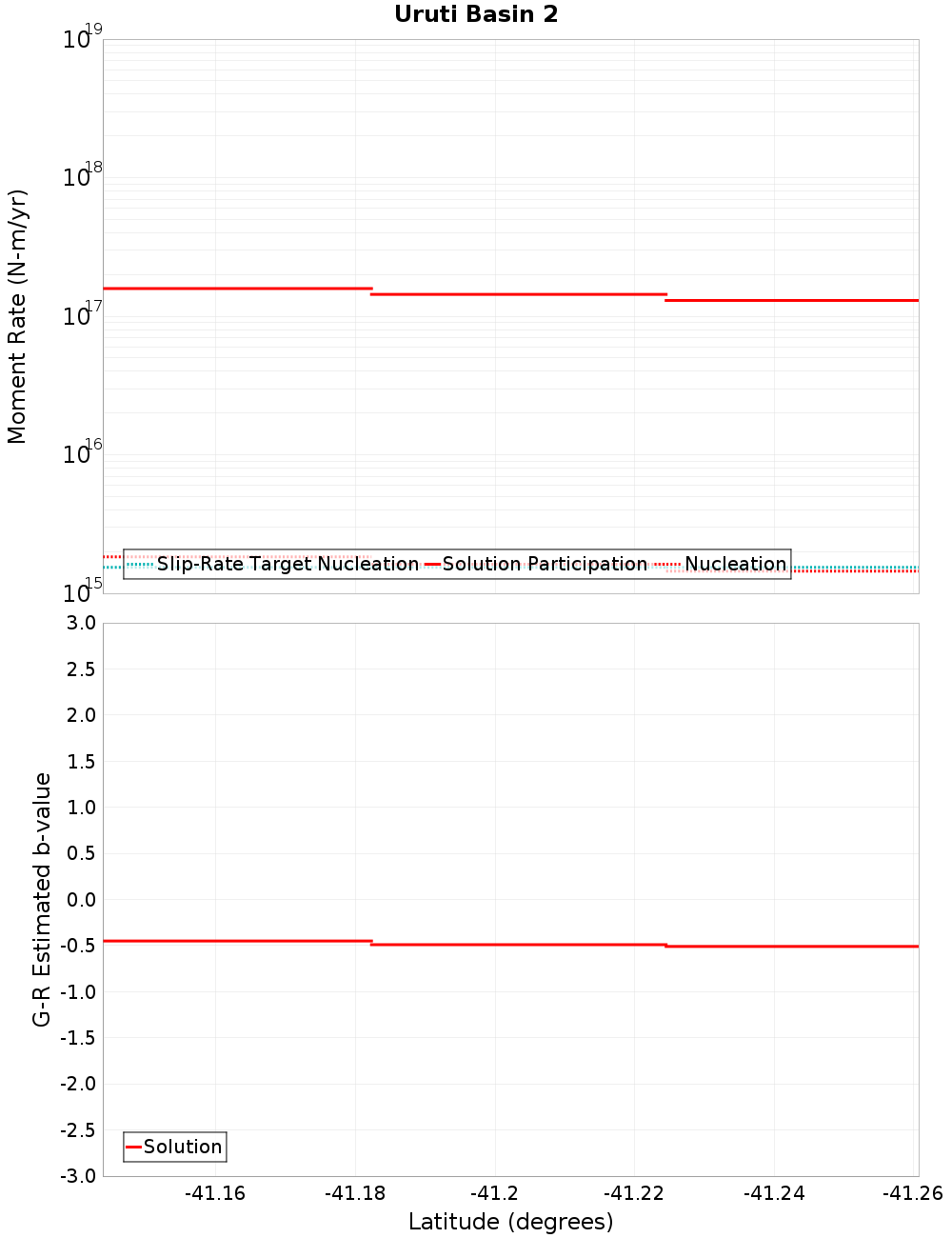

Moment-Rates and b-Values

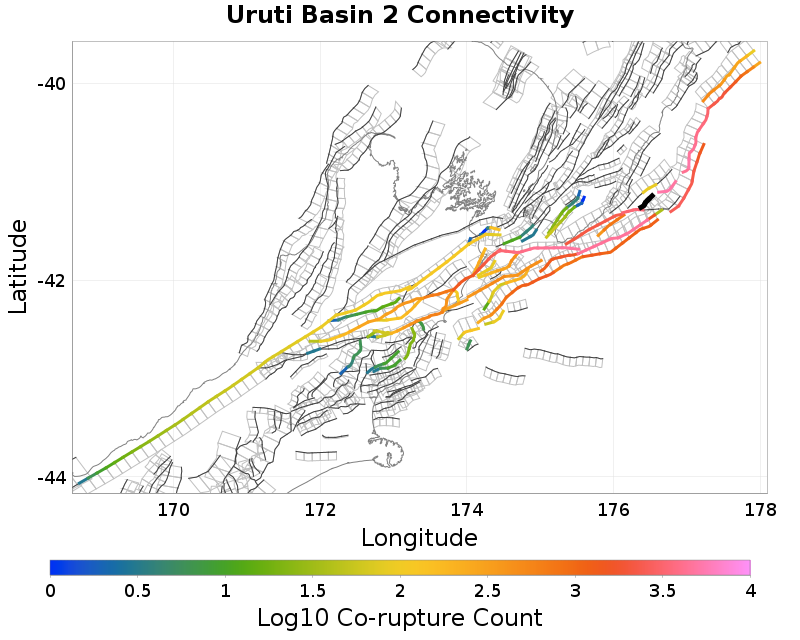

Connectivity

Nearby Sections

Fault Section
Pahaua, 0.14 km away
Opouawe - Uruti, 0.14 km away
Uruti Basin, 0.15 km away
Uruti East - PorWest 1, 1.76 km away
Uruti Ridge 2, 2.88 km away
Uruti North, 8.46 km away
Whareama Bank, 9.24 km away

Pahaua, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEhpV3hE
Connected?	true
Directly Connected?	true
Co-rupture Count	1,733
Co-rupture Rate	8.507574E-6

Opouawe - Uruti, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEhpV3hE
Connected?	true
Directly Connected?	true
Co-rupture Count	5,368
Co-rupture Rate	6.1779894E-5

Uruti Basin, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEhpV3hE
Connected?	true
Directly Connected?	true
Co-rupture Count	3,345
Co-rupture Rate	2.9949348E-5

Uruti East - PorWest 1, 1.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEhpV3hE
Connected?	true
Directly Connected?	true
Co-rupture Count	3,014
Co-rupture Rate	1.5215678E-5

Uruti Ridge 2, 2.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEhpV3hE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Uruti North, 8.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEhpV3hE
Connected?	true
Directly Connected?	true
Co-rupture Count	5,189
Co-rupture Rate	8.5020896E-5

Whareama Bank, 9.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2NjkuMEhpV3hE
Connected?	true
Directly Connected?	false
Co-rupture Count	88
Co-rupture Rate	0.0
