Clifton Details
| Property | Value |
|---|---|
| Rupture Count | 1,811 |
| Ruptures Above Sect Min Mag | 1,810 |
| Ruptures w/ Nonzero Rates | 51 |
| Magnitude Range | [6.72, 8.32] |
| Length Range | [11, 439] km |
| Total Rate | 2.115351E-5 /yr |
| Multi-Fault Rate | 2.115351E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 66 |
Table Of Contents

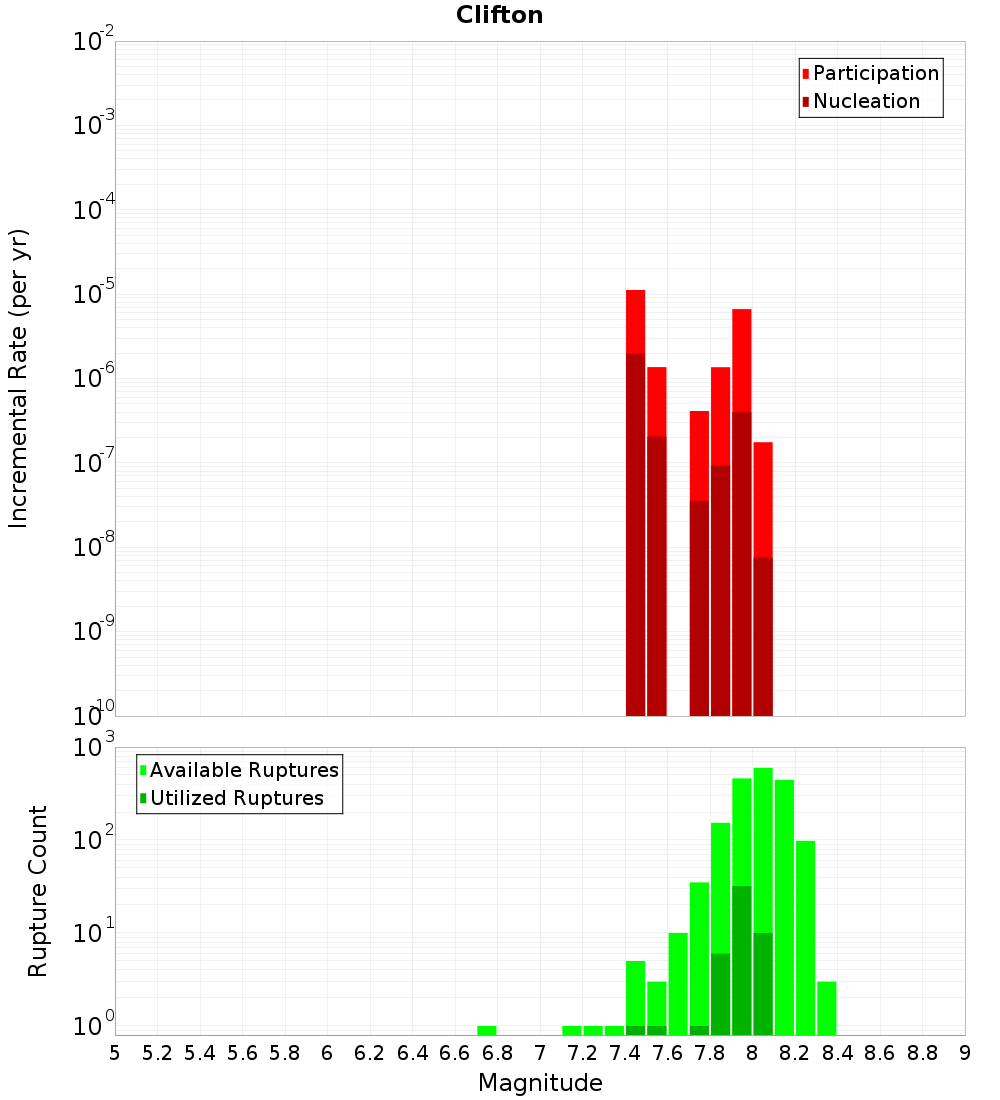

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

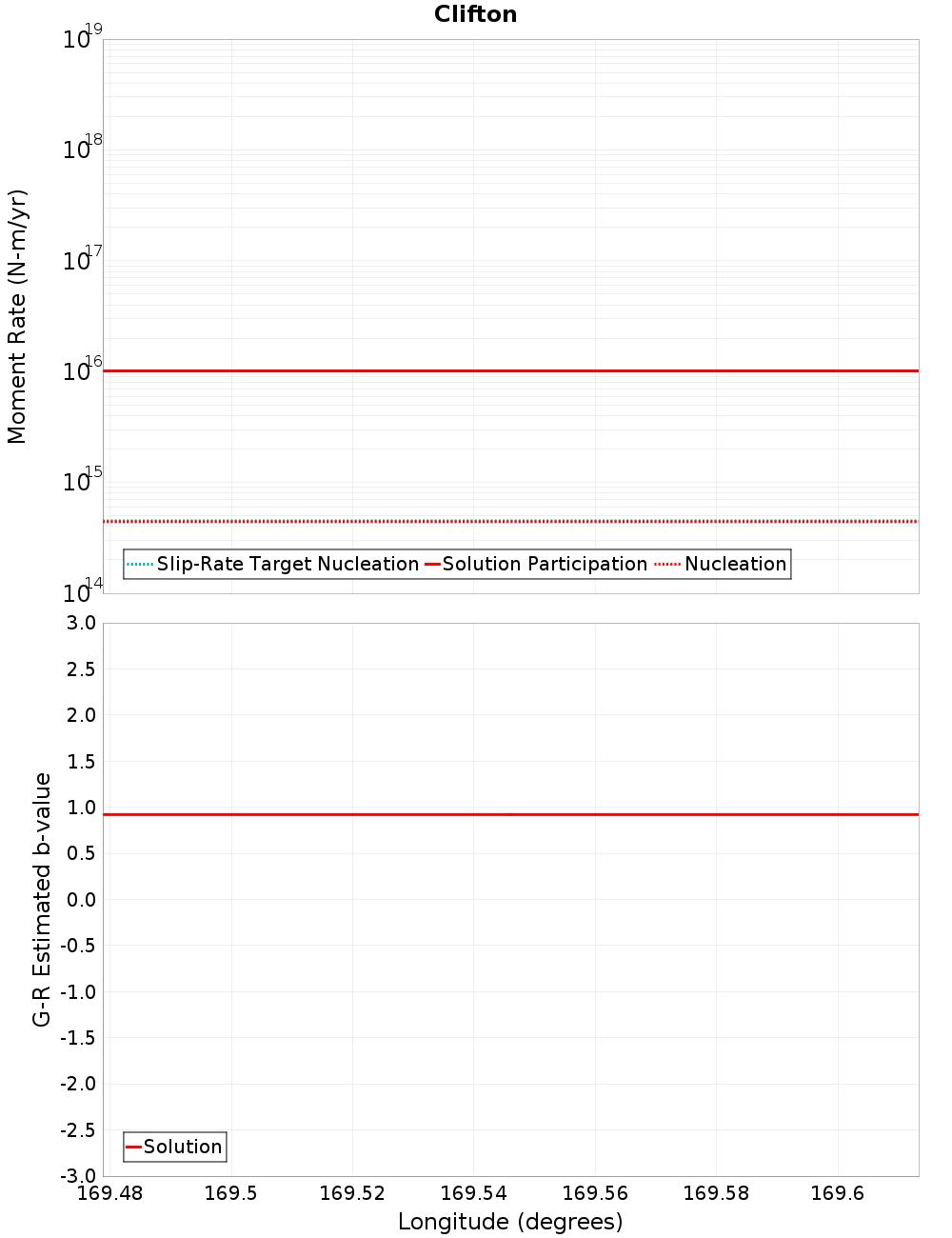

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Blue Mountain, 0.1 km away |
| Beacon Hill, 3.64 km away |
| Tuapeka, 6.7 km away |
| Otanomomo, 7.36 km away |
| Little Hillfoot, 8.06 km away |
| Hillfoot, 8.54 km away |
| Spylaw, 8.67 km away |
Blue Mountain, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,093 |
| Co-rupture Rate | 1.978883E-5 |
Beacon Hill, 3.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 611 |
| Co-rupture Rate | 1.36468E-6 |
Tuapeka, 6.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otanomomo, 7.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Little Hillfoot, 8.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hillfoot, 8.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,186 |
| Co-rupture Rate | 3.8573467E-6 |
Spylaw, 8.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 484 |
| Co-rupture Rate | 1.36468E-6 |
