Fowlers Details

Property	Value
Rupture Count	26
Ruptures Above Sect Min Mag	26
Ruptures w/ Nonzero Rates	0
Magnitude Range	[8.35, 8.41]
Length Range	[536, 620] km
Total Rate	0.0 /yr
Multi-Fault Rate	0.0 /yr (NaN)
Directly-Connected Faults	2
All Co-Rupturing Faults	12

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

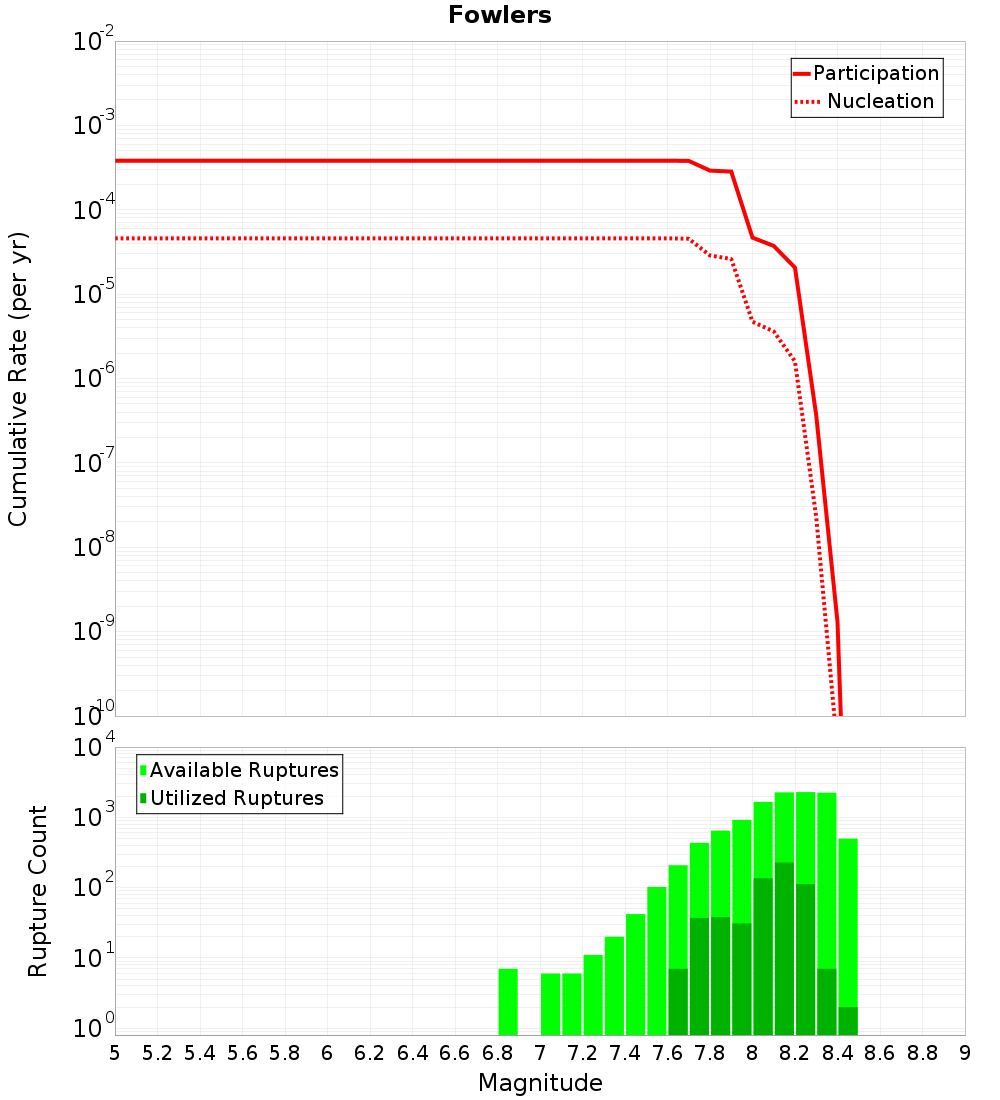

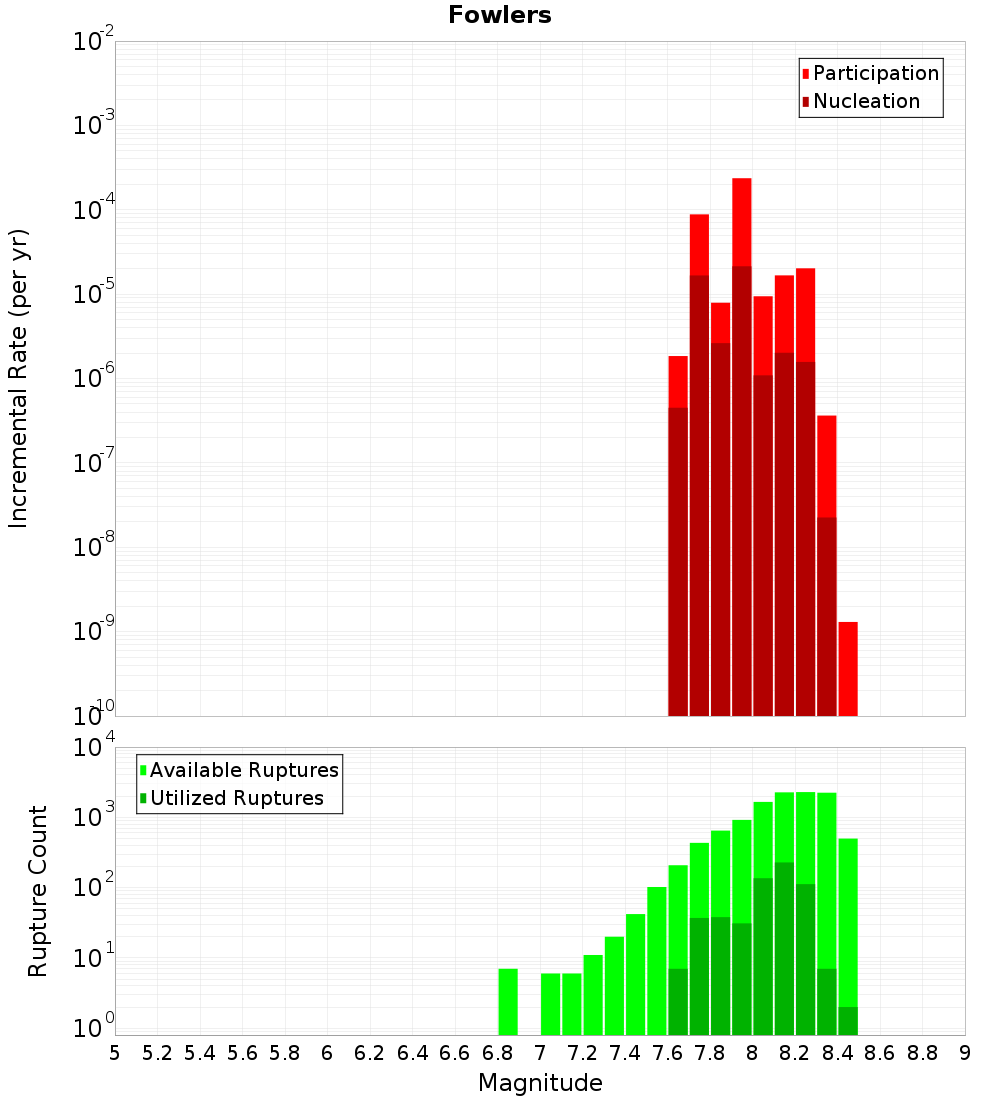

Magnitude-Frequency Distribution

Incremental	Cumulative

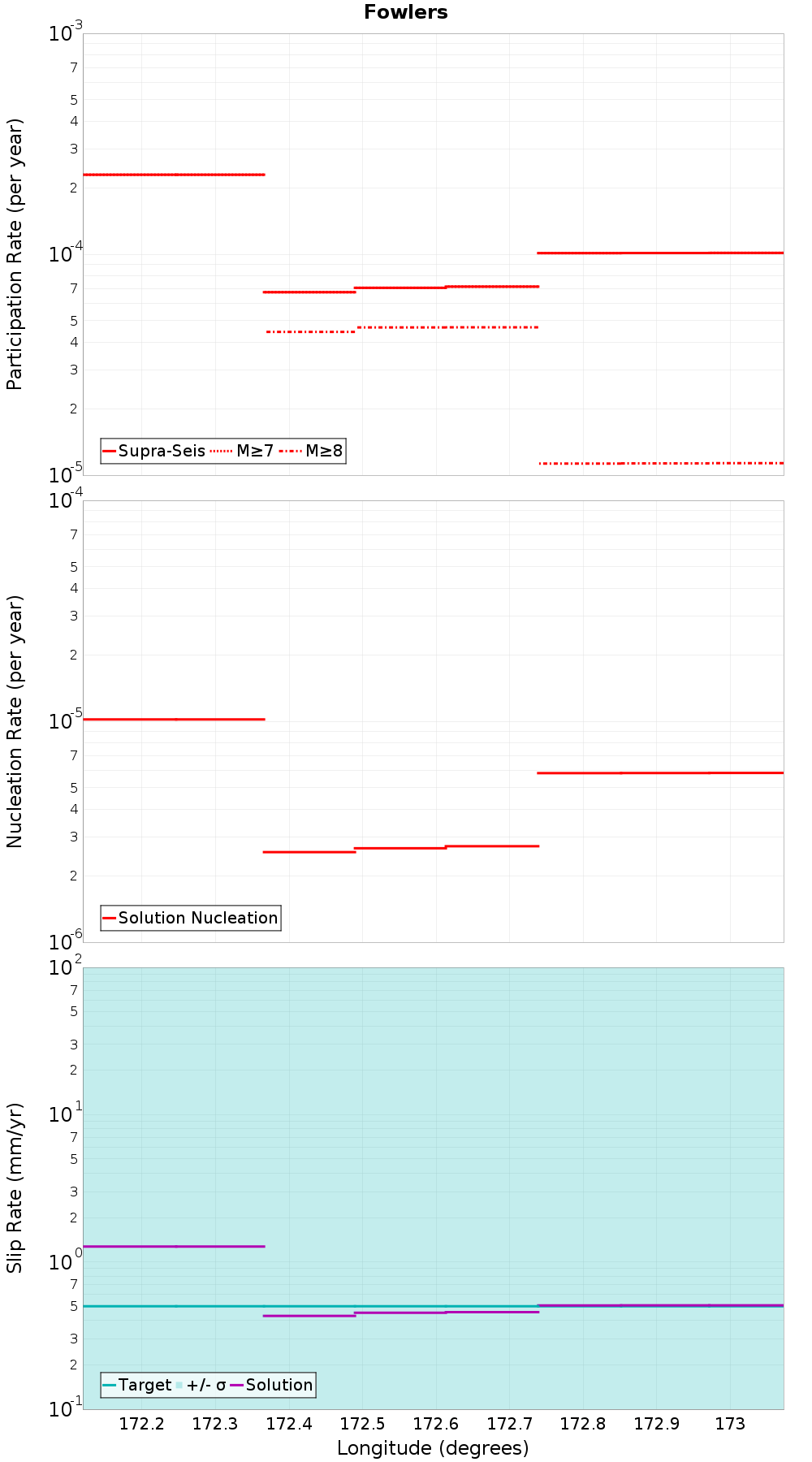

Along-Strike Values

Moment-Rates and b-Values

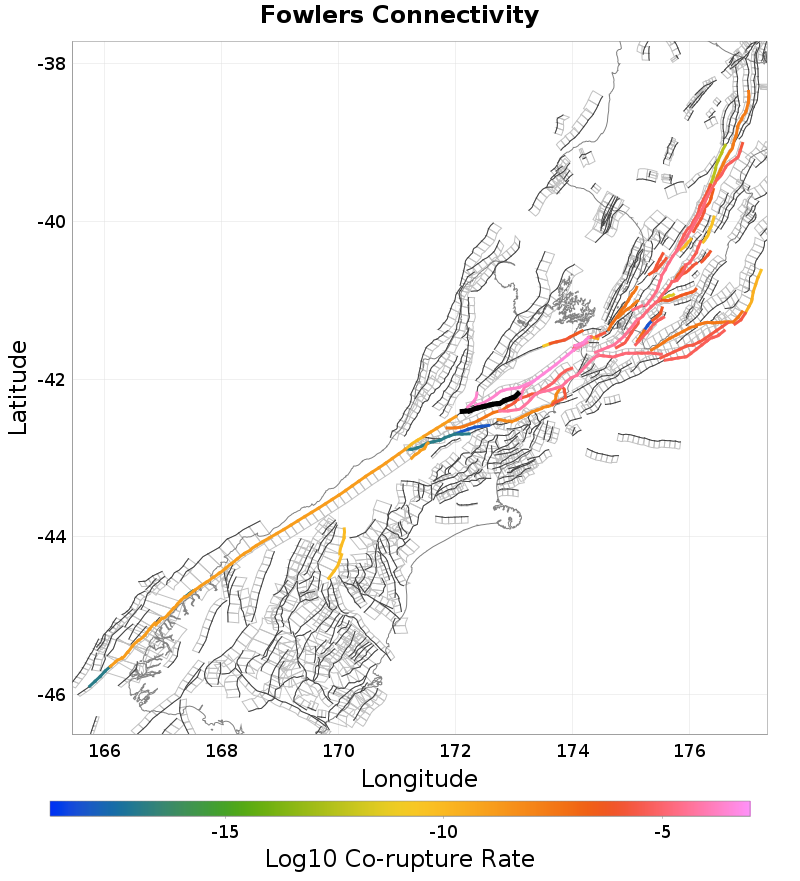

Connectivity

Nearby Sections

Fault Section
Clarence: Central, 0.07 km away
Alpine: Springs Junction to Tophouse, 0.19 km away
Alpine: Kaniere to Springs Junction, 0.24 km away
Barefell, 0.26 km away
Elliott, 0.4 km away
Clarence: Southwest, 2.09 km away
Awatere: Southwest, 4.56 km away
Awatere: Northeast 1, 14.06 km away

Clarence: Central, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1
Connected?	true
Directly Connected?	true
Co-rupture Count	3,012
Co-rupture Rate	1.5784701E-6

Alpine: Springs Junction to Tophouse, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1
Connected?	true
Directly Connected?	true
Co-rupture Count	335
Co-rupture Rate	2.2908568E-4

Alpine: Kaniere to Springs Junction, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1
Connected?	true
Directly Connected?	true
Co-rupture Count	5,408
Co-rupture Rate	1.3822414E-9

Barefell, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,159
Co-rupture Rate	9.9833924E-5

Elliott, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,114
Co-rupture Rate	5.0652023E-5

Clarence: Southwest, 2.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,413
Co-rupture Rate	3.8514802E-8

Awatere: Southwest, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1
Connected?	true
Directly Connected?	true
Co-rupture Count	527
Co-rupture Rate	2.2908568E-4

Awatere: Northeast 1, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTEuMGo3M3g1
Connected?	true
Directly Connected?	false
Co-rupture Count	2,348
Co-rupture Rate	3.2891962E-4
