Hope: Hope River Details

PropertyValue
Rupture Count25,470
Ruptures Above Sect Min Mag25,465
Ruptures w/ Nonzero Rates588
Magnitude Range[6.87, 8.56]
Length Range[20, 973] km
Total Rate0.0020107233 /yr
Multi-Fault Rate0.0016892946 /yr (84.01%)
Directly-Connected Faults6
All Co-Rupturing Faults144

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

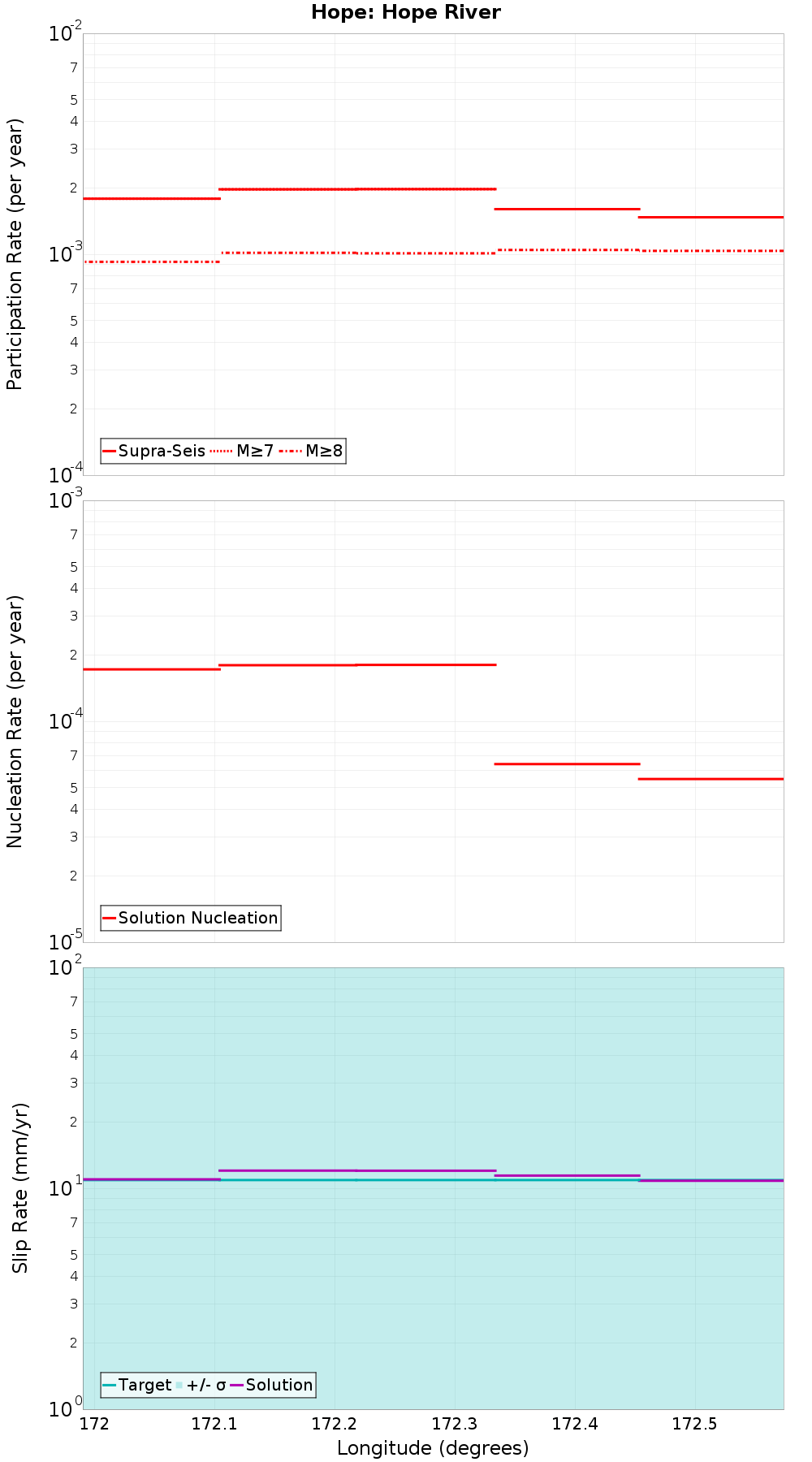

Along-Strike Values

(top)

Along-strike plot

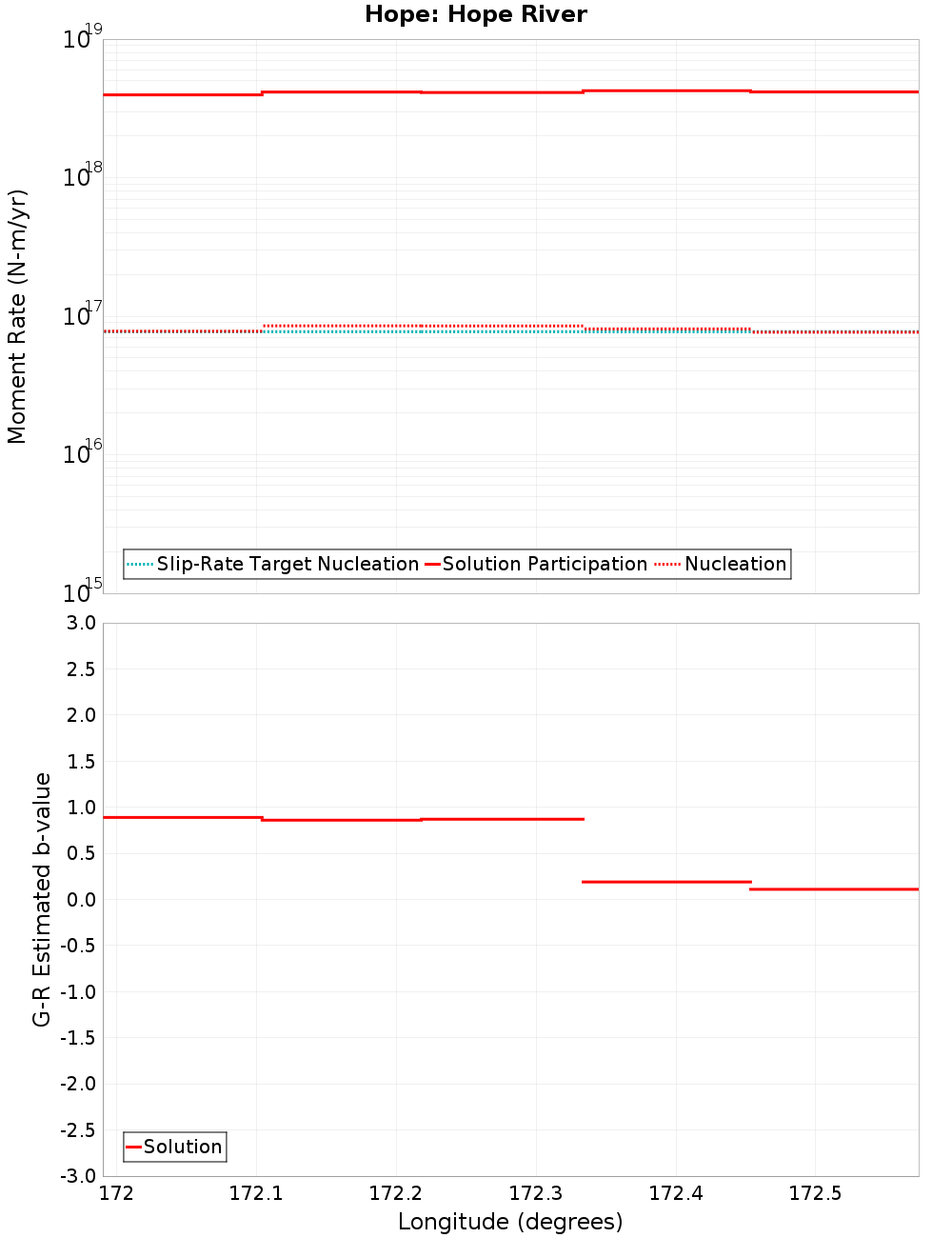

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Kakapo-2-Hamner, 0 km away
Kakapo, 0 km away
Hope: Hurunui, 0 km away
Esk North, 1.2 km away
Alpine: Kaniere to Springs Junction, 2.94 km away
Clarence: Southwest, 5.56 km away
Hope: Hanmer NW, 6.3 km away
Hope: Hamner SW, 6.3 km away
Poulter, 7.81 km away
Hurunui Peak, 11.86 km away
Hanmer, 13.39 km away
Alpine: Springs Junction to Tophouse, 13.43 km away
Hope: Taramakau, 14.38 km away
Kelly, 14.38 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?true
Co-rupture Count5,367
Co-rupture Rate0.0012493894

Kakapo, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?true
Co-rupture Count686
Co-rupture Rate4.9981176E-5

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?true
Co-rupture Count23,914
Co-rupture Rate0.0014849862

Esk North, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?true
Co-rupture Count176
Co-rupture Rate1.9679452E-5

Alpine: Kaniere to Springs Junction, 2.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?true
Co-rupture Count10,992
Co-rupture Rate7.431069E-4

Clarence: Southwest, 5.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?true
Co-rupture Count7,487
Co-rupture Rate1.8523005E-4

Hope: Hanmer NW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?false
Co-rupture Count3,621
Co-rupture Rate3.109852E-4

Hope: Hamner SW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?false
Co-rupture Count4,459
Co-rupture Rate3.1116896E-4

Poulter, 7.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Hurunui Peak, 11.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 13.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?false
Co-rupture Count670
Co-rupture Rate0.0

Alpine: Springs Junction to Tophouse, 13.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?false
Co-rupture Count6,599
Co-rupture Rate1.6340458E-4

Hope: Taramakau, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?false
Co-rupture Count848
Co-rupture Rate4.949693E-4

Kelly, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?false
Co-rupture Count23,160
Co-rupture Rate0.0013560386
