Mokonui Northeast Details

PropertyValue
Rupture Count224
Ruptures Above Sect Min Mag214
Ruptures w/ Nonzero Rates20
Magnitude Range[6.52, 8.16]
Length Range[13, 433] km
Total Rate3.348137E-4 /yr
Multi-Fault Rate3.348137E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults37

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

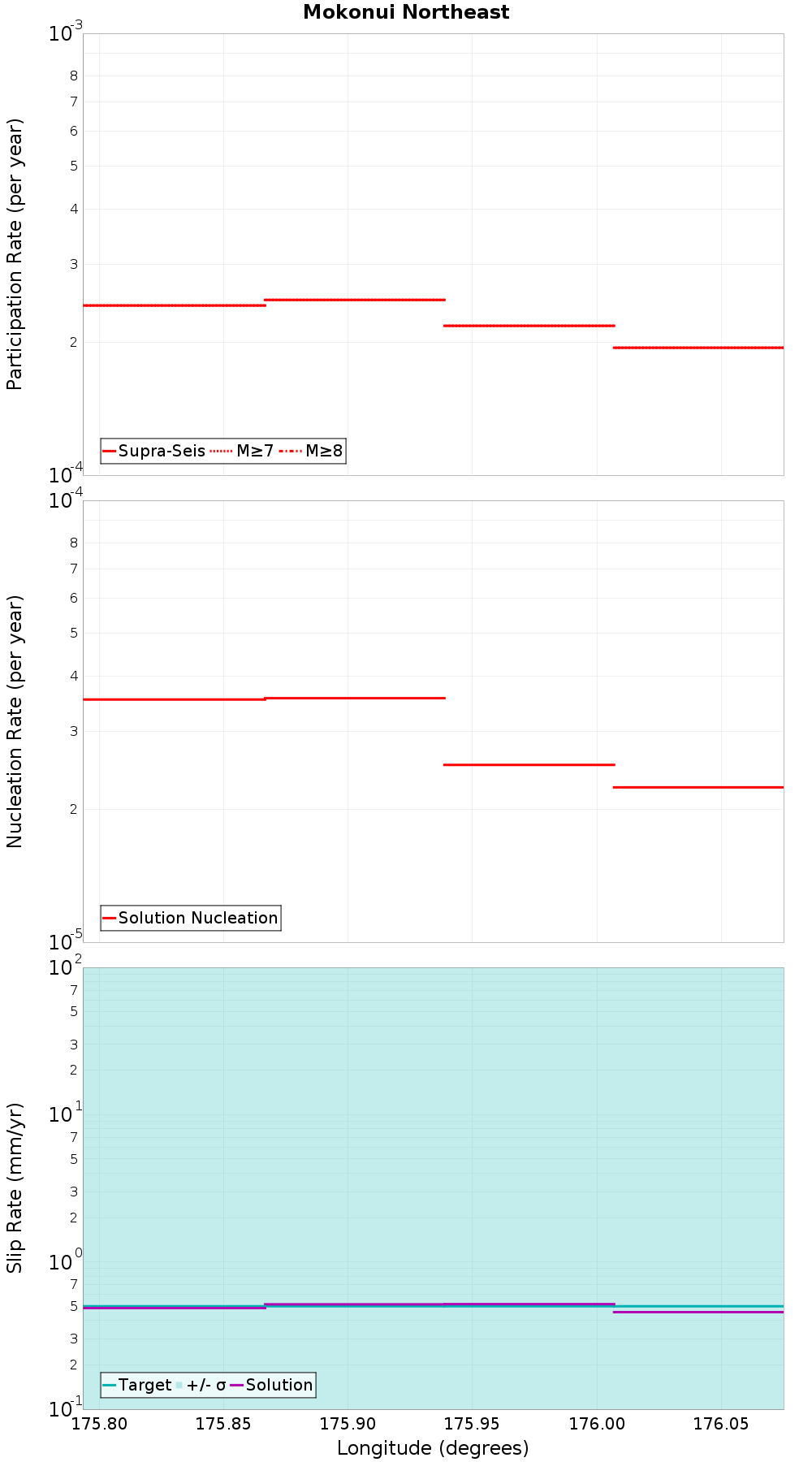

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mokonui Southwest, 0 km away
Mataikona, 3.45 km away
Waitawhiti, 7.82 km away
Dreyers Rock, 9.25 km away
Alfredton South, 9.5 km away
Carterton, 9.67 km away
Pa Valley, 9.8 km away
Wairarapa: 3, 10.14 km away
Masterton, 11.3 km away
Kaumingi, 11.8 km away
Mataikona East, 12.95 km away
Riversdale North, 13.07 km away

Mokonui Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate2.4203259E-4

Mataikona, 3.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate0.0

Waitawhiti, 7.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dreyers Rock, 9.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate0.0

Alfredton South, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?true
Co-rupture Count75
Co-rupture Rate3.9397397E-5

Carterton, 9.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?true
Co-rupture Count162
Co-rupture Rate9.2781105E-5

Pa Valley, 9.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Wairarapa: 3, 10.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate0.0

Masterton, 11.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaumingi, 11.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mataikona East, 12.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Riversdale North, 13.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTMuMEZGWHl6
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate6.4604654E-5
