Kaiwara North Details

Property	Value
Rupture Count	6,647
Ruptures Above Sect Min Mag	6,647
Ruptures w/ Nonzero Rates	223
Magnitude Range	[7.03, 8.29]
Length Range	[25, 560] km
Total Rate	1.08909204E-4 /yr
Multi-Fault Rate	1.08909204E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	91

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

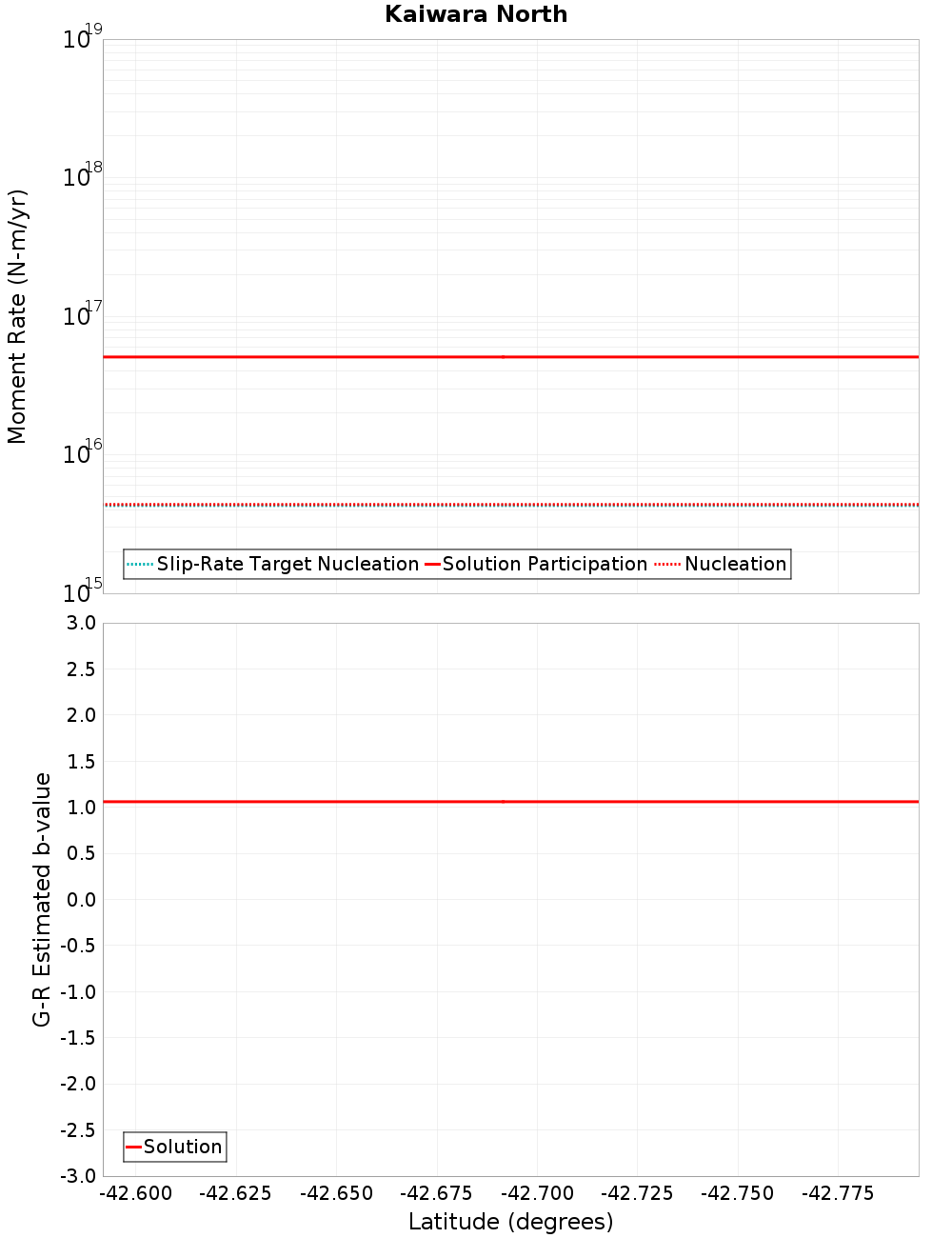

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Lowry, 0.15 km away	Hanmer, 5.4 km away
The Humps, 0.22 km away	Hope: Conway, 6.51 km away
Leonard Mound, 0.3 km away	Hawkswood, 9.21 km away
Mt Culverden, 0.53 km away	OmihiLwrHuru, 10.71 km away
Leader: South, 0.57 km away	Leader: North, 10.78 km away
Leader: Central, 2.03 km away	Kaiwara South, 11.67 km away
Hundalee, 3.47 km away	Hope: Hamner SE, 12.43 km away
Alexander, 5.18 km away	StoneJug, 13.46 km away

Lowry, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	true
Directly Connected?	true
Co-rupture Count	2,422
Co-rupture Rate	2.6234962E-5

The Humps, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leonard Mound, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	true
Directly Connected?	true
Co-rupture Count	424
Co-rupture Rate	5.5208042E-5

Mt Culverden, 0.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	true
Directly Connected?	true
Co-rupture Count	2,537
Co-rupture Rate	4.736256E-6

Leader: South, 0.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: Central, 2.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	true
Directly Connected?	true
Co-rupture Count	6,159
Co-rupture Rate	3.0417554E-5

Hundalee, 3.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	true
Directly Connected?	true
Co-rupture Count	174
Co-rupture Rate	4.196366E-5

Alexander, 5.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	true
Directly Connected?	true
Co-rupture Count	1,296
Co-rupture Rate	4.2474312E-5

Hanmer, 5.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Conway, 6.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	true
Directly Connected?	false
Co-rupture Count	4,692
Co-rupture Rate	3.0415382E-5

Hawkswood, 9.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

OmihiLwrHuru, 10.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	true
Directly Connected?	false
Co-rupture Count	97
Co-rupture Rate	0.0

Leader: North, 10.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	true
Directly Connected?	false
Co-rupture Count	1,220
Co-rupture Rate	2.1720163E-9

Kaiwara South, 11.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	true
Directly Connected?	false
Co-rupture Count	632
Co-rupture Rate	1.712299E-5

Hope: Hamner SE, 12.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

StoneJug, 13.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY2OTYuMDhKOThw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
