Leader: North Details

Property	Value
Rupture Count	2,237
Ruptures Above Sect Min Mag	2,232
Ruptures w/ Nonzero Rates	210
Magnitude Range	[6.47, 8.37]
Length Range	[10, 663] km
Total Rate	3.999956E-5 /yr
Multi-Fault Rate	3.999956E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	91

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

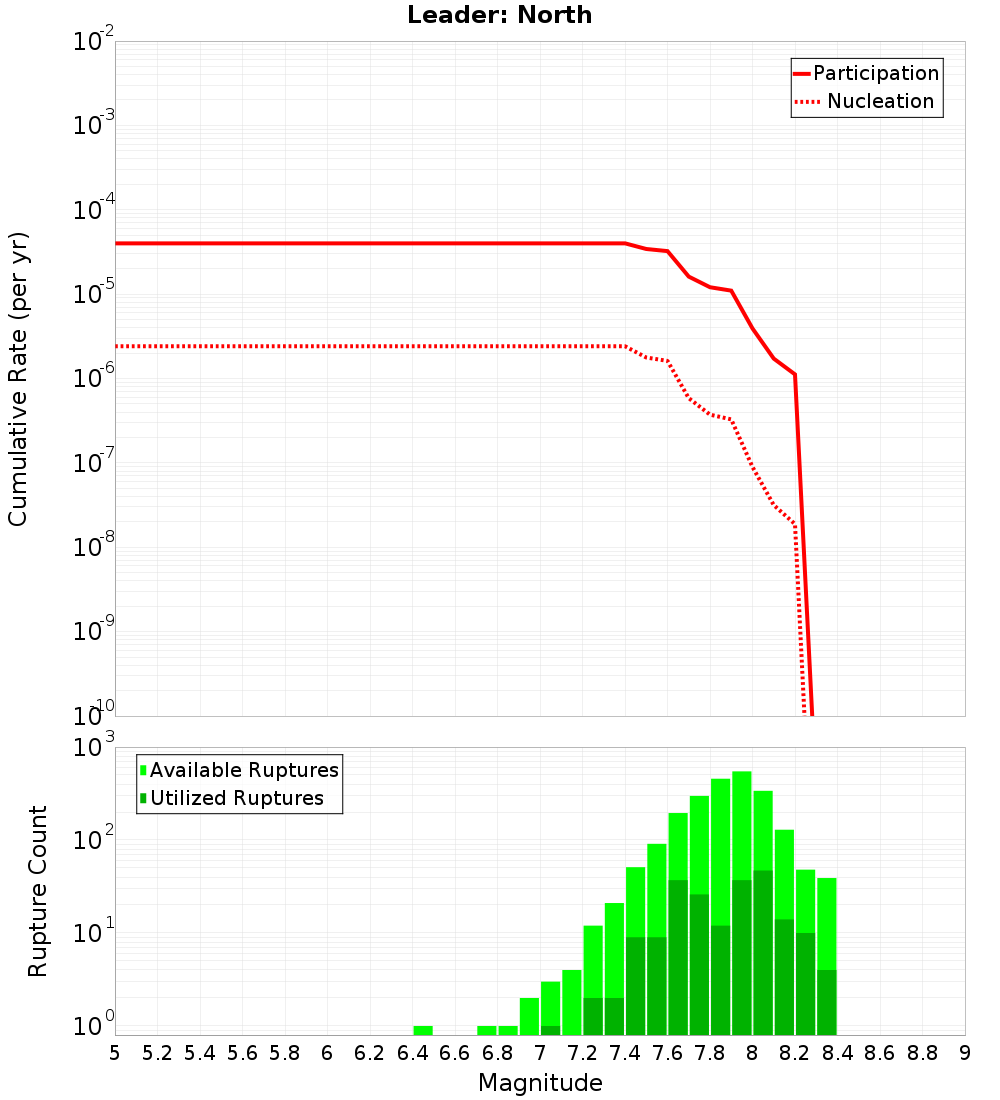

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

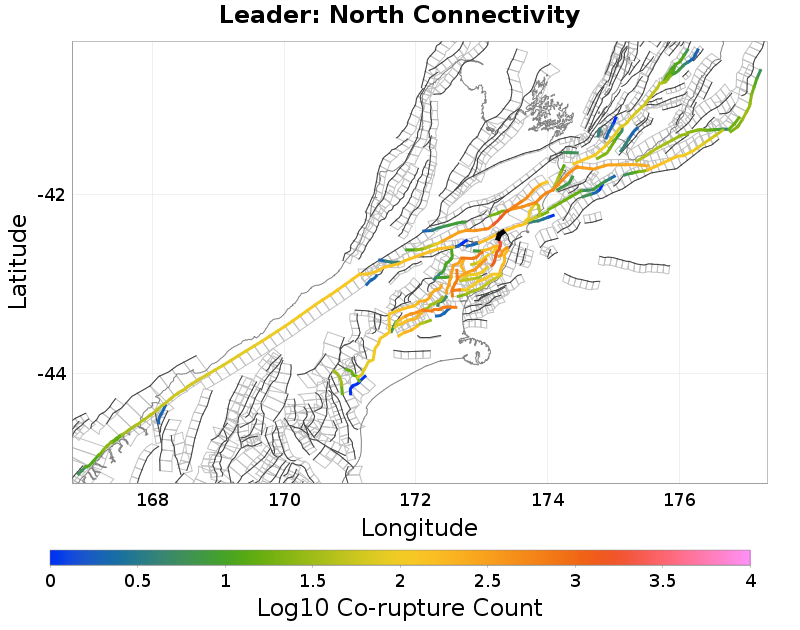

Connectivity

Nearby Sections

Fault Section
Leader: Central, 0 km away
Hope: Conway, 0.2 km away
StoneJug, 0.61 km away
Leader: South, 7.47 km away
The Humps, 9.77 km away
Kaiwara North, 10.78 km away
Elliott, 10.96 km away
Hundalee, 12.74 km away

Leader: Central, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,884
Co-rupture Rate	1.728467E-5

Hope: Conway, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	true
Co-rupture Count	173
Co-rupture Rate	1.8068577E-5

StoneJug, 0.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: South, 7.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	false
Co-rupture Count	102
Co-rupture Rate	1.6077523E-5

The Humps, 9.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	false
Co-rupture Count	186
Co-rupture Rate	1.2729617E-12

Kaiwara North, 10.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	false
Co-rupture Count	1,220
Co-rupture Rate	1.206856E-6

Elliott, 10.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,753
Co-rupture Rate	2.1948685E-5

Hundalee, 12.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	false
Co-rupture Count	382
Co-rupture Rate	2.5440688E-10
