Timaru Creek Details

Property	Value
Rupture Count	11,591
Ruptures Above Sect Min Mag	11,589
Ruptures w/ Nonzero Rates	573
Magnitude Range	[6.89, 8.56]
Length Range	[19, 852] km
Total Rate	1.0286353E-4 /yr
Multi-Fault Rate	4.603442E-5 /yr (44.75%)
Directly-Connected Faults	8
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

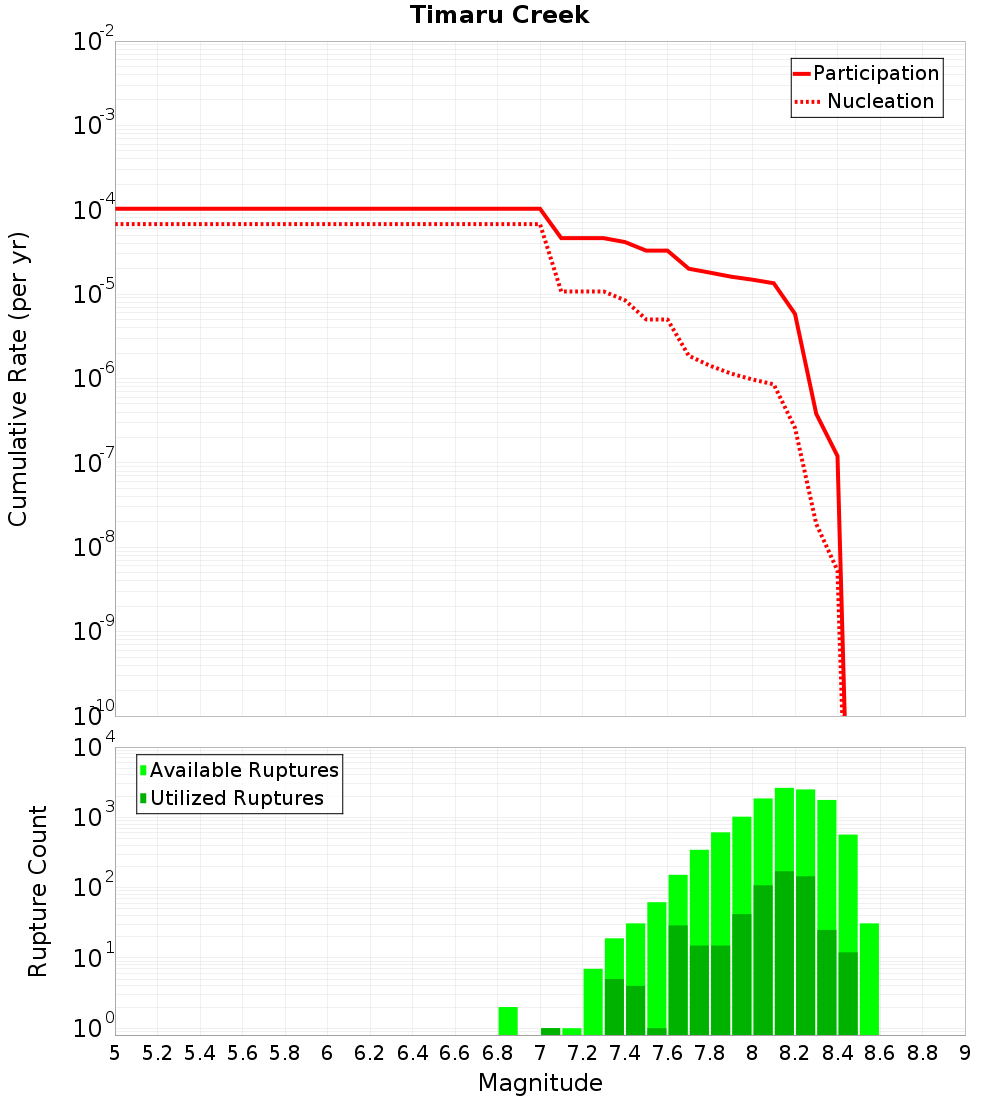

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Dromedary, 0.12 km away
Grandview, 0.3 km away
Wanaka, 0.46 km away
Lindis River, 2.49 km away
Cardrona - Hawea, 4.34 km away
Dingle, 4.92 km away
Hunter Valley, 4.93 km away
Motatapu, 7.02 km away
Barrier Range, 9.19 km away
Ostler South, 9.79 km away

Dromedary, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	true
Co-rupture Count	123
Co-rupture Rate	9.603509E-7

Grandview, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	true
Co-rupture Count	6,034
Co-rupture Rate	1.745374E-5

Wanaka, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,416
Co-rupture Rate	4.695816E-6

Lindis River, 2.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	true
Co-rupture Count	103
Co-rupture Rate	3.5251237E-6

Cardrona - Hawea, 4.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	true
Co-rupture Count	4,044
Co-rupture Rate	9.98282E-6

Dingle, 4.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	true
Co-rupture Count	6,483
Co-rupture Rate	7.1960194E-6

Hunter Valley, 4.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	true
Co-rupture Count	127
Co-rupture Rate	0.0

Motatapu, 7.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	false
Co-rupture Count	961
Co-rupture Rate	6.364627E-6

Barrier Range, 9.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,879
Co-rupture Rate	6.9984817E-6

Ostler South, 9.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDMuMDVhOWV1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
