Dromedary Details

Property	Value
Rupture Count	12,381
Ruptures Above Sect Min Mag	12,380
Ruptures w/ Nonzero Rates	403
Magnitude Range	[7.04, 8.54]
Length Range	[26, 810] km
Total Rate	8.586155E-5 /yr
Multi-Fault Rate	8.586155E-5 /yr (100.00%)
Directly-Connected Faults	10
All Co-Rupturing Faults	99

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

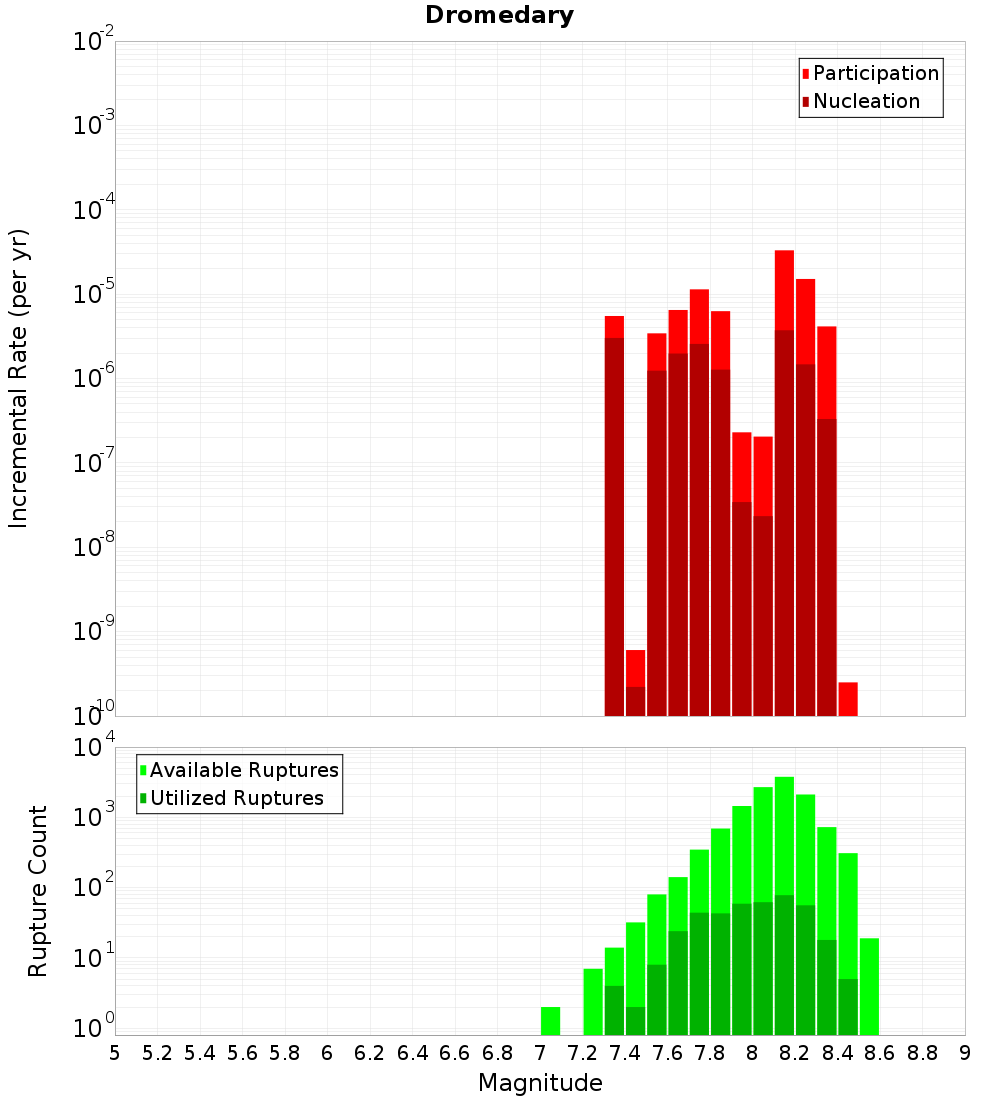

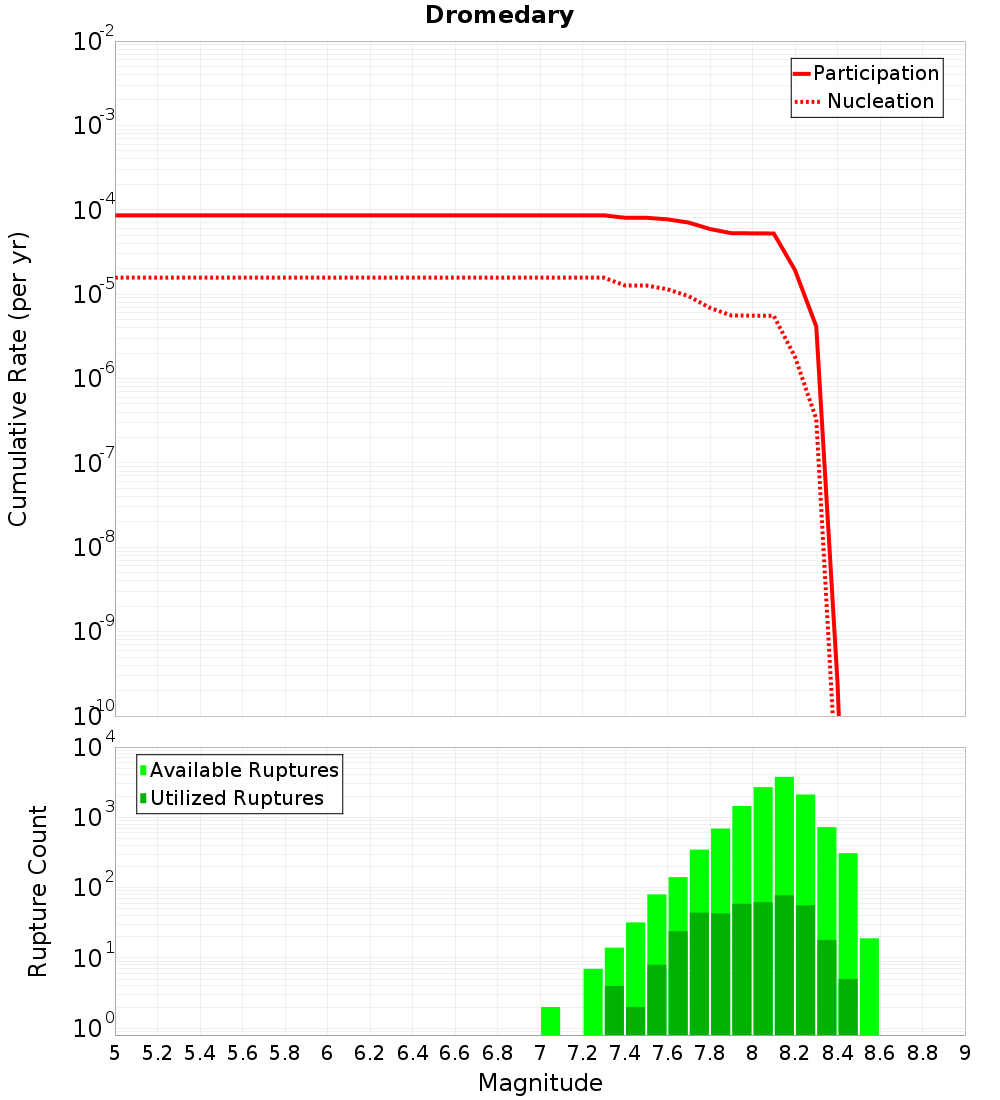

Magnitude-Frequency Distribution

Incremental	Cumulative

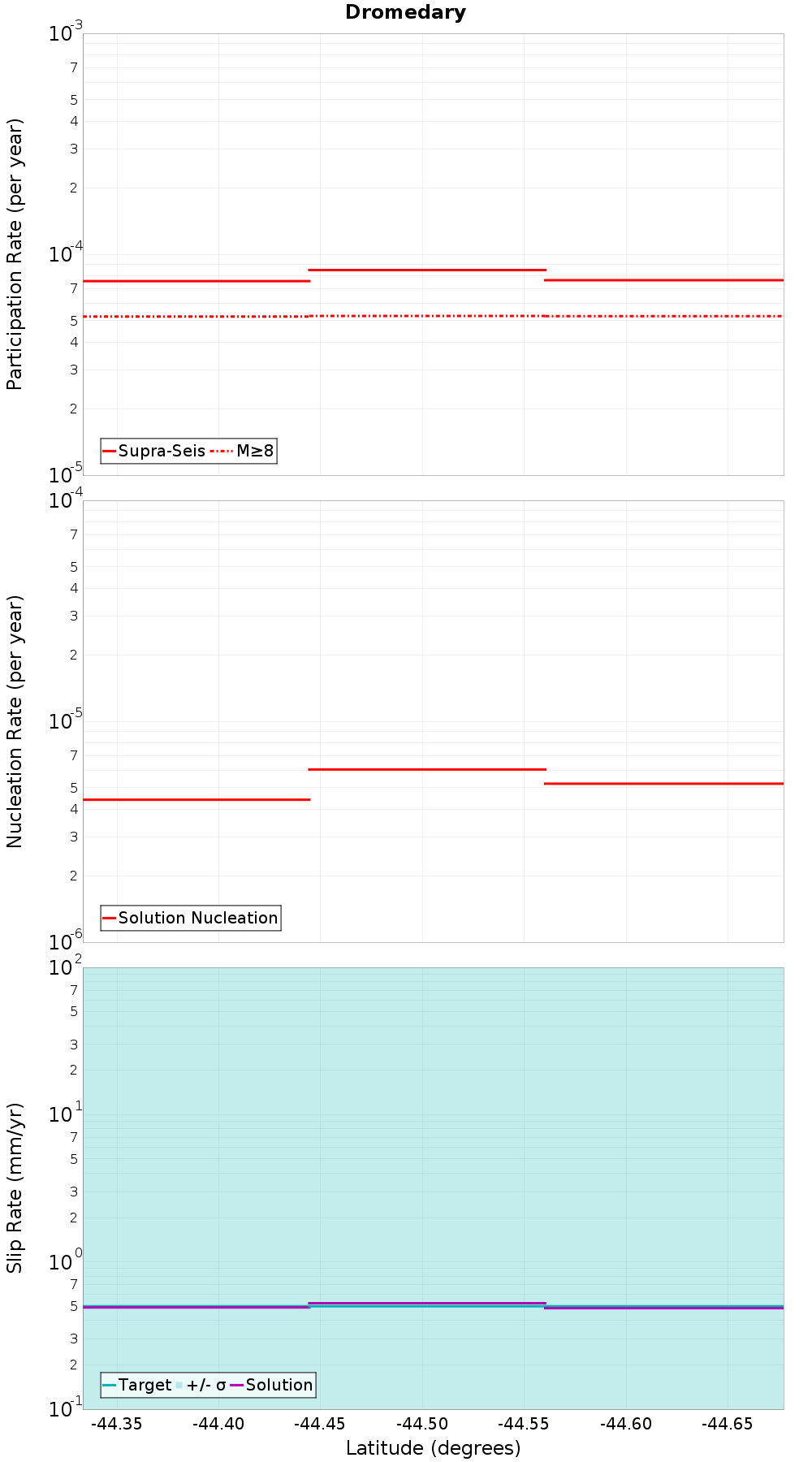

Along-Strike Values

Moment-Rates and b-Values

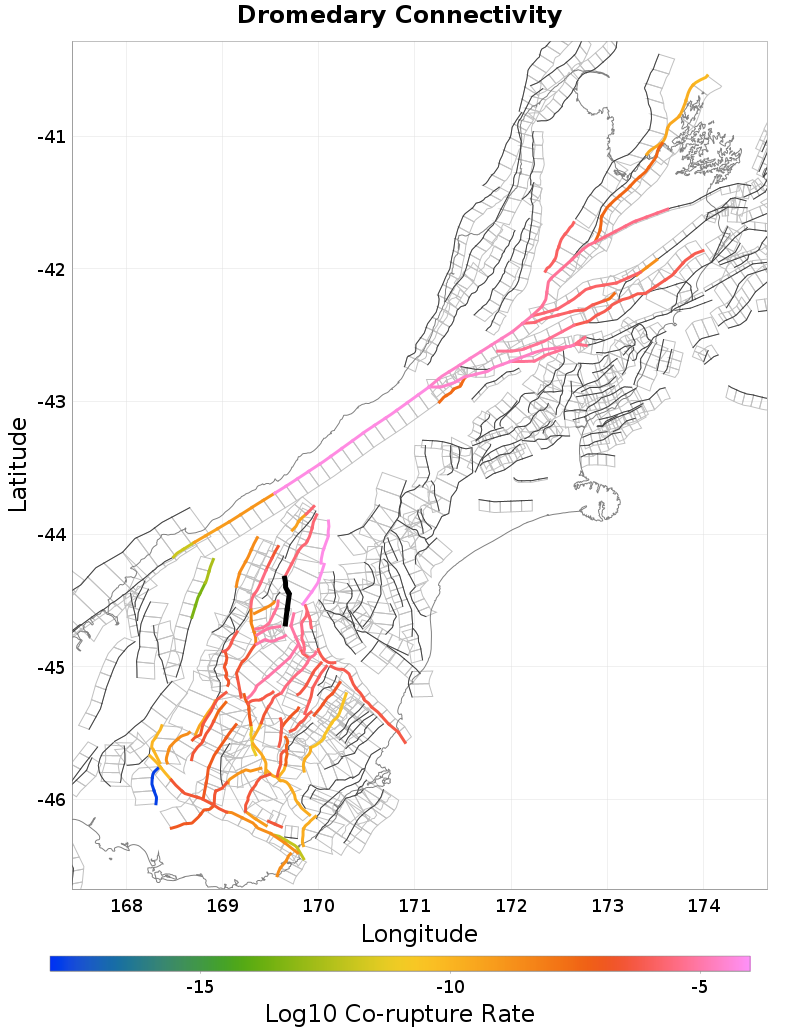

Connectivity

Nearby Sections

Fault Section
Timaru Creek, 0.12 km away
Lindis River, 0.15 km away
Cluden, 1.29 km away
Grandview, 1.36 km away
Barrier Range, 1.72 km away
Ostler South, 3.83 km away
Goodger, 4.03 km away
Blue Lake, 4.84 km away
Dunstan, 6.46 km away
Dingle, 7.73 km away
Wanaka, 10.85 km away
Omarama Saddle, 13.1 km away
Hawkdun, 14.4 km away
Hunter Valley, 14.89 km away

Timaru Creek, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	true
Co-rupture Count	123
Co-rupture Rate	2.5152491E-9

Lindis River, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	true
Co-rupture Count	1,772
Co-rupture Rate	5.6615263E-6

Cluden, 1.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	true
Co-rupture Count	648
Co-rupture Rate	9.973116E-6

Grandview, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	true
Co-rupture Count	2,521
Co-rupture Rate	4.3509765E-9

Barrier Range, 1.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	true
Co-rupture Count	8,900
Co-rupture Rate	1.998754E-6

Ostler South, 3.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	true
Co-rupture Count	481
Co-rupture Rate	6.34599E-5

Goodger, 4.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	true
Co-rupture Count	2,075
Co-rupture Rate	7.933895E-6

Blue Lake, 4.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	true
Co-rupture Count	4,582
Co-rupture Rate	8.241676E-6

Dunstan, 6.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	false
Co-rupture Count	3,961
Co-rupture Rate	1.0577947E-5

Dingle, 7.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	0.0

Wanaka, 10.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	2.4968856E-9

Omarama Saddle, 13.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	true
Co-rupture Count	467
Co-rupture Rate	5.5075107E-6

Hawkdun, 14.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	false
Co-rupture Count	160
Co-rupture Rate	2.6962575E-6

Hunter Valley, 14.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDQuMGdCekZF
Connected?	true
Directly Connected?	true
Co-rupture Count	311
Co-rupture Rate	3.0742247E-6
