Mohaka: South Details

Property	Value
Rupture Count	66,085
Ruptures Above Sect Min Mag	66,077
Ruptures w/ Nonzero Rates	791
Magnitude Range	[6.98, 8.61]
Length Range	[25, 1,132] km
Total Rate	8.610149E-4 /yr
Multi-Fault Rate	8.610149E-4 /yr (100.00%)
Directly-Connected Faults	11
All Co-Rupturing Faults	132

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

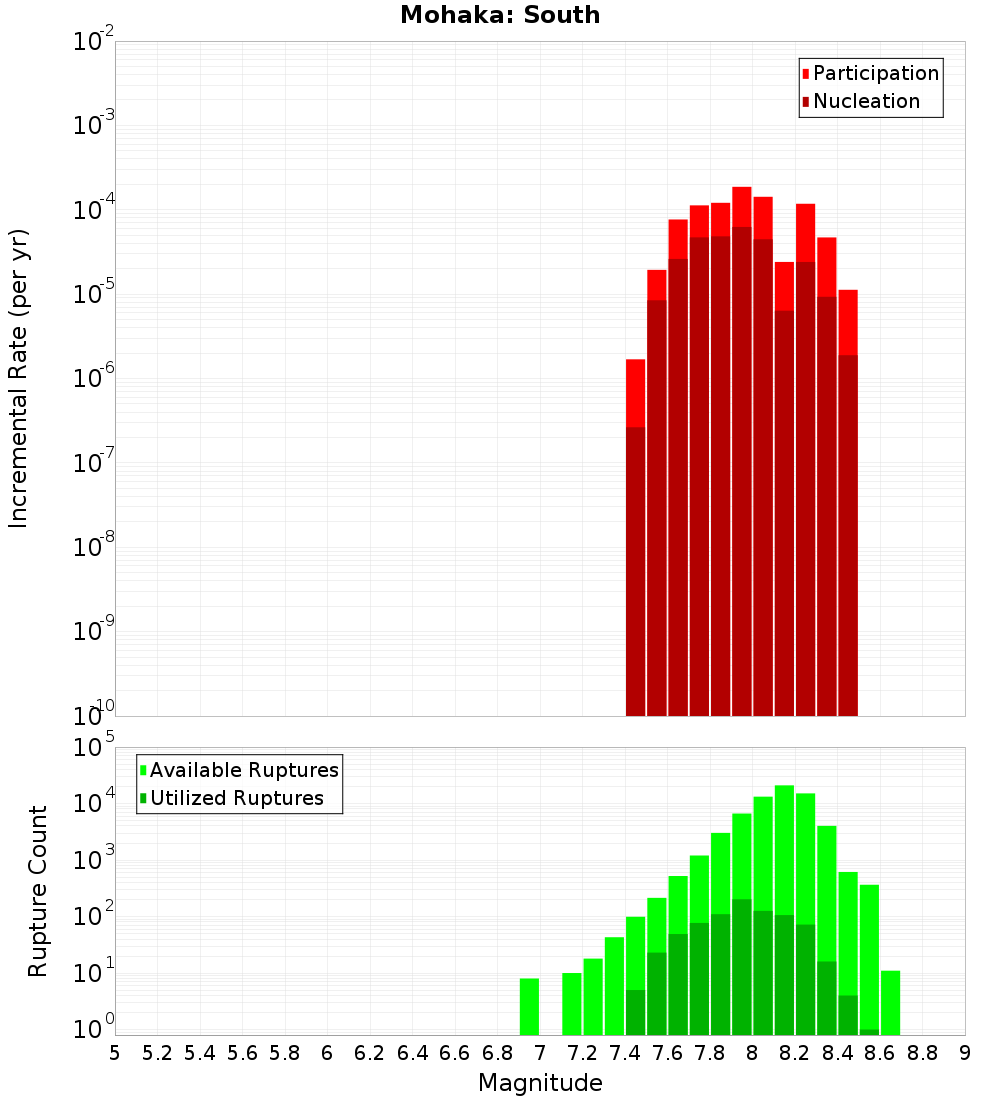

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Wellington: Pahiatua, 0 km away	Ruahine: North, 4.35 km away
Mohaka: North, 0 km away	Patoka - Rangiora, 5.52 km away
Ruahine: South, 0 km away	Ruataniwha, 6.61 km away
Wakarara, 0.13 km away	Maunga, 9.06 km away
Rangefront, 0.2 km away	Pohangina, 9.44 km away
Woodville, 0.4 km away	Awanui, 12.7 km away
Ruahine: Central, 2.68 km away	Tokomaru, 14.28 km away
Pahiatua, 4.26 km away	Te Heka, 14.94 km away

Wellington: Pahiatua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	57,491
Co-rupture Rate	7.651652E-4

Mohaka: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	36,988
Co-rupture Rate	1.954388E-4

Ruahine: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	7,982
Co-rupture Rate	1.0964173E-4

Wakarara, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	2,264
Co-rupture Rate	3.0043308E-5

Rangefront, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	6,994
Co-rupture Rate	9.299303E-5

Woodville, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	5,524
Co-rupture Rate	3.7102738E-5

Ruahine: Central, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	7,389
Co-rupture Rate	1.0340257E-4

Pahiatua, 4.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	1,138
Co-rupture Rate	6.21267E-5

Ruahine: North, 4.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	18,590
Co-rupture Rate	1.3729419E-5

Patoka - Rangiora, 5.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	4,420
Co-rupture Rate	1.4490729E-4

Ruataniwha, 6.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	1,094
Co-rupture Rate	1.4711909E-5

Maunga, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	false
Co-rupture Count	469
Co-rupture Rate	2.833954E-5

Pohangina, 9.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	false
Co-rupture Count	466
Co-rupture Rate	6.5698305E-6

Awanui, 12.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	false
Co-rupture Count	289
Co-rupture Rate	1.1243064E-5

Tokomaru, 14.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	false
Co-rupture Count	205
Co-rupture Rate	0.0

Te Heka, 14.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	0.0
