Wakamarama Details

Property	Value
Rupture Count	2,146
Ruptures Above Sect Min Mag	2,137
Ruptures w/ Nonzero Rates	429
Magnitude Range	[6.76, 8.16]
Length Range	[18, 404] km
Total Rate	4.846855E-5 /yr
Multi-Fault Rate	4.8450333E-5 /yr (99.96%)
Directly-Connected Faults	4
All Co-Rupturing Faults	20

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

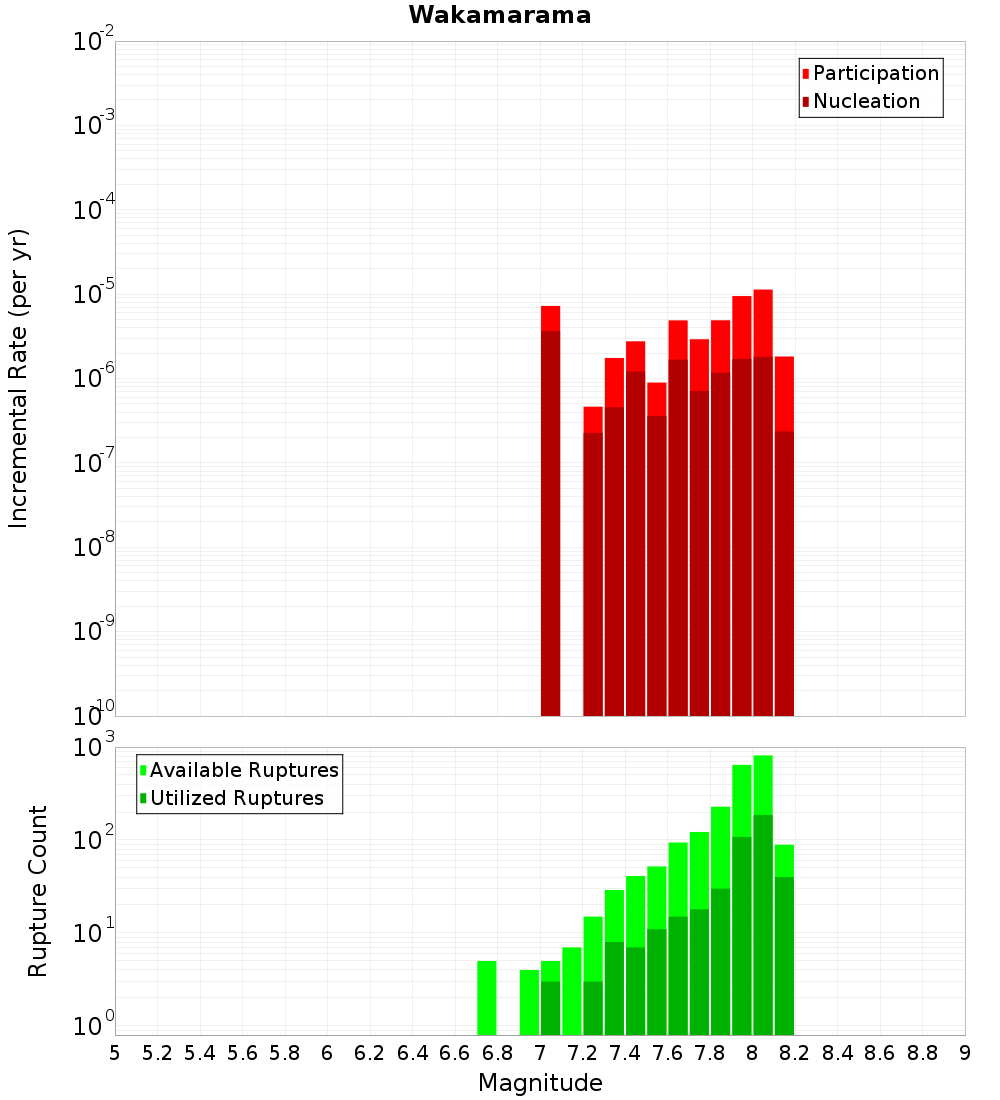

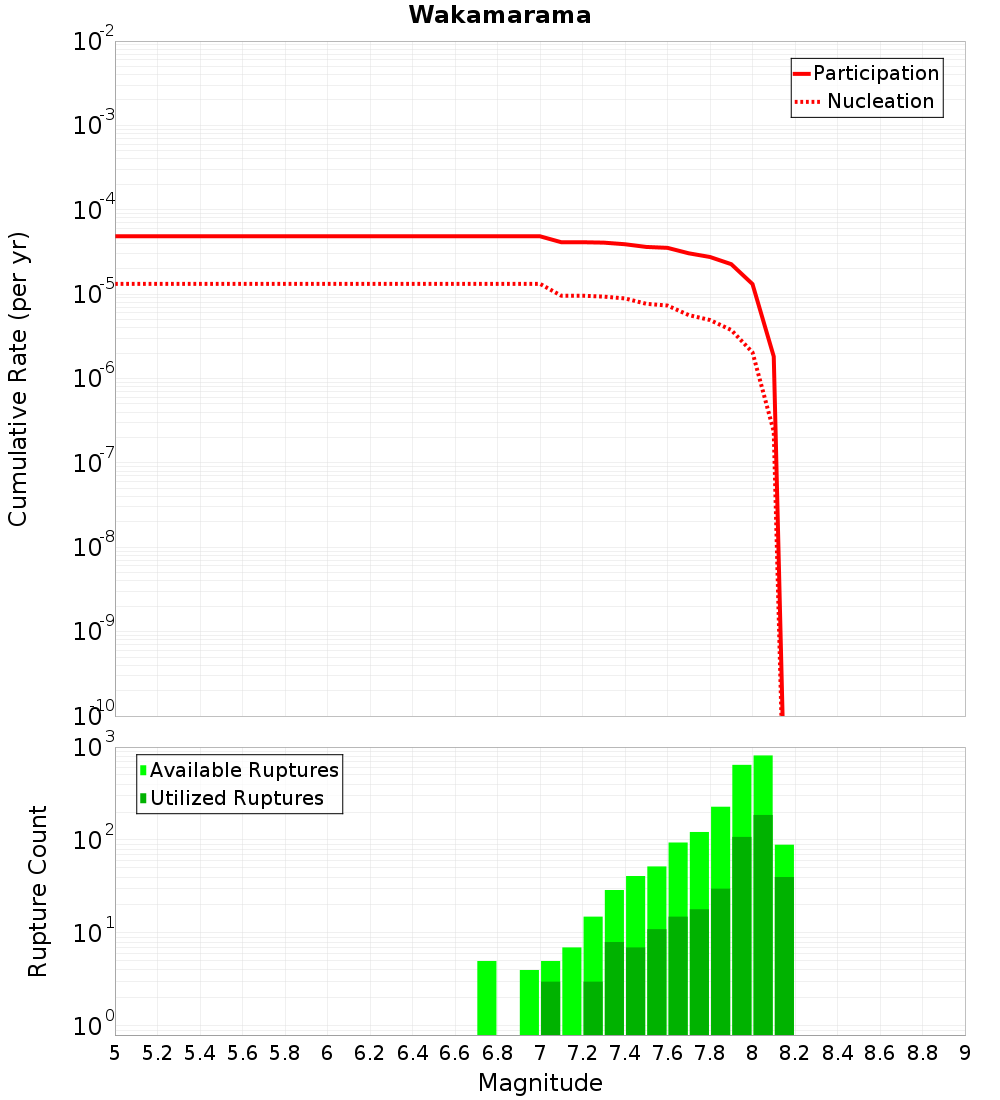

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kahurangi, 0.07 km away
Farewell, 0.23 km away
Kongahau, 0.44 km away
Wakamarama Offshore, 1.32 km away
Cape Foulwind 4, 1.46 km away
Kohaihai, 9.33 km away

Kahurangi, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	false
Co-rupture Count	117
Co-rupture Rate	2.3454481E-6

Farewell, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	144
Co-rupture Rate	9.206367E-7

Kongahau, 0.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	1,374
Co-rupture Rate	2.8809995E-5

Wakamarama Offshore, 1.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	1,160
Co-rupture Rate	3.4480512E-5

Cape Foulwind 4, 1.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	true
Co-rupture Count	713
Co-rupture Rate	8.864217E-6

Kohaihai, 9.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MDcuMEdXV2hx
Connected?	true
Directly Connected?	false
Co-rupture Count	288
Co-rupture Rate	8.389242E-6
