Cape Foulwind 1 Details

Property	Value
Rupture Count	3,030
Ruptures Above Sect Min Mag	3,017
Ruptures w/ Nonzero Rates	844
Magnitude Range	[6.80, 8.14]
Length Range	[20, 396] km
Total Rate	2.0046932E-4 /yr
Multi-Fault Rate	1.7084488E-4 /yr (85.22%)
Directly-Connected Faults	5
All Co-Rupturing Faults	19

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

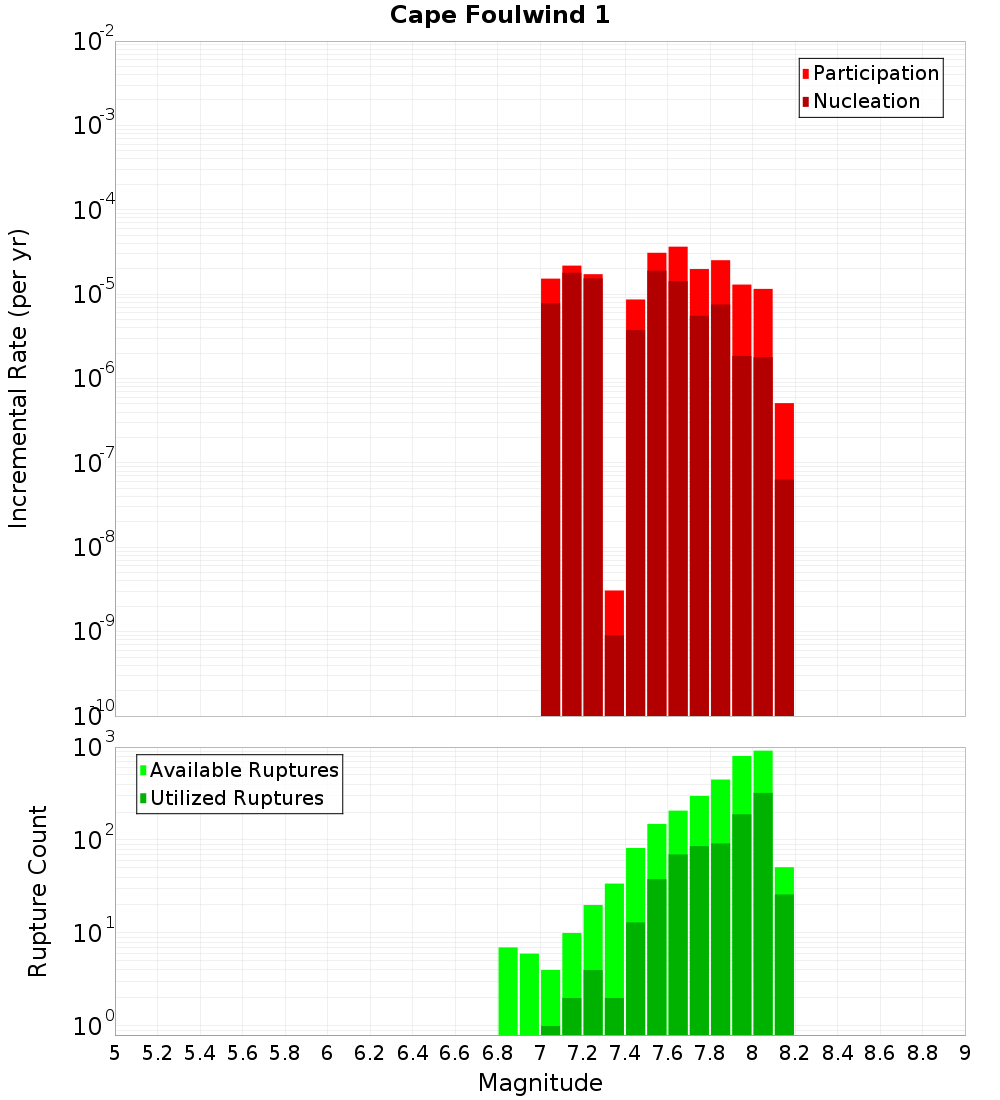

Magnitude-Frequency Distribution

Incremental	Cumulative

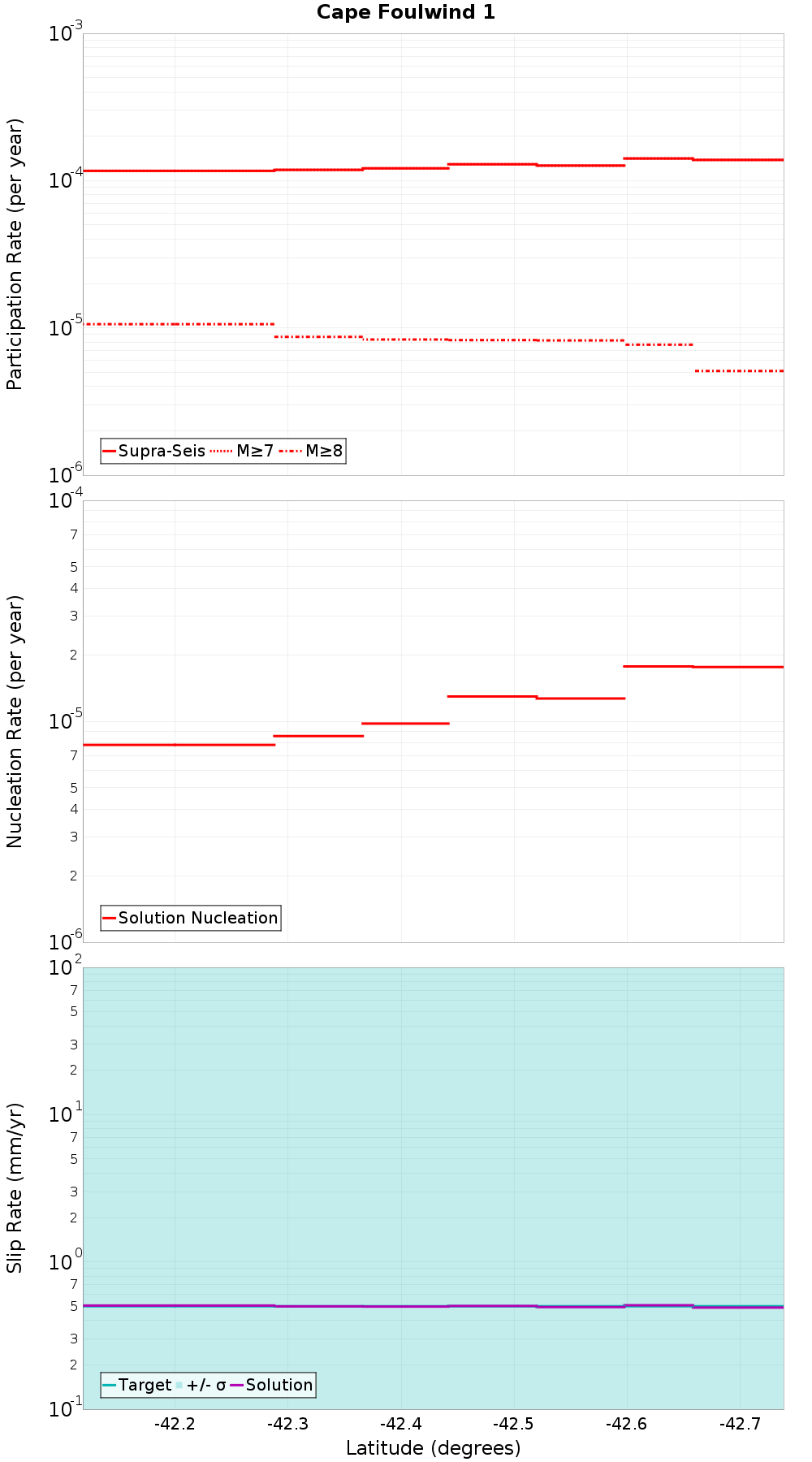

Along-Strike Values

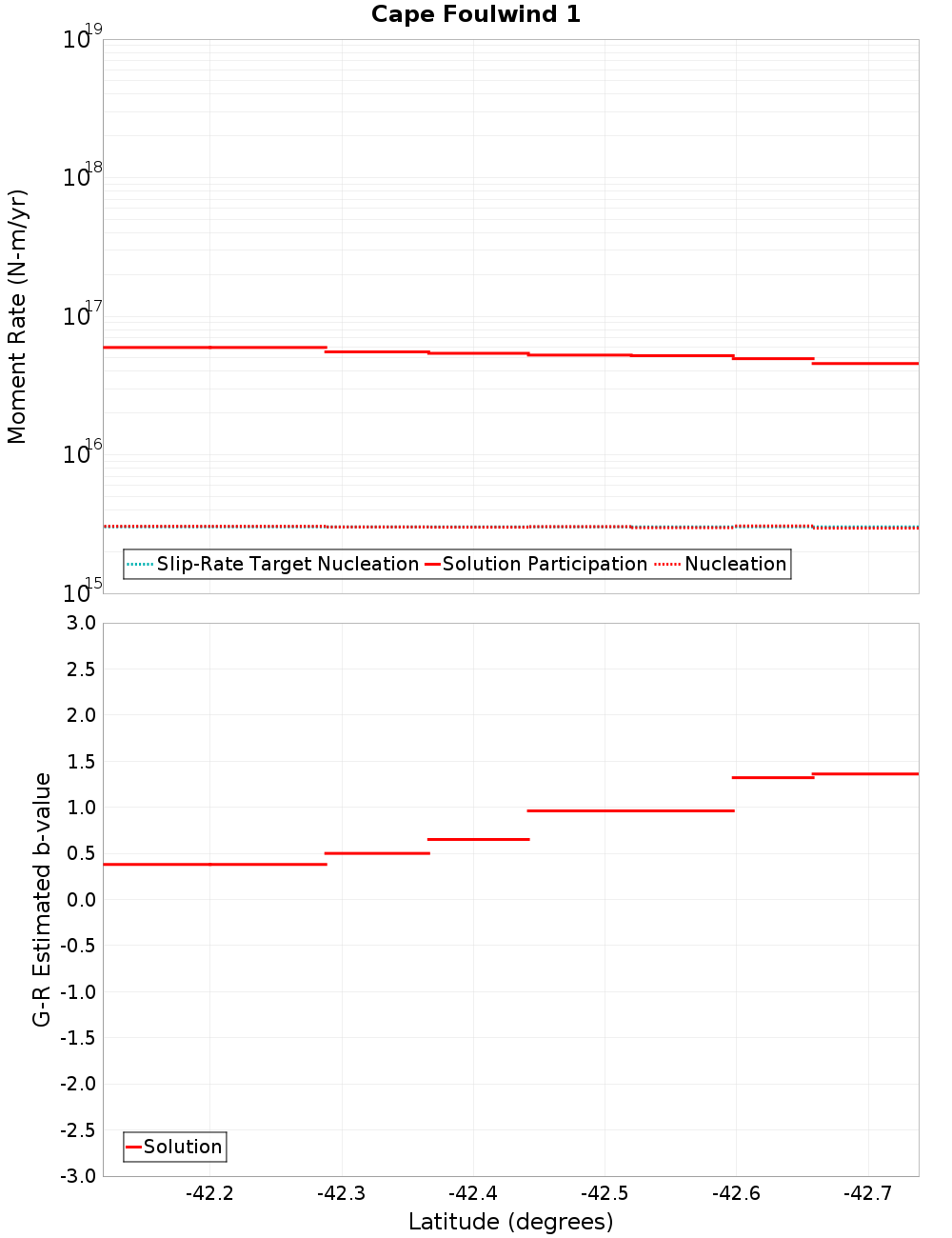

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Cape Foulwind 2, 0 km away
Maimai: South, 0.4 km away
Maimai: Brunner Anticline, 0.41 km away
Paparoa West, 4.61 km away
Maimai, 4.83 km away
Kelly, 11.56 km away

Cape Foulwind 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMDM0dWNy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,370
Co-rupture Rate	8.739289E-5

Maimai: South, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMDM0dWNy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,218
Co-rupture Rate	2.9833567E-5

Maimai: Brunner Anticline, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMDM0dWNy
Connected?	true
Directly Connected?	true
Co-rupture Count	470
Co-rupture Rate	5.6142446E-5

Paparoa West, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMDM0dWNy
Connected?	true
Directly Connected?	true
Co-rupture Count	616
Co-rupture Rate	2.9885481E-5

Maimai, 4.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMDM0dWNy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,465
Co-rupture Rate	4.0755527E-5

Kelly, 11.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMDM0dWNy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
