Dry River - Huangarua: 1 Details

PropertyValue
Rupture Count2,856
Ruptures Above Sect Min Mag2,837
Ruptures w/ Nonzero Rates344
Magnitude Range[6.62, 8.22]
Length Range[16, 467] km
Total Rate2.0931097E-4 /yr
Multi-Fault Rate2.0931097E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults82

Table Of Contents

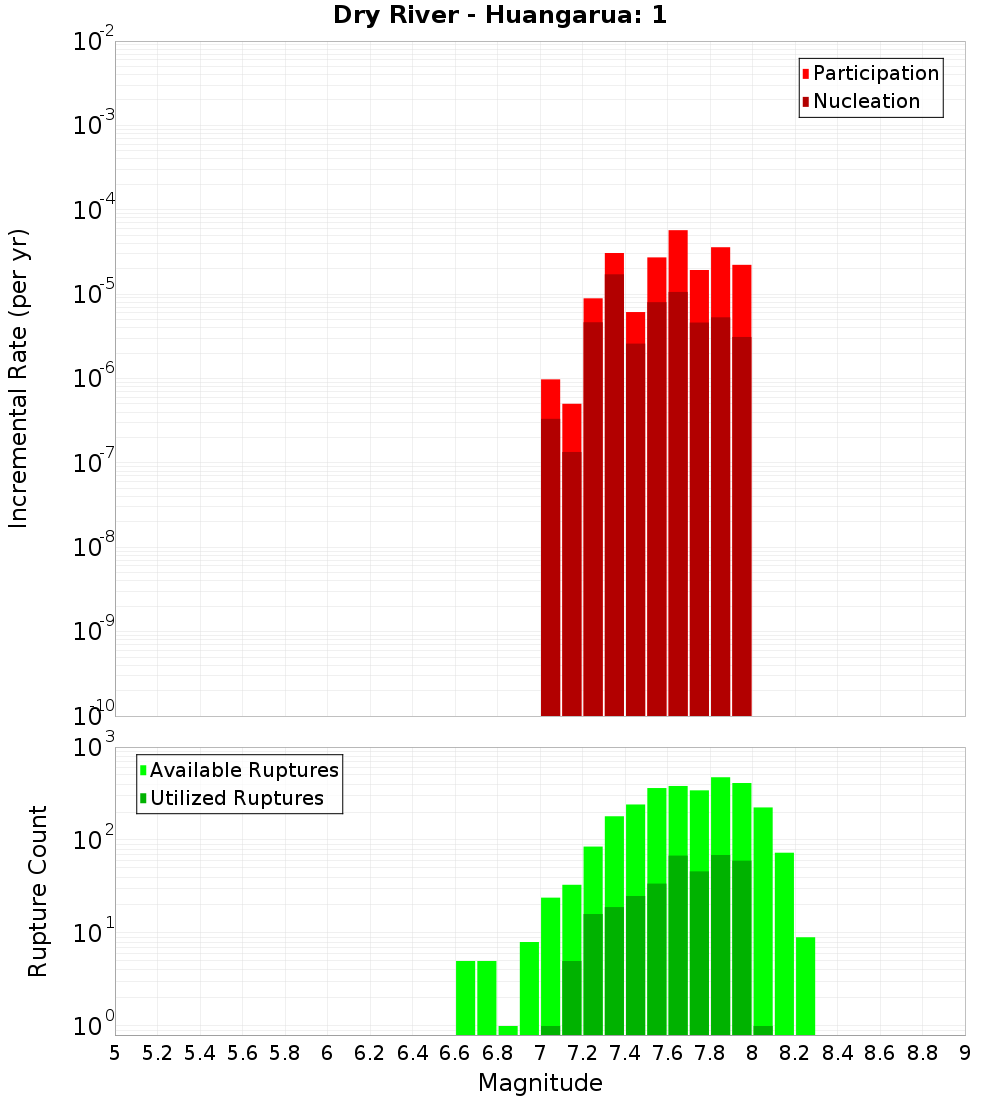

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dry River - Huangarua: 2, 0.11 km away
Otaraia, 0.39 km away
Martinborough, 4.37 km away
Bidwill, 7.05 km away
Dry River - Huangarua: 3, 7.07 km away
BooBoo, 10.86 km away
Palliser - Kaiwhata, 11.83 km away
Wharekauhau, 12.89 km away
Opouawe - Uruti, 14.3 km away

Dry River - Huangarua: 2, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?true
Co-rupture Count546
Co-rupture Rate1.04852916E-4

Otaraia, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?true
Co-rupture Count307
Co-rupture Rate6.9697904E-7

Martinborough, 4.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?true
Co-rupture Count871
Co-rupture Rate1.0788891E-6

Bidwill, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?false
Co-rupture Count83
Co-rupture Rate1.1308431E-6

Dry River - Huangarua: 3, 7.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?true
Co-rupture Count267
Co-rupture Rate7.5591466E-5

BooBoo, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?true
Co-rupture Count1,215
Co-rupture Rate1.2281831E-4

Palliser - Kaiwhata, 11.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharekauhau, 12.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?true
Co-rupture Count122
Co-rupture Rate2.0332413E-8

Opouawe - Uruti, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?true
Co-rupture Count686
Co-rupture Rate3.917314E-5
