Tuatoru 1 Details

PropertyValue
Rupture Count1,632
Ruptures Above Sect Min Mag1,629
Ruptures w/ Nonzero Rates159
Magnitude Range[6.56, 8.28]
Length Range[9, 516] km
Total Rate0.0010877949 /yr
Multi-Fault Rate0.0010877949 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults47

Table Of Contents

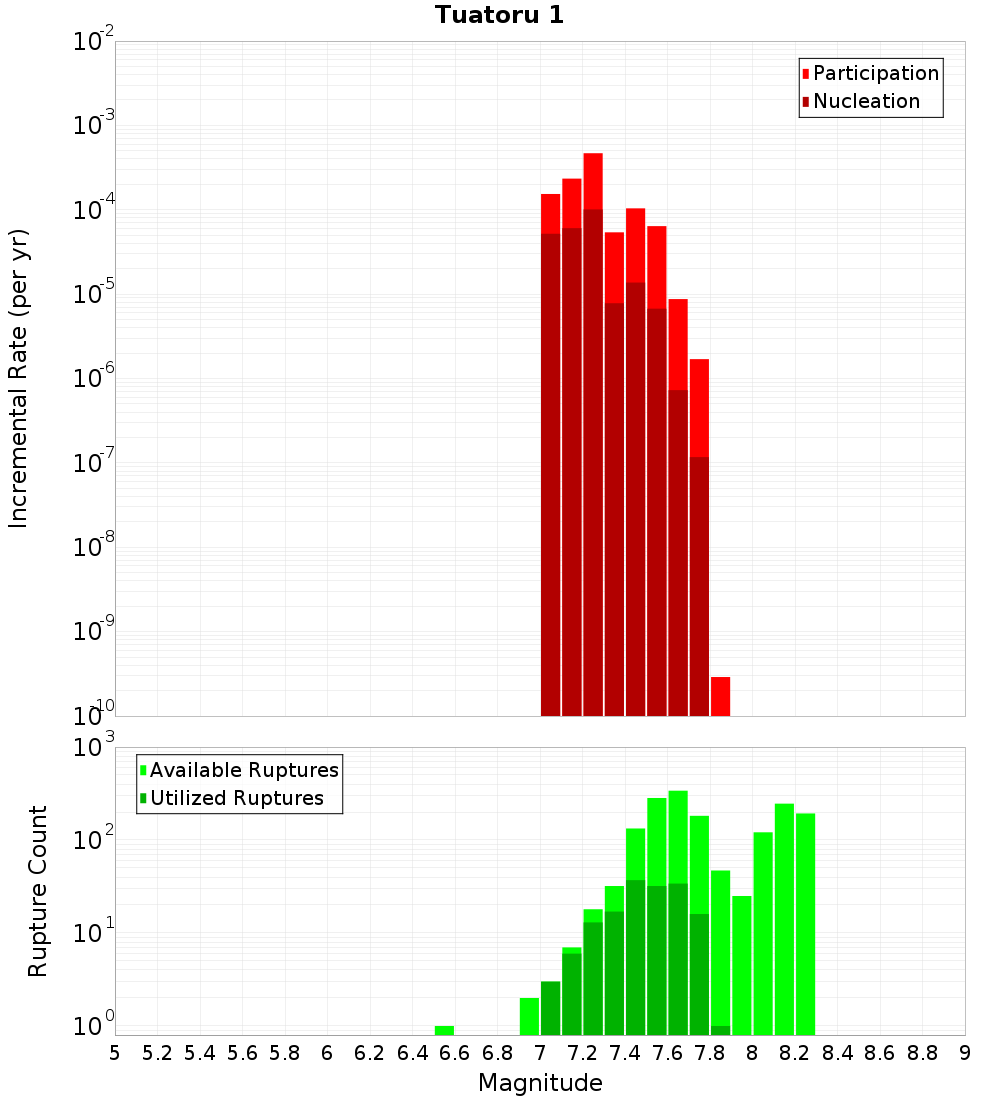

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.43 km away
Te Arawa 1, 3.09 km away
Calypso 2, 3.86 km away
Te Arawa 2, 4.64 km away
Hariki, 5.5 km away
Whakaari 4, 5.84 km away
White Island 2, 5.84 km away
Opotiki 3, 8.45 km away
Te Arawa 3, 9.82 km away
Volkner 3, 10.46 km away
Volkner 4, 11.02 km away
Ohiwa 1, 11.29 km away

Tuatoru 2, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?false
Co-rupture Count112
Co-rupture Rate3.30808E-5

Te Arawa 1, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?true
Co-rupture Count845
Co-rupture Rate6.1549875E-4

Calypso 2, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 4.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?true
Co-rupture Count547
Co-rupture Rate2.792395E-4

Hariki, 5.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?true
Co-rupture Count792
Co-rupture Rate2.3371098E-4

White Island 2, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?true
Co-rupture Count753
Co-rupture Rate3.540871E-4

Opotiki 3, 8.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 9.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate3.0546967E-4

Volkner 3, 10.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 4, 11.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEF0eXFV
Connected?true
Directly Connected?false
Co-rupture Count235
Co-rupture Rate2.2880762E-4
