Brothers Details

Property	Value
Rupture Count	1,857
Ruptures Above Sect Min Mag	1,853
Ruptures w/ Nonzero Rates	168
Magnitude Range	[6.88, 8.25]
Length Range	[21, 538] km
Total Rate	2.4064606E-5 /yr
Multi-Fault Rate	2.4061506E-5 /yr (99.99%)
Directly-Connected Faults	8
All Co-Rupturing Faults	64

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

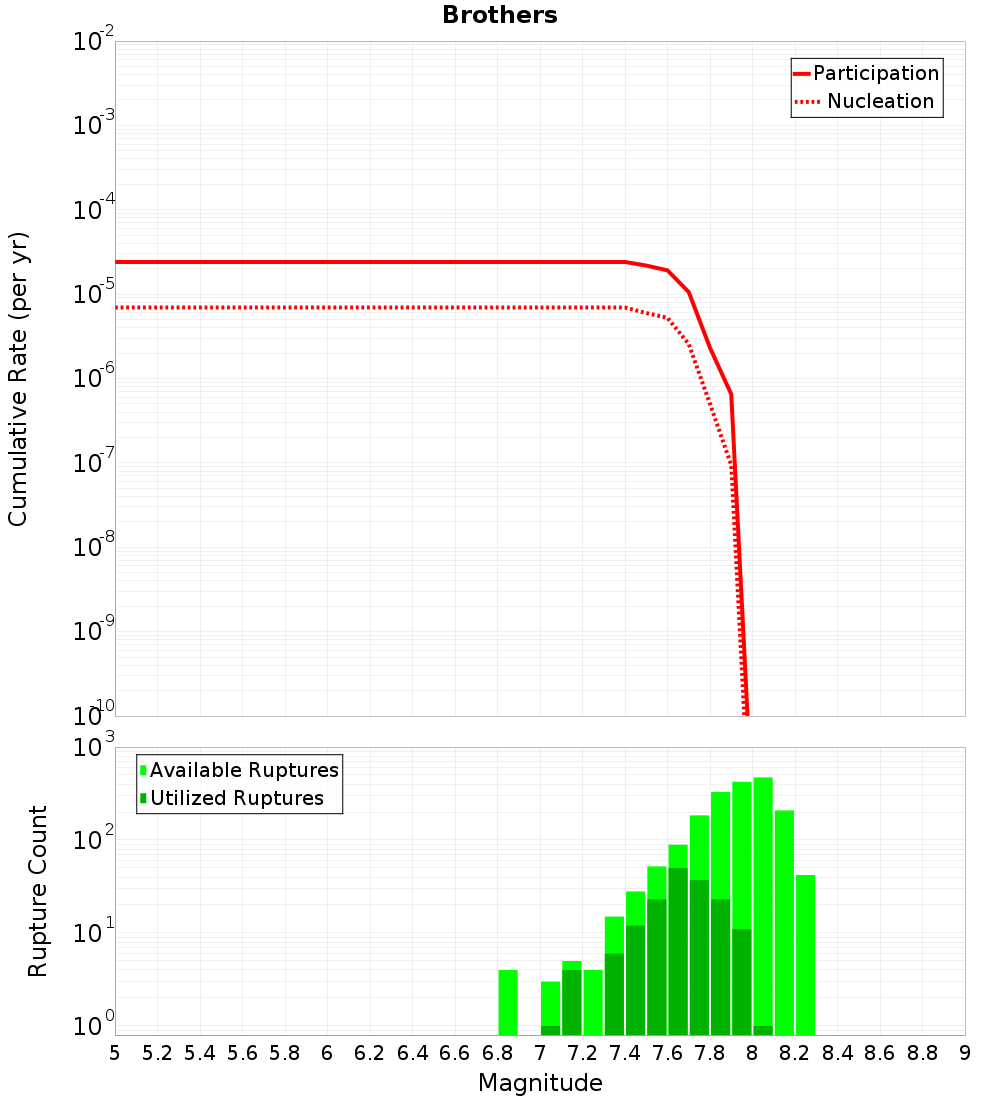

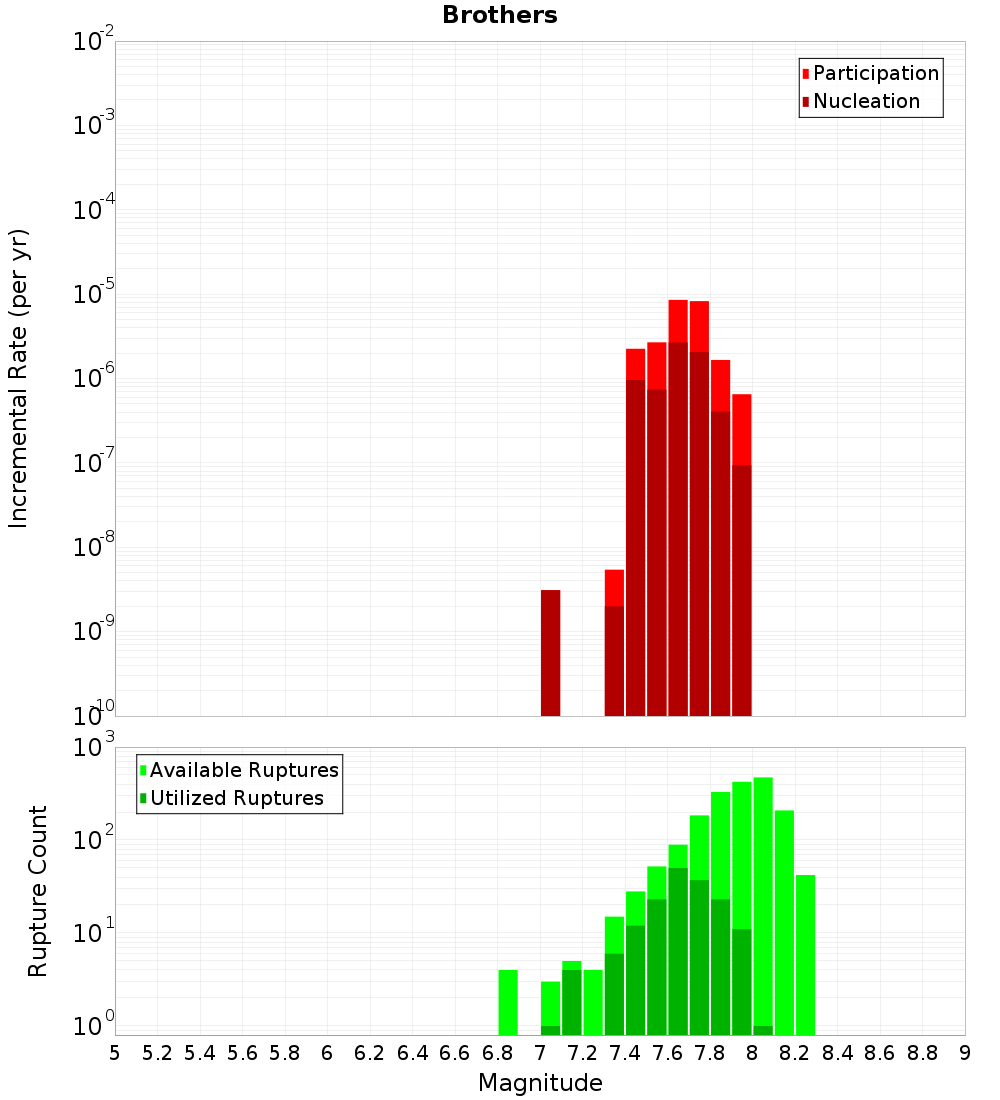

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

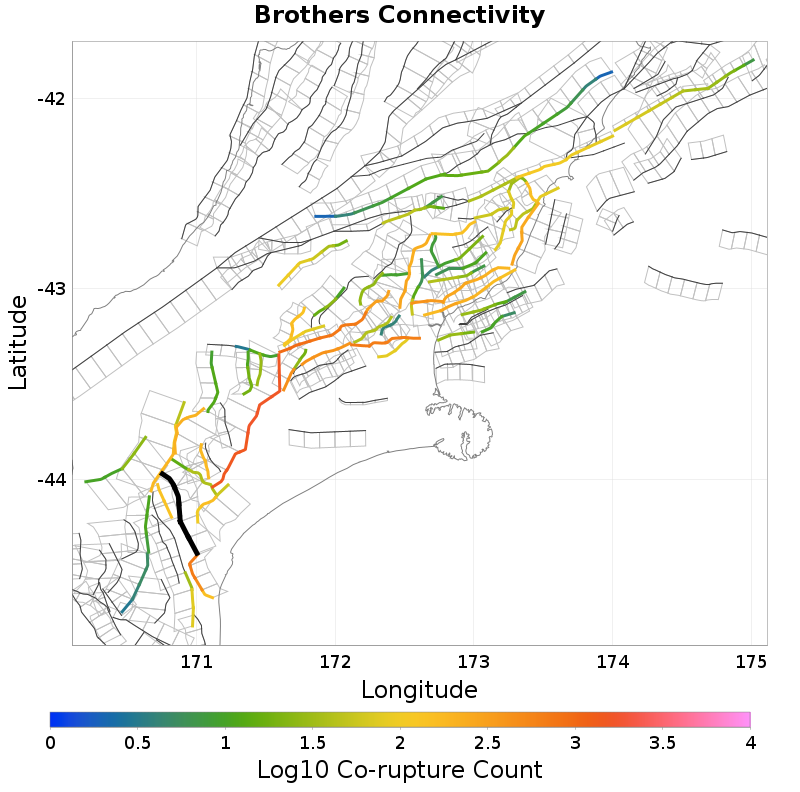

Connectivity

Nearby Sections

Fault Section
Sugarloaf, 0.19 km away
Hutt Peel, 0.26 km away
Catherine, 0.35 km away
Maungati, 0.81 km away
Fox Peak, 1.31 km away
Edith, 2.58 km away
Rapuwai, 4.62 km away
Albury, 4.78 km away
Irishman Creek, 7.28 km away
Hunters, 7.39 km away
Ben McLeod, 8.04 km away
Opawa, 8.75 km away
Chamberlain, 12.7 km away

Sugarloaf, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEFQc2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	38
Co-rupture Rate	2.8925726E-6

Hutt Peel, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEFQc2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	1,646
Co-rupture Rate	1.0529776E-5

Catherine, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEFQc2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	175
Co-rupture Rate	6.315057E-7

Maungati, 0.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEFQc2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	696
Co-rupture Rate	1.020453E-5

Fox Peak, 1.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEFQc2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	214
Co-rupture Rate	1.1381067E-5

Edith, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEFQc2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rapuwai, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEFQc2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	155
Co-rupture Rate	6.5383995E-7

Albury, 4.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEFQc2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	139
Co-rupture Rate	3.6896677E-6

Irishman Creek, 7.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEFQc2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	31
Co-rupture Rate	6.674569E-6

Hunters, 7.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEFQc2Zl
Connected?	true
Directly Connected?	false
Co-rupture Count	75
Co-rupture Rate	8.352963E-7

Ben McLeod, 8.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEFQc2Zl
Connected?	true
Directly Connected?	false
Co-rupture Count	214
Co-rupture Rate	7.234084E-7

Opawa, 8.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEFQc2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Chamberlain, 12.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MTguMEFQc2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
