Dunstan Details

Property	Value
Rupture Count	10,699
Ruptures Above Sect Min Mag	10,697
Ruptures w/ Nonzero Rates	257
Magnitude Range	[7.06, 8.56]
Length Range	[24, 856] km
Total Rate	3.0626883E-4 /yr
Multi-Fault Rate	8.4290165E-5 /yr (27.52%)
Directly-Connected Faults	9
All Co-Rupturing Faults	80

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

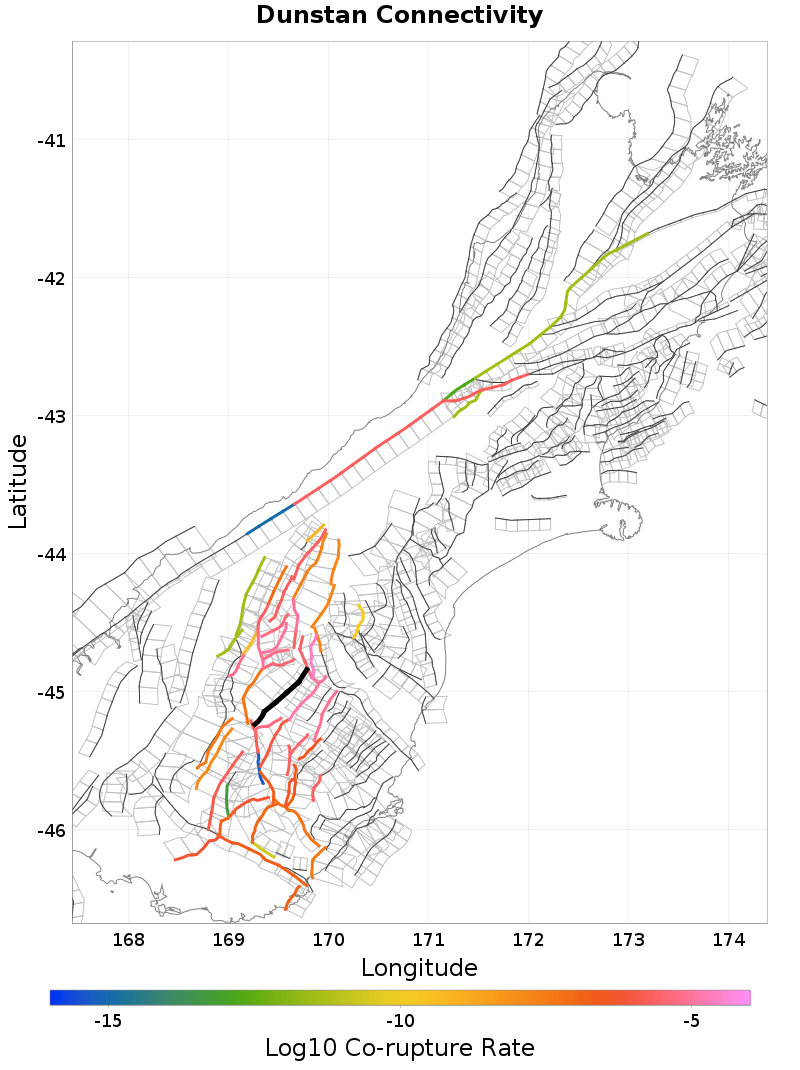

Connectivity

Nearby Sections

Fault Section
Lindis River, 0.19 km away
Goodger, 0.2 km away
Grandview, 0.21 km away
Blue Lake, 1.26 km away
Old Man, 1.92 km away
Cluden, 3.6 km away
Galloway, 3.61 km away
Pisa, 4.43 km away
Omarama Saddle, 5.06 km away
Paddys Ridge, 5.61 km away
Roaring Lion, 6.22 km away
Dromedary, 6.46 km away
Raggedy - Blackstone, 9.93 km away
Roaring Meg, 10.34 km away
Garvie, 12.95 km away

Lindis River, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	true
Co-rupture Count	1,582
Co-rupture Rate	1.1605117E-5

Goodger, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	true
Co-rupture Count	912
Co-rupture Rate	4.762092E-6

Grandview, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	true
Co-rupture Count	4,131
Co-rupture Rate	8.158136E-6

Blue Lake, 1.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	true
Co-rupture Count	1,799
Co-rupture Rate	1.0886477E-5

Old Man, 1.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	true
Co-rupture Count	8,776
Co-rupture Rate	1.7425788E-6

Cluden, 3.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	true
Co-rupture Count	126
Co-rupture Rate	3.5253713E-6

Galloway, 3.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	5.0090534E-6

Pisa, 4.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	false
Co-rupture Count	452
Co-rupture Rate	4.755656E-8

Omarama Saddle, 5.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	true
Co-rupture Count	1,215
Co-rupture Rate	3.3016262E-5

Paddys Ridge, 5.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	true
Co-rupture Count	413
Co-rupture Rate	6.560314E-6

Roaring Lion, 6.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	3.567251E-8

Dromedary, 6.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	false
Co-rupture Count	3,961
Co-rupture Rate	8.875616E-6

Raggedy - Blackstone, 9.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	true
Co-rupture Count	447
Co-rupture Rate	1.7350769E-5

Roaring Meg, 10.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Garvie, 12.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjAuMGdBcE1E
Connected?	true
Directly Connected?	false
Co-rupture Count	1,362
Co-rupture Rate	1.1880125E-8
