Lees Valley Details

PropertyValue
Rupture Count4,968
Ruptures Above Sect Min Mag4,964
Ruptures w/ Nonzero Rates193
Magnitude Range[6.84, 8.25]
Length Range[20, 538] km
Total Rate2.902694E-4 /yr
Multi-Fault Rate2.902694E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults73

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

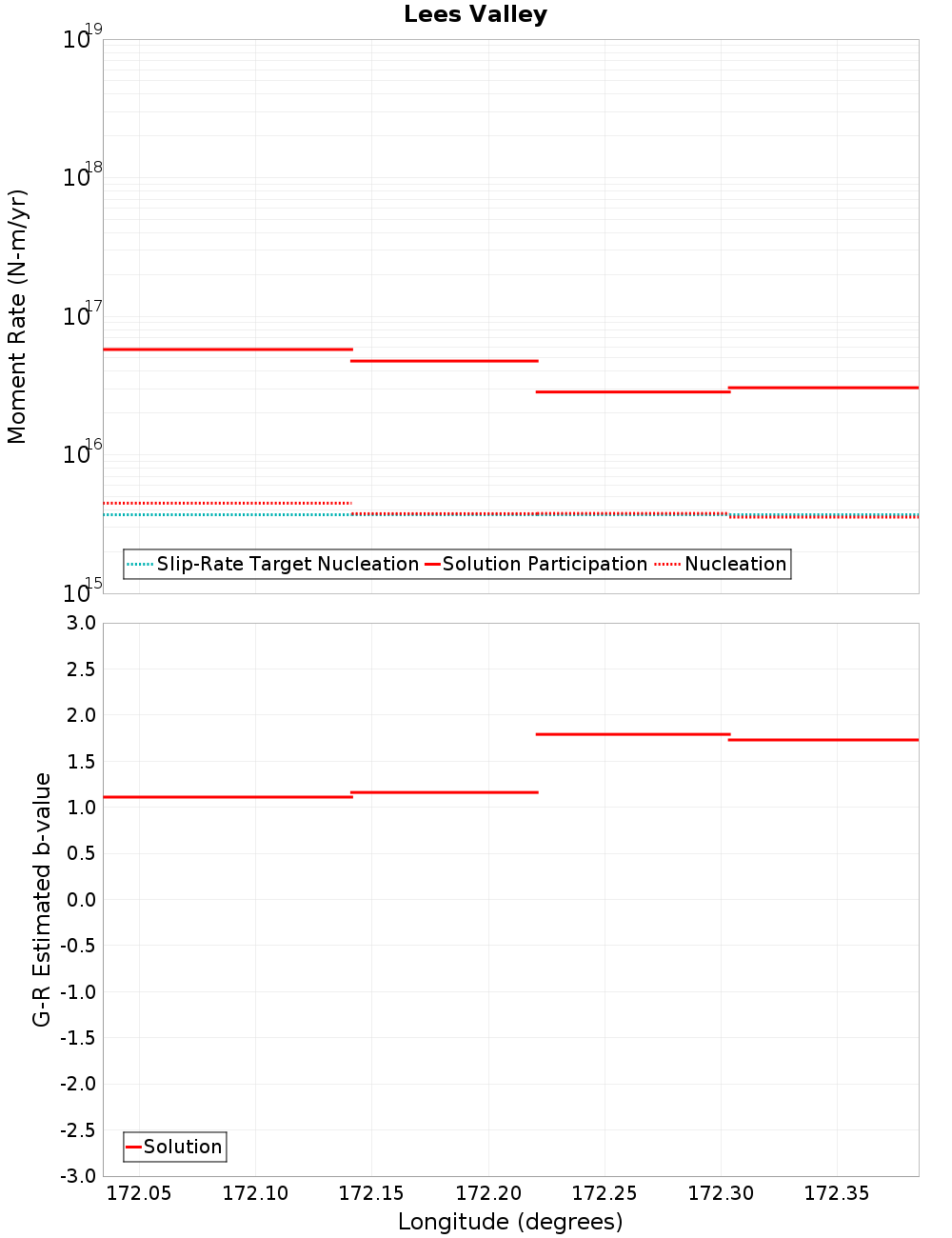

Moment-Rates and b-Values

(top)

Along-strike plot

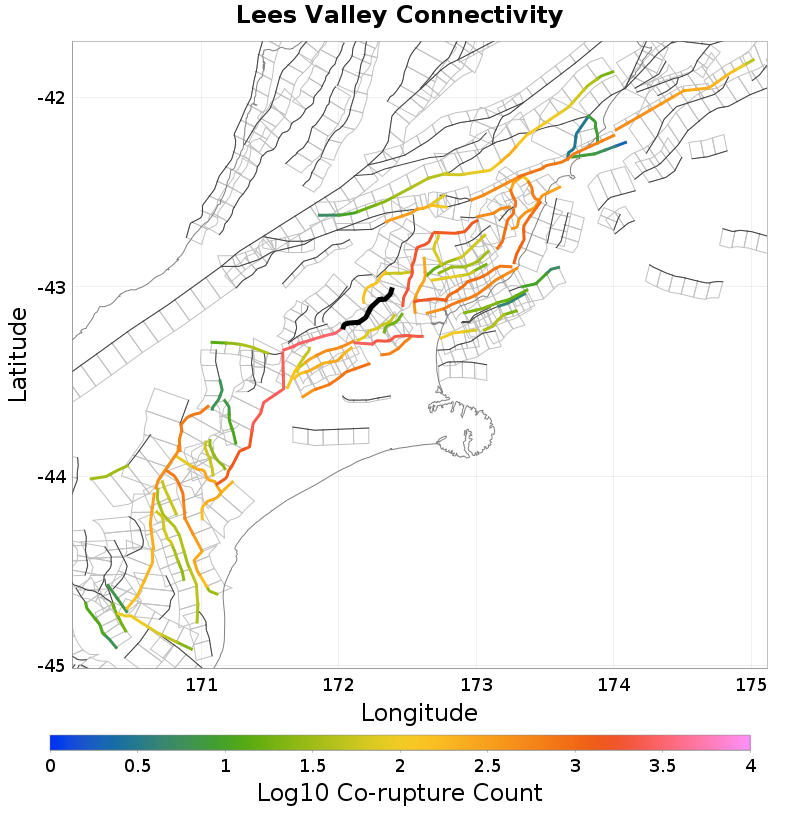

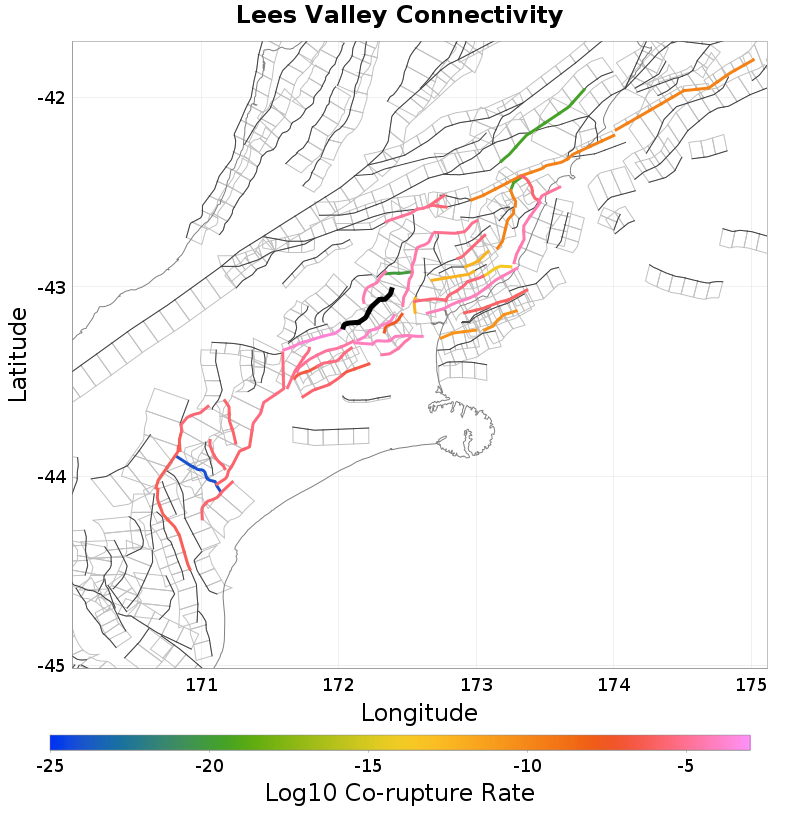

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Knowles Top, 0.13 km awayTorlesse, 9.41 km away
Mt Arden, 0.14 km awayVirginia, 9.67 km away
Pancake, 0.22 km awayBoby Stream, 10.27 km away
Springbank, 0.24 km awayEsk North, 11.43 km away
Starvation - Ashley, 0.3 km awayMt Lawry, 11.49 km away
Porters Pass, 0.91 km awayHigh Peak - Sheffield, 11.61 km away
Esk South, 4.16 km awayDoctors, 13.52 km away
Hororata, 5.51 km awaySailor, 14.17 km away
Kowai - View Hill, 8.8 km away

Knowles Top, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate1.0048847E-4

Mt Arden, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count1,967
Co-rupture Rate3.023229E-5

Pancake, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count139
Co-rupture Rate4.1175328E-5

Springbank, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count607
Co-rupture Rate2.8459395E-5

Starvation - Ashley, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count2,884
Co-rupture Rate7.241322E-5

Porters Pass, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count3,190
Co-rupture Rate1.8325979E-4

Esk South, 4.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 5.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count1,105
Co-rupture Rate1.5439451E-6

Kowai - View Hill, 8.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count500
Co-rupture Rate1.9602645E-5

Torlesse, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Virginia, 9.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate8.315647E-21

Boby Stream, 10.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count1,612
Co-rupture Rate2.7457127E-6

Esk North, 11.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Lawry, 11.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate2.217237E-8

High Peak - Sheffield, 11.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count339
Co-rupture Rate3.809504E-6

Doctors, 13.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count361
Co-rupture Rate4.7598373E-13

Sailor, 14.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
