Moonshine Details

PropertyValue
Rupture Count13,399
Ruptures Above Sect Min Mag13,393
Ruptures w/ Nonzero Rates737
Magnitude Range[6.78, 8.61]
Length Range[18, 1,132] km
Total Rate4.7668284E-5 /yr
Multi-Fault Rate4.7668284E-5 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults132

Table Of Contents

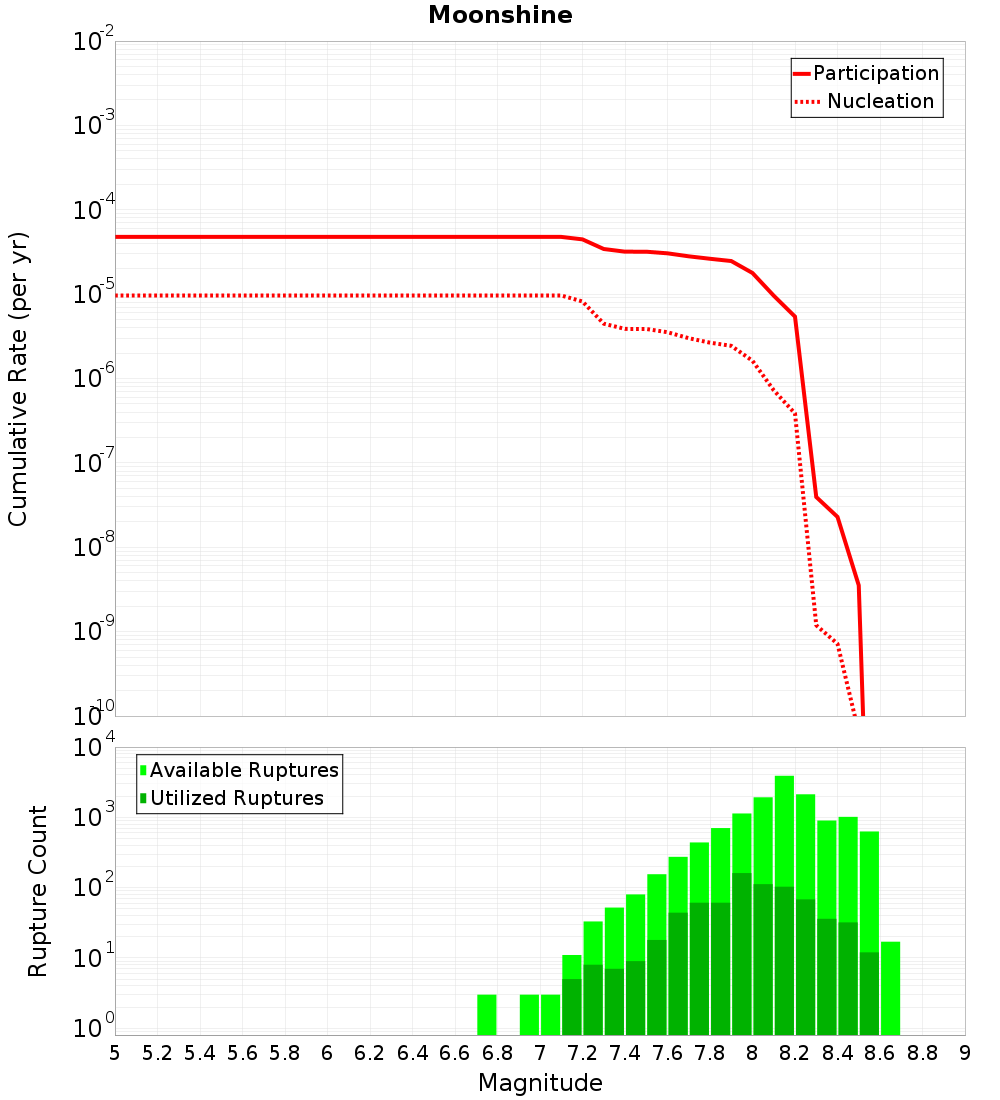

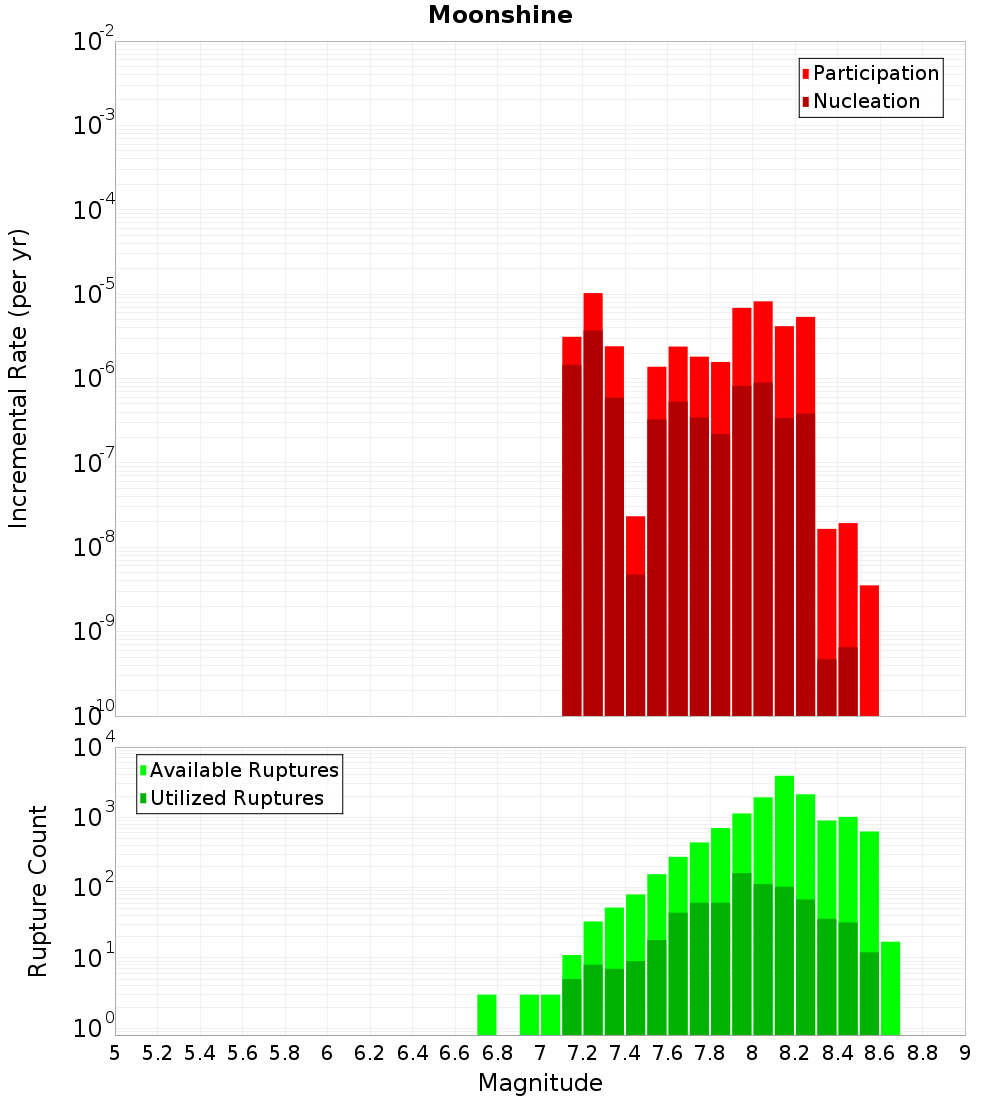

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

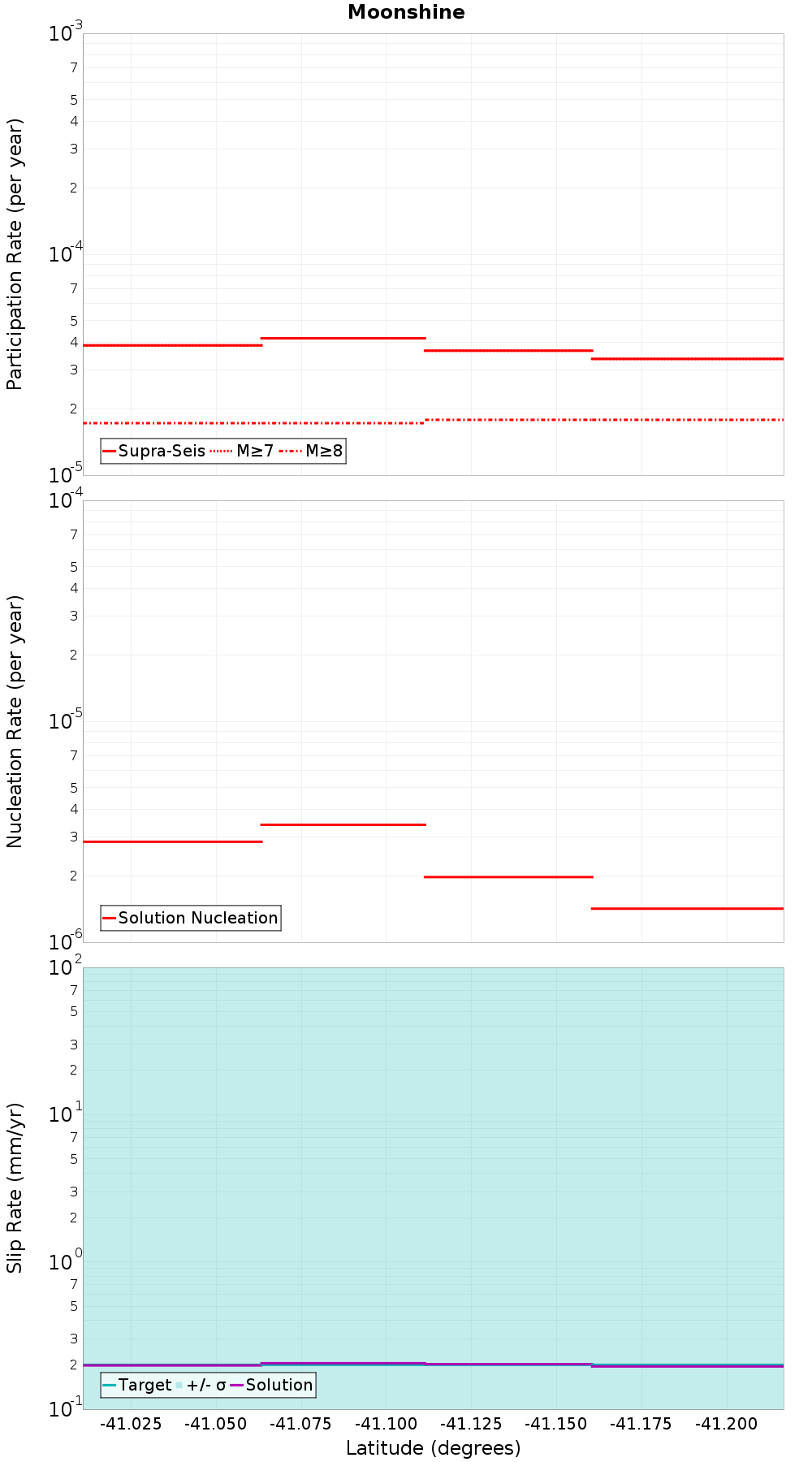

Along-Strike Values

(top)

Along-strike plot

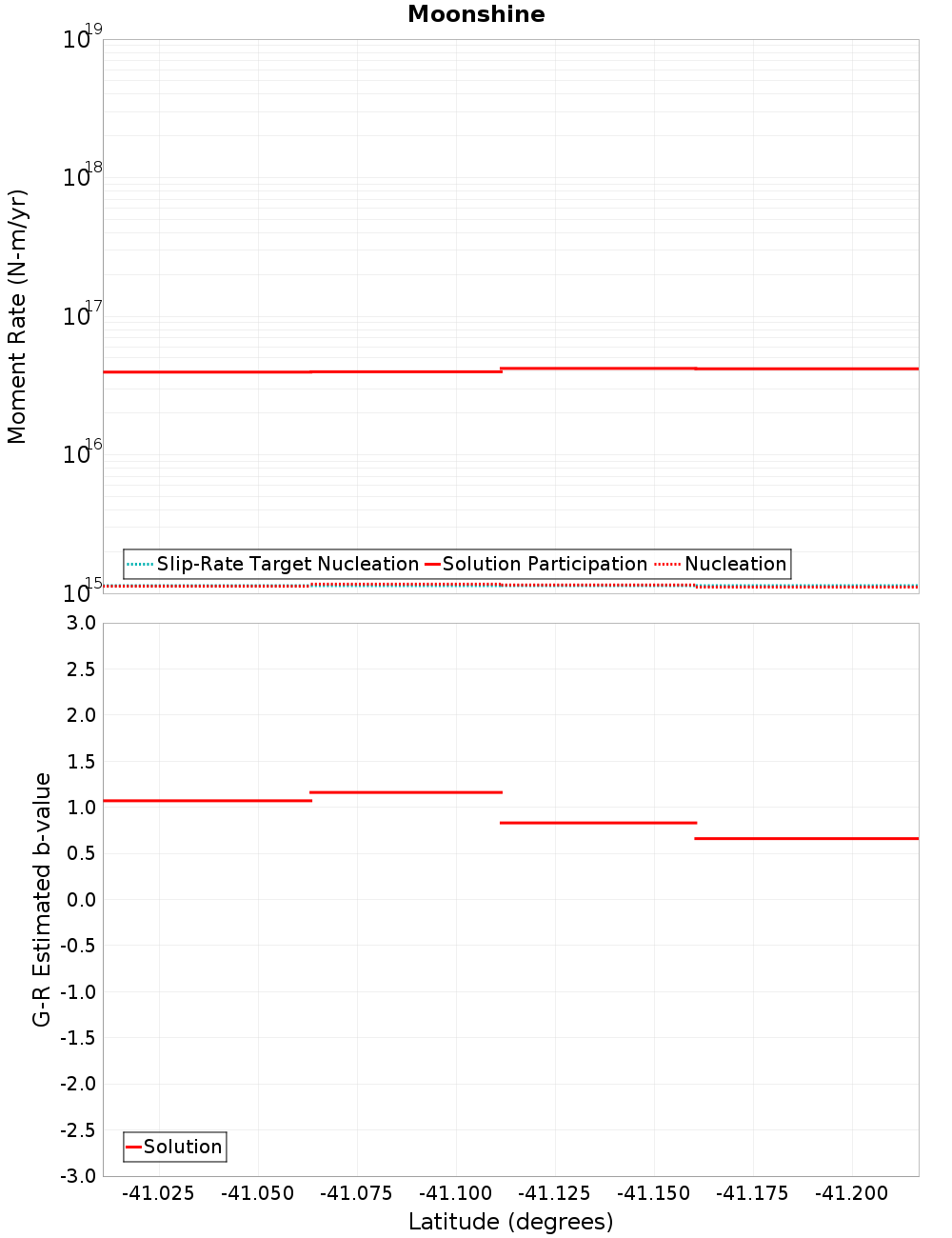

Moment-Rates and b-Values

(top)

Along-strike plot

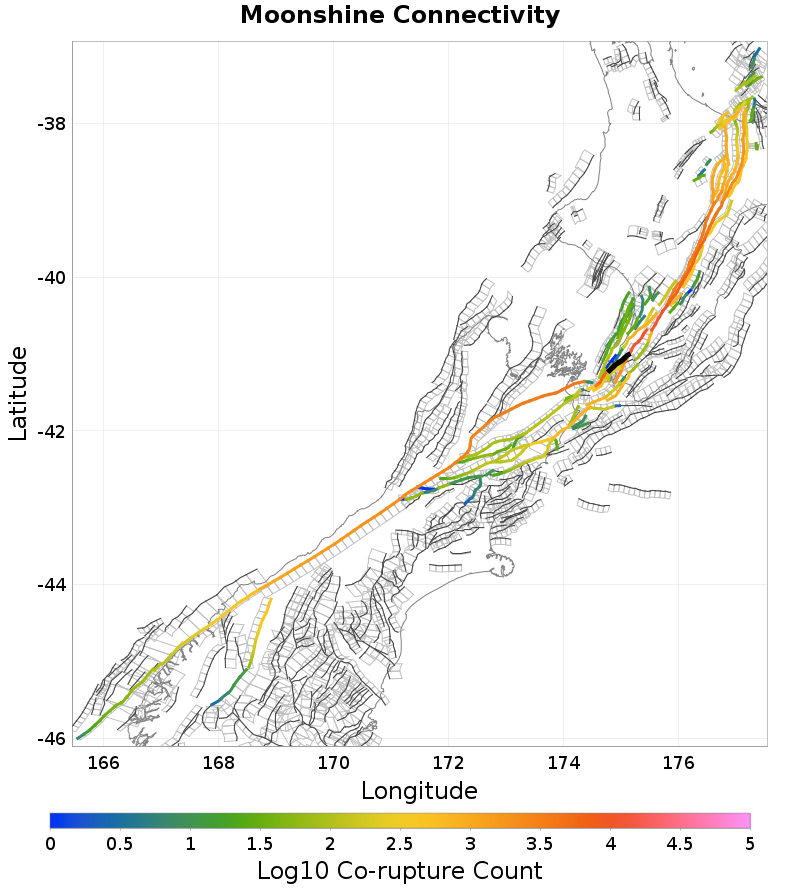

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Otaki Forks: 1, 0 km awayAotea - Evans Bay, 6.34 km away
Akatarawa, 0 km awayPukerua - Shepherds Gully: 2, 6.63 km away
Whitemans Valley, 0.2 km awayWellington: Tararua 2, 6.9 km away
Ohariu, 2.04 km awayShepherds Gully - Mana, 9.63 km away
Wellington Hutt Valley: 4, 4.31 km awayPukerua - Shepherds Gully: 1, 11.23 km away
Wellington Hutt Valley: 5, 4.9 km awayOtaheke South, 11.31 km away
Wharekauhau, 4.93 km awayWairarapa: 1, 13.22 km away
Wellington: Tararua 1, 5.02 km awayWairarapa: 2, 13.37 km away
Wellington Hutt Valley: 3, 5.8 km awayOkupe 1, 14.37 km away
Pukerua - Shepherds Gully: 3, 5.97 km away

Otaki Forks: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count12,096
Co-rupture Rate2.9134915E-5

Akatarawa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count2,699
Co-rupture Rate1.0196071E-6

Whitemans Valley, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count2,162
Co-rupture Rate1.3528454E-5

Ohariu, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count6,247
Co-rupture Rate3.290197E-5

Wellington Hutt Valley: 4, 4.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count279
Co-rupture Rate1.6040553E-6

Wellington Hutt Valley: 5, 4.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharekauhau, 4.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count989
Co-rupture Rate3.1496174E-6

Wellington: Tararua 1, 5.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 3, 5.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count155
Co-rupture Rate5.6428253E-6

Pukerua - Shepherds Gully: 3, 5.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate1.5805165E-8

Aotea - Evans Bay, 6.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count124
Co-rupture Rate5.316421E-7

Pukerua - Shepherds Gully: 2, 6.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count57
Co-rupture Rate5.0679294E-10

Wellington: Tararua 2, 6.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate0.0

Shepherds Gully - Mana, 9.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count95
Co-rupture Rate9.820614E-8

Pukerua - Shepherds Gully: 1, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 11.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate9.820614E-8

Wairarapa: 1, 13.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count175
Co-rupture Rate1.1417566E-8

Wairarapa: 2, 13.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate0.0

Okupe 1, 14.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MjguMDJKdk5H
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate9.564986E-8
