Braemar Details

PropertyValue
Rupture Count3,069
Ruptures Above Sect Min Mag3,030
Ruptures w/ Nonzero Rates55
Magnitude Range[6.59, 8.32]
Length Range[14, 578] km
Total Rate0.0013966701 /yr
Multi-Fault Rate0.0013966701 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults71

Table Of Contents

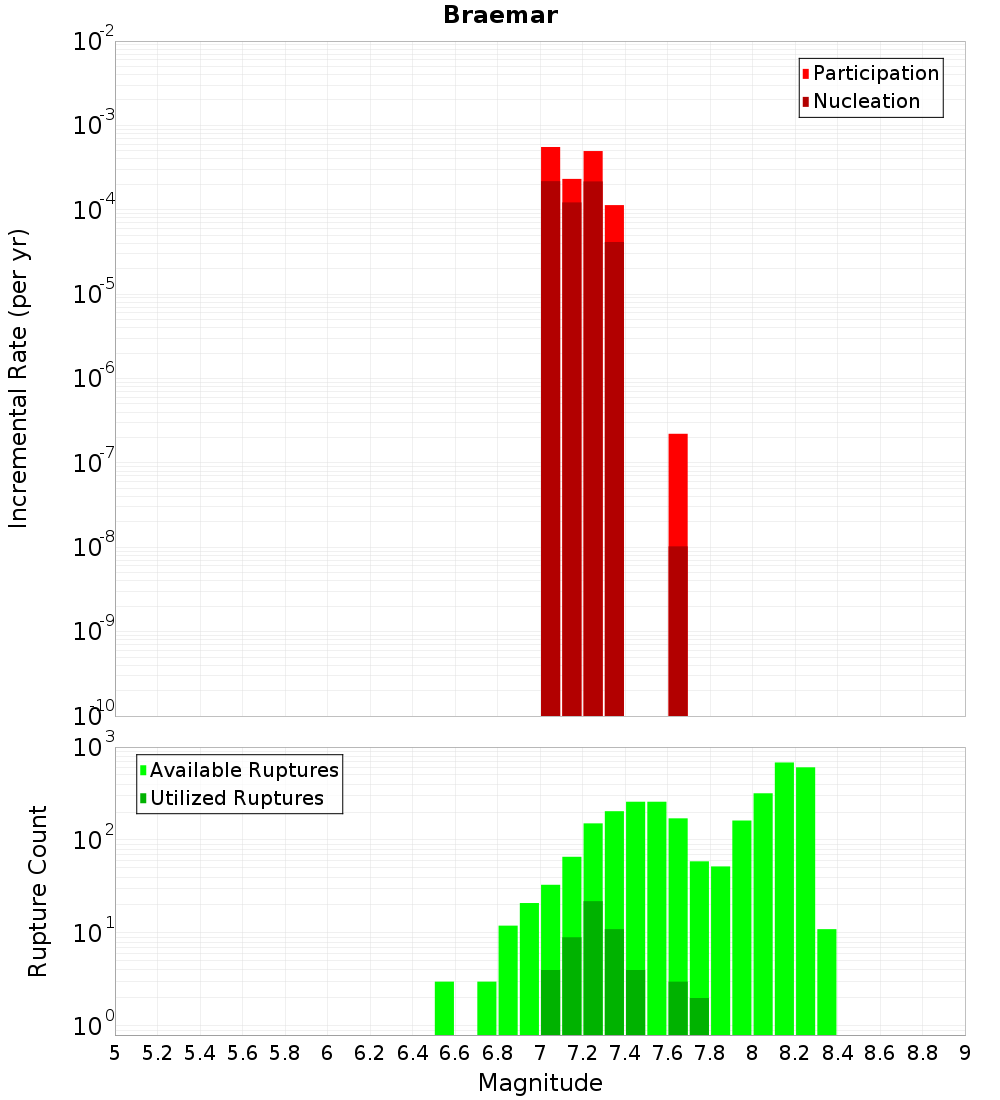

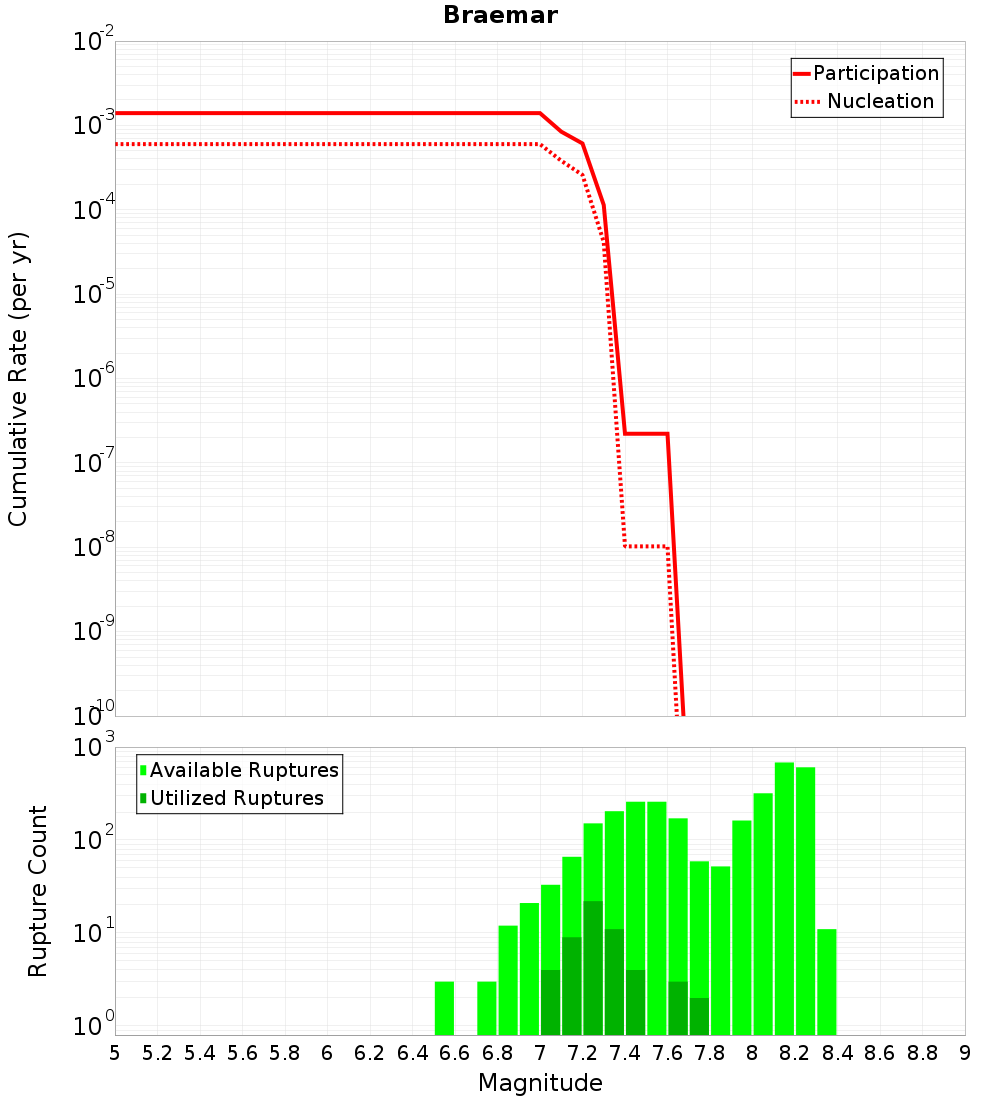

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

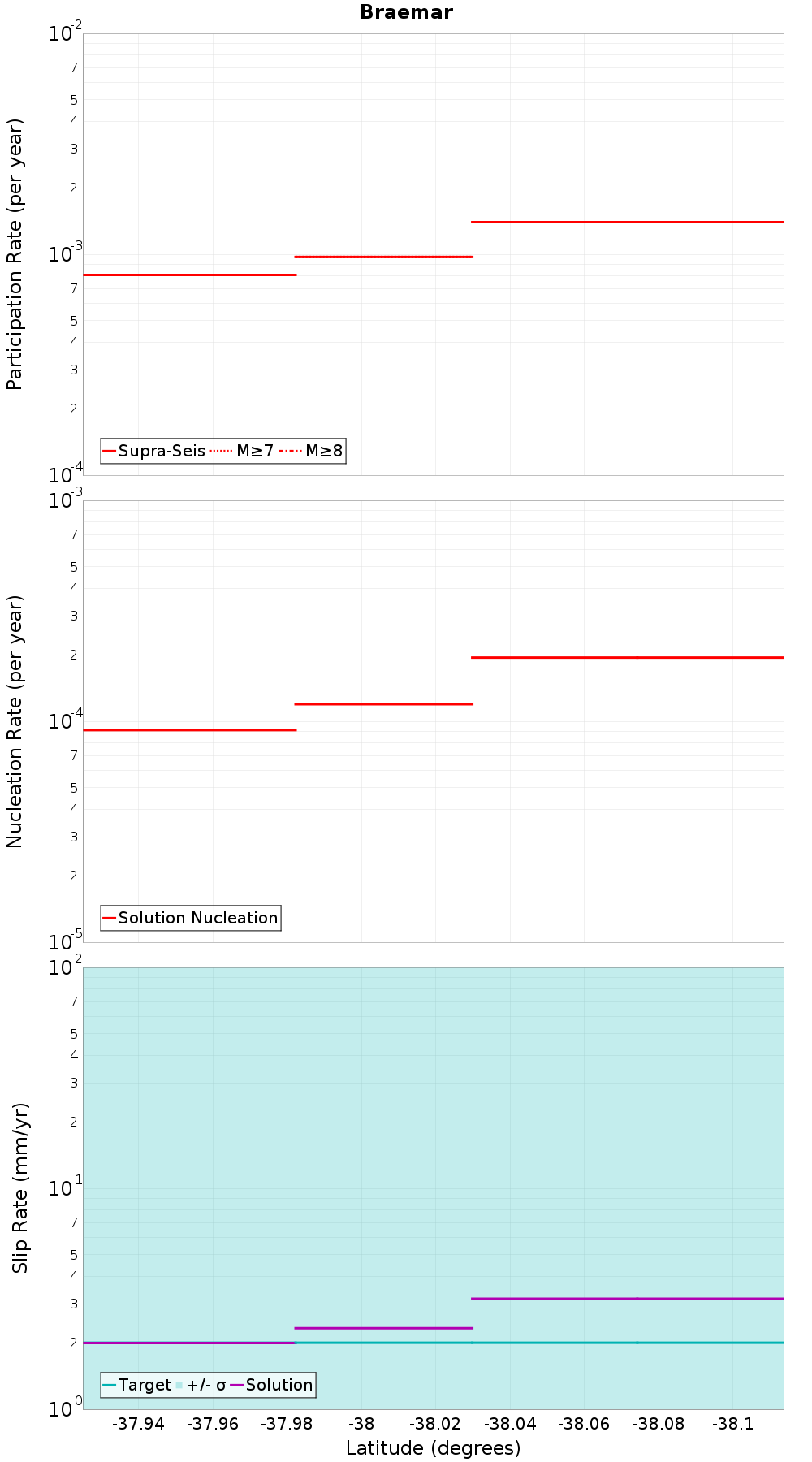

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

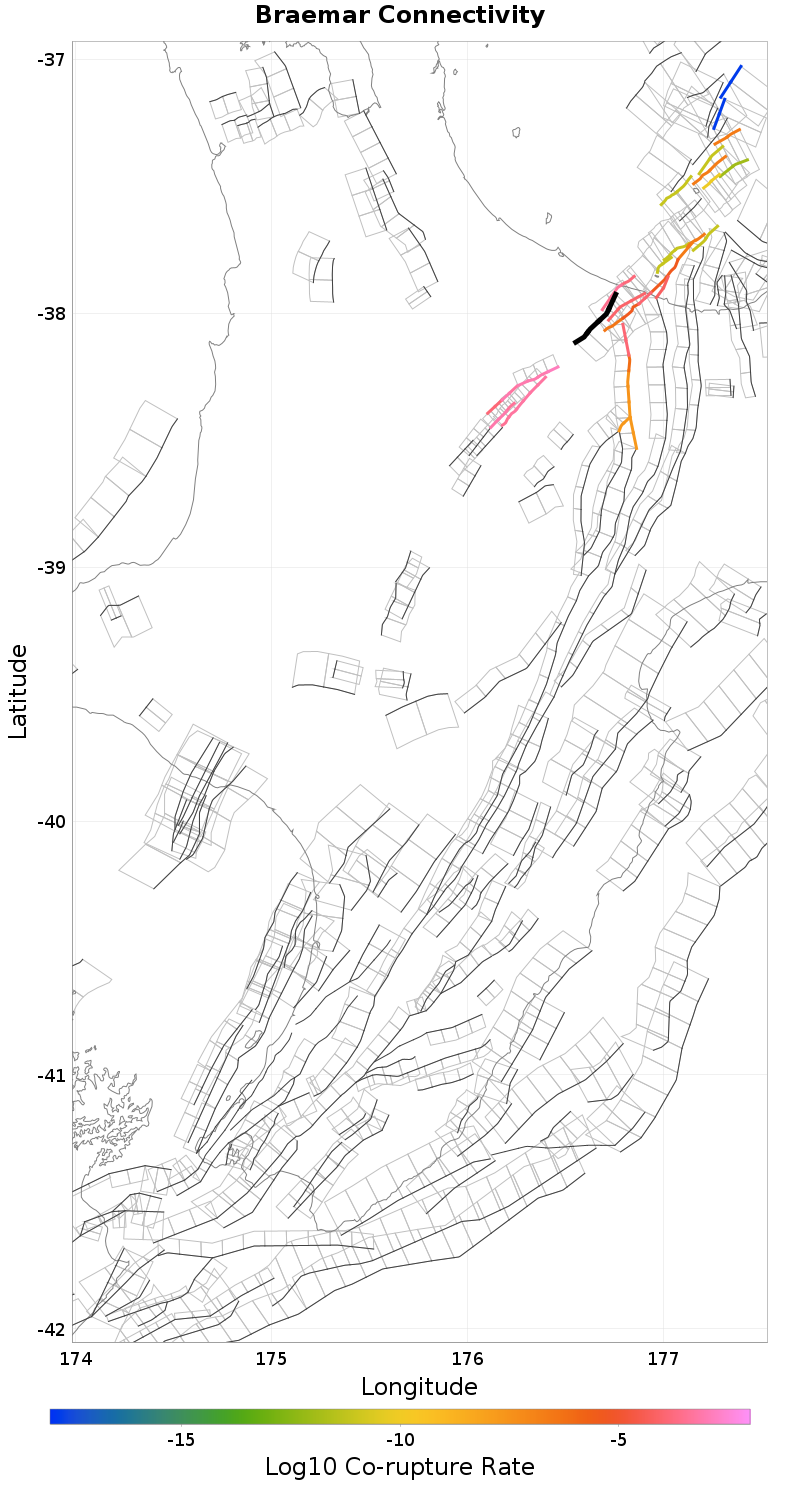

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waiohau: North, 0.22 km away
Otakiri, 0.26 km away
Edgecumbe 1987, 0.32 km away
Matata, 0.98 km away
Edgecumbe Coastal, 4.62 km away
Whakatane: North, 4.83 km away
Keepa, 10.56 km away
White Island 1, 11.21 km away
EarthquakeFlat - Tumunui, 12.8 km away

Waiohau: North, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?true
Directly Connected?true
Co-rupture Count1,167
Co-rupture Rate1.1701381E-4

Otakiri, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?true
Directly Connected?true
Co-rupture Count796
Co-rupture Rate8.587714E-5

Edgecumbe 1987, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?true
Directly Connected?true
Co-rupture Count181
Co-rupture Rate3.9774814E-6

Matata, 0.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?true
Directly Connected?true
Co-rupture Count1,203
Co-rupture Rate4.0349766E-4

Edgecumbe Coastal, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?true
Directly Connected?true
Co-rupture Count558
Co-rupture Rate1.0158666E-4

Whakatane: North, 4.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Keepa, 10.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?true
Directly Connected?false
Co-rupture Count612
Co-rupture Rate5.8742695E-5

White Island 1, 11.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?true
Directly Connected?false
Co-rupture Count1,603
Co-rupture Rate3.8465146E-6

EarthquakeFlat - Tumunui, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?true
Directly Connected?true
Co-rupture Count467
Co-rupture Rate0.00139643
