Caswell High 3 Details

PropertyValue
Rupture Count230
Ruptures Above Sect Min Mag219
Ruptures w/ Nonzero Rates40
Magnitude Range[6.54, 8.32]
Length Range[13, 605] km
Total Rate2.5989302E-4 /yr
Multi-Fault Rate2.5989302E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults16

Table Of Contents

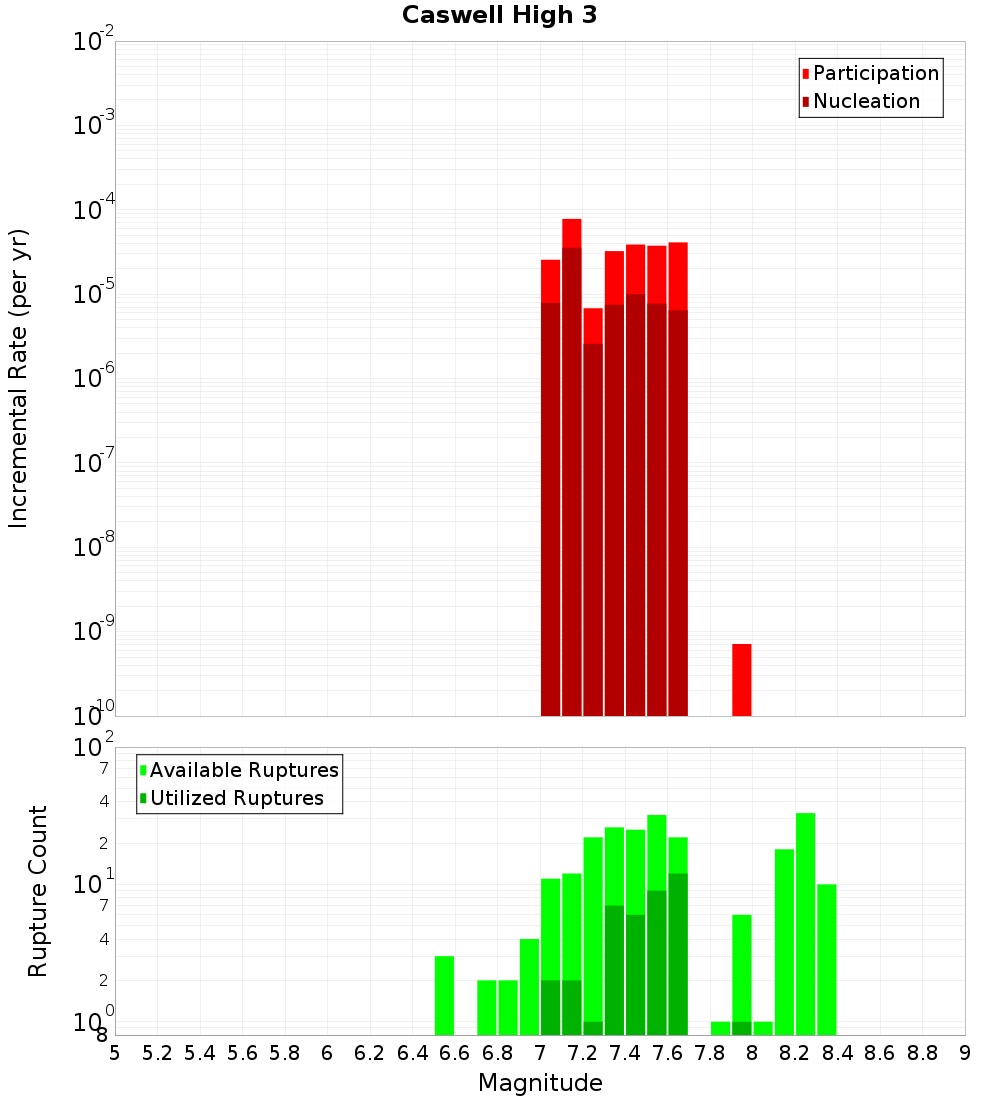

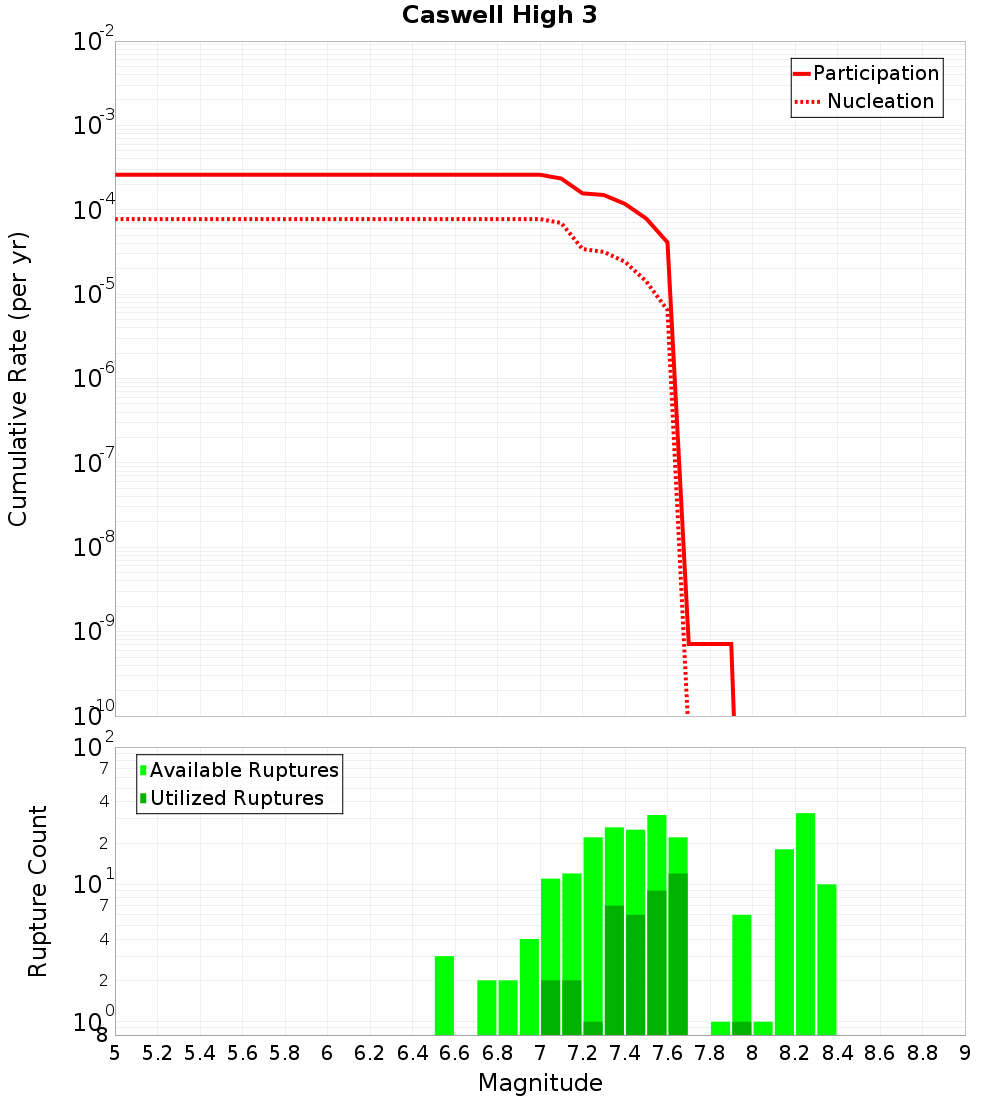

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

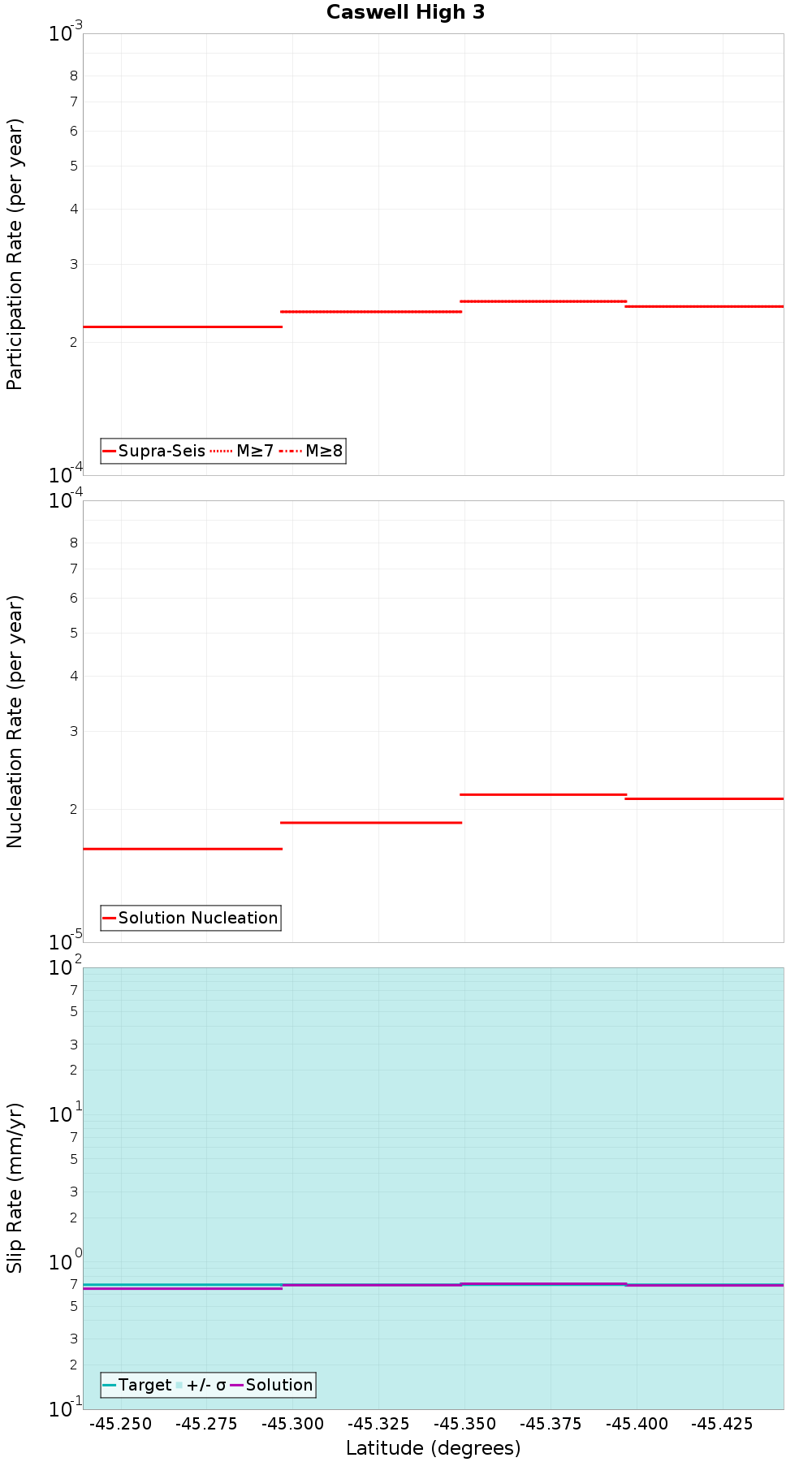

Along-Strike Values

(top)

Along-strike plot

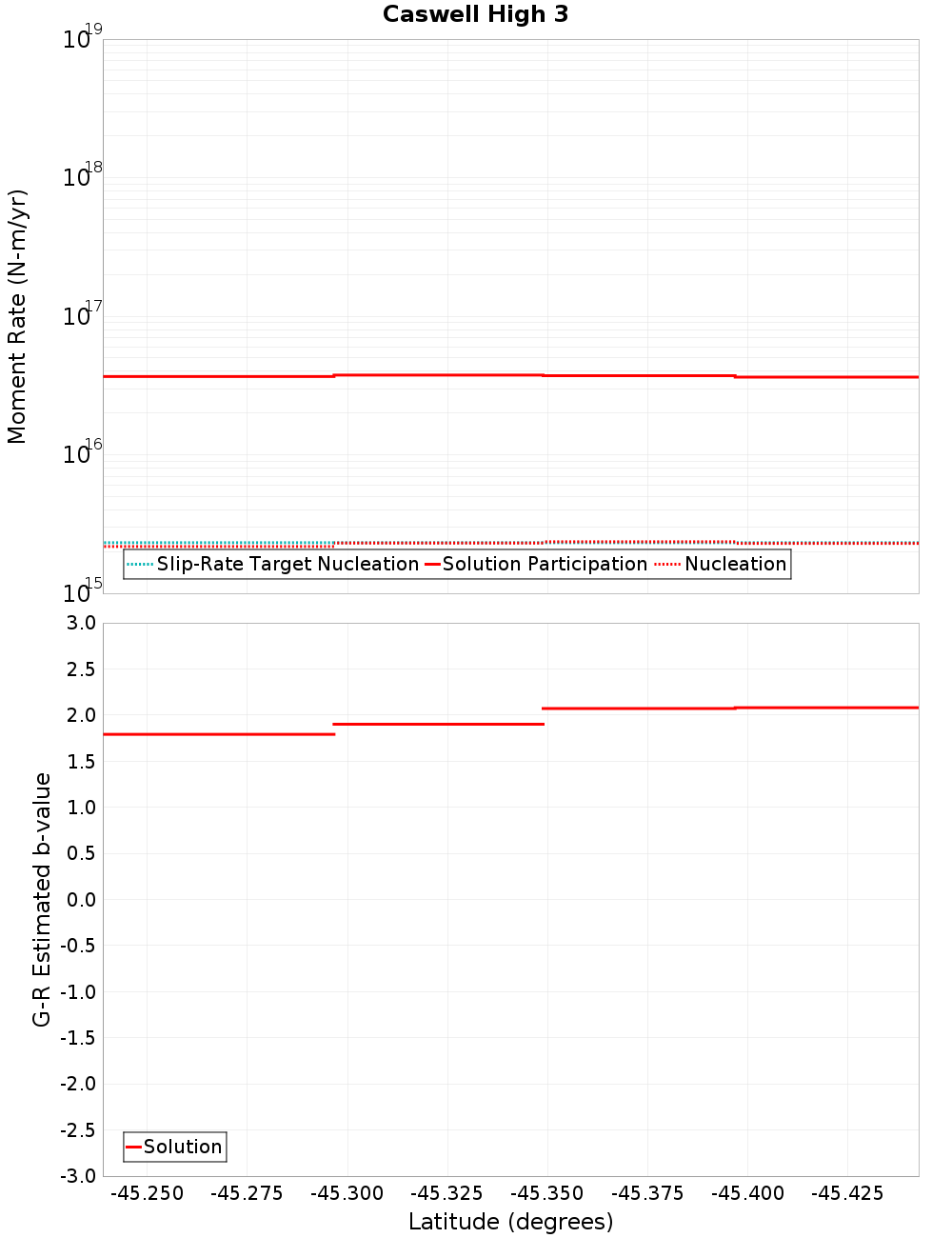

Moment-Rates and b-Values

(top)

Along-strike plot

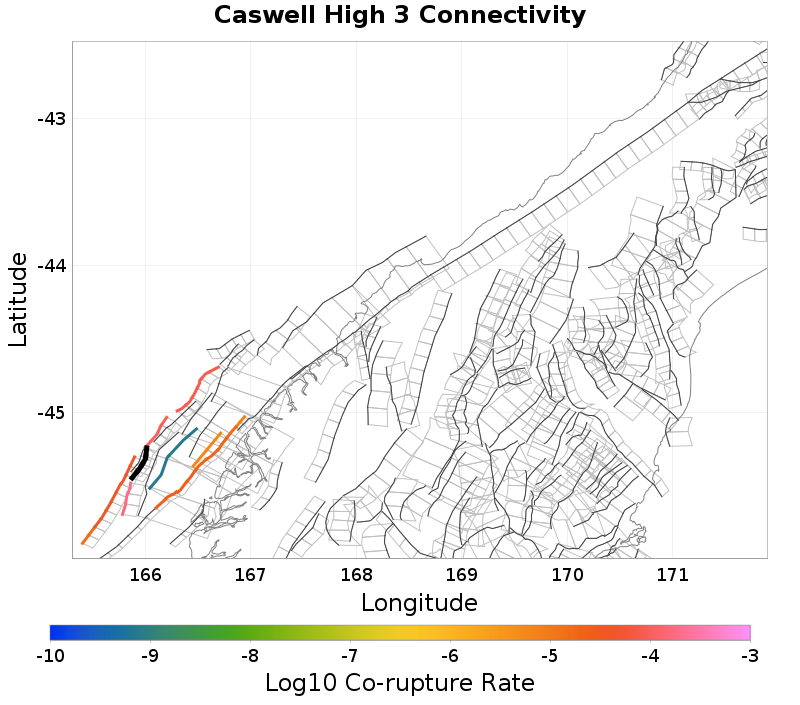

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Caswell High 4, 0.7 km away
Caswell 211, 2.33 km away
Caswell High 5, 4.35 km away
Caswell High 1, 4.37 km away
South Wedge 5, 6.11 km away
South Wedge 3-6-10, 12.92 km away

Caswell High 4, 0.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?true
Directly Connected?true
Co-rupture Count165
Co-rupture Rate1.1550966E-4

Caswell 211, 2.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?true
Directly Connected?true
Co-rupture Count64
Co-rupture Rate1.8616277E-4

Caswell High 5, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Caswell High 1, 4.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate4.160254E-5

South Wedge 5, 6.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 3-6-10, 12.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzMuMHF5TXFu
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate7.135433E-10
