Alpine: George landward Details

PropertyValue
Rupture Count21,549
Ruptures Above Sect Min Mag21,547
Ruptures w/ Nonzero Rates772
Magnitude Range[6.73, 8.61]
Length Range[16, 1,129] km
Total Rate0.0010061061 /yr
Multi-Fault Rate0.0010061061 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults129

Table Of Contents

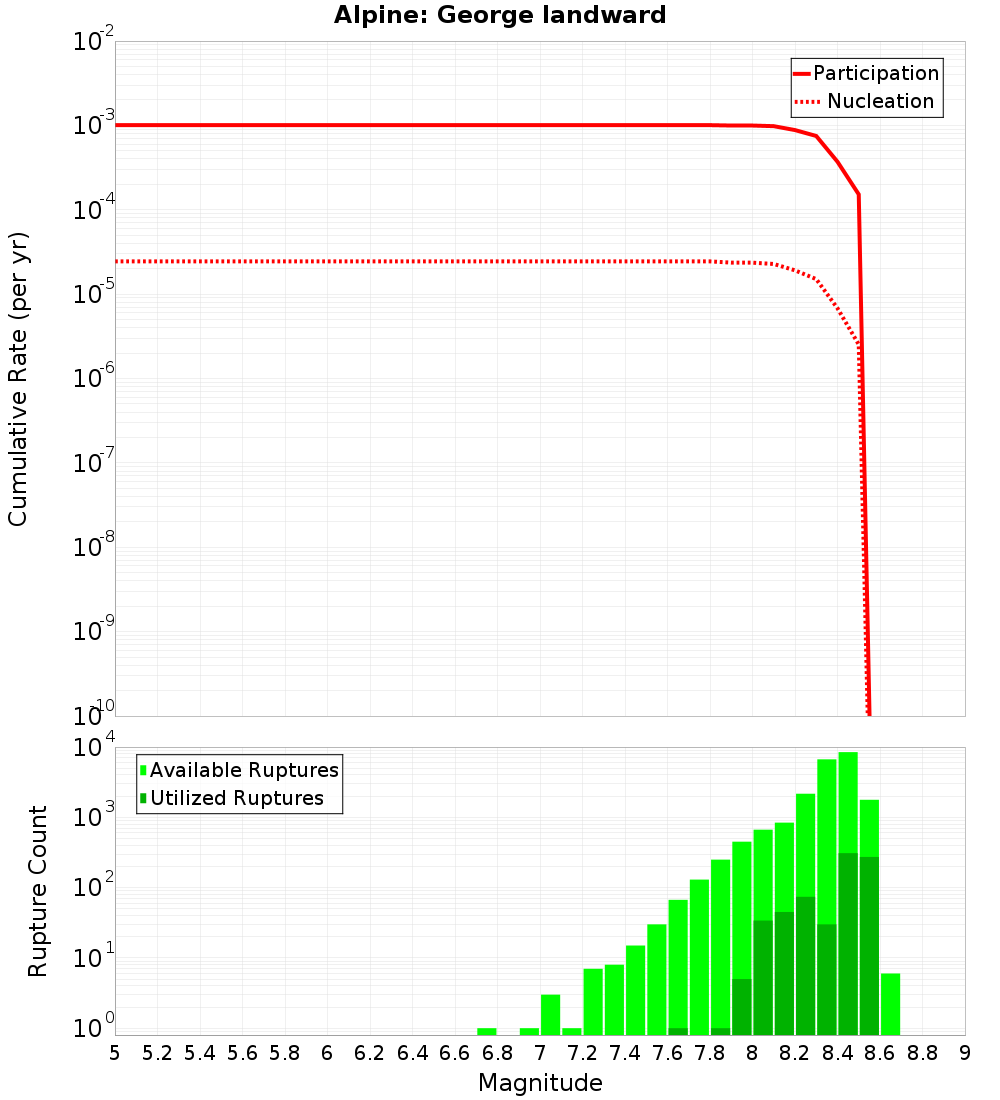

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

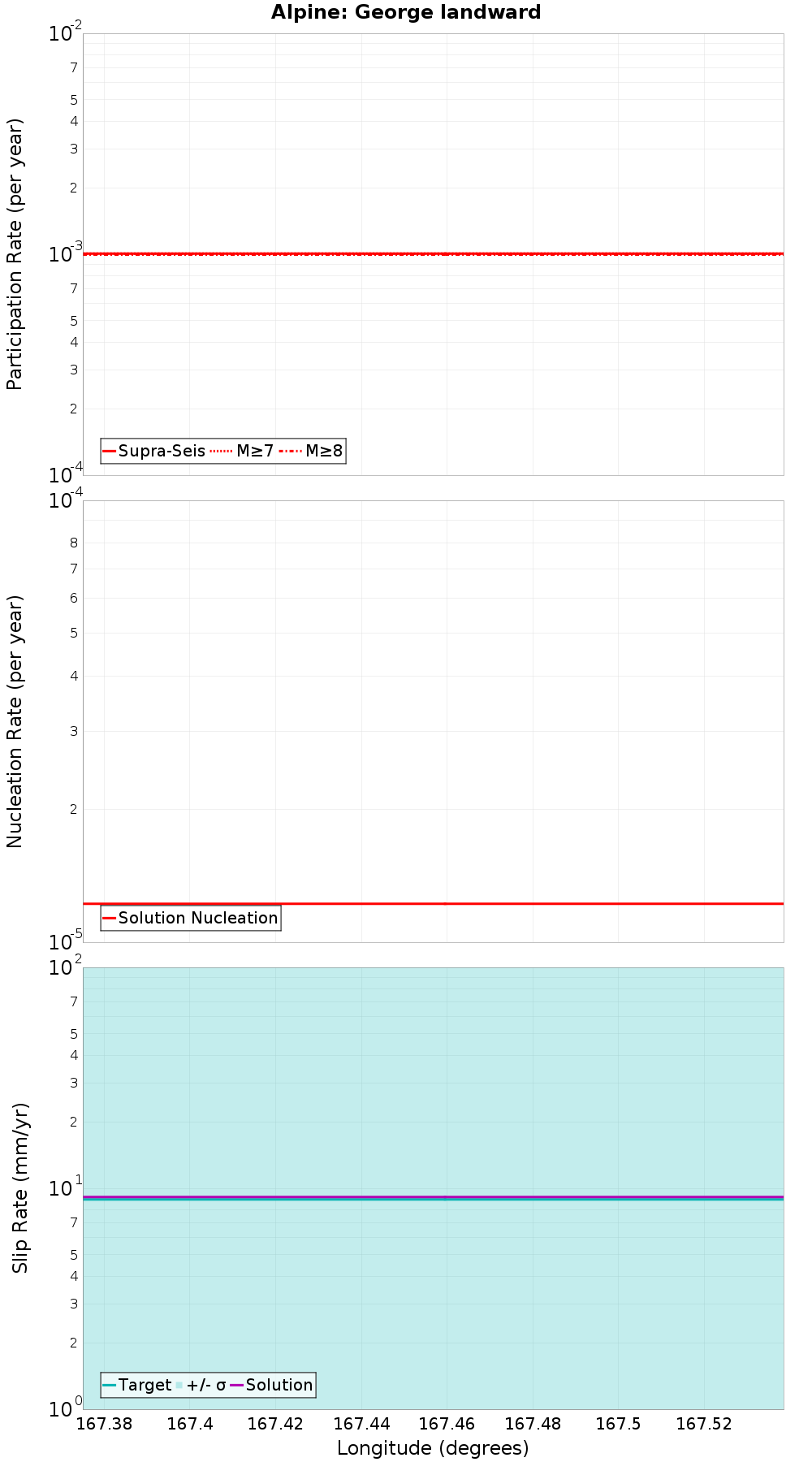

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: George seaward, 0 km away
Alpine: George to Jacksons, 0 km away
Alpine: Caswell - South George, 0.03 km away
Madagascar, 0.18 km away
Central Wedge 1 & 2 & 3, 6.81 km away

Alpine: George seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?true
Directly Connected?false
Co-rupture Count311
Co-rupture Rate0.0

Alpine: George to Jacksons, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?true
Directly Connected?true
Co-rupture Count21,474
Co-rupture Rate0.0010054874

Alpine: Caswell - South George, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?true
Directly Connected?true
Co-rupture Count20,557
Co-rupture Rate0.0010061053

Madagascar, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Central Wedge 1 & 2 & 3, 6.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?true
Directly Connected?false
Co-rupture Count1,174
Co-rupture Rate0.0
