Te Whaiti South Details

Property	Value
Rupture Count	7,613
Ruptures Above Sect Min Mag	7,607
Ruptures w/ Nonzero Rates	298
Magnitude Range	[6.85, 8.42]
Length Range	[20, 713] km
Total Rate	2.485546E-4 /yr
Multi-Fault Rate	2.4849857E-4 /yr (99.98%)
Directly-Connected Faults	7
All Co-Rupturing Faults	98

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

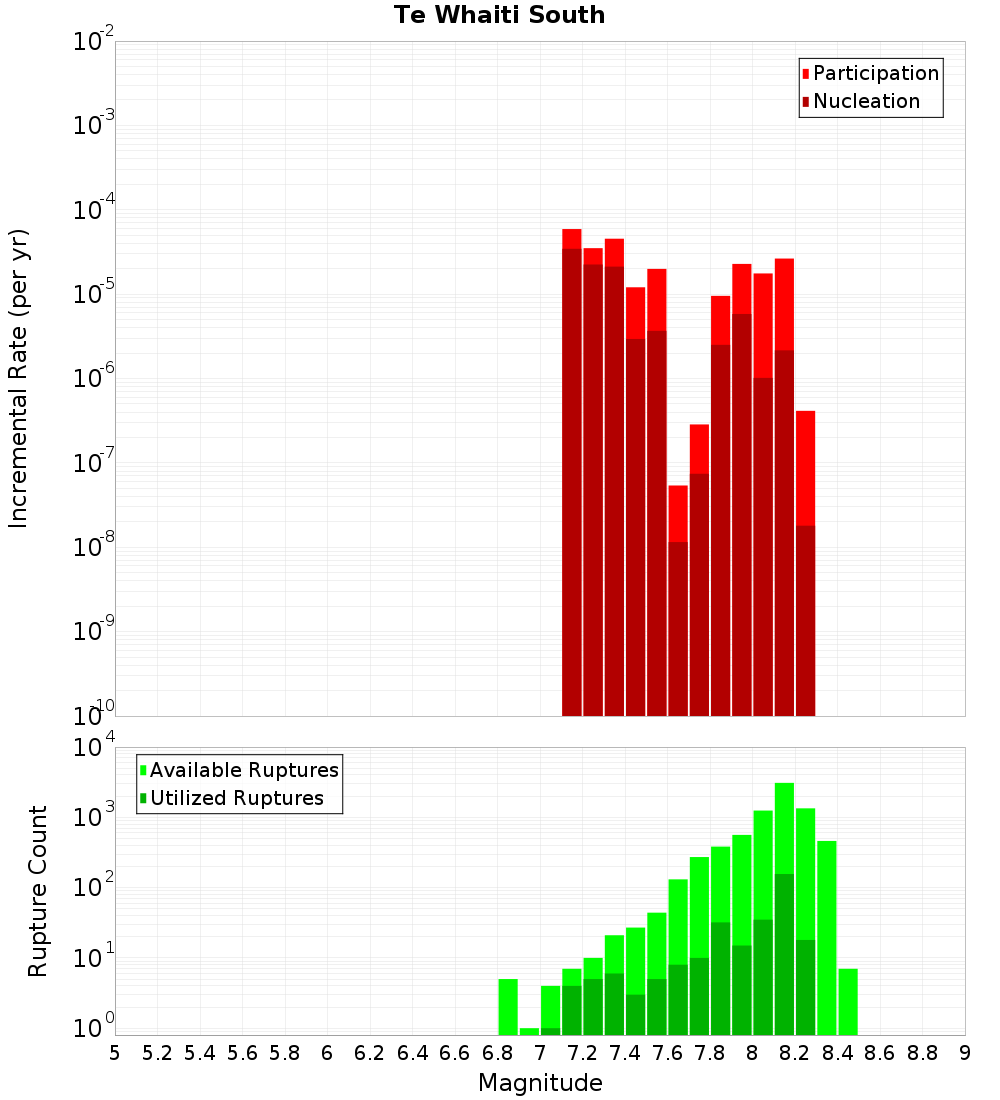

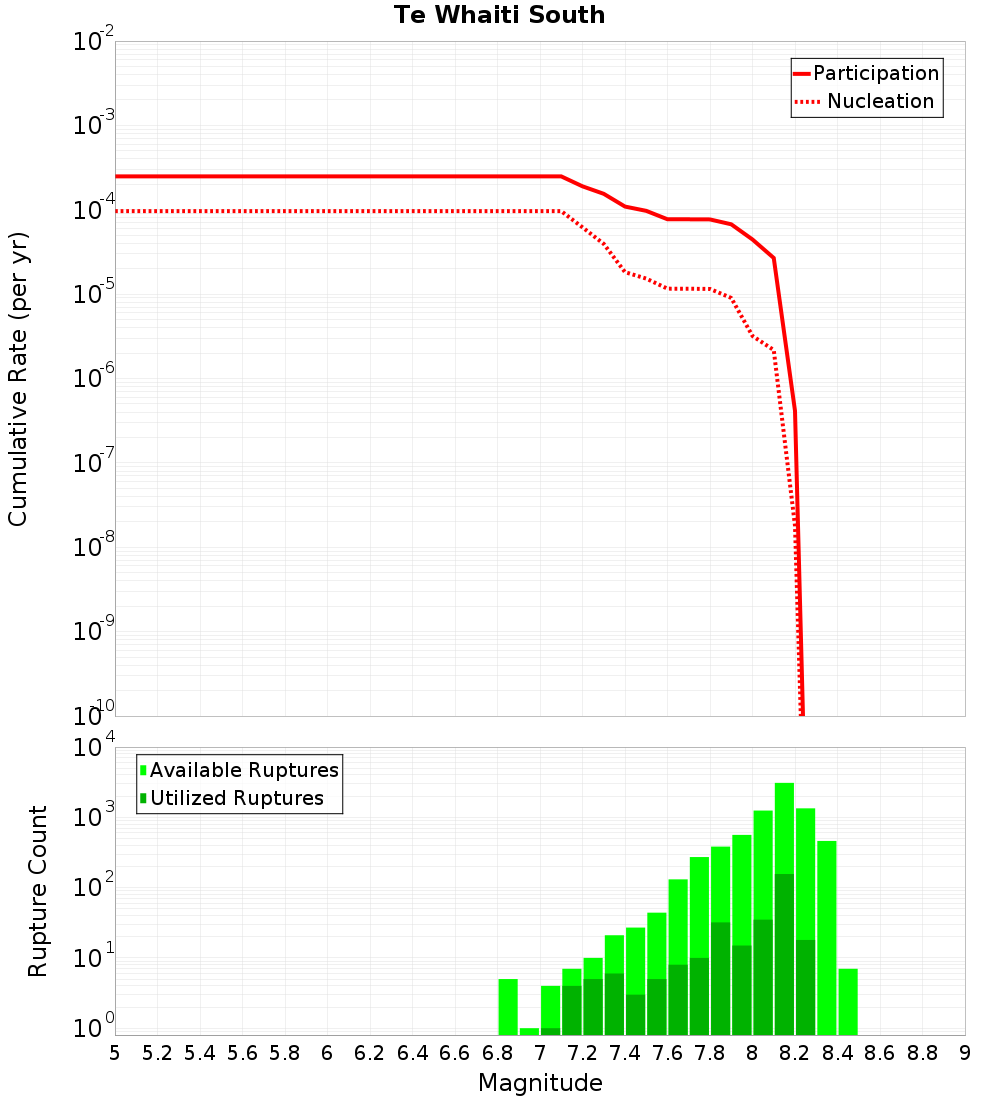

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Te Whaiti North, 0 km away
Wheao: North, 0 km away
Wheao: South, 0.44 km away
Waiohau: South, 0.76 km away
Waiohau: North, 1.94 km away
Ruahine: North, 9.06 km away
Whakatane: South, 11.9 km away
Kaingaroa 1, 13.7 km away
Waimana: South, 14.57 km away
Whakatane: North, 14.65 km away

Te Whaiti North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?	true
Directly Connected?	true
Co-rupture Count	697
Co-rupture Rate	4.243182E-5

Wheao: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?	true
Directly Connected?	true
Co-rupture Count	477
Co-rupture Rate	1.8122205E-6

Wheao: South, 0.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?	true
Directly Connected?	true
Co-rupture Count	608
Co-rupture Rate	1.2246993E-6

Waiohau: South, 0.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?	true
Directly Connected?	true
Co-rupture Count	6,625
Co-rupture Rate	8.873819E-5

Waiohau: North, 1.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?	true
Directly Connected?	true
Co-rupture Count	2,295
Co-rupture Rate	1.5140623E-5

Ruahine: North, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?	true
Directly Connected?	false
Co-rupture Count	7,110
Co-rupture Rate	7.426821E-5

Whakatane: South, 11.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?	true
Directly Connected?	true
Co-rupture Count	186
Co-rupture Rate	5.3387612E-5

Kaingaroa 1, 13.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?	true
Directly Connected?	true
Co-rupture Count	63
Co-rupture Rate	8.203563E-5

Waimana: South, 14.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakatane: North, 14.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	1.9811088E-5
