Wakamarama Offshore Details
| Property | Value |
|---|---|
| Rupture Count | 1,814 |
| Ruptures Above Sect Min Mag | 1,805 |
| Ruptures w/ Nonzero Rates | 393 |
| Magnitude Range | [6.75, 8.16] |
| Length Range | [17, 404] km |
| Total Rate | 6.272969E-5 /yr |
| Multi-Fault Rate | 4.8938175E-5 /yr (78.01%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 20 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

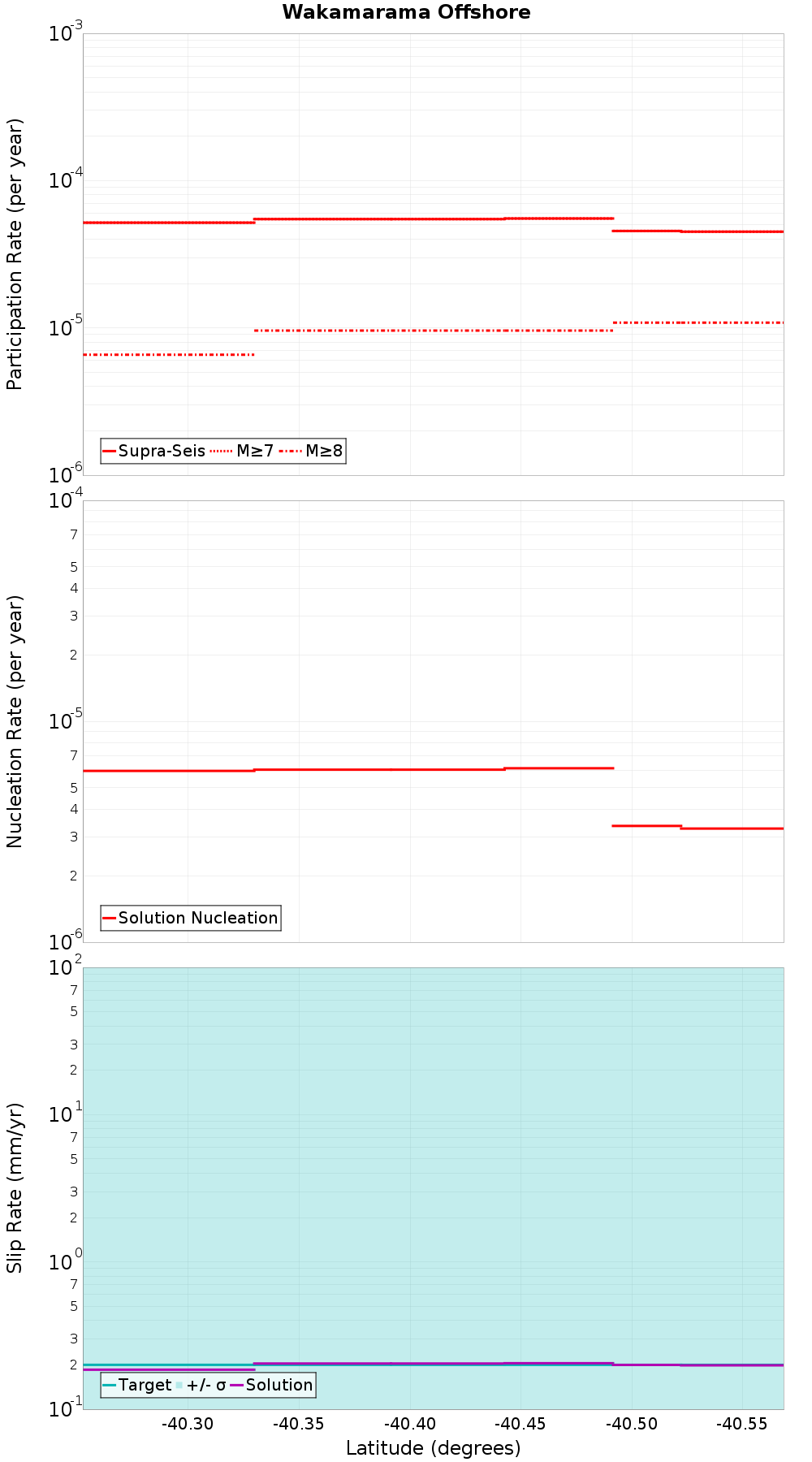

Along-Strike Values

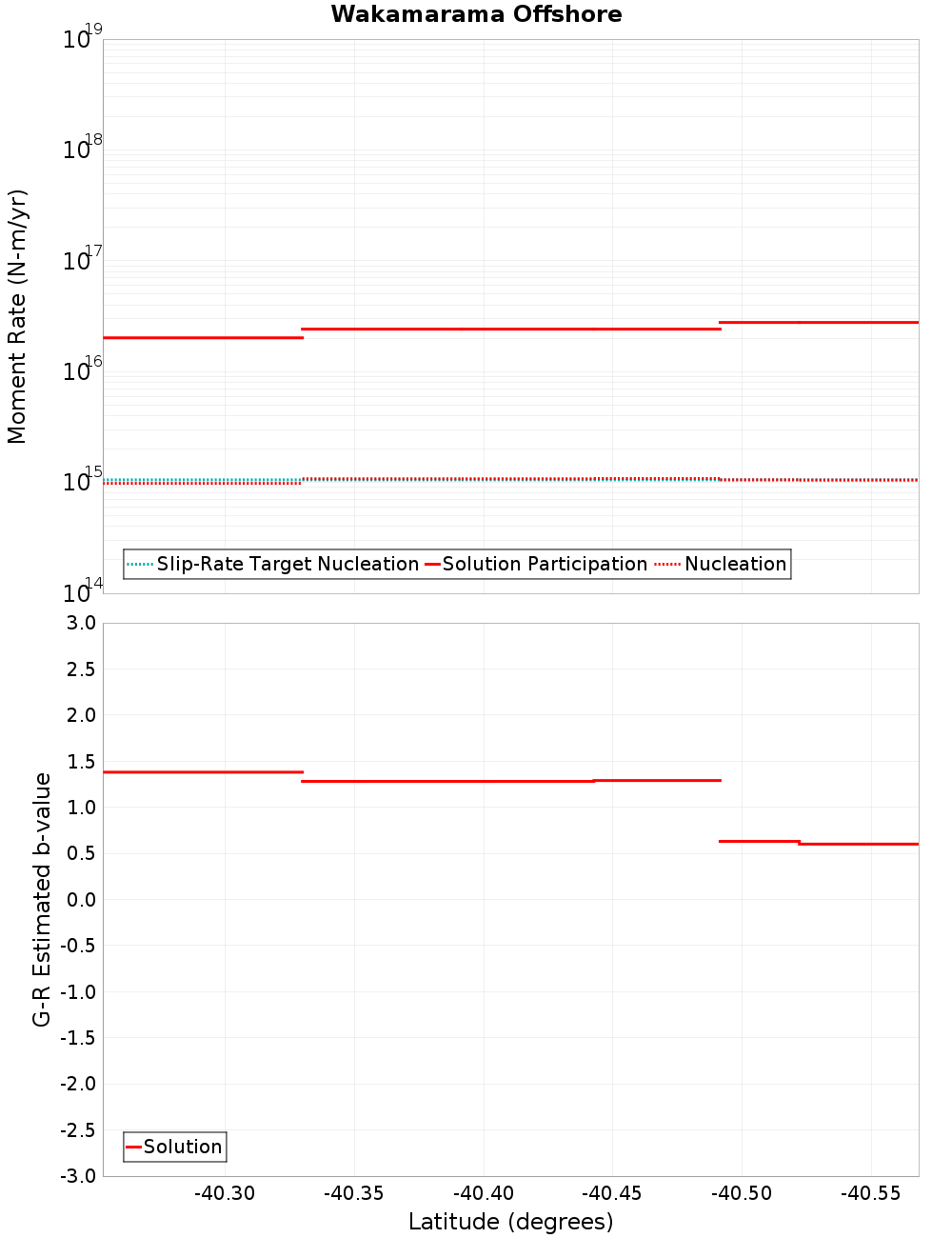

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Farewell, 0.22 km away |
| Wakamarama, 1.32 km away |
Farewell, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 639 |
| Co-rupture Rate | 1.6392678E-5 |
Wakamarama, 1.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzYuMGFpSDdw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,160 |
| Co-rupture Rate | 3.2545497E-5 |
