Madden Banks Details
| Property | Value |
|---|---|
| Rupture Count | 7,589 |
| Ruptures Above Sect Min Mag | 7,574 |
| Ruptures w/ Nonzero Rates | 1,068 |
| Magnitude Range | [6.75, 8.31] |
| Length Range | [18, 626] km |
| Total Rate | 5.8138283E-4 /yr |
| Multi-Fault Rate | 5.8138283E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 35 |
Table Of Contents

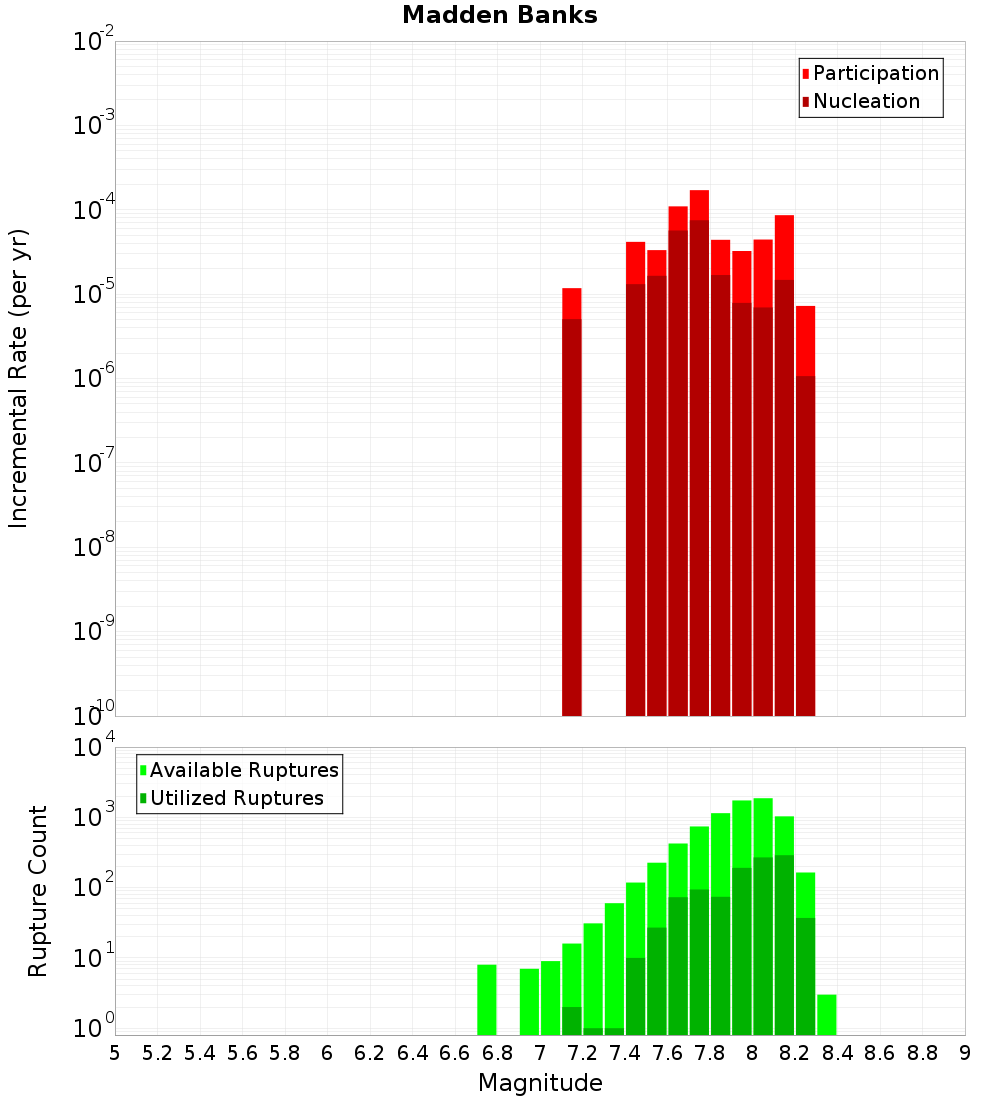

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

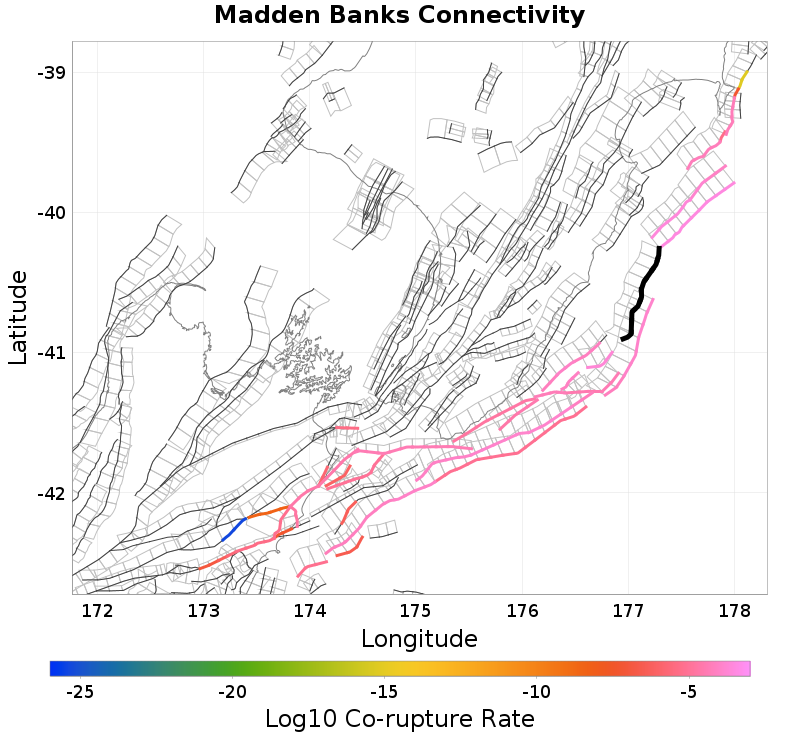

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Motu o Kura East, 0.5 km away |
| Uruti North, 3.58 km away |
| Uruti East - PorWest 1, 4.32 km away |
| Whareama Bank, 7.87 km away |
| Motu o Kura Ridge, 7.97 km away |
Motu o Kura East, 0.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzguMDZpbzJm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,547 |
| Co-rupture Rate | 3.7914564E-4 |
Uruti North, 3.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzguMDZpbzJm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,398 |
| Co-rupture Rate | 1.9290623E-4 |
Uruti East - PorWest 1, 4.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzguMDZpbzJm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,041 |
| Co-rupture Rate | 1.2131602E-4 |
Whareama Bank, 7.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzguMDZpbzJm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 180 |
| Co-rupture Rate | 1.0458374E-4 |
Motu o Kura Ridge, 7.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzguMDZpbzJm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,239 |
| Co-rupture Rate | 2.316712E-4 |
