Whangamoa Details

Property	Value
Rupture Count	32,276
Ruptures Above Sect Min Mag	32,268
Ruptures w/ Nonzero Rates	3,291
Magnitude Range	[6.97, 8.62]
Length Range	[23, 976] km
Total Rate	5.9550035E-5 /yr
Multi-Fault Rate	4.0144918E-5 /yr (67.41%)
Directly-Connected Faults	5
All Co-Rupturing Faults	100

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

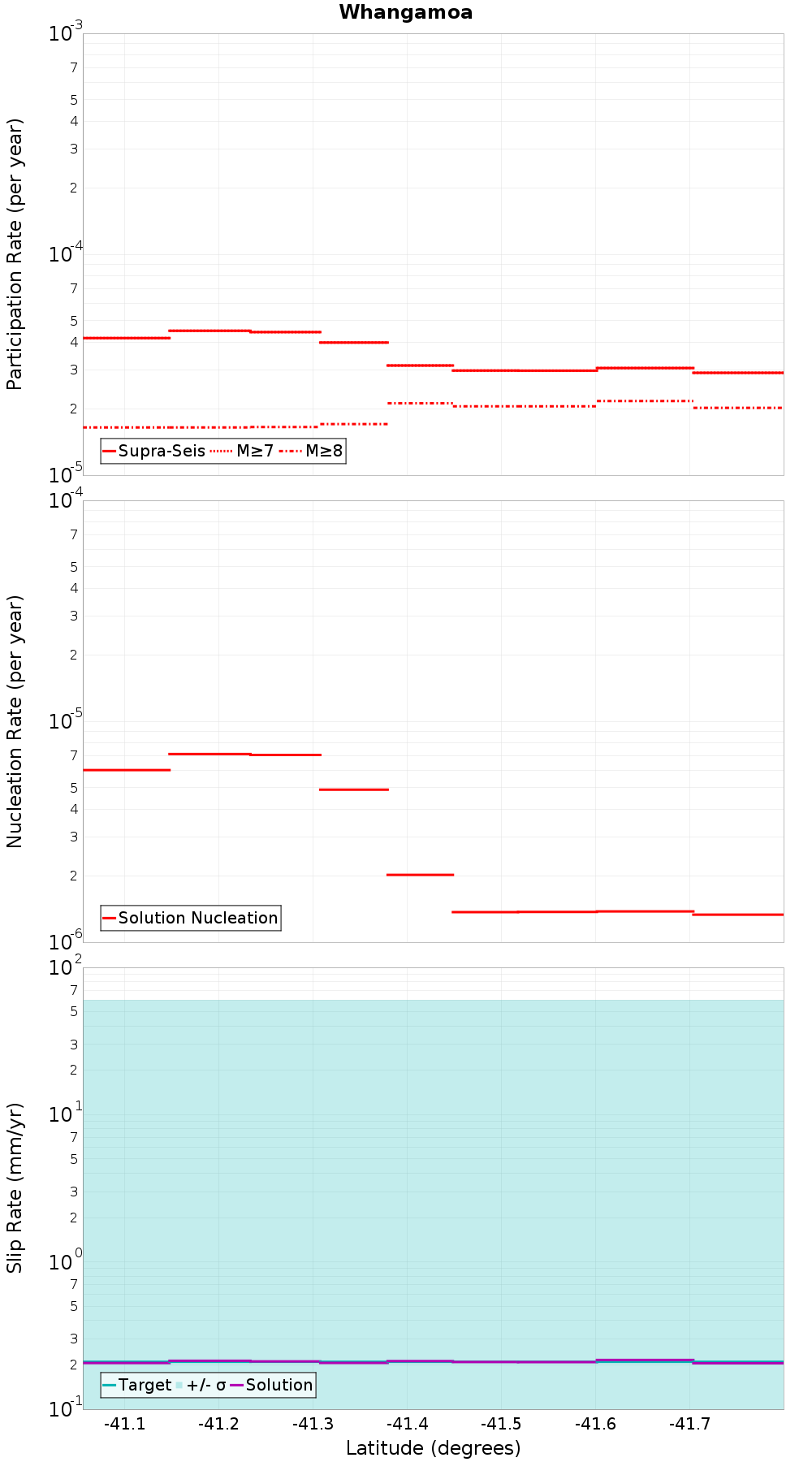

Along-Strike Values

Moment-Rates and b-Values

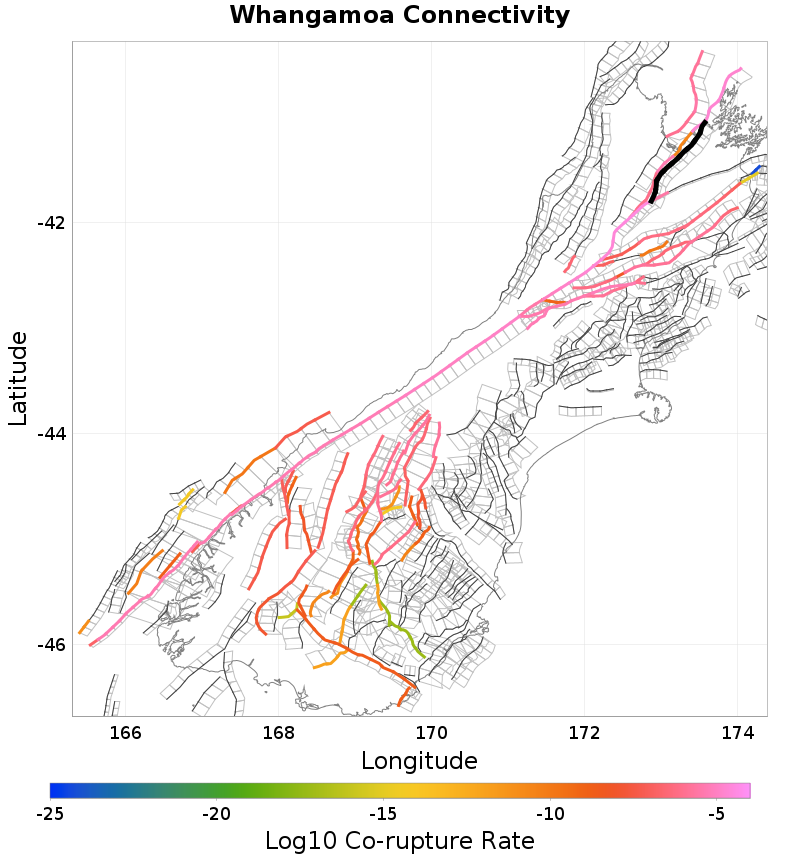

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Wairau, 0 km away
Waimea Offshore, 0.82 km away
Flaxmore - Waimea - Tahunanui, 2.28 km away
Surville, 14.06 km away
Tutaki, 14.86 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzguMDZpbzJm
Connected?	true
Directly Connected?	true
Co-rupture Count	31,470
Co-rupture Rate	3.0161844E-5

Wairau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzguMDZpbzJm
Connected?	true
Directly Connected?	true
Co-rupture Count	5,375
Co-rupture Rate	2.6417679E-6

Waimea Offshore, 0.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzguMDZpbzJm
Connected?	true
Directly Connected?	true
Co-rupture Count	12,245
Co-rupture Rate	1.8160512E-5

Flaxmore - Waimea - Tahunanui, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzguMDZpbzJm
Connected?	true
Directly Connected?	true
Co-rupture Count	4,716
Co-rupture Rate	4.656326E-6

Surville, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzguMDZpbzJm
Connected?	true
Directly Connected?	true
Co-rupture Count	2,882
Co-rupture Rate	2.794575E-6

Tutaki, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3MzguMDZpbzJm
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0
