Campbell Hills Details

PropertyValue
Rupture Count112
Ruptures Above Sect Min Mag110
Ruptures w/ Nonzero Rates15
Magnitude Range[6.92, 7.94]
Length Range[20, 224] km
Total Rate1.8195371E-5 /yr
Multi-Fault Rate9.074506E-6 /yr (49.87%)
Directly-Connected Faults3
All Co-Rupturing Faults12

Table Of Contents

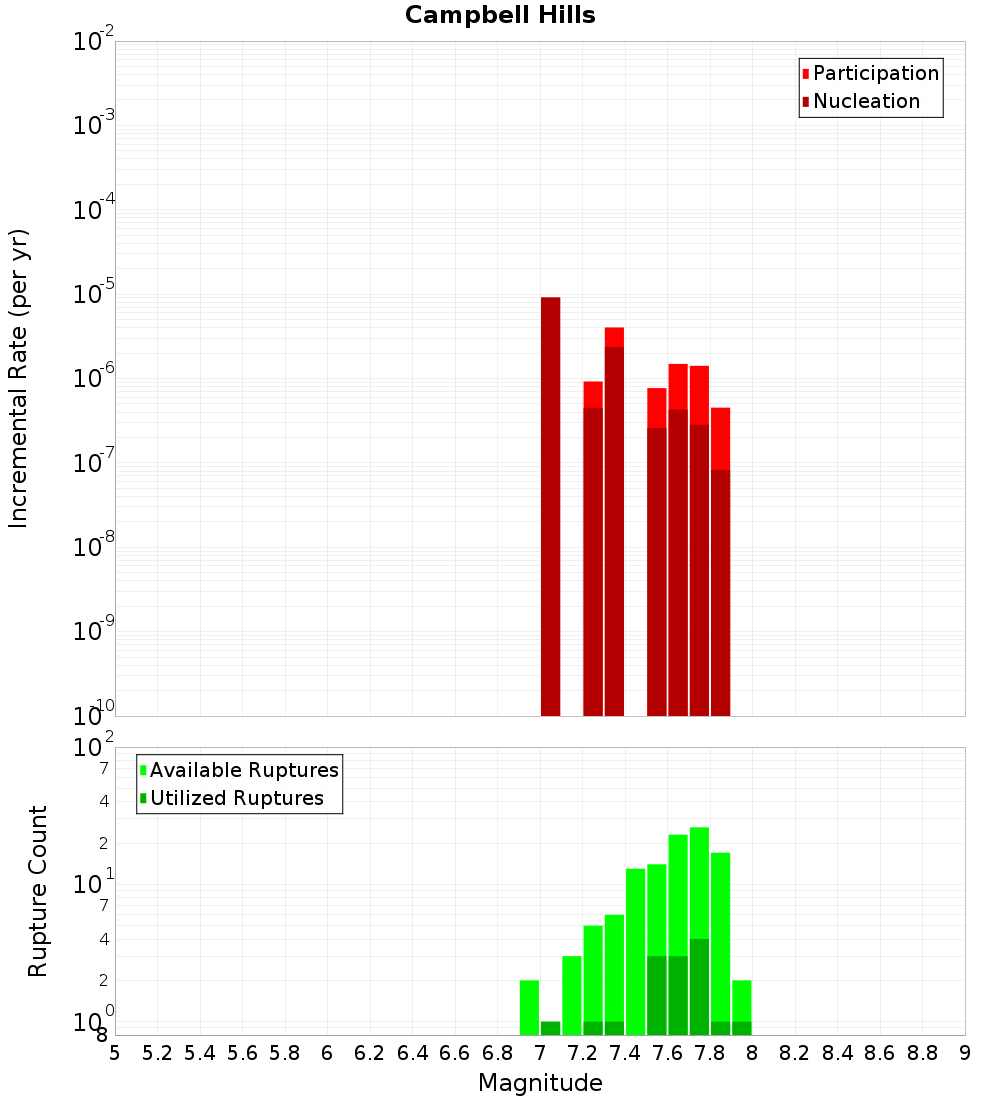

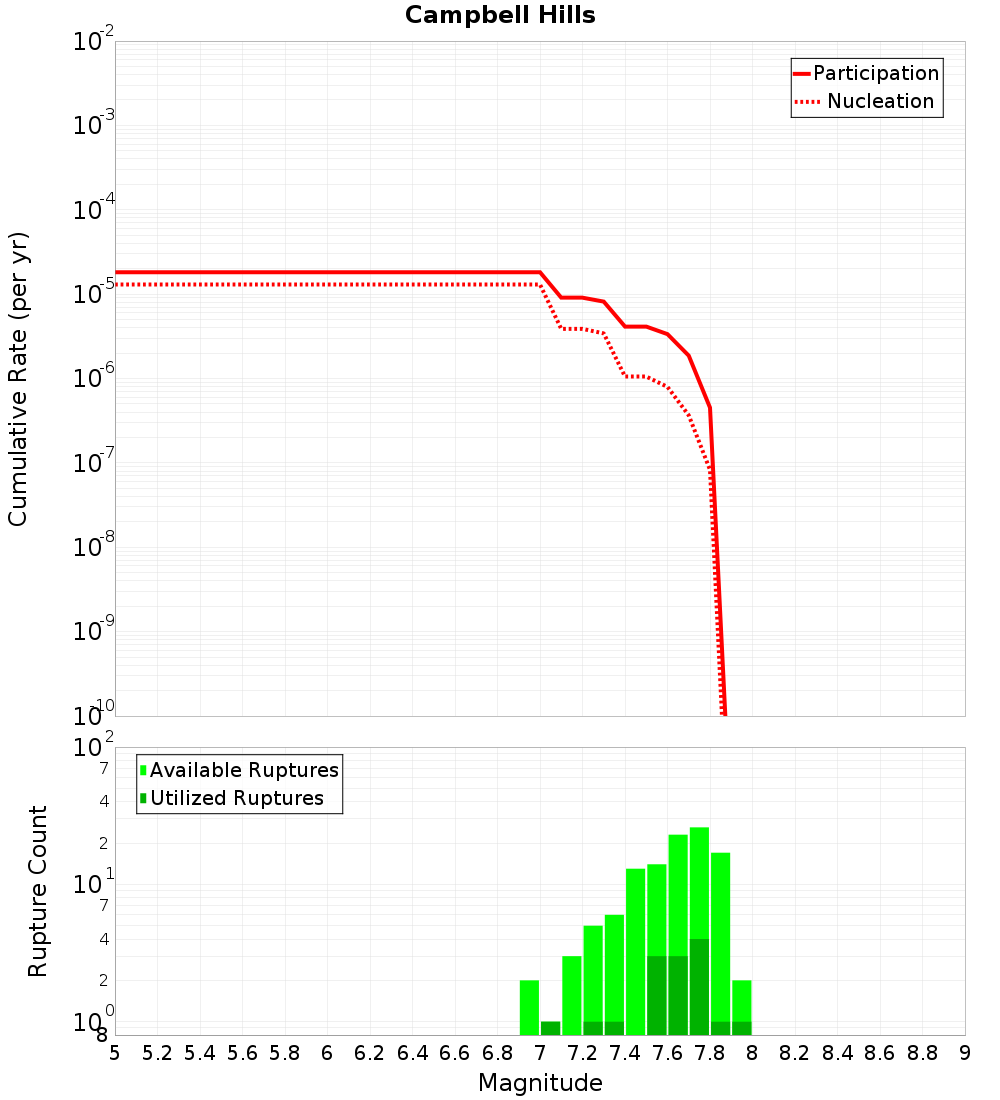

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

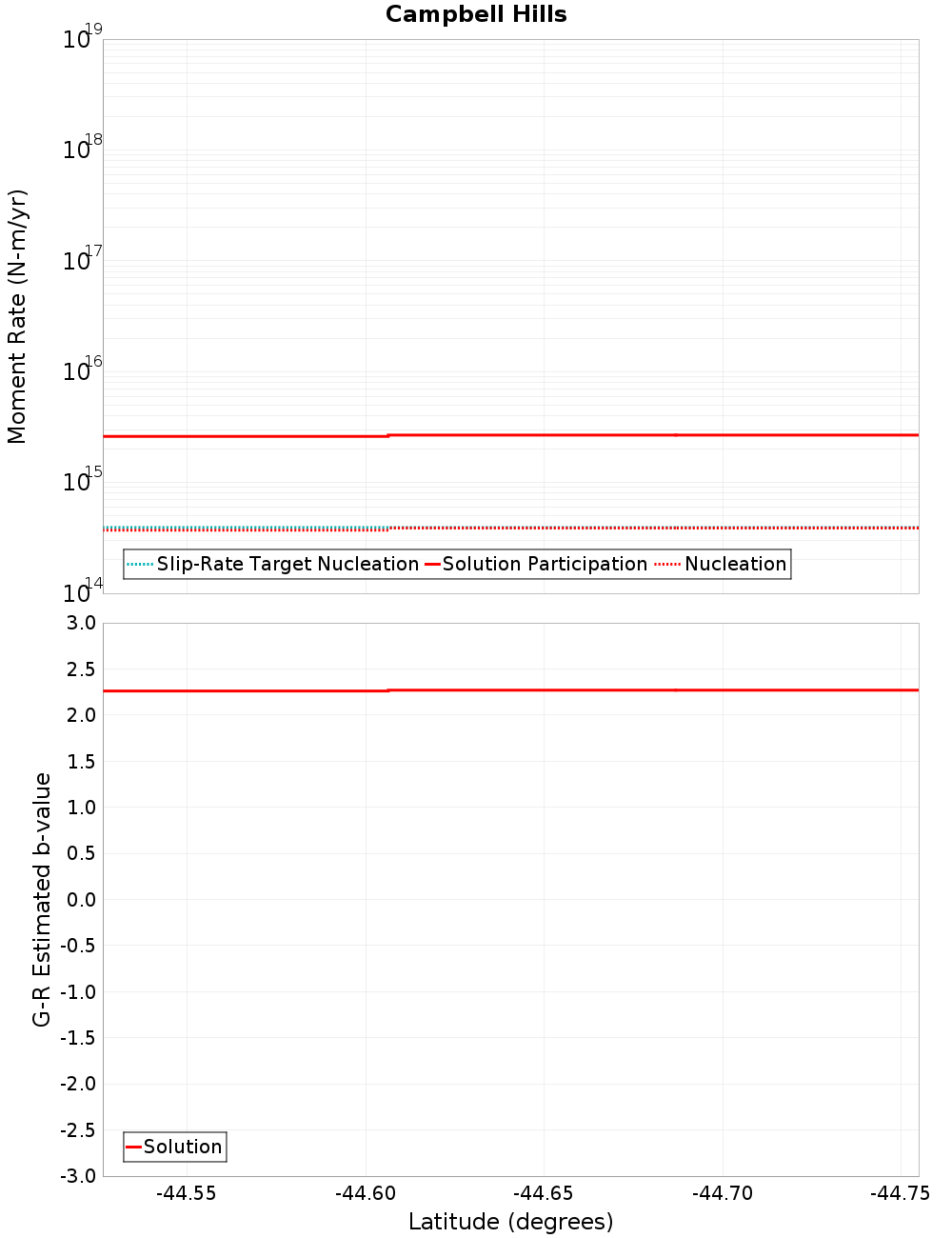

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dryburgh, 0.27 km away
Stonewall, 0.27 km away
Kirkliston, 6.26 km away
Middle Range, 6.3 km away
Black Hill, 7.16 km away
Chamberlain, 7.26 km away
Waitaki, 9.85 km away
Hunters, 11.24 km away
Fern Gully, 11.61 km away
Waitangi, 12.79 km away
Awahokomo, 13.6 km away
Dalgety, 13.77 km away
Waimate, 14.94 km away

Dryburgh, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Stonewall, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?true
Co-rupture Count70
Co-rupture Rate1.15371215E-7

Kirkliston, 6.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate4.0086875E-6

Middle Range, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Black Hill, 7.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate8.958968E-6

Chamberlain, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitaki, 9.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate1.15371215E-7

Hunters, 11.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fern Gully, 11.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitangi, 12.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awahokomo, 13.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dalgety, 13.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate2.6342564E-6

Waimate, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate1.12928125E-10
