Waihemo Details

PropertyValue
Rupture Count1,313
Ruptures Above Sect Min Mag1,298
Ruptures w/ Nonzero Rates91
Magnitude Range[6.81, 8.16]
Length Range[20, 312] km
Total Rate6.146496E-5 /yr
Multi-Fault Rate2.8595627E-5 /yr (46.52%)
Directly-Connected Faults3
All Co-Rupturing Faults39

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

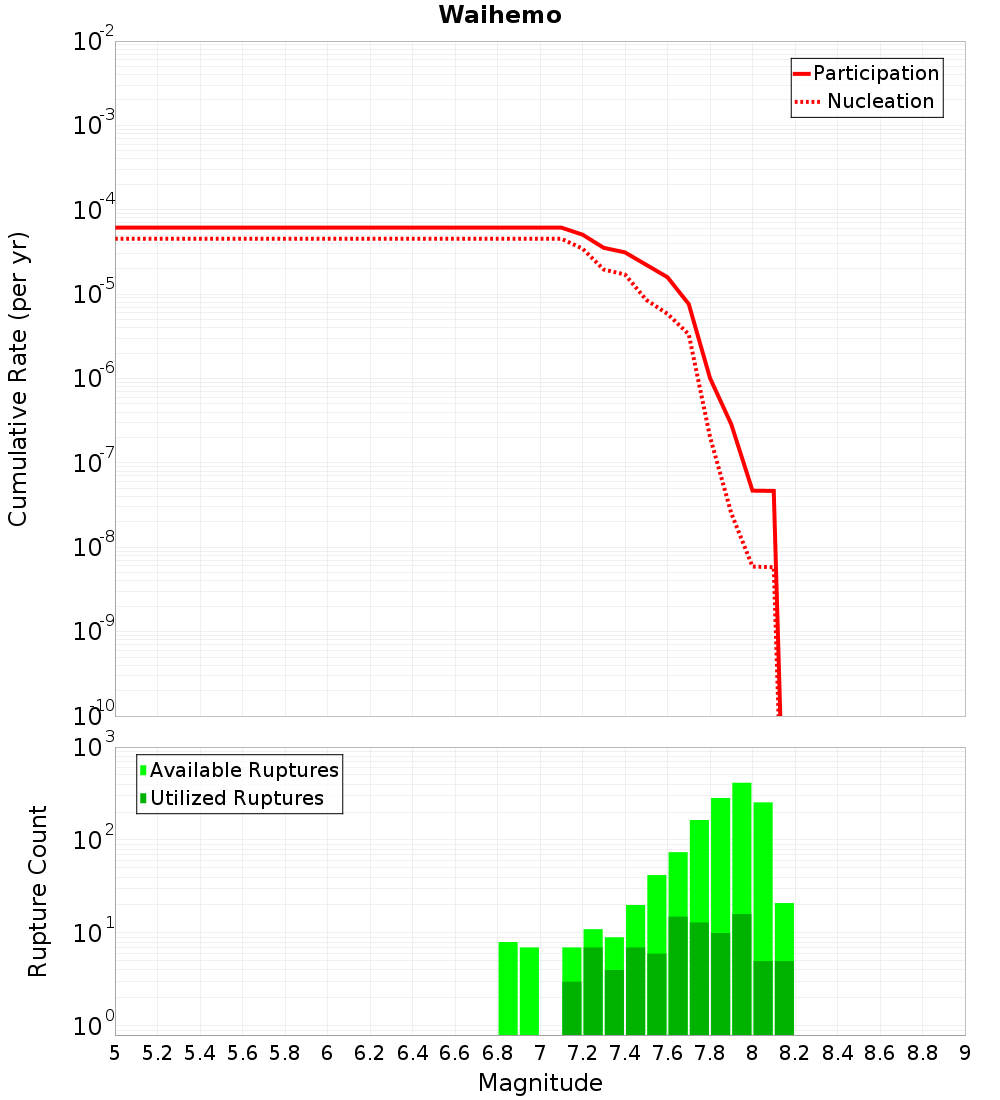

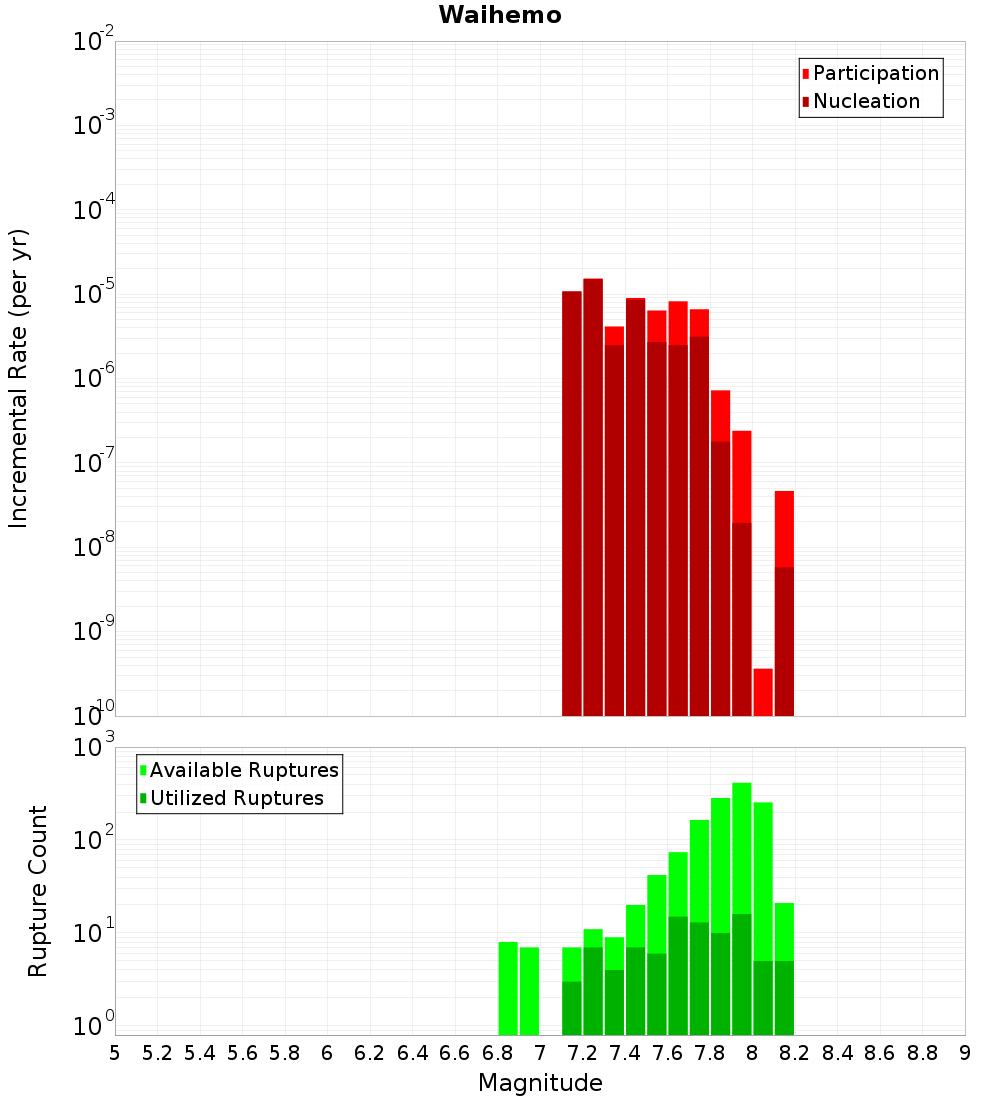

Incremental PlotCumulative Plot

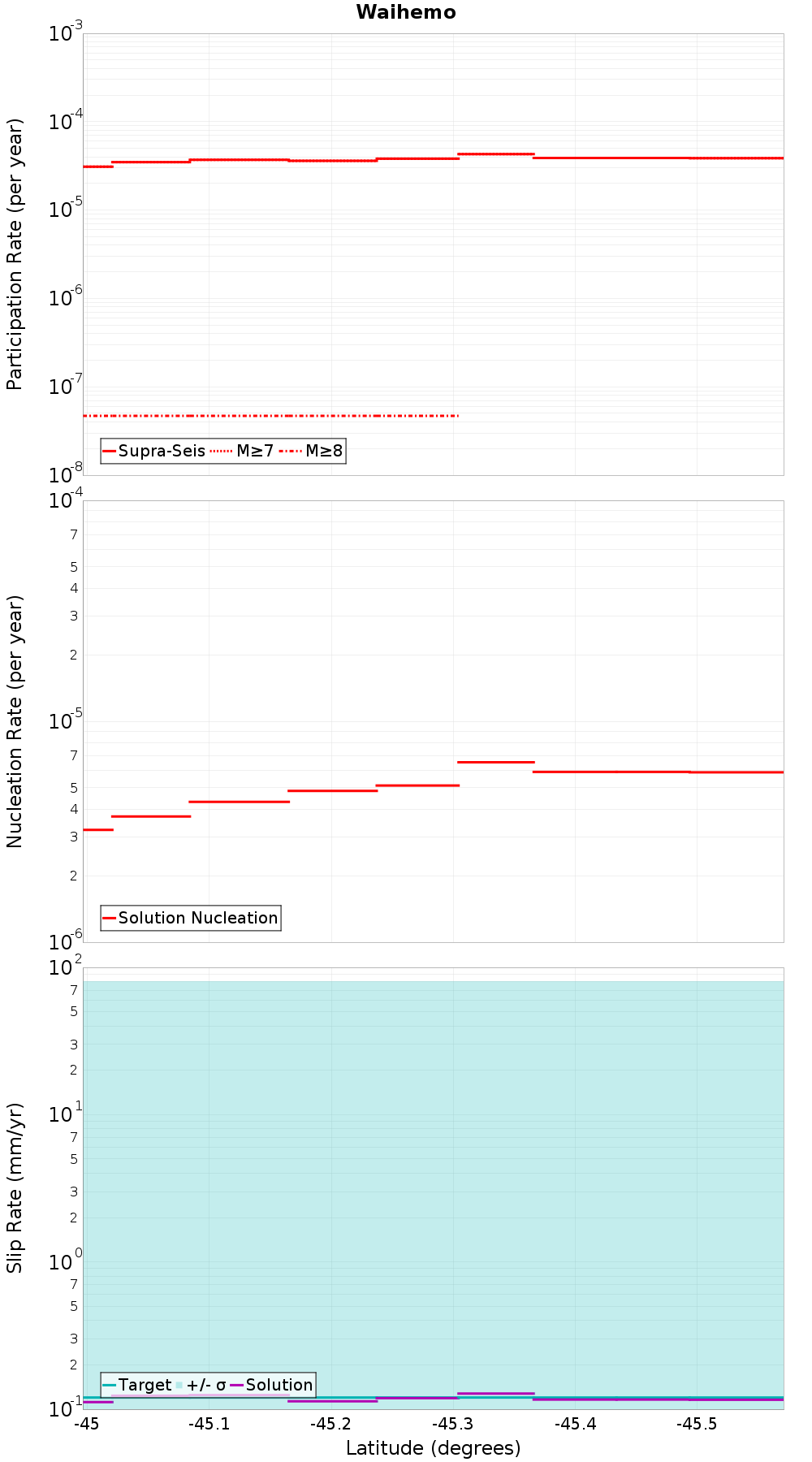

Along-Strike Values

(top)

Along-strike plot

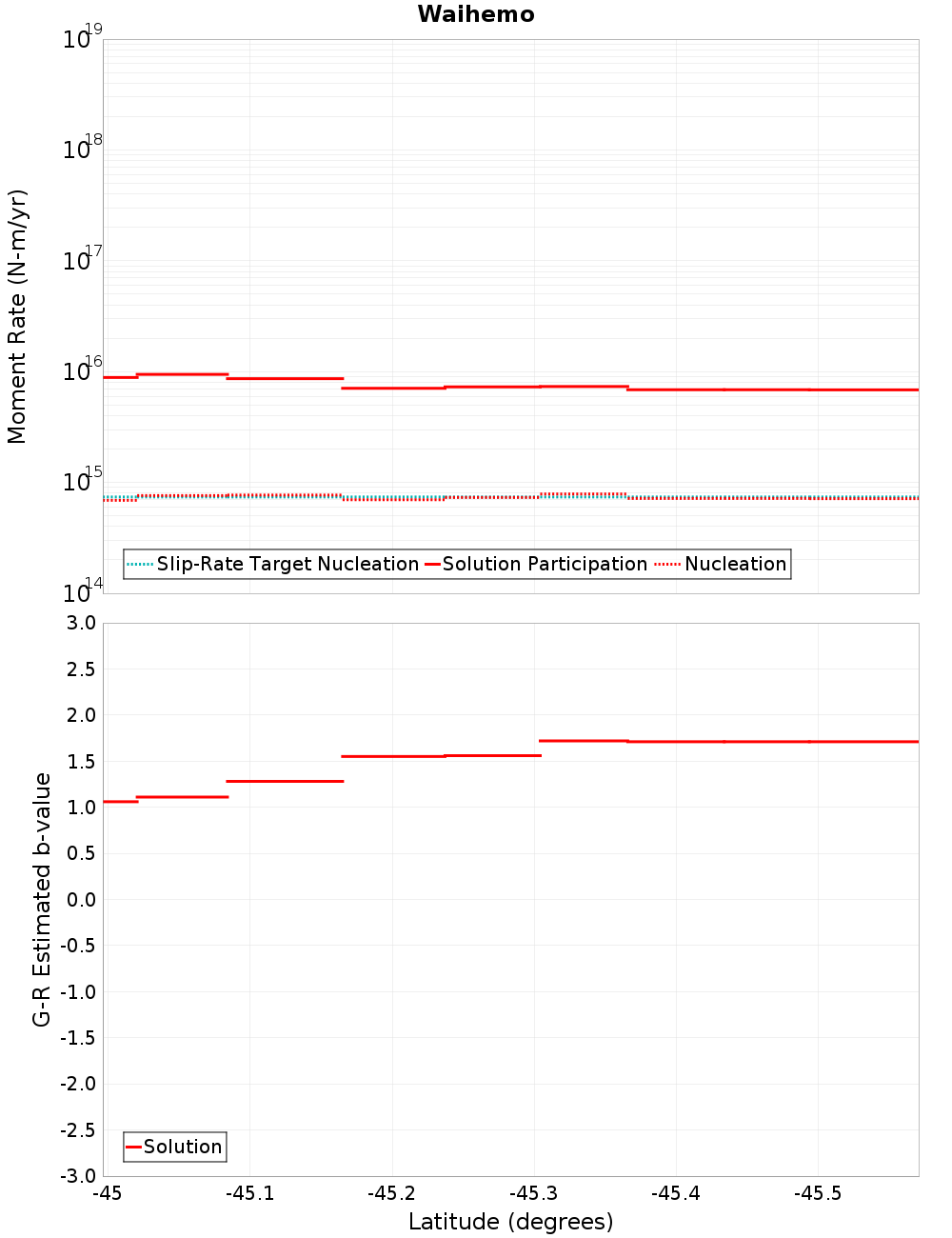

Moment-Rates and b-Values

(top)

Along-strike plot

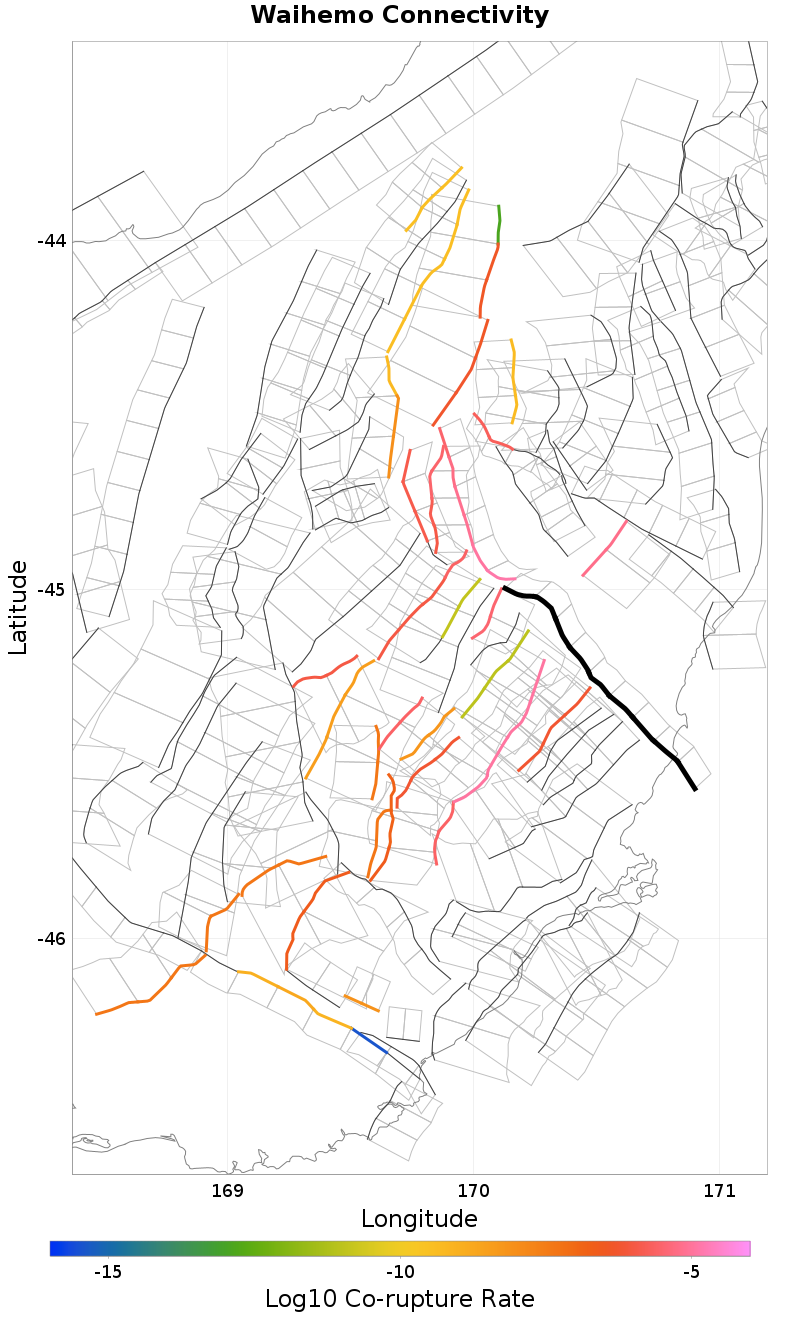

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Cross Eden, 1.13 km away
Hawkdun, 1.35 km away
Horse Flat, 2.81 km away
Flat Stream - Glenpark, 3.2 km away
Dunback Hill, 3.36 km away
Gimmerburn, 3.59 km away
Murphys Creek, 3.71 km away
Billys Ridge, 4.71 km away
Ranfurly, 5.63 km away
Waipiata, 7.68 km away
Garibaldi, 8.5 km away
Hyde North, 9.13 km away
Awahokomo, 12.83 km away
Black Hill, 13.3 km away

Cross Eden, 1.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate3.128847E-6

Hawkdun, 1.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?true
Co-rupture Count1,049
Co-rupture Rate1.3932878E-5

Horse Flat, 2.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate5.9620106E-7

Flat Stream - Glenpark, 3.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunback Hill, 3.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gimmerburn, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Murphys Creek, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Billys Ridge, 4.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ranfurly, 5.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waipiata, 7.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate9.485423E-12

Garibaldi, 8.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate1.1931784E-11

Hyde North, 9.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?true
Co-rupture Count1,027
Co-rupture Rate1.0932994E-5

Awahokomo, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Black Hill, 13.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTEuMHBnUnA2
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate6.3448274E-6
