St Stephens Details
| Property | Value |
|---|---|
| Rupture Count | 5 |
| Ruptures Above Sect Min Mag | 1 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.54, 7.09] |
| Length Range | [12, 42] km |
| Total Rate | 2.3656392E-5 /yr |
| Multi-Fault Rate | 2.3656392E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

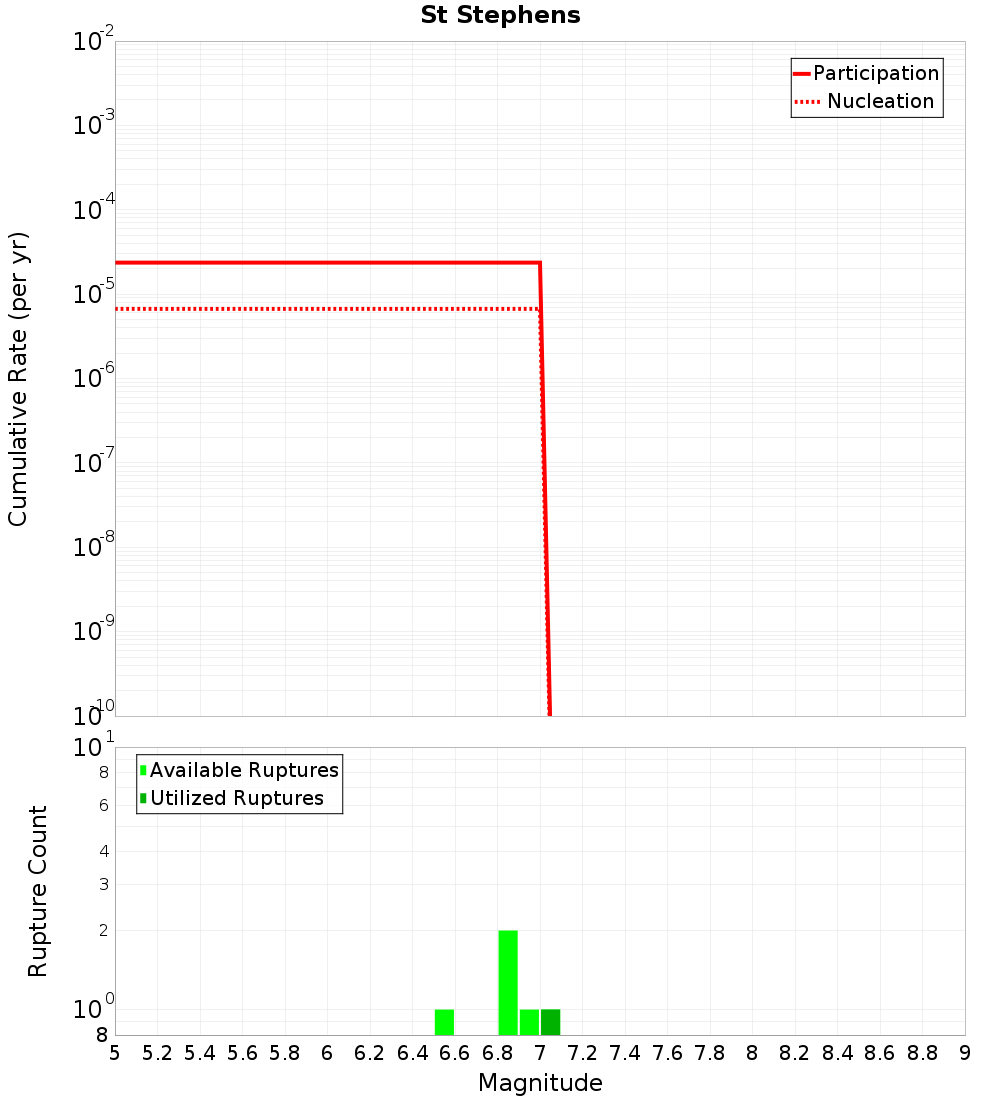

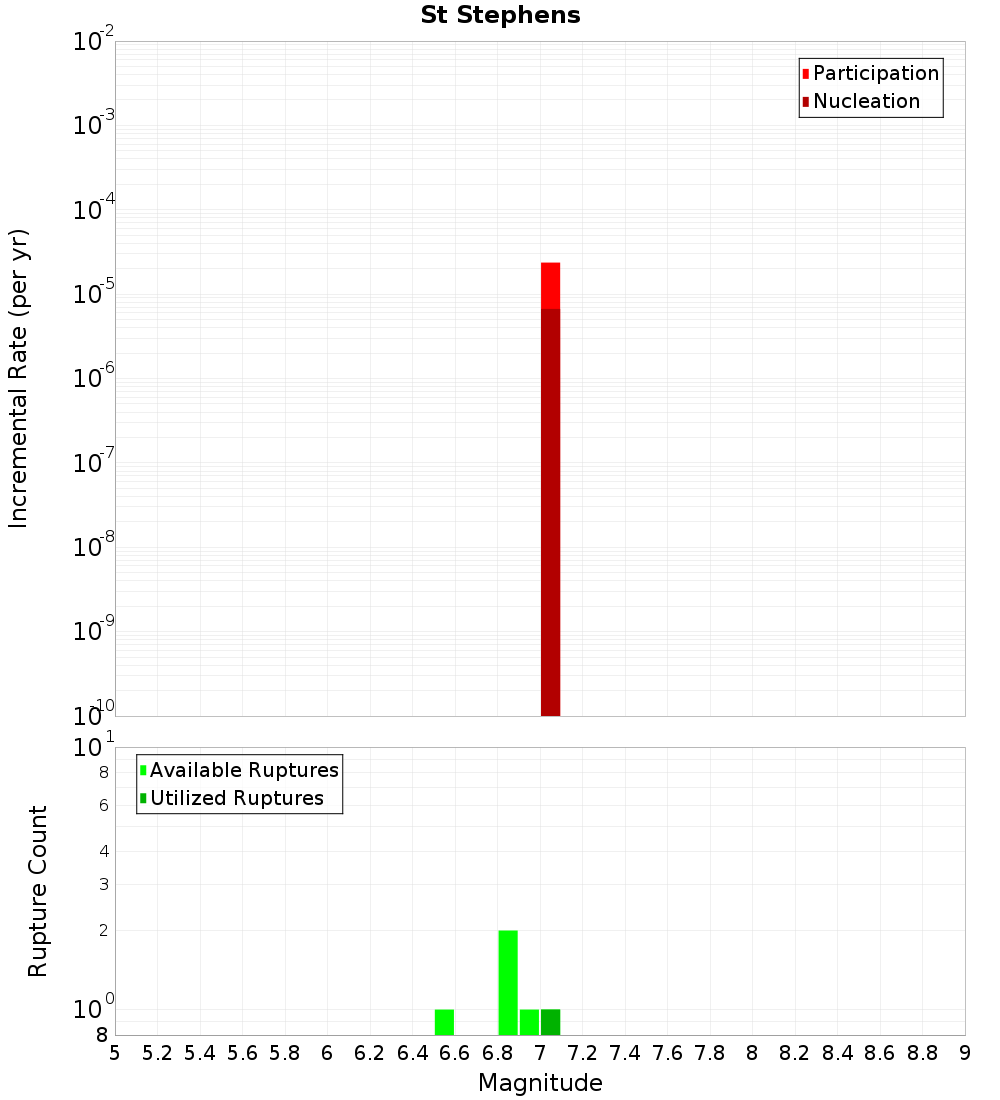

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

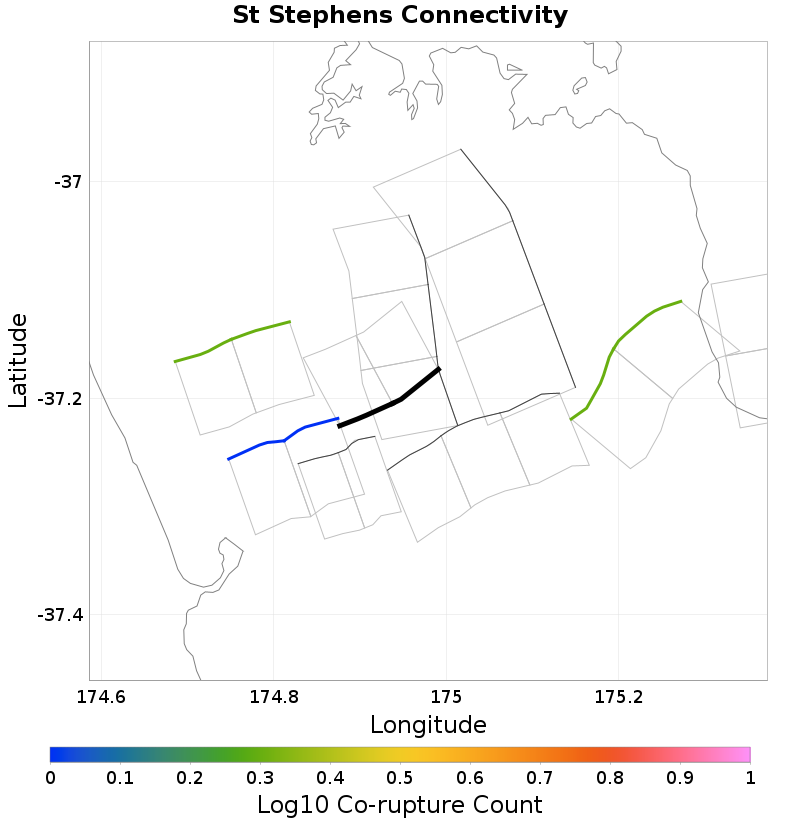

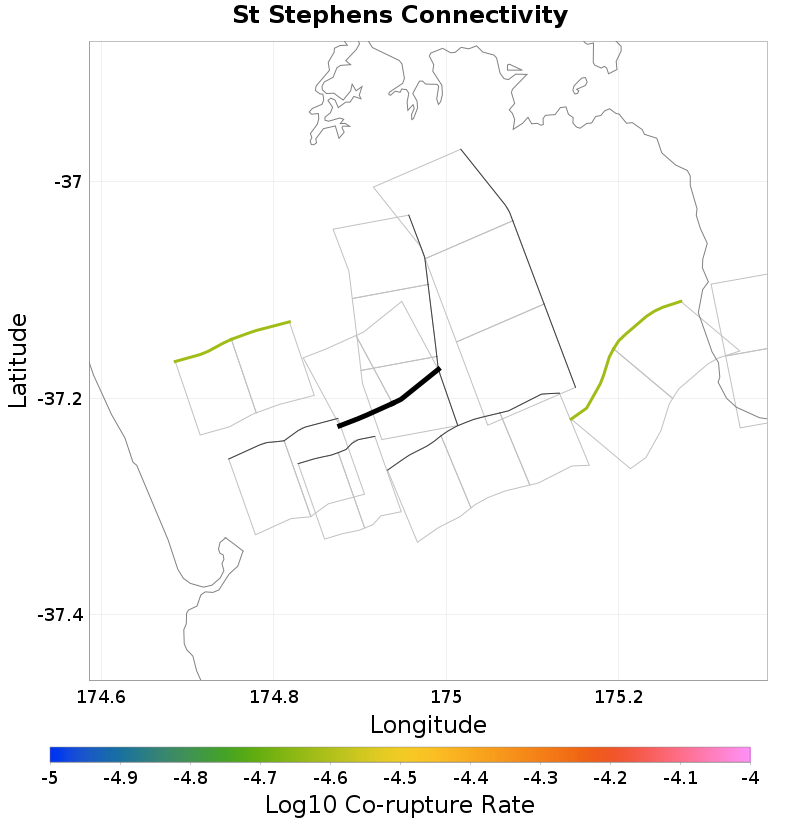

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Drury, 0.1 km away |
| Pukekohe, 0.13 km away |
| Glenbrook, 0.54 km away |
| Aka Aka, 2.04 km away |
| Wairoa North, 3.82 km away |
| Pokeno, 5.49 km away |
| Mangatangi, 14.57 km away |
Drury, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTMuMFJvQ3ha | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pukekohe, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTMuMFJvQ3ha | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Glenbrook, 0.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTMuMFJvQ3ha | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 2.3656392E-5 |
Aka Aka, 2.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTMuMFJvQ3ha | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairoa North, 3.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTMuMFJvQ3ha | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pokeno, 5.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTMuMFJvQ3ha | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mangatangi, 14.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTMuMFJvQ3ha | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 2.3656392E-5 |
