Cluden Details

PropertyValue
Rupture Count1,725
Ruptures Above Sect Min Mag1,723
Ruptures w/ Nonzero Rates151
Magnitude Range[6.84, 8.28]
Length Range[17, 373] km
Total Rate2.4239522E-5 /yr
Multi-Fault Rate2.422785E-5 /yr (99.95%)
Directly-Connected Faults5
All Co-Rupturing Faults47

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

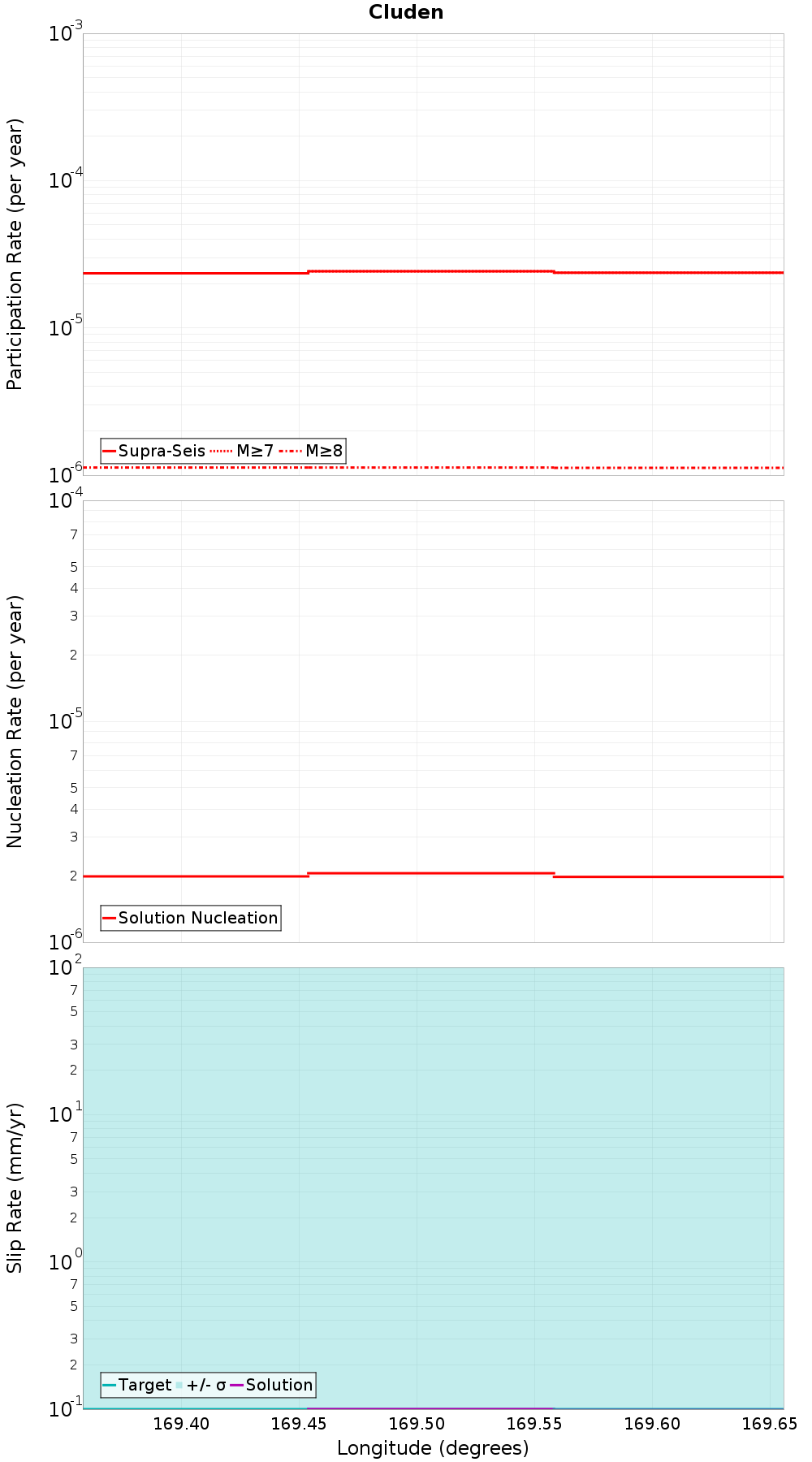

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

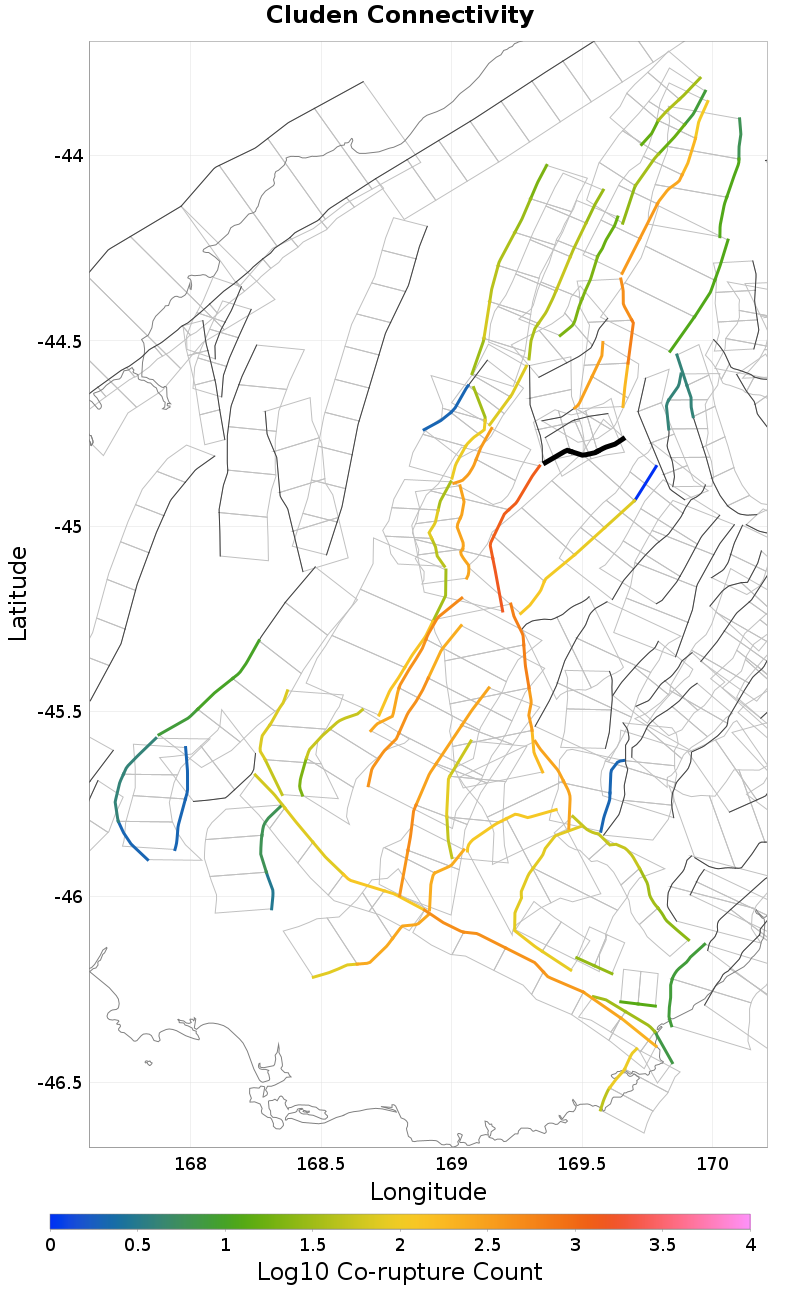

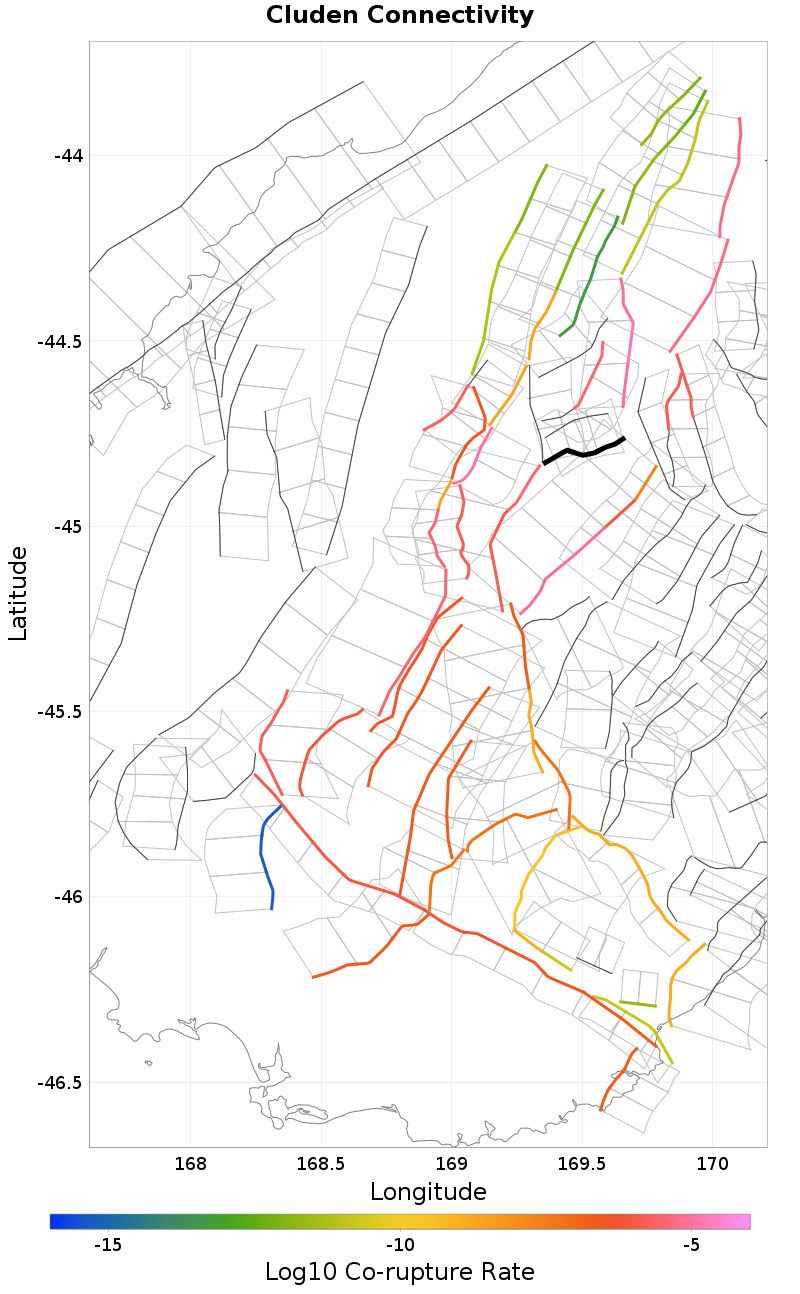

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lindis River, 0.14 km away
Grandview, 0.17 km away
Goodger, 0.21 km away
Dromedary, 1.29 km away
Pisa, 1.98 km away
Dunstan, 3.6 km away
Paddys Ridge, 5.99 km away
Blue Lake, 7.31 km away
Motatapu, 8.83 km away
Wanaka, 12.39 km away
Omarama Saddle, 13.48 km away

Lindis River, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTcuMHF0TE1x
Connected?true
Directly Connected?true
Co-rupture Count303
Co-rupture Rate3.3905012E-6

Grandview, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTcuMHF0TE1x
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Goodger, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTcuMHF0TE1x
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dromedary, 1.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTcuMHF0TE1x
Connected?true
Directly Connected?true
Co-rupture Count648
Co-rupture Rate1.4615068E-5

Pisa, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTcuMHF0TE1x
Connected?true
Directly Connected?true
Co-rupture Count1,490
Co-rupture Rate4.3158866E-6

Dunstan, 3.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTcuMHF0TE1x
Connected?true
Directly Connected?true
Co-rupture Count126
Co-rupture Rate7.232765E-6

Paddys Ridge, 5.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTcuMHF0TE1x
Connected?true
Directly Connected?true
Co-rupture Count356
Co-rupture Rate1.10352785E-5

Blue Lake, 7.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTcuMHF0TE1x
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motatapu, 8.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTcuMHF0TE1x
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate2.4212457E-6

Wanaka, 12.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTcuMHF0TE1x
Connected?true
Directly Connected?false
Co-rupture Count64
Co-rupture Rate5.9274708E-12

Omarama Saddle, 13.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NTcuMHF0TE1x
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate1.587286E-6
