Caswell High 1 Details
| Property | Value |
|---|---|
| Rupture Count | 885 |
| Ruptures Above Sect Min Mag | 857 |
| Ruptures w/ Nonzero Rates | 113 |
| Magnitude Range | [6.61, 8.56] |
| Length Range | [15, 967] km |
| Total Rate | 3.0546277E-4 /yr |
| Multi-Fault Rate | 3.0546277E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 29 |
Table Of Contents

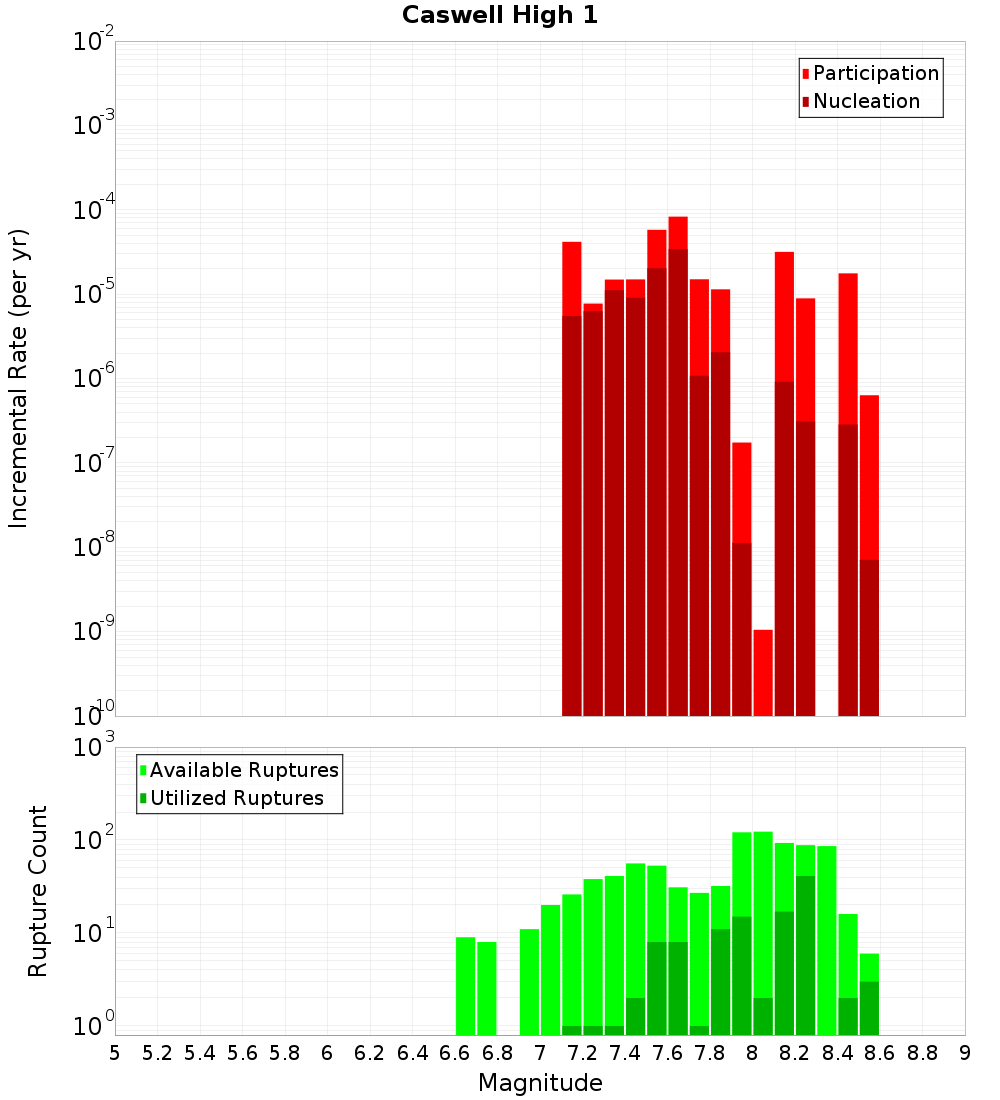

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

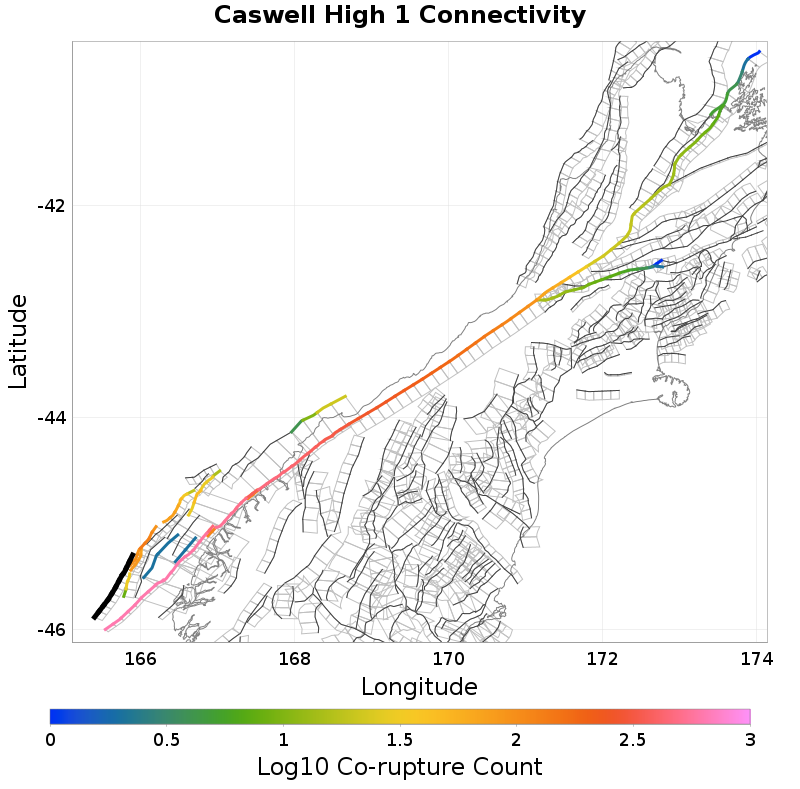

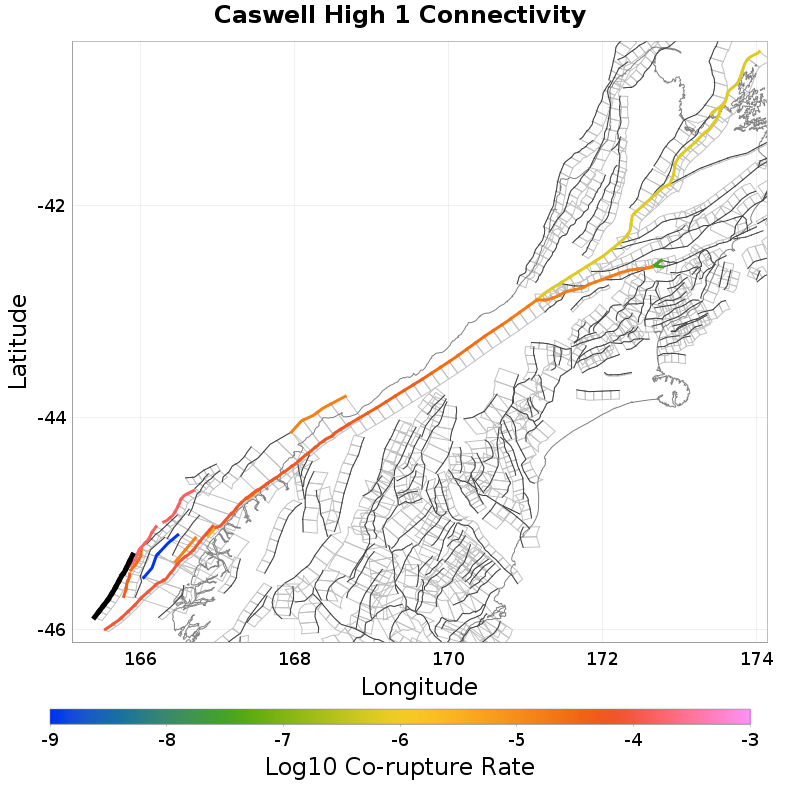

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Caswell High 4, 2.01 km away |
| Caswell High 3, 4.37 km away |
| Caswell 211, 4.71 km away |
| Alpine: Resolution - Five Fingers, 11.73 km away |
| South Wedge 5, 13.13 km away |
Caswell High 4, 2.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 158 |
| Co-rupture Rate | 2.200331E-4 |
Caswell High 3, 4.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 85 |
| Co-rupture Rate | 2.843575E-5 |
Caswell 211, 4.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 30 |
| Co-rupture Rate | 4.1701853E-5 |
Alpine: Resolution - Five Fingers, 11.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 644 |
| Co-rupture Rate | 8.542968E-5 |
South Wedge 5, 13.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
