Dry River - Huangarua: 3 Details

Property	Value
Rupture Count	354
Ruptures Above Sect Min Mag	349
Ruptures w/ Nonzero Rates	25
Magnitude Range	[6.29, 8.11]
Length Range	[7, 374] km
Total Rate	1.5517599E-4 /yr
Multi-Fault Rate	1.5517599E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	35

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

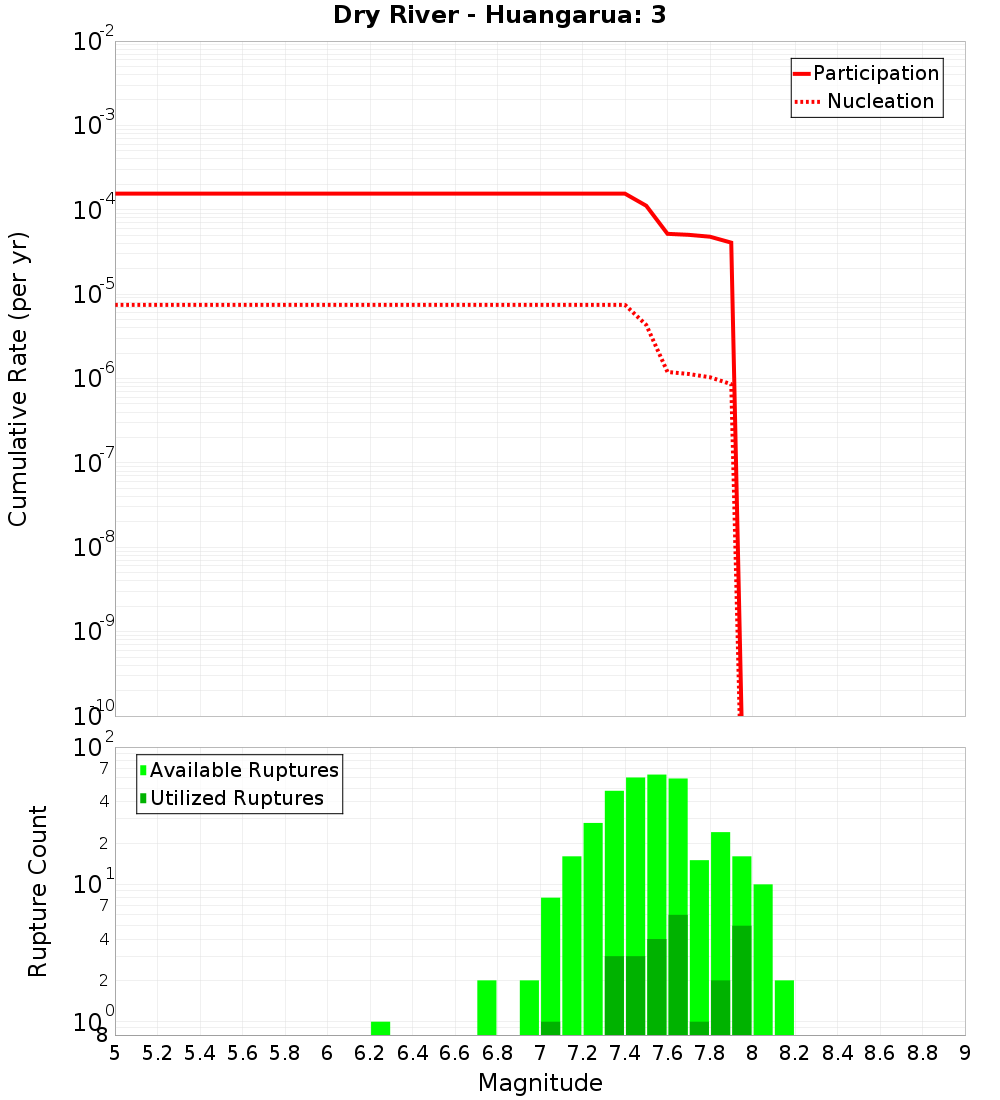

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

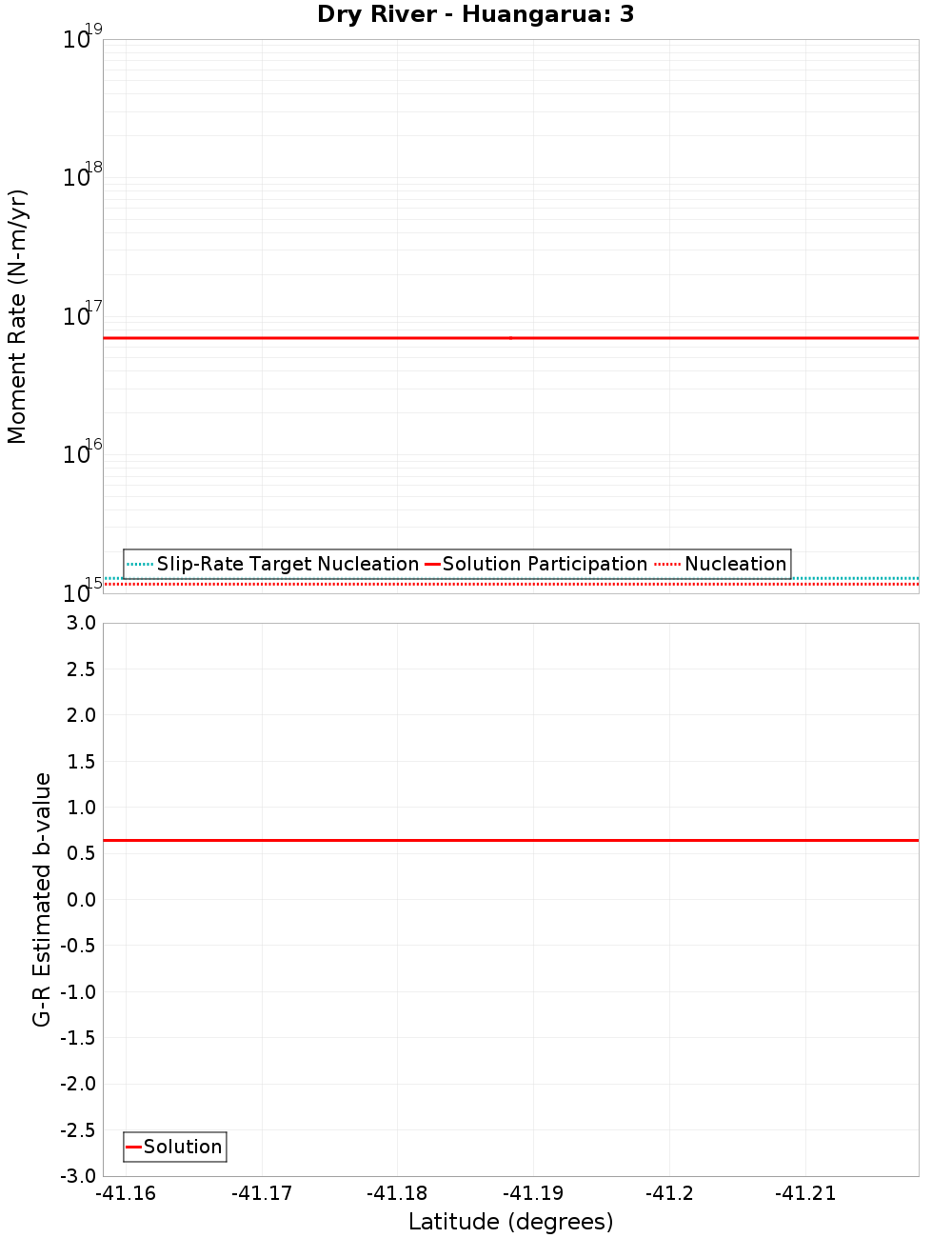

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Dry River - Huangarua: 2, 0 km away
Martinborough, 5.61 km away
Dry River - Huangarua: 1, 7.07 km away
Masterton, 8.05 km away
Bidwill, 8.48 km away
Carterton, 9.56 km away
Otaraia, 13.48 km away

Dry River - Huangarua: 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Martinborough, 5.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	0.0

Dry River - Huangarua: 1, 7.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	true
Directly Connected?	true
Co-rupture Count	267
Co-rupture Rate	5.1848077E-5

Masterton, 8.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Bidwill, 8.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	2.197779E-8

Carterton, 9.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	true
Directly Connected?	true
Co-rupture Count	291
Co-rupture Rate	1.0726537E-4

Otaraia, 13.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	0.0
