Kahurangi Details
| Property | Value |
|---|---|
| Rupture Count | 1,892 |
| Ruptures Above Sect Min Mag | 1,883 |
| Ruptures w/ Nonzero Rates | 137 |
| Magnitude Range | [6.86, 8.10] |
| Length Range | [21, 369] km |
| Total Rate | 7.890854E-5 /yr |
| Multi-Fault Rate | 6.258398E-5 /yr (79.31%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 19 |
Table Of Contents

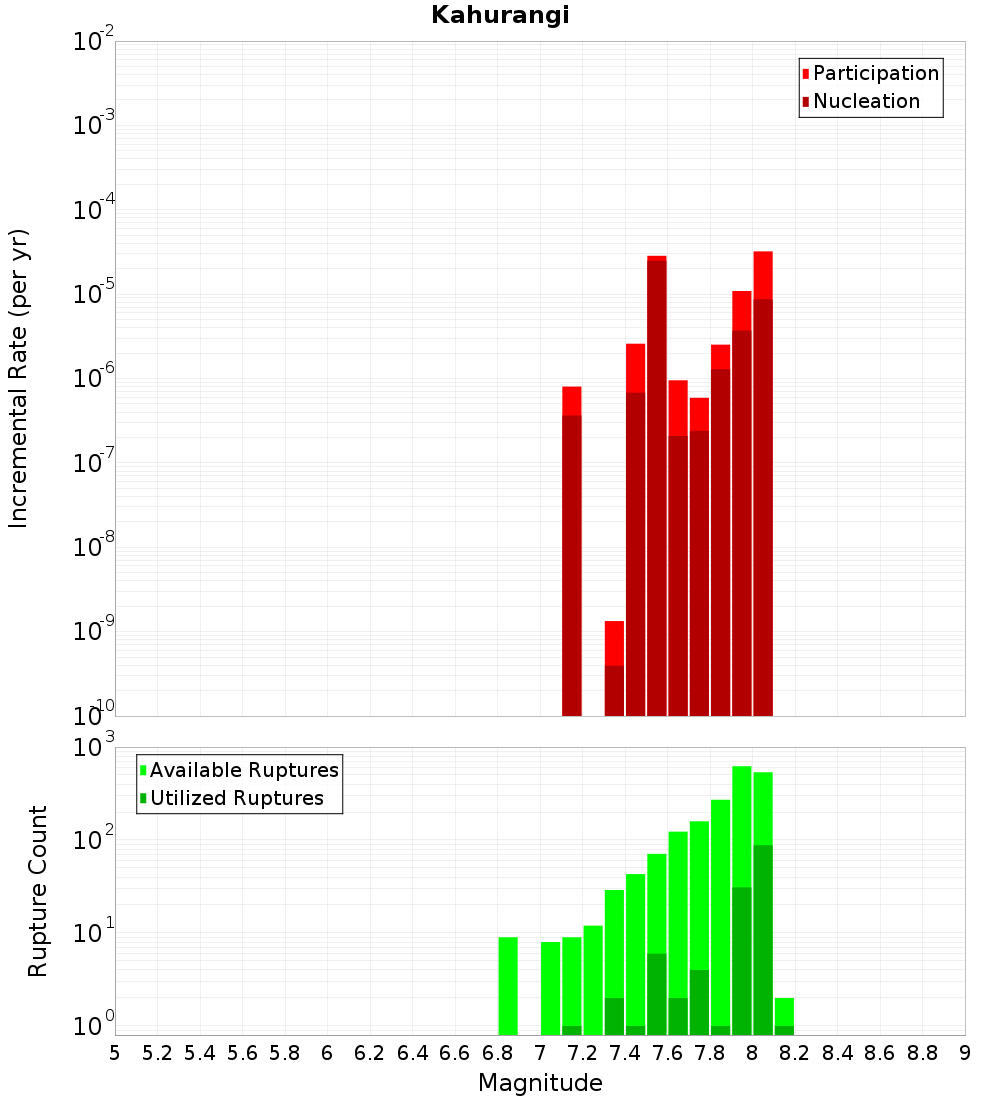

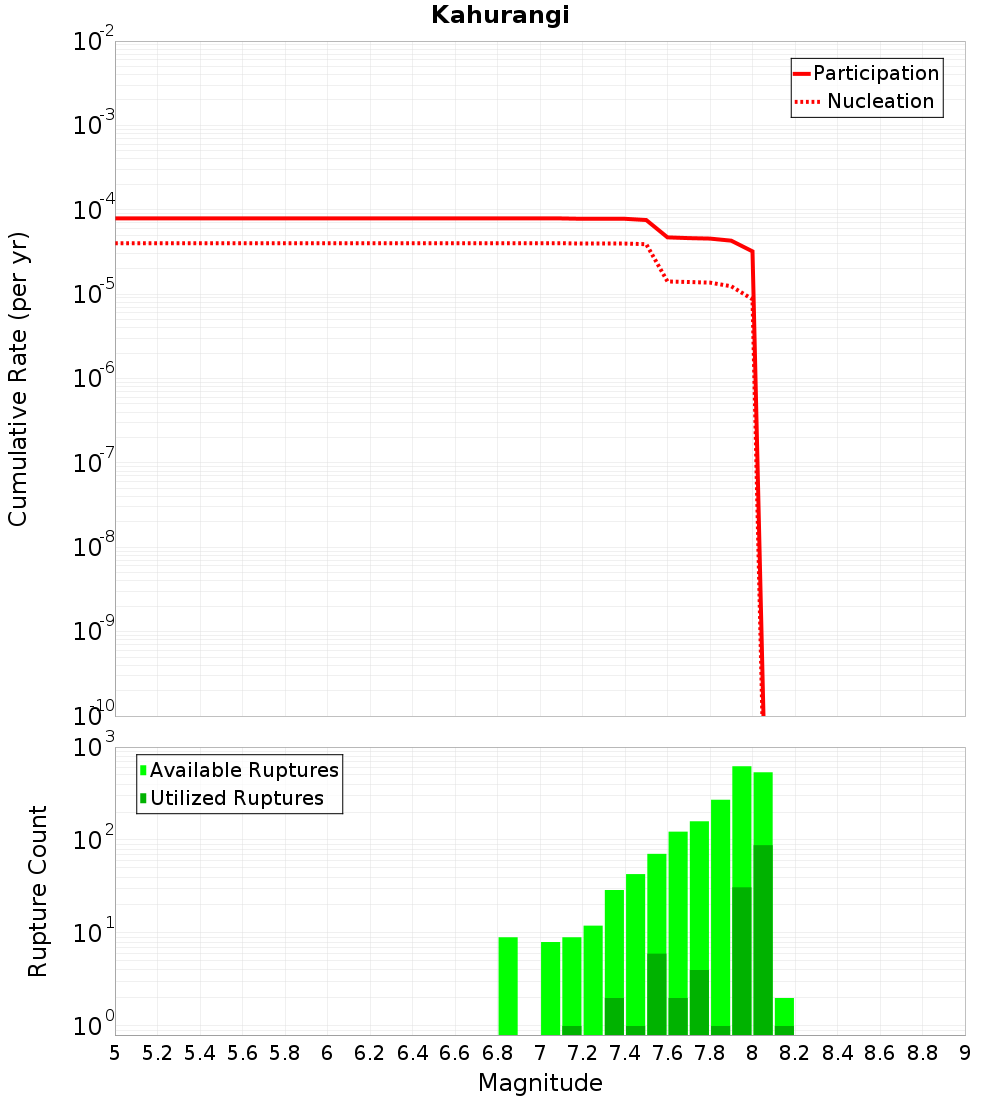

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Wakamarama, 0.07 km away |
| Farewell, 0.25 km away |
| Kongahau, 0.31 km away |
| Cape Foulwind 4, 0.46 km away |
| Kohaihai, 11.7 km away |
Wakamarama, 0.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 117 |
| Co-rupture Rate | 1.7785158E-6 |
Farewell, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 670 |
| Co-rupture Rate | 1.018194E-5 |
Kongahau, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 599 |
| Co-rupture Rate | 2.5593628E-5 |
Cape Foulwind 4, 0.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,233 |
| Co-rupture Rate | 3.264383E-5 |
Kohaihai, 11.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 108 |
| Co-rupture Rate | 3.5490157E-6 |
