Raggedy - Blackstone Details

Property	Value
Rupture Count	5,862
Ruptures Above Sect Min Mag	5,861
Ruptures w/ Nonzero Rates	307
Magnitude Range	[7.01, 8.45]
Length Range	[22, 702] km
Total Rate	3.5909015E-5 /yr
Multi-Fault Rate	3.5904435E-5 /yr (99.99%)
Directly-Connected Faults	7
All Co-Rupturing Faults	57

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

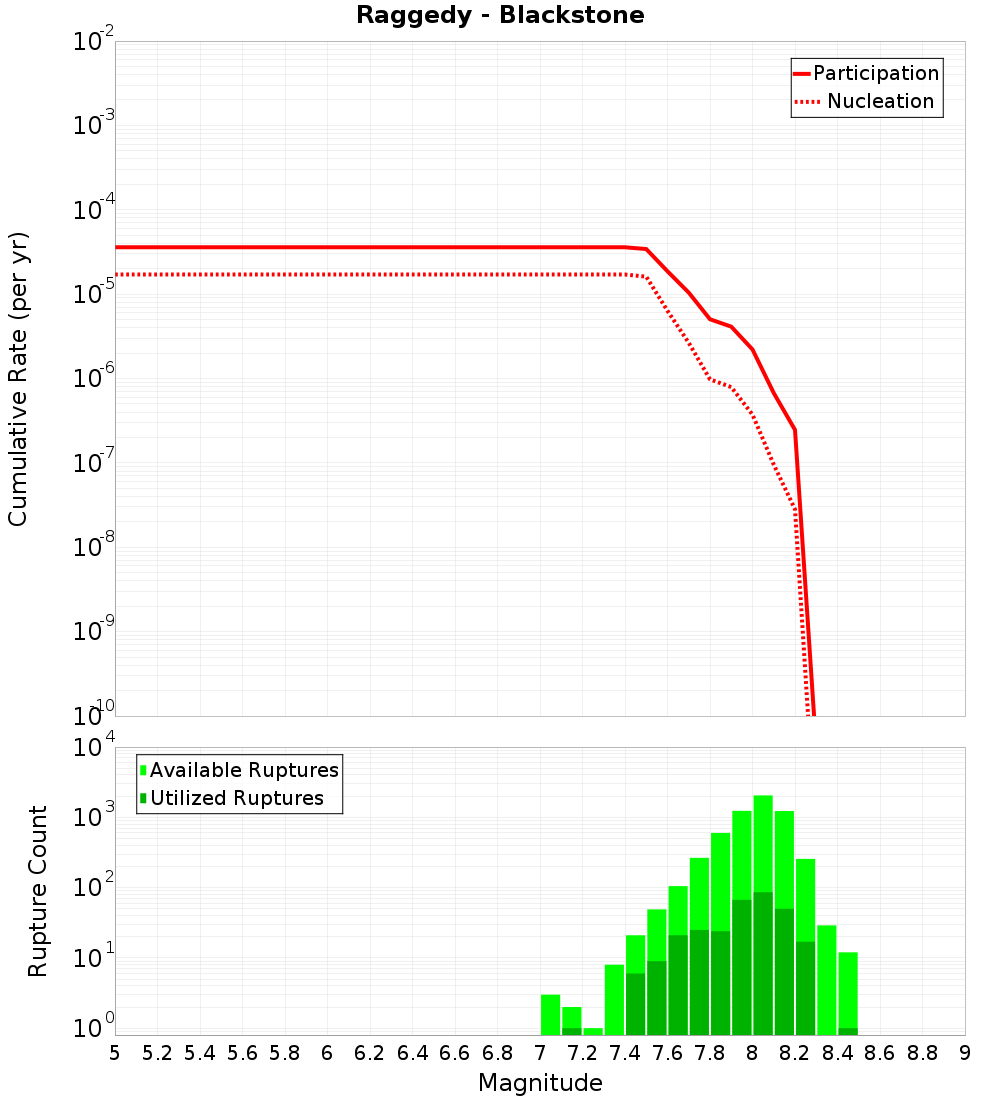

Magnitude-Frequency Distribution

Incremental	Cumulative

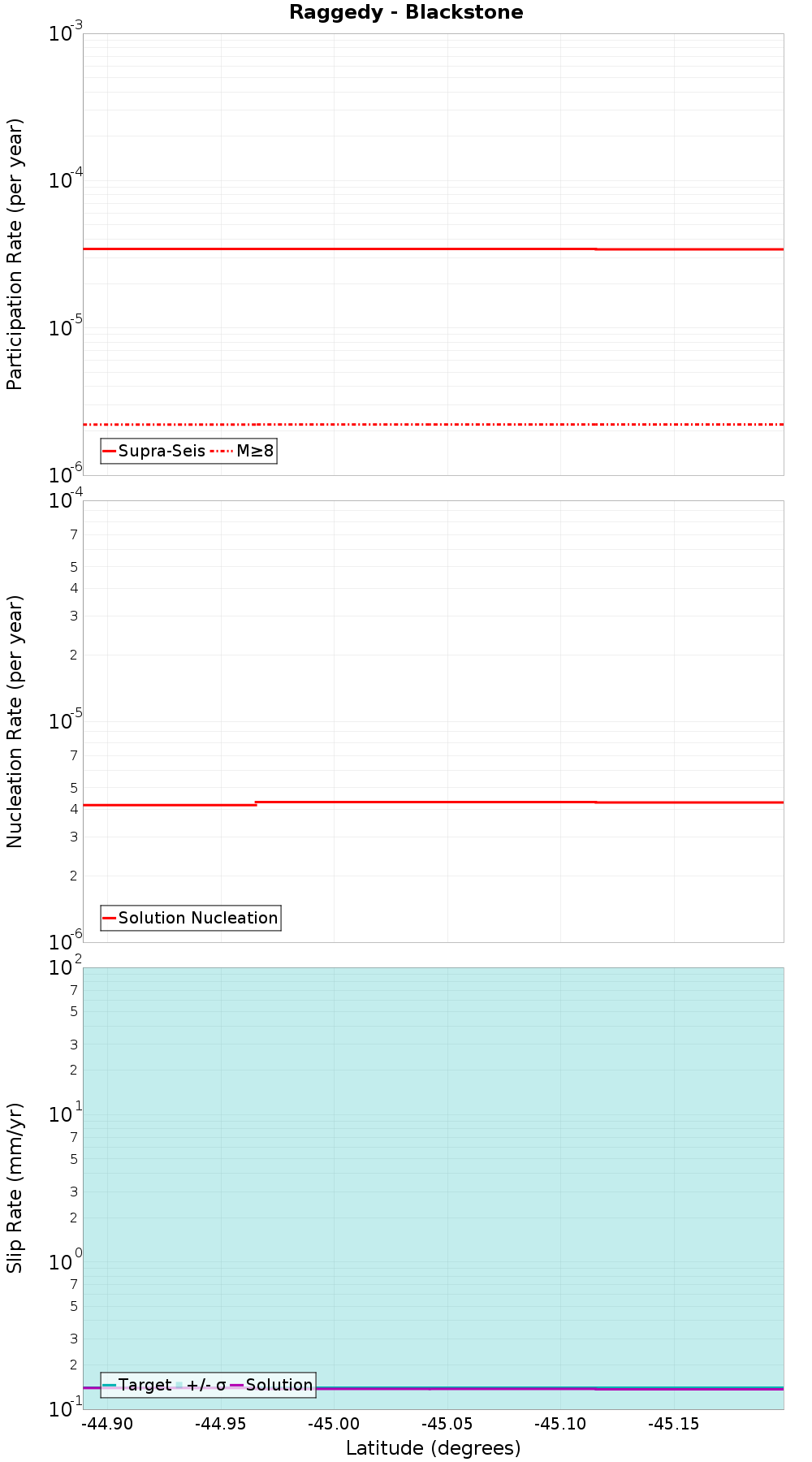

Along-Strike Values

Moment-Rates and b-Values

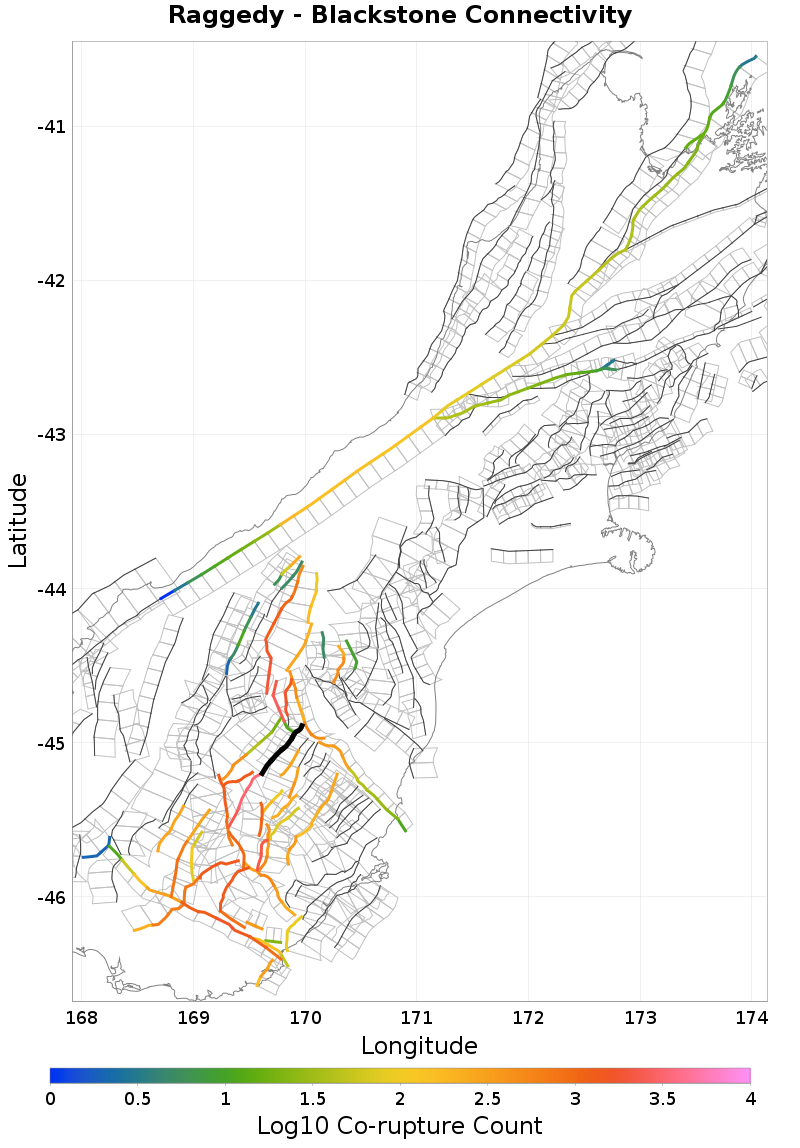

Connectivity

Nearby Sections

Fault Section
Blue Lake, 0.17 km away
Omarama Saddle, 0.26 km away
Little Valley, 1.45 km away
Hawkdun, 2.51 km away
Goodger, 4.77 km away
Galloway, 4.8 km away
Garibaldi, 6.01 km away
Dunstan, 9.93 km away
Gimmerburn, 10.19 km away
Lindis River, 12.11 km away
Grandview, 14.9 km away

Blue Lake, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	true
Directly Connected?	true
Co-rupture Count	2,604
Co-rupture Rate	8.118314E-6

Omarama Saddle, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	true
Directly Connected?	true
Co-rupture Count	1,697
Co-rupture Rate	5.875085E-6

Little Valley, 1.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	true
Directly Connected?	true
Co-rupture Count	3,331
Co-rupture Rate	6.4866454E-6

Hawkdun, 2.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	true
Directly Connected?	true
Co-rupture Count	889
Co-rupture Rate	6.3236957E-6

Goodger, 4.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Galloway, 4.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	true
Directly Connected?	true
Co-rupture Count	1,345
Co-rupture Rate	6.0866387E-6

Garibaldi, 6.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	true
Directly Connected?	true
Co-rupture Count	290
Co-rupture Rate	3.1060174E-10

Dunstan, 9.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	true
Directly Connected?	true
Co-rupture Count	447
Co-rupture Rate	1.9131241E-5

Gimmerburn, 10.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	true
Directly Connected?	false
Co-rupture Count	410
Co-rupture Rate	2.0839207E-6

Lindis River, 12.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Grandview, 14.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjAuMFFEdnlT
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
